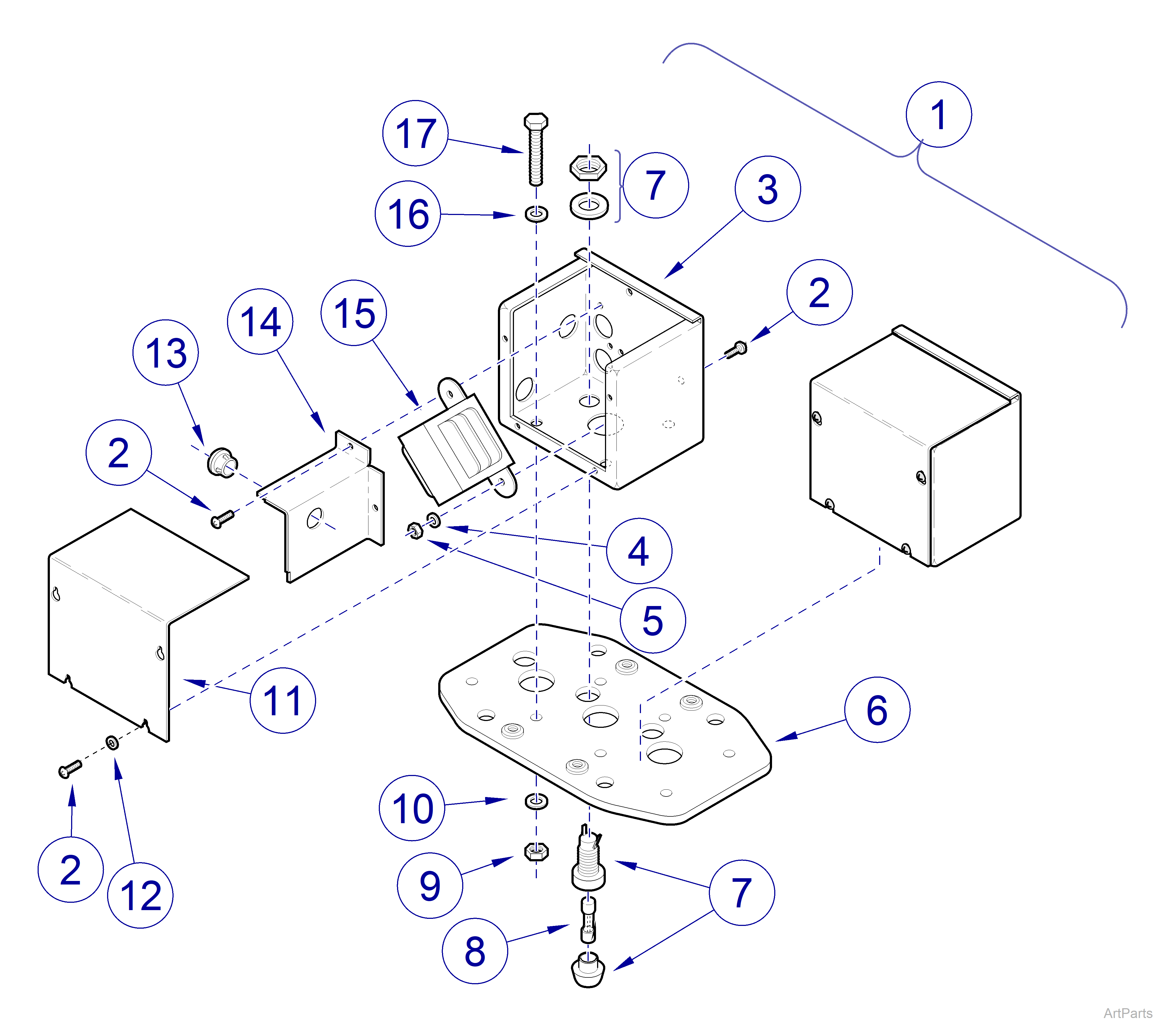

354 Light, 355 Light, 354 and 355 Combination Lighting System Ceiling Plate, Double / Combo Lights
Serial Number Range: All prefixes: KN, KP, KS, KT, LY, LZ, MA,
MB, MD, and ME
|
Model |
354 | 355 | 354 / 355 Combo |
| Serial Number | All prefixes: KN, KP, KS, KT, LY, LZ, MA, MB, MD, and ME | All prefixes: KN, KP, KS, KT, LY, LZ, MA, MB, MD, and ME | All prefixes: KN, KP, KS, KT, LY, LZ, MA, MB, MD, and ME |
| 354 Light, 355 Light, 354 and 355 Combination Lighting System Ceiling Plate, Double / Combo Lights | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Ceiling Plate, Double Options - Includes items 2 thru 17 |
||
|
029-1949-01 |
354, Double Light 120V - 20V |
NLA | |
|
029-1949-02 |
354 / 355 Combo Light, 120V - 12V / 20V | NLA | |
|
2 |
040-0010-18 | Screw | 18 |
|
3 |
050-3599-00 |
Junction Box | NLA |
|
4 |
045-0001-00 | Lockwasher | 4 |
|
5 |
041-0010-00 | Nut | 4 |
|
6 |
030-1024-00 |
Plate Weldment | NLA |
|
7 |
Fuse Holder Assembly Options - Includes washer and nut | ||
|
015-0969-00 |
120V models | NLA | |
| 015-1059-00 | 220V models | 2 | |
|
8 |
Fuse Options | ||
| 015-0346-08 |
120V models Specs: 3 amp, 250V, 3 AG, Slo-Blo |
2 | |
| 015-0346-25 |
220V models Specs: 0.8 amp, 250V, Time Lag |
2 | |
|
9 |
041-0375-01 | Nut, Torque: 20 ft-lbs / 27 N•M | 6 |
|
10 |
045-0001-09 | Lockwasher | 6 |
|
11 |
050-3591-00 |
Cover | NLA |
|
12 |
045-0001-31 | Lockwasher | 4 |
|
13 |
053-0068-01 | Snap Bushing | 2 |
|
14 |
050-3595-00 |
Junction Box Divider | NLA |
|
15 |
002-0606-00 | Transformer Kit 354, 120V - 20V | 2 |
|
16 |
045-0001-49 | Washer | 6 |
|
17 |
040-0375-62 | Screw | 6 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

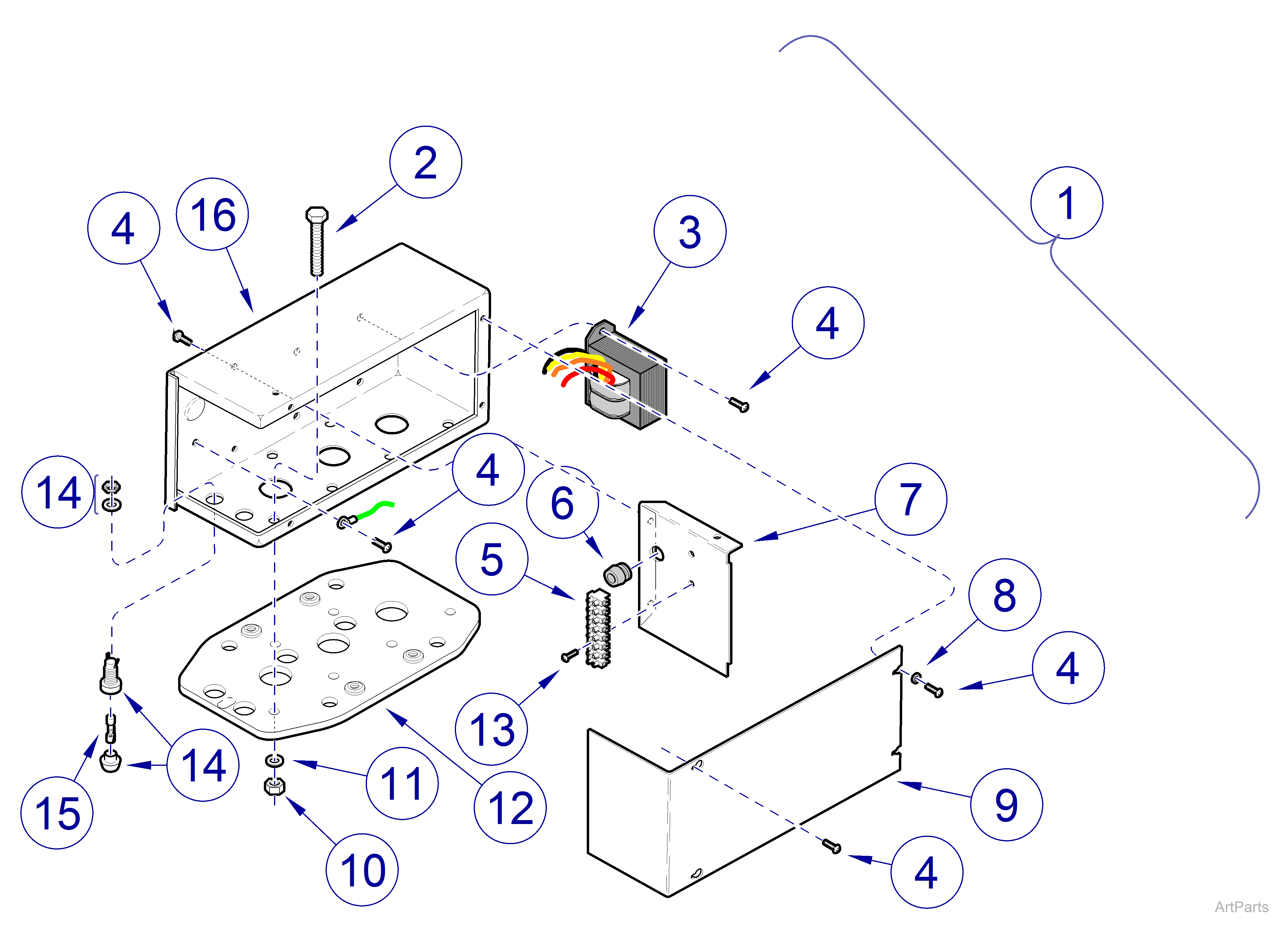

Serial Number Range: All prefixes: MS, MT, MX, MZ and V2200 thru present
|
Model |
354 | 355 | 354 / 355 Combo |
| Serial Number | All prefixes: MS, MT, MX, MZ and V2200 thru present | All prefixes: MS, MT, MX, MZ and V2200 thru present | All prefixes: MS, MT, MX, MZ and V2200 thru present |
| 354 Light, 355 Light, 354 and 355 Combination Lighting System Ceiling Plate, Double / Combo Lights | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Ceiling Plate, Double Options - Includes 2 thru 16 | ||
|
029-2385-00 |
354, Double Light 120V - 20V |
NLA |
|
| 029-2385-01 | 355, Double Light 120V - 24V | 1 | |
| 029-2385-03 | 355, Double Light 230V - 24V | 1 | |
|
029-2385-02 |
354 / 355, Combo Light 120V - 20V / 24V |
NLA |
|
|
2 |
040-0375-62 | Screw | 6 |
|
3 |
Transformer Kit Options | ||
| 002-0606-00 | 354, 120V - 20V | 2 | |
| 002-0642-00 | 355, 120V - 24V | 2 | |
| 015-1377-00 | 355, 230V - 24V | 2 | |
|
4 |
040-0010-18 | Screw | 12 |
|
5 |
015-1373-01 | Terminal Block | 1 |
|
6 |
053-0068-07 | Snap Bushing | 1 |
|
7 |
050-4588-00 | Junction Box Divider | 1 |
|
8 |
045-0001-31 | Lockwasher | 2 |
|
9 |
050-4587-00 | Junction Box Cover | 1 |
|
10 |
041-0375-01 | Nut, Torque: 20 ft-lbs / 27 N•M | 6 |
|
11 |
045-0001-09 | Lockwasher | 6 |
|
12 |
030-1225-00 | Plate Weldment | 1 |
|
13 |
040-0006-81 | Screw | 2 |
|
14 |
015-1259-01 | Fuse Holder Assembly - Includes washer and nut | 2 |
|
15 |
Fuse Options | ||
| 015-0346-29 |
354 and 355, 120V Specs: 1.6 amp, 250V |
2 | |
| 015-0346-25 |
355, 230V Specs: 0.8 amp, 250V |
2 | |
|
16 |
050-4586-00 | Junction Box | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
