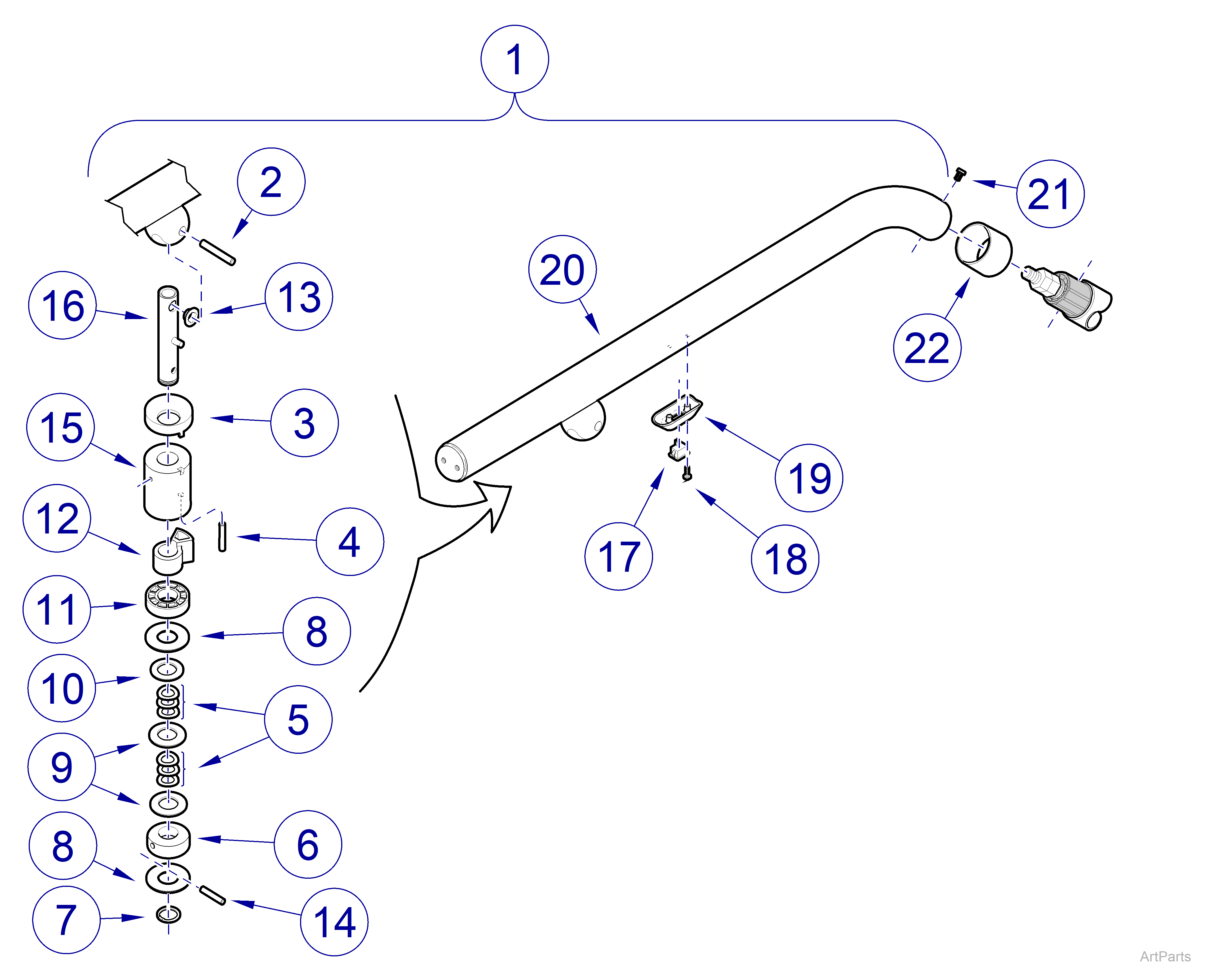

354 Light and 355 Light, Mobile Cross Tube / Bearing Assembly
Serial Number Range: All prefixes - KR, MC, MP, MR, MV,
V2200 thru V592192
|
Model |
354 | 355 |
| Serial Number | All prefixes - KR, MC, MP, MR, MV, V2200 thru V592192 | All prefixes - KR, MC, MP, MR, MV, V2200 thru V592192 |
If entire assembly is needed, then replace with new style kit #002-1725-00.
| 354 Light and 355 Light, Mobile Cross Tube / Bearing Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0617-00 |
Cross Tube / Bearing Assembly - Includes Items 2 thru 20 | NLA |
|
2 |
042-0157-03 | Groove Pin | 1 |
|
3 |
053-0798-00 | Ball Pivot Brake | 1 |
|
4 |
042-0157-00 | Groove Pin | 1 |
|
5 |
045-0001-110 | Wave Washer | 6 |
|
6 |
057-0414-00 | Ball Pivot Cam | 1 |
|
7 |
042-0101-05 | Retaining Ring | 1 |
|
8 |
045-0001-111 | Washer | 2 |
|
9 |
045-0001-112 | Washer | 2 |
|
10 |
016-1662-00 | DP Thrust Washer | 1 |
|
11 |
053-0800-00 | Ball Pivot Bearing | 1 |
|
12 |
002-0562-00 | Ball Pivot Stop Kit - Includes Items 13 and 14 | 1 |
|
13 |
016-1570-03 | DP Flange Bearing | 2 |
|
14 |
042-0157-01 | Groove Pin | 1 |
|
15 |
057-0766-00 | Ball Pivot Housing | 1 |
|
16 |
030-1074-00 | Ball Pivot Shaft Weldment | 1 |
|
17 |
015-1086-00 | Switch | 1 |
|
18 |
040-0006-80 | Screw | 2 |
|
19 |
053-0812-00 | Switch Bezel | 1 |
|
20 |
030-1768-00-337 |
Cross Tube Weldment | NLA |
|
21 |
040-0010-109 | Screw | 2 |
|
22 |
053-0802-00 | Common Pivot Sleeve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

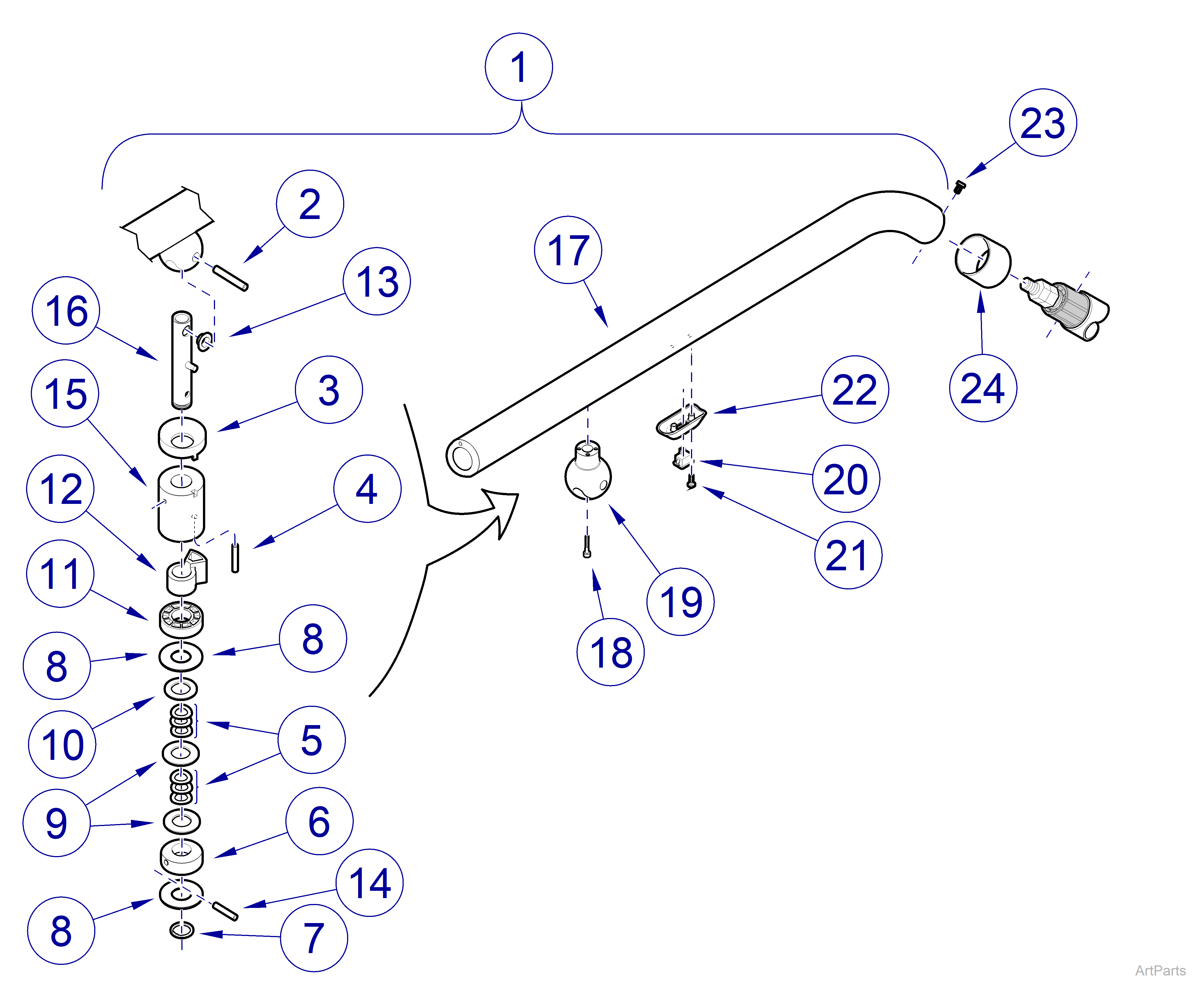

Serial Number Range: V592193 thru V1445725
|
Model |
354 | 355 |
| Serial Number | V592193 thru V1445725 | V592193 thru V1445725 |
If entire assembly is needed, then replace with new style kit #002-1725-00.
| 354 Light and 355 Light, Mobile Cross Tube / Bearing Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0617-00 |
Cross Tube / Bearing Assembly - Includes Items 2 thru 22 | NLA |
|
2 |
042-0157-03 | Groove Pin | 1 |
|
3 |
053-0798-00 | Ball Pivot Brake | 1 |
|
4 |
042-0157-00 | Groove Pin | 1 |
|
5 |
045-0001-110 | Wave Washer | 6 |
|
6 |
057-0414-00 | Ball Pivot Cam | 1 |
|
7 |
042-0101-05 | Retaining Ring | 1 |
|
8 |
045-0001-111 | Washer | 2 |
|
9 |
045-0001-112 | Washer | 2 |
|
10 |
016-1662-00 | DP Thrust Washer | 1 |
|
11 |
053-0800-00 | Ball Pivot Bearing | 1 |
|
12 |
002-0562-00 | Ball Pivot Stop Kit - Includes items 13 and 14 | 1 |
|
13 |
016-1570-03 | DP Flange Bearing | 2 |
|
14 |
042-0157-01 | Groove Pin | 1 |
|
15 |
057-0766-00 | Ball Pivot Housing | 1 |
|
16 |
030-1074-00 | Ball Pivot Shaft Weldment | 1 |
|
17 |
030-1768-00-337 |
Cross Tube Weldment | NLA |
|
18 |
040-0008-00 |
Screw - Apply thread locking adhesive #042-0025-02 |
NLA |
|
19 |
057-1052-00 | Ball Pivot | 1 |
|
20 |
015-1086-00 | Switch | 1 |
|
21 |
040-0006-80 | Screw | 2 |
|
22 |
053-0812-00 | Switch Bezel | 1 |
|
23 |
040-0010-109 | Screw | 2 |
|
24 |
053-0802-00 | Common Pivot Sleeve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1445726 thru V1572126
|
Model |
354 | 355 |
| Serial Number | V1445726 thru V1572126 | V1445726 thru V1572126 |
| 354 Light and 355 Light, Mobile Cross Tube / Bearing Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1691-00 | Cross Tube / Bearing Assembly - Includes Items 2 thru 22 | 1 |
|
2 |
042-0157-03 | Groove Pin | 1 |
|
3 |
053-0798-00 | Ball Pivot Brake | 1 |
|
4 |
042-0157-00 | Groove Pin | 1 |
|
5 |
045-0001-110 | Wave Washer | 6 |
|
6 |
057-0414-00 | Ball Pivot Cam | 1 |
|
7 |
042-0101-05 | Retaining Ring | 1 |
|
8 |
045-0001-111 | Washer | 2 |
|
9 |
045-0001-112 | Washer | 2 |
|
10 |
016-1662-00 | DP Thrust Washer | 1 |
|
11 |
053-0800-00 | Ball Pivot Bearing | 1 |
|
12 |
002-0562-00 | Ball Pivot Stop Kit - Includes Items 13 and 14 | 1 |
|
13 |
016-1570-03 | DP Flange Bearing | 2 |
|
14 |
042-0157-01 | Groove Pin | 1 |
|
15 |
057-0766-00 | Ball Pivot Housing | 1 |
|
16 |
030-1074-00 | Ball Pivot Shaft Weldment | 1 |
|
17 |
030-2157-00-337 | Cross Tube Weldment | 1 |
|
18 |
040-0008-00 |
Screw - Apply thread locking adhesive #042-0025-02 |
NLA |
|
19 |
057-1052-00 | Ball Pivot | 1 |
|
20 |
015-1086-00 | Switch | 1 |
|
21 |
040-0006-80 | Screw | 2 |
|
22 |
053-0812-00 | Switch Bezel | 1 |
|
23 |
040-0010-109 | Screw | 2 |
|
24 |
053-0802-00 | Common Pivot Sleeve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1572127 thru Present
|
Model |
354 | 355 |
| Serial Number | V1572127 thru Present | V1572127 thru Present |
| 354 Light and 355 Light, Mobile Cross Tube / Bearing Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-1691-00 | Cross Tube / Bearing Assembly - Includes Items 2 thru 22 | 1 |
|
2 |
042-0157-03 | Groove Pin | 1 |
|
3 |
053-0798-00 | Ball Pivot Brake | 1 |
|
4 |
042-0157-00 | Groove Pin | 1 |
|
5 |
045-0001-110 | Wave Washer | 6 |
|
6 |
057-0414-00 | Ball Pivot Cam | 1 |
|
7 |
042-0101-05 | Retaining Ring | 1 |
|
8 |
045-0001-111 | Washer | 2 |
|
9 |
045-0001-112 | Washer | 2 |
|
10 |
016-1662-00 | DP Thrust Washer | 1 |
|
11 |
053-0800-00 | Ball Pivot Bearing | 1 |
|
12 |
002-0562-00 | Ball Pivot Stop Kit - Includes Items 13 and 14 | 1 |
|
13 |
016-1570-03 | DP Flange Bearing | 2 |
|
14 |
042-0157-01 | Groove Pin | 1 |
|
15 |
057-0766-00 | Ball Pivot Housing | 1 |
|
16 |
030-1074-00 | Ball Pivot Shaft Weldment | 1 |
|
17 |
030-2157-00-337 | Cross Tube Weldment | 1 |
|
18 |
040-0008-00 |
Screw - Apply thread locking adhesive #042-0025-02 |
NLA |
|
19 |
057-1052-00 | Ball Pivot | 1 |
|
20 |
015-1086-00 | Switch | 1 |
|
21 |
040-0006-80 | Screw | 2 |
|
22 |
053-0812-00 | Switch Bezel | 1 |
|
23 |
040-0010-109 | Screw | 2 |
|
24 |
053-0802-00 | Common Pivot Sleeve | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
