354 Light and 355 Light, Mobile Transformer / Housing, 220V Models
Serial Number Range: All prefixes - HG
|
Model |
355 -006 |
| Serial Number | All prefixes - HG |
002-2026-00 mounting hardware kit for base casting includes Items 4, 5 and 6. If light was made on January 12, 2016 or before, then order Item 3 in addition to the 002-2026-00 kit.
| 354 Light and 355 Light, Mobile Transformer / Housing, 220V Models | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
030-1101-00 |
Housing | NLA |
|
2 |
9A152xxx | Power Cord: 230V models Refer to: 9A152 | 1 |
|
3 |
Bottom Plate | 1 | |
|
4 |
053-2663-01 | Base Insert | 1 |
|
5 |
Spacer Disk | 1 | |
|
6 |
041-0500-02 | Lock Nut 1/2” - 20, Torque: 35-45 in-lbs / 47.5-61 N•M | 1 |
|
7 |
040-0250-147 | Screw | 4 |
|
8 |
045-0001-04 | Lockwasher | 2 |
|
9 |
045-0001-31 | Lockwasher | 1 |
|
10 |
040-0010-47 | Screw | 4 |
|
11 |
015-0017-00 | Cable Tie | 1 |
|
12 |
045-0001-00 | Washer | 3 |
|
13 |
015-1135-00 |
Transformer: 355, 230V - 12V | NLA |
|
14 |
015-0346-25 | Fuse - 0.8 amp | 1 |
|
15 |
015-1153-00 | AC Inlet, 2-pole, snap-in | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: All prefixes - MP, MR, V
|
Model |
355 -024 / -037 |
| Serial Number | All prefixes - MP, MR, V |
002-2026-00 mounting hardware kit for base casting includes Items 4, 5 and 6. If light was made on January 12, 2016 or before, then order Item 3 in addition to the 002-2026-00 kit.

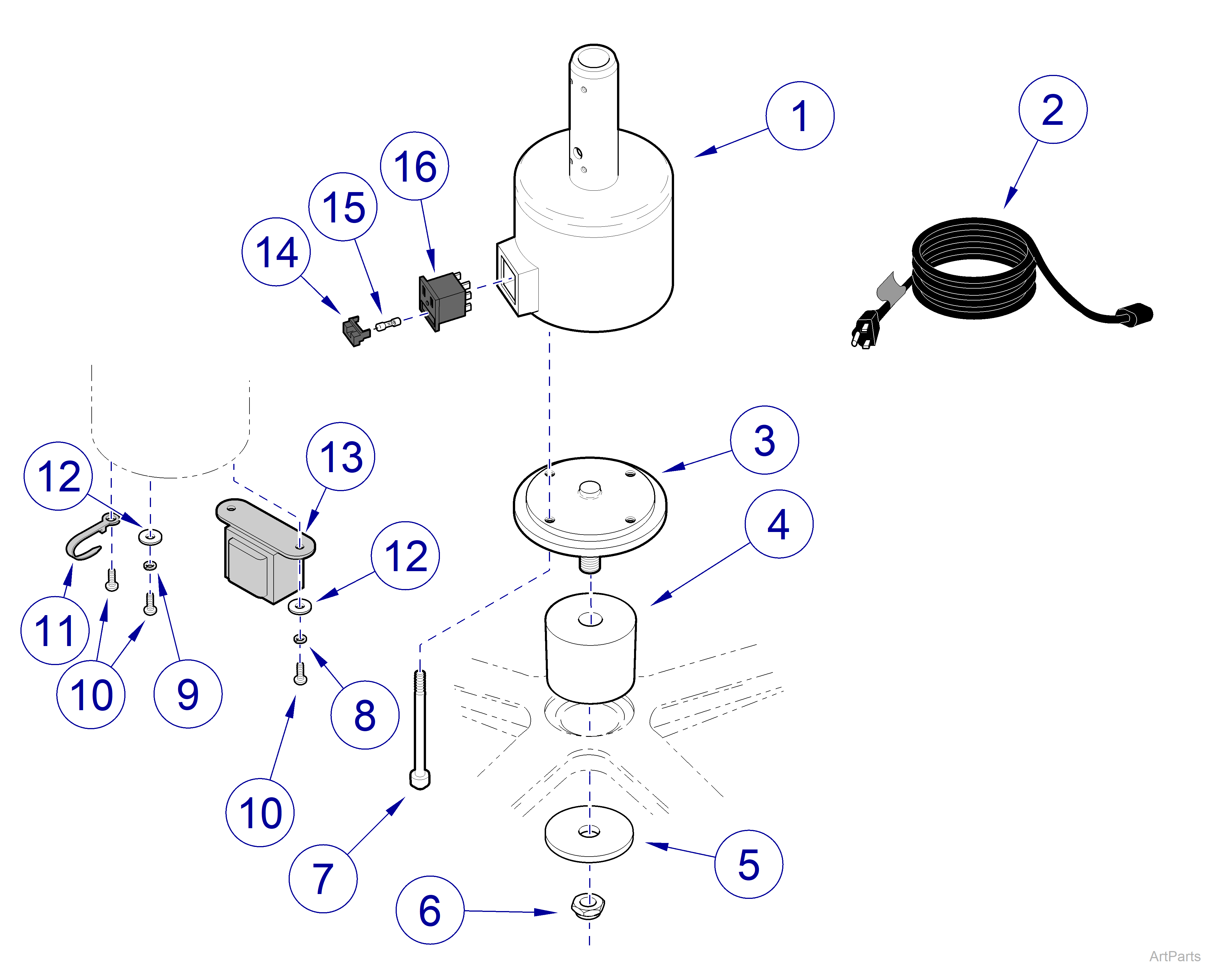

| 354 Light and 355 Light, Mobile Transformer / Housing, 220V Models | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
030-1239-00 | Housing | 1 |
|
2 |
9A152xxx | Power Cord: 230V models Refer to: 9A152 | 1 |
|
3 |
Bottom Plate | 1 | |
|
4 |
053-2663-01 | Base Insert | 1 |
|
5 |
Spacer Disk | 1 | |
|
6 |
041-0500-02 | Lock Nut 1/2” - 20, Torque: 35-45 in-lbs / 47.5-61 N•M | 1 |
|
7 |
040-0250-147 | Screw | 4 |
|
8 |
045-0001-04 | Lockwasher | 2 |
|
9 |
045-0001-31 | Lockwasher | 1 |
|
10 |
040-0010-47 | Screw | 4 |
|
11 |
015-0017-00 | Cable Tie | 1 |
|
12 |
045-0001-00 | Washer | 3 |
|
13 |
015-1377-00 | Transformer: 355, 230V - 12V | 1 |
|
14 |
015-1162-00 | Fuse Drawer | 1 |
|
15 |
015-0346-25 | Fuse - 0.8 amp | 1 |
|
16 |
015-1153-00 | AC Inlet, 2-pole, snap-in | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
