355 Light, Mobile Wiring Diagram

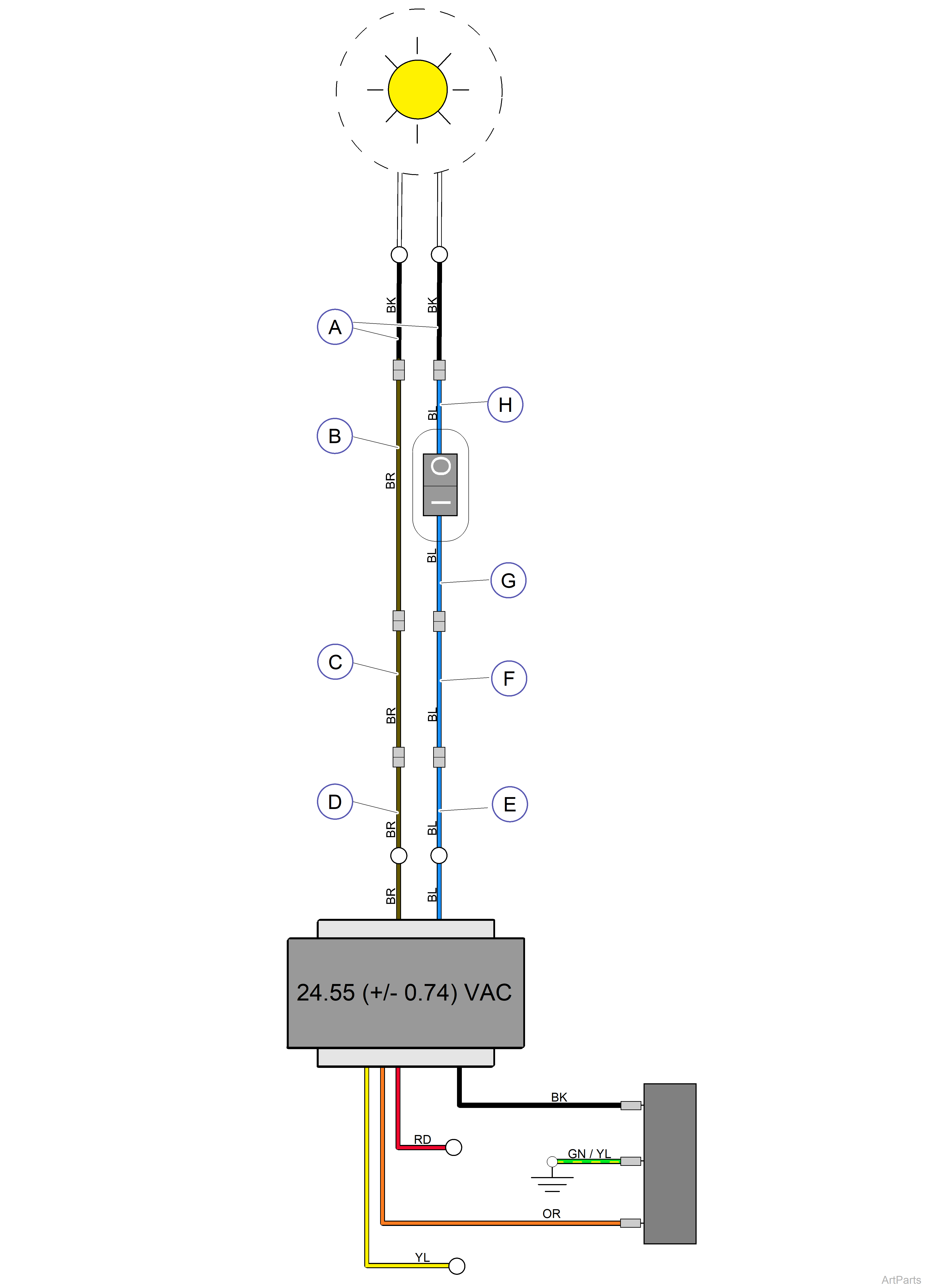

120V
|
Model |
355 -022 / -023 |
| Serial Number | All |
*Attention: Measure the input voltage. Connect the proper power lead to the transformer terminal based on the input voltage reading.
| Input Voltage | Power Lead |
|---|---|
| < 117.0 VAC | Yellow |
| 117.1 to 123.0 VAC | Orange |
| > 123.1 VAC | Red |
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-04 | Black Wire |
|
B |
015-0708-14 |
Brown Wire |
|
C |
015-0708-15 | Brown Wire |
|
D |
015-0708-19 | Brown Wire |
|
E |
015-0708-20 | Blue Wire |
|
F |
015-0708-16 | Blue Wire |
|
G |
015-0708-13 | Blue Wire |
|
H |
015-0708-12 | Blue Wire |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

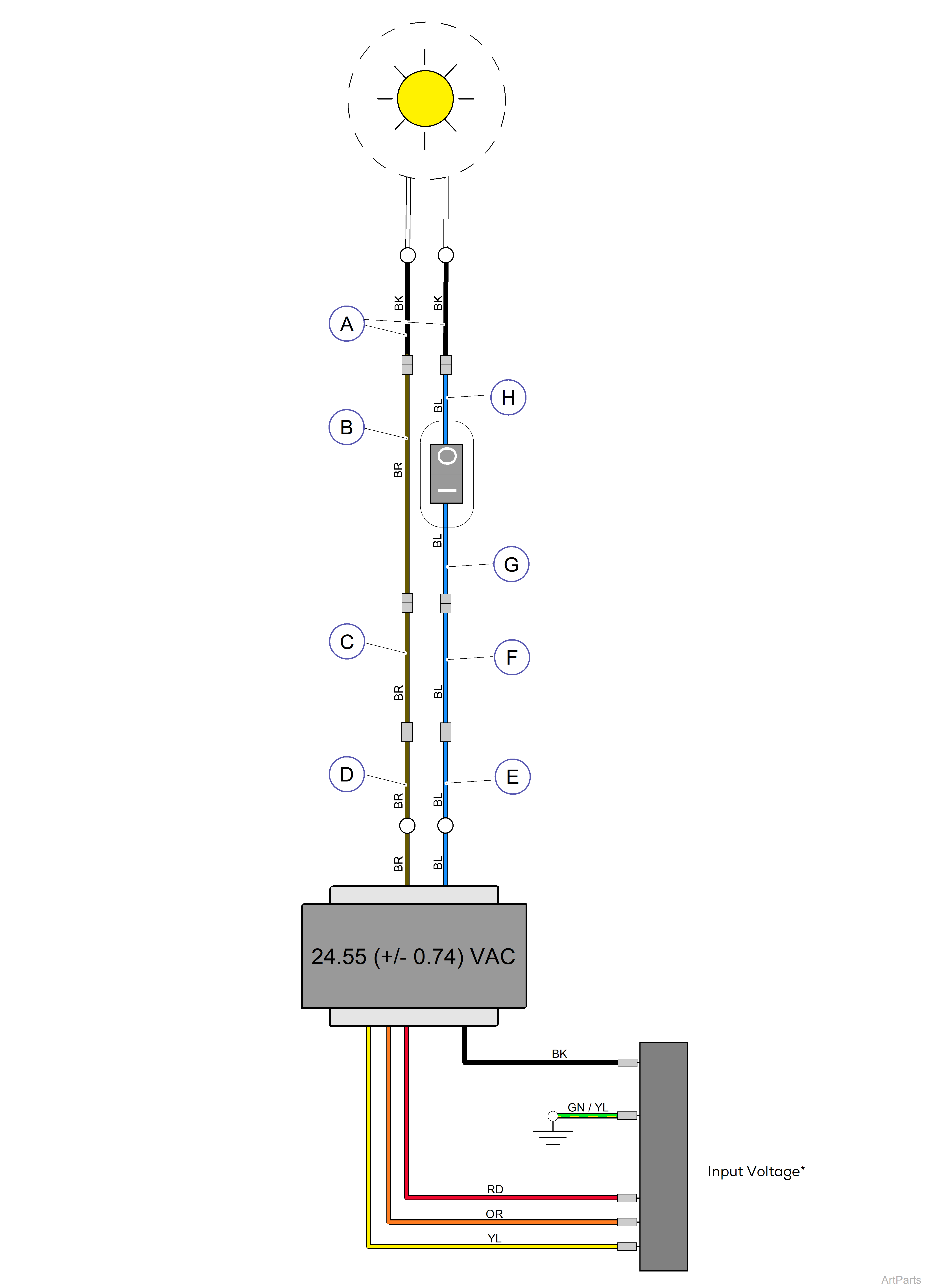

220V
|
Model |
355 -024 / -037 |
| Serial Number | All |
*Attention: Measure the input voltage. If the voltage showing in the fuse holder window does not match the measurement, refer to the installation guide or user manual for adjustment procedure.
| Item | Part Number | Description |
|---|---|---|
|
A |
015-0737-04 | Black Wire |
|
B |
015-0708-14 |
Brown Wire |
|
C |
015-0708-15 | Brown Wire |
|
D |
015-0708-19 | Brown Wire |
|
E |
015-0708-20 | Blue Wire |
|
F |
015-0708-16 | Blue Wire |
|
G |
015-0708-13 | Blue Wire |
|
H |
015-0708-12 | Blue Wire |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
