355 Light Fuse Test and Repair

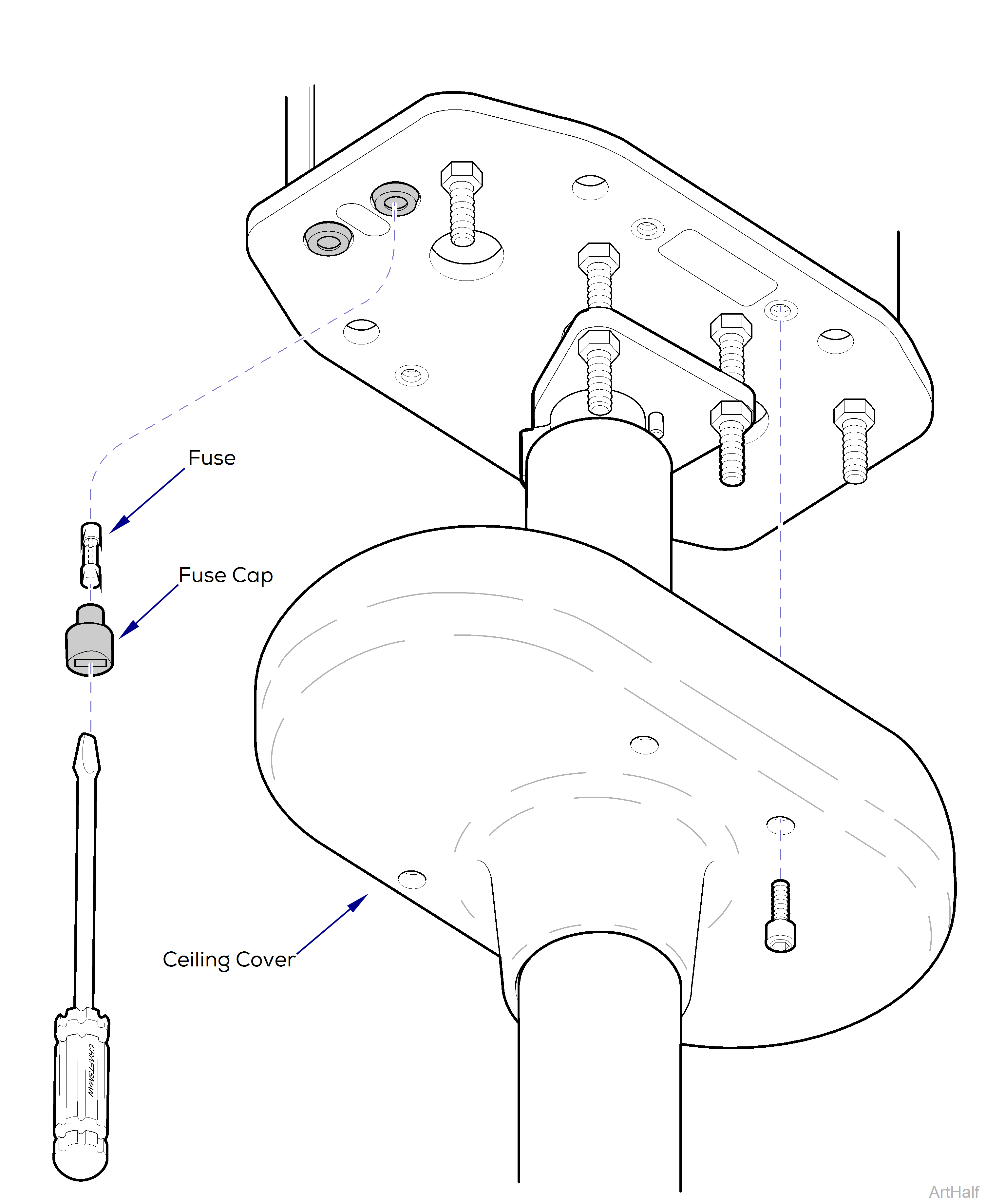

Ceiling Mounted Lights
There are two fuses on this light. After removing the fuse, inspect it to determine whether it is faulty.
To Replace Fuses
1.Turn light switch to STANDBY
.
2.Remove four screws, then lower ceiling cover.
3.Using a flat-bladed screwdriver, rotate fuse cap counter-clockwise 1/4 turn, while pushing upward.
4.Pull fuse out of fuse cap to inspect.
5.Insert fuse into fuse cap.
6.Using a flat-bladed screwdriver, rotate fuse cap clockwise 1/4 turn, while pushing into fuse socket.
7.Install ceiling cover.
Wall Mounted Lights
There are two fuses on this light. After removing the fuse, inspect it to determine whether it is faulty.
To Replace Fuses
1.Turn light switch to STANDBY .
2.Remove bracket cover.
3.Using a flat-bladed screwdriver, rotate fuse cap counter-clockwise 1/4 turn, while pushing upward.
4.Pull fuse out of fuse cap.
5.Insert fuse into fuse cap.
6.Using a flat-bladed screwdriver, rotate fuse cap clockwise 1/4 turn, while pushing into fuse socket.
7.Install bracket cover.

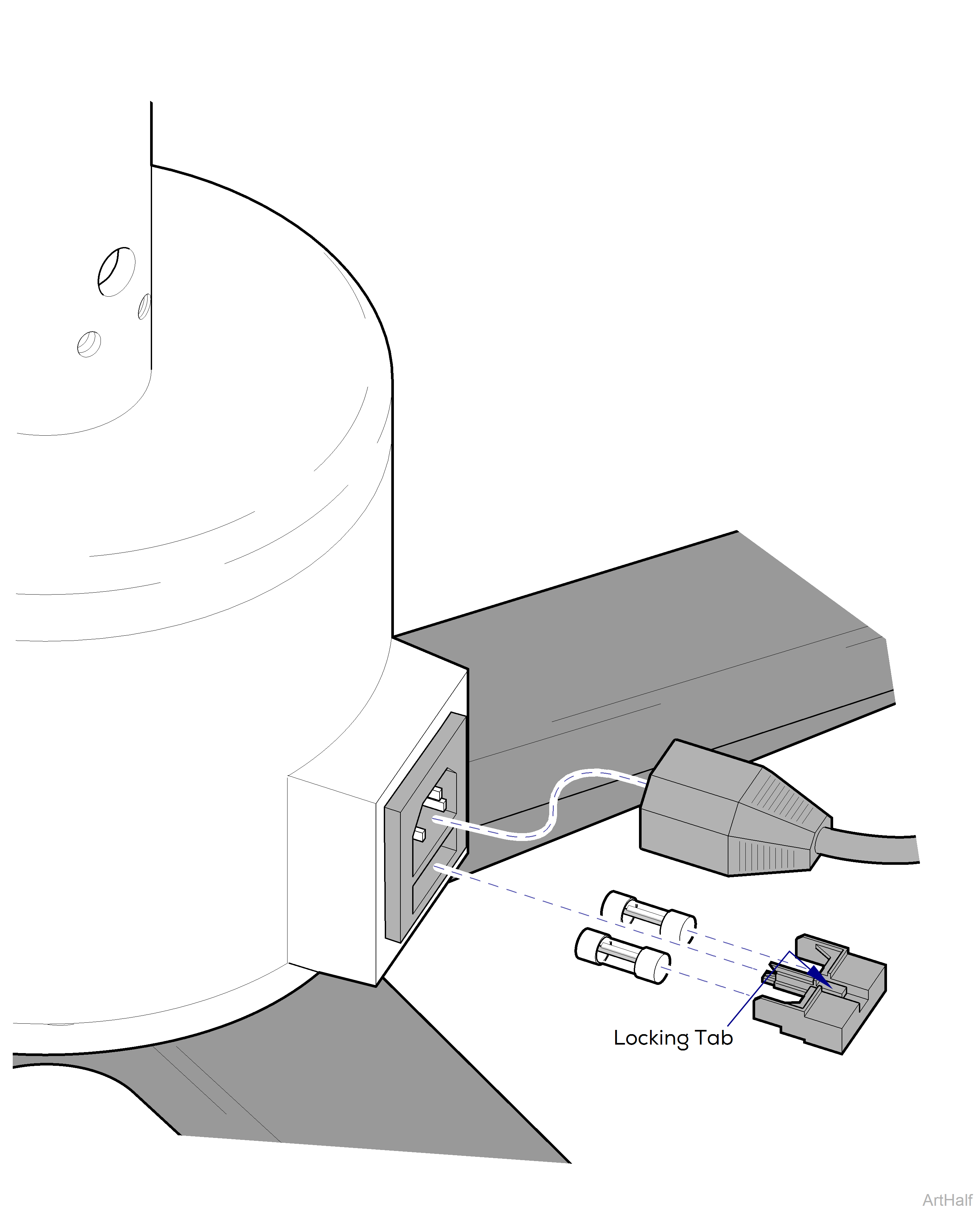

Mobile Lights, 120V Models
To Replace Fuses
1.Turn light switch to STANDBY .
2.Disconnect power cord from light.
3.Using a flat-bladed screwdriver, push in on locking tab, then pull fuse drawer out.
4.Pull fuses out of fuse drawer to inspect.
5.Insert fuses into fuse drawer.
6.Insert fuse drawer into AC inlet. Push in until you hear a clicking sound.
7.Connect power cord.

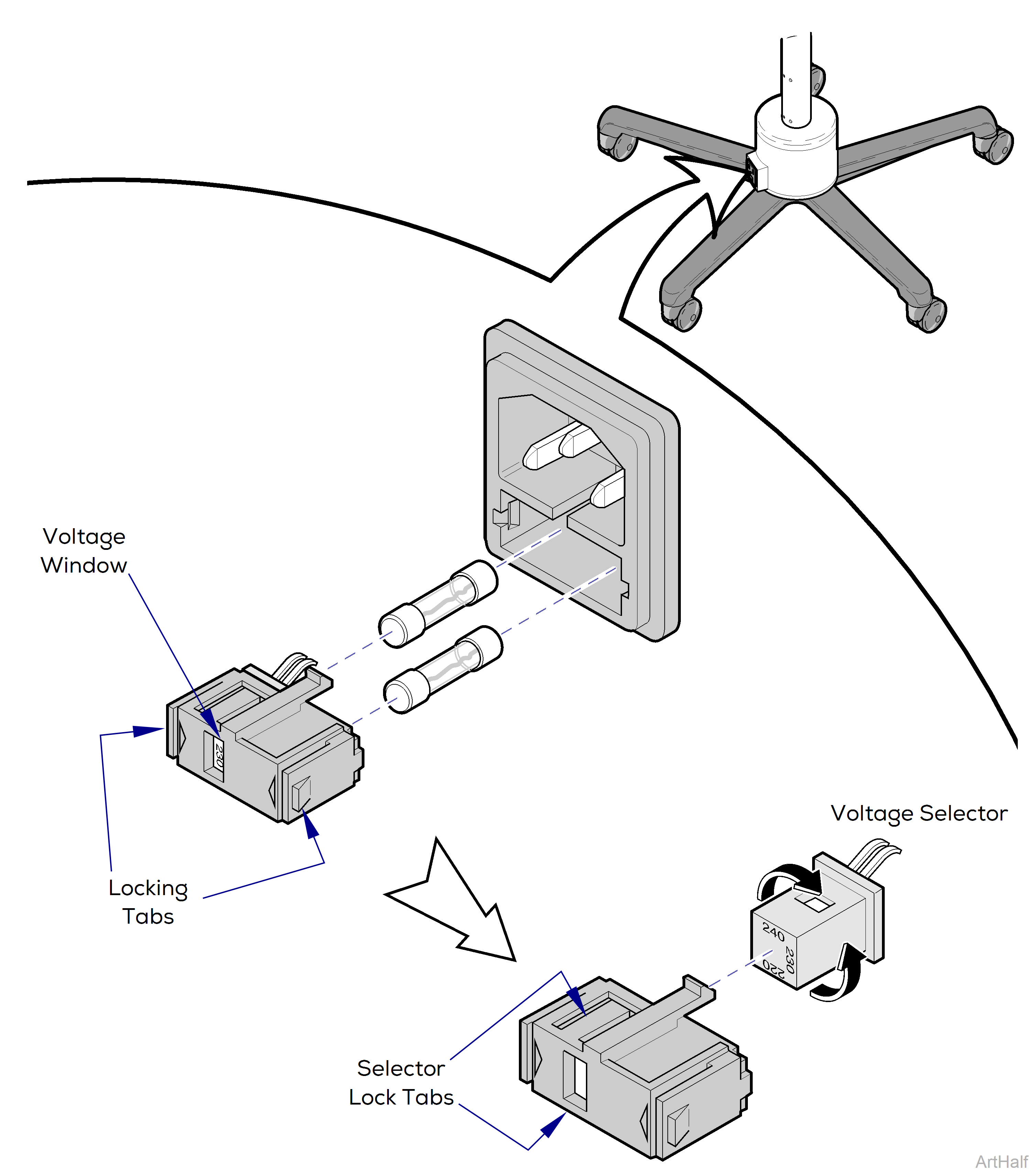

Mobile Lights, 230V Models
The voltage setting that appears in the window of the fuse drawer, must match the facility voltage. To adjust the voltage setting, refer to Electrical Input Setting procedure.
To Replace Fuses
1.Turn light switch to STANDBY .
2.Disconnect power cord from light.
3.Using a flat-bladed screwdriver, push in on two locking tabs, then pull fuse drawer out.
4.Pull fuses out of fuse drawer to inspect.
5.Insert fuses into fuse drawer.
6.Insert fuse drawer into AC inlet. Push in until you hear a clicking sound.
7.Connect power cord.
To Adjust Electrical Input Setting
Locking tabs are fragile. Pull gently to prevent damage.
1.Pull out on two selector lock tabs, then pull voltage selector out of fuse drawer.
2.Rotate voltage selector until the correct setting aligns with the voltage window.
3.Insert voltage selector into fuse drawer.
