Midmark® Dental Lights Ceiling Mount / Fixed Arm Assembly, Ceiling Cover / Suspension Tubes 153905
Serial Number Range: V2200 thru V1467258
|
Model |
153905 |
| Serial Number | V2200 thru V1467258 |
| Suspension Tube Identification Chart | ||
|---|---|---|
| Ceiling Height | Downtube Length | Part Number |
| 244–249 cm (96–98 in) | 25 cm (10) in | 153651-001 |
|
251–259 cm (99–102 in) |
36 cm (14 in) | 153651-002 |
| 262–269 cm (103–106 in) | 46 cm (18 in) | 153651-003 |
| 272–279 cm (107–110 in) | 56 cm (22 in) | 153651-004 |
| 282–290 cm (111–114 in) | 66 cm (26 in) | 153651-015 |
| 292–300 cm (115–118 in) | 76 cm (30 in) | 153651-016 |
| 302–310 cm (119–122 in) | 86 cm (34 in) | 153651-017 |
| 312–318 cm (123–125 in) | 97 cm (38 in) | 153651-018 |
| 323–330 cm (127–130 in) | 107 cm (42 in) | 153651-019 |
| > 330 cm (> 130 in) | 117 cm (46 in) | 153651-020 |

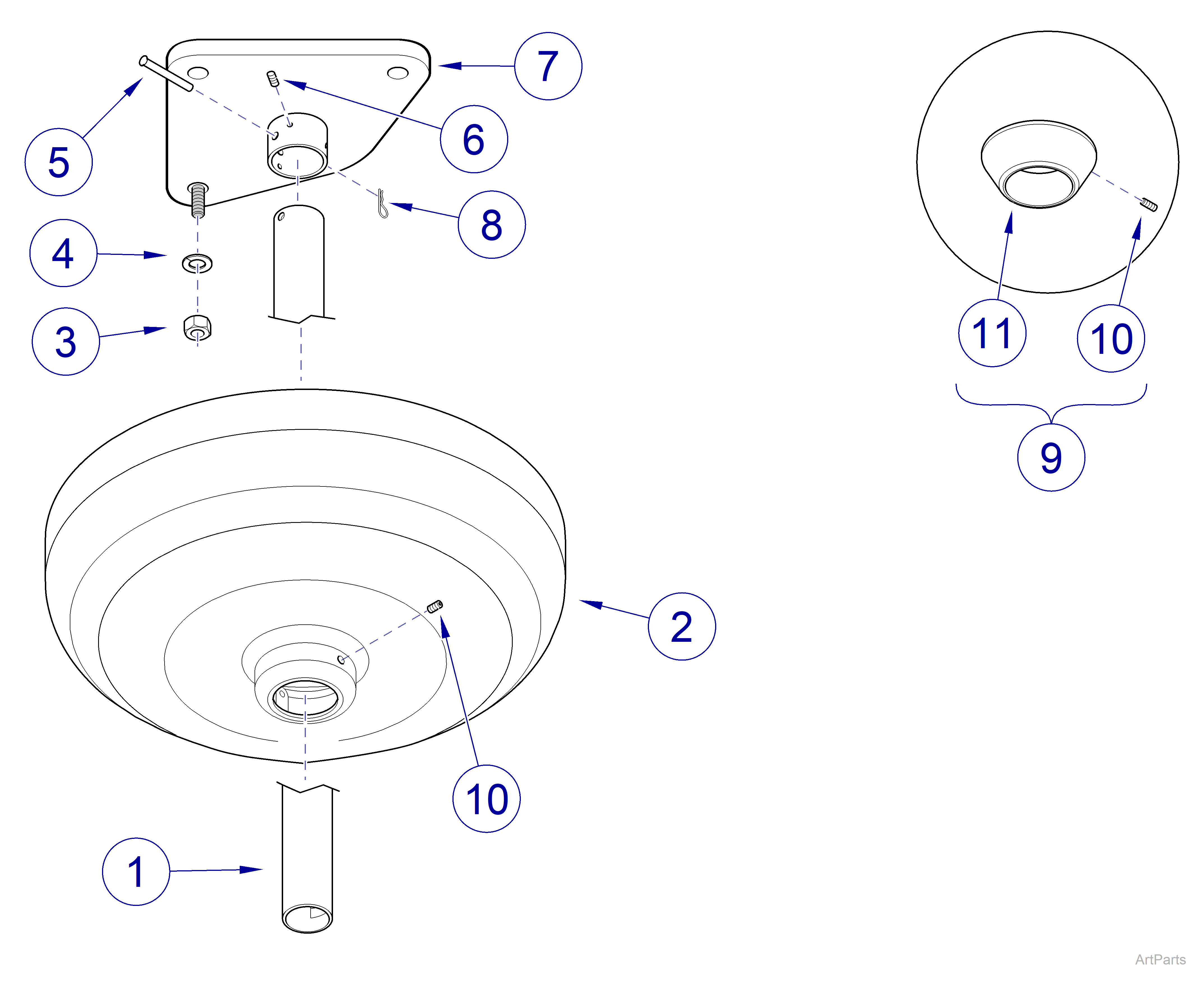

| Midmark® Dental Lights Ceiling Mount / Fixed Arm Assembly, Ceiling Cover / Suspension Tubes 153905 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: Suspension Tube Identification Chart above | ||
|
2 |
053-1210-01 | Ceiling Cover | 1 |
|
3 |
041-0375-01 | Hex Nut 3/8 in-16 | 3 |
|
4 |
045-0001-09 | Lockwasher | 3 |
|
5 |
042-0602-32 | Clevis Pin | 1 |
|
6 |
040-0375-69 | Set Screw 3/8 in-16 x 3/8 in | 4 |
|
7 |
030-1305-50 | Mounting Flange Weldment | 1 |
|
8 |
042-0004-00 | Kotter Pin | 1 |
|
9 |
153676-001 | Ceiling Cover Collar Assembly – includes Items 10 and 11 | 1 |
|
10 |
040-0010-153 | Set Screw #10-32 x 1/2 in | 3 |
|
11 |
057-0723-50 | Ceiling Cover Collar | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V1467259 thru V2703286
|
Model |
153905 |
| Serial Number |
V1467259 thru V2703286 |
| Suspension Tube Identification Chart | ||
|---|---|---|
| Ceiling Height | Downtube Length | Part Number |
| 244–249 cm (96–98 in) | 25 cm (10) in | 153936-001 |
|
251–259 cm (99–102 in) |
36 cm (14 in) | 153936-002 |
| 262–269 cm (103–106 in) | 46 cm (18 in) | 153936-003 |
| 272–279 cm (107–110 in) | 56 cm (22 in) | 153936-004 |
| 282–290 cm (111–114 in) | 66 cm (26 in) | 153936-005 |
| 292–300 cm (115–118 in) | 76 cm (30 in) | 153936-006 |
| 302–310 cm (119–122 in) | 86 cm (34 in) | 153936-007 |
| 312–318 cm (123–125 in) | 97 cm (38 in) | 153936-008 |
| 323–330 cm (127–130 in) | 107 cm (42 in) | 153936-009 |
| > 330 cm (> 130 in) | 117 cm (46 in) | 153936-010 |

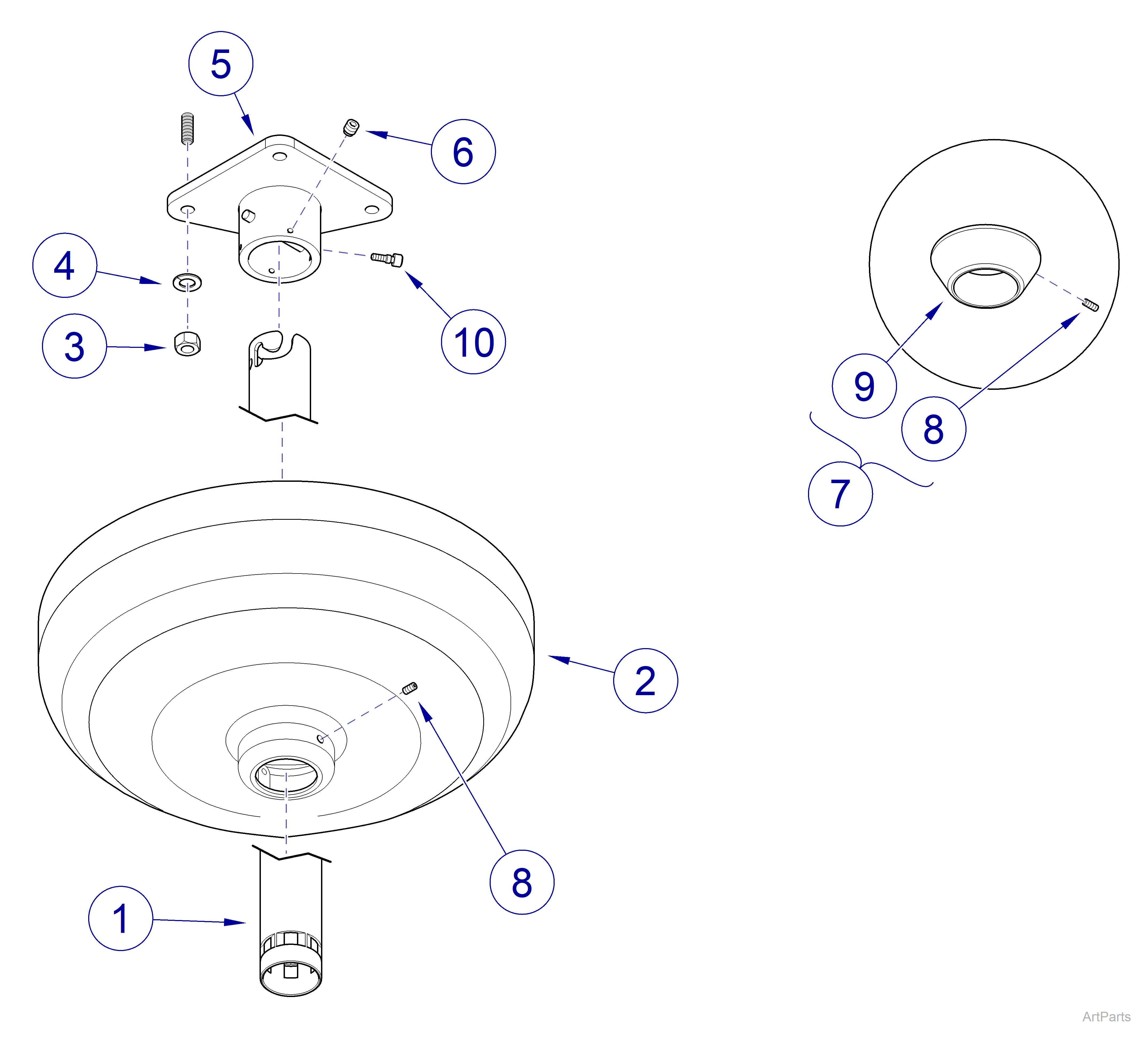

| Midmark® Dental Lights Ceiling Mount / Fixed Arm Assembly, Ceiling Cover / Suspension Tubes 153905 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: Suspension Tube Identification Chart above | ||
|
2 |
053-1210-01 | Ceiling Cover | 1 |
|
3 |
041-0375-01 | Hex Nut 3/8 in-16 | 3 |
|
4 |
045-0001-09 | Lockwasher | 3 |
|
5 |
030-2132-00-216 | Mounting Flange Weldment | 1 |
|
6 |
040-0375-69 | Set Screw 3/8 in-16 x 3/8 in | 4 |
|
7 |
153676-001 | Ceiling Cover Collar Assembly – includes Items 8 and 9 | 1 |
|
8 |
040-0010-153 | Set Screw #10-32 x 1/2 in | 3 |
|
9 |
057-0723-50 | Ceiling Cover Collar | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V2703287 thru Present
|
Model |
153905 |
| Serial Number | V2703287 thru Present |
| Suspension Tube Identification Chart | ||
|---|---|---|
| Ceiling Height | Downtube Length | Part Number |
| 244–249 cm (96–98 in) | 29 cm (11.5 in) | 1531049-001 |
|
251–259 cm (99–102 in) |
37 cm (14.5 in) | 1531049-002 |
| 262–269 cm (103–106 in) | 50 cm (19.5 in) | 1531049-003 |
| 272–279 cm (107–110 in) | 60 cm (23.5 in) | 1531049-004 |
| 282–290 cm (111–114 in) | 70 cm (27.5 in) | 1531049-005 |
| 292–300 cm (115–118 in) | 80 cm (31.5 in) | 1531049-006 |
| 302–310 cm (119–122 in) | 90 cm (35.5 in) | 1531049-007 |
| 312–318 cm (123–125 in) | 100 cm (39.5 in) | 1531049-008 |
| 323–330 cm (127–130 in) | 110 cm (43.5 in) | 1531049-009 |
| > 330 cm (> 130 in) | 121 cm (47.5 in) | 1531049-010 |

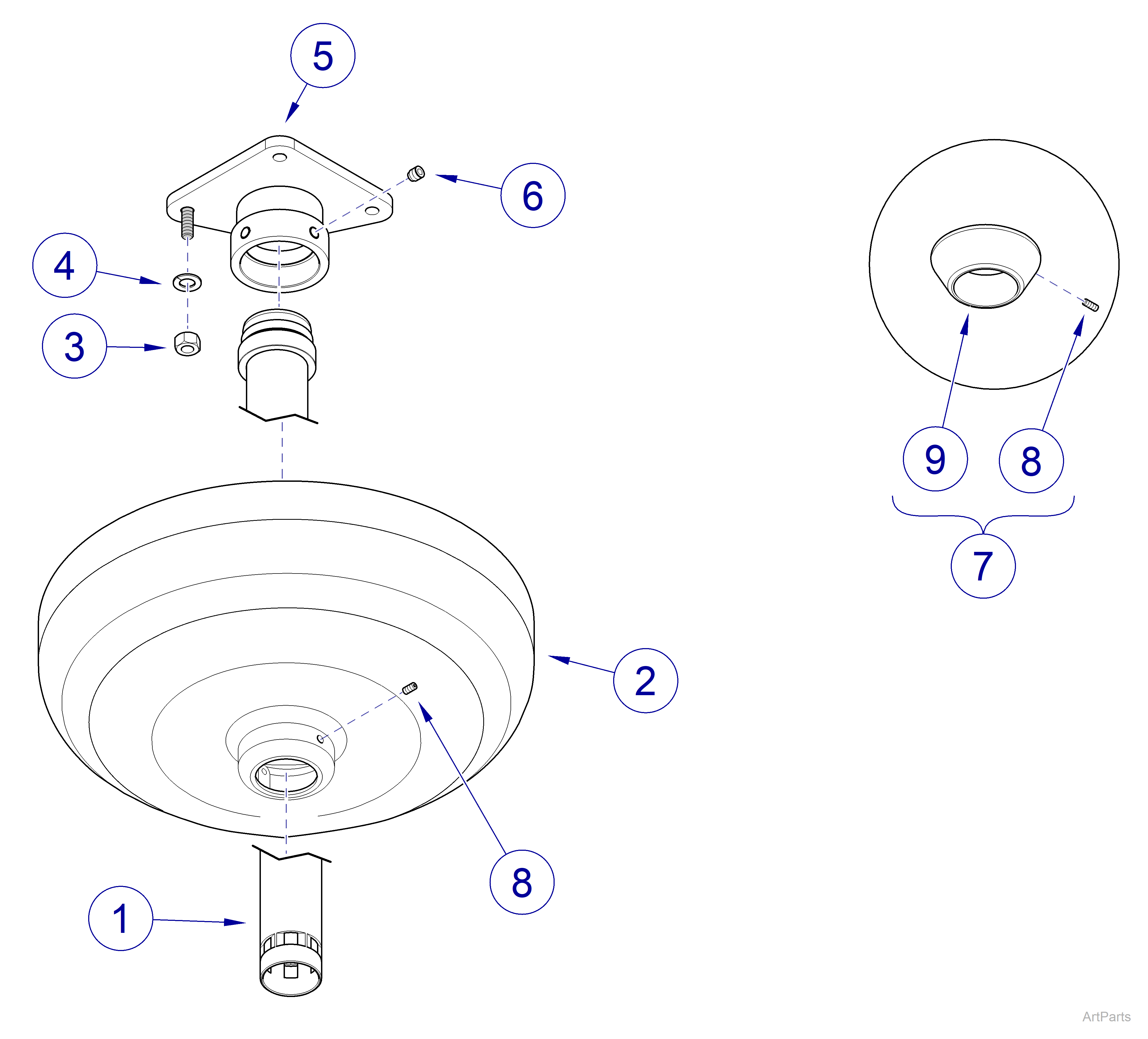

| Midmark® Dental Lights Ceiling Mount / Fixed Arm Assembly, Ceiling Cover / Suspension Tubes 153637 and 002-1534-00 | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: Suspension Tube Identification Chart above | ||
|
2 |
053-1210-01 | Ceiling Cover | 1 |
|
3 |
041-0375-01 | Hex Nut 3/8 in-16 | 3 |
|
4 |
045-0001-09 | Lockwasher | 3 |
|
5 |
030-10528-00-216 | Mounting Flange Weldment | 1 |
|
6 |
040-0375-69 | Set Screw 3/8 in-16 x 3/8 in | 4 |
|
7 |
153676-001 | Ceiling Cover Collar Assembly – includes Items 8 and 9 | 1 |
|
8 |
040-0010-153 | Set Screw #10-32 x 1/2 in | 3 |
|
9 |
057-0723-50 | Ceiling Cover Collar | 1 |
|
10 |
Locking Pin Screw | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
