Midmark® Dental Lights Fuse Holder Assembly Access Procedures
|
Mounted To |
Chair Units Powered w/ a J-Box |
| Serial Number | NW, RE, and V Serial Number Prefixes |
Refer to: Operator’s Manual for complete instructions on operating the light. Failure to do so could result in personal injury.
Perform an operational test on the dental light after repair is completed to confirm repair was properly made and that all malfunctions were repaired.
Removal
1.Remove junction box cover. Refer to: Junction Box Removal
Always disconnect electrical power from the unit before removing any of the unit’s covers/shrouds or making any repairs to prevent the possibility of electrical shock. Failure to comply with these instructions could result in severe personal injury or death.
2.Unplug power cord of universal power supply from outlet receptacle.

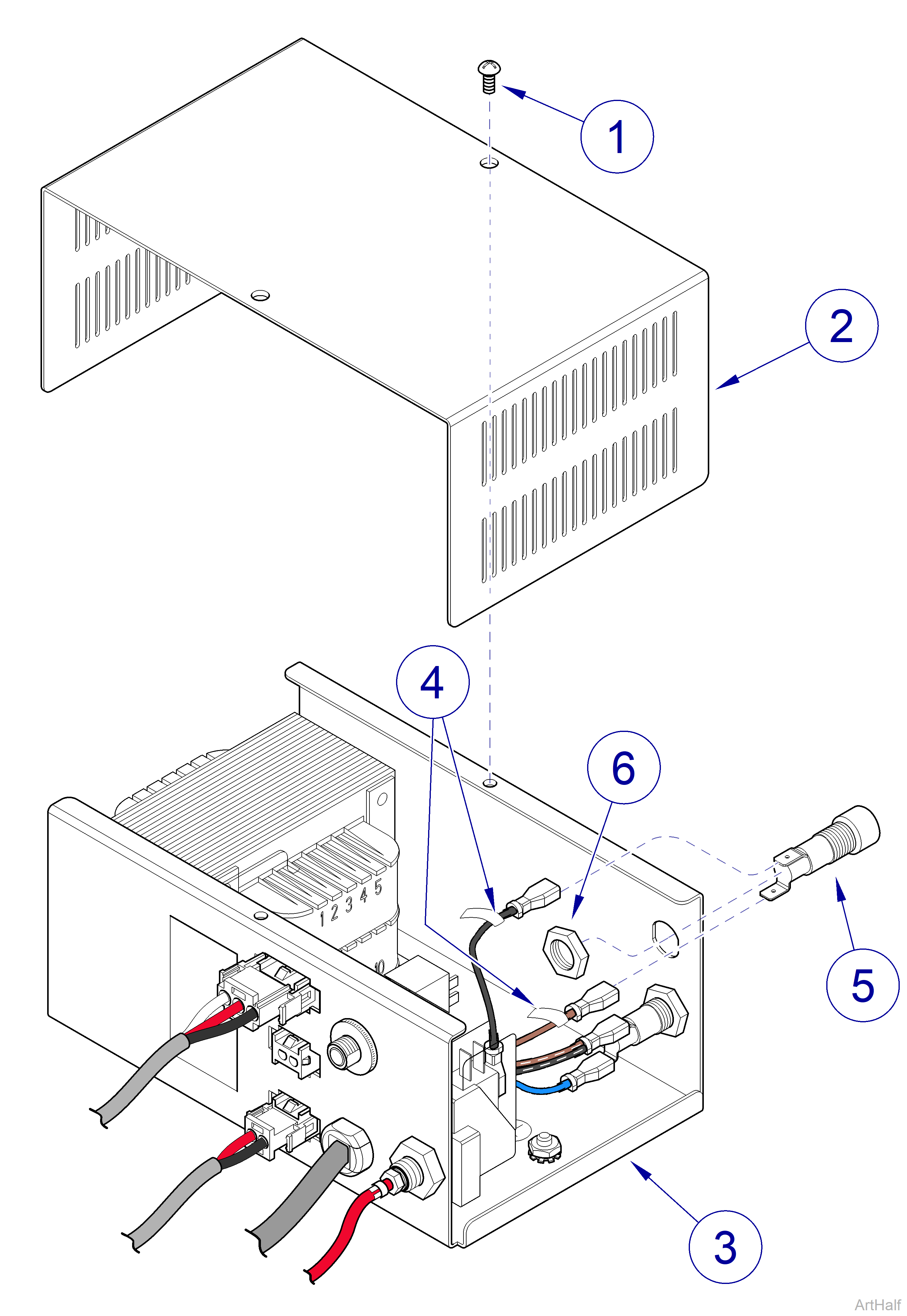

3.Remove two screws (1) and power supply cover (2) from chassis (3).
4.Tag and disconnect wires (4) from terminals of fuse holder assembly (5).
5.Remove plastic nut (6) and fuse holder assembly (5) from chassis (3).
6.If necessary, repeat steps for remaining fuse holder assembly.
Installation
1.Install fuse holder assembly (5) on chassis (3) and secure with plastic nut (6).
2.Connect two wires (4) to terminals of fuse holder assembly (5).
3.Install power supply cover (2) on chassis (3) and secure with two screws (1).
4.Plug power cord of universal power supply into outlet receptacle.
5.Install junction box cover. Refer to: Junction Box Installation
