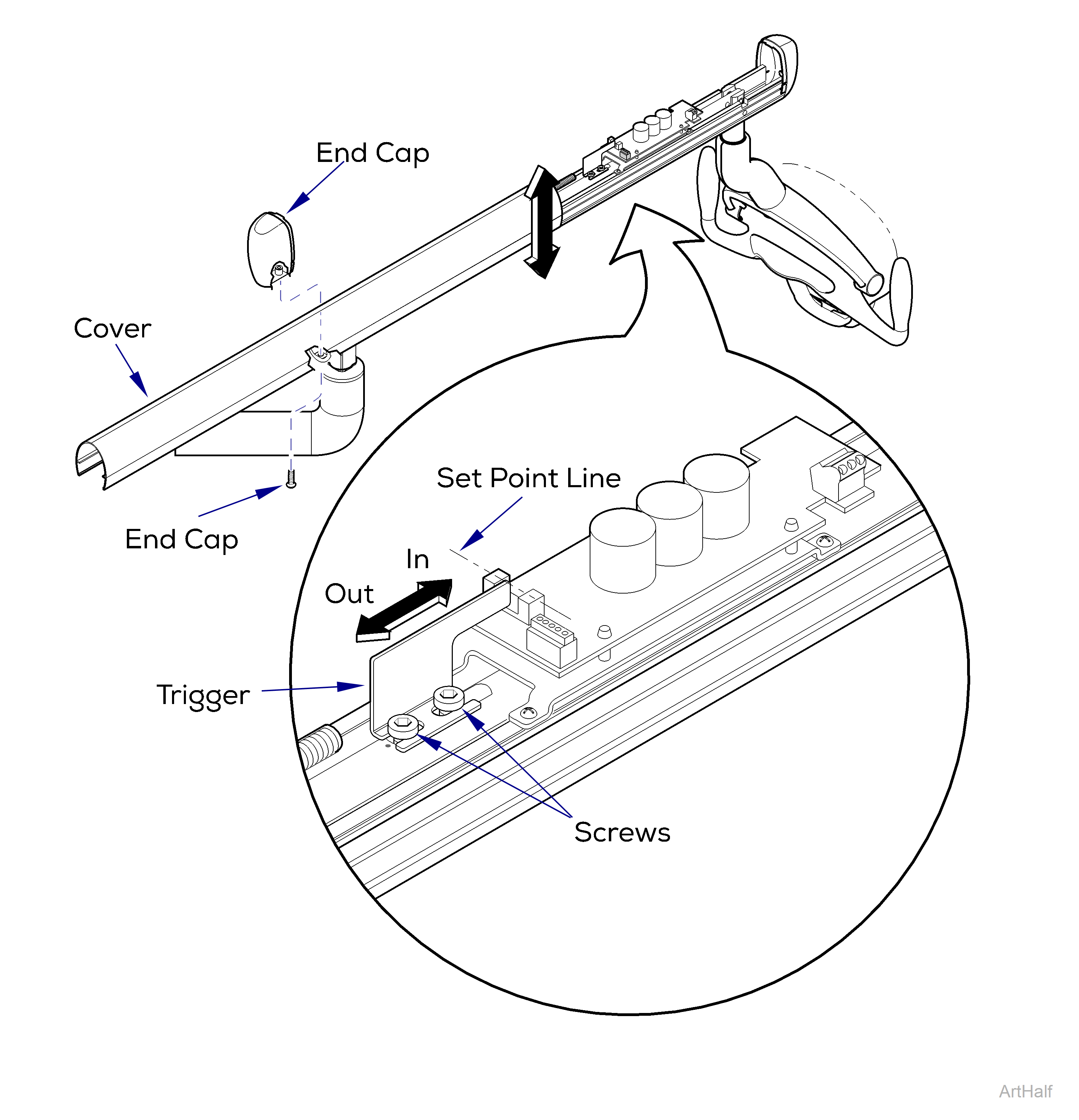

Midmark® Dental Halogen Light Auto-ON Adjustment Diagram

WARNING

Use caution when operating equipment with covers removed.

1.Remove end cap screw and end cap, then slide cover back.

2.Position light arm at desired height for AUTO ON mode to activate.

3.Loosen two screws, slide trigger all the way out, then slowly slide trigger in until lighthead turns ON at set point line.

4.Tighten two screws to secure trigger.
