Midmark® Dental Halogen Light Tension Test and Repair

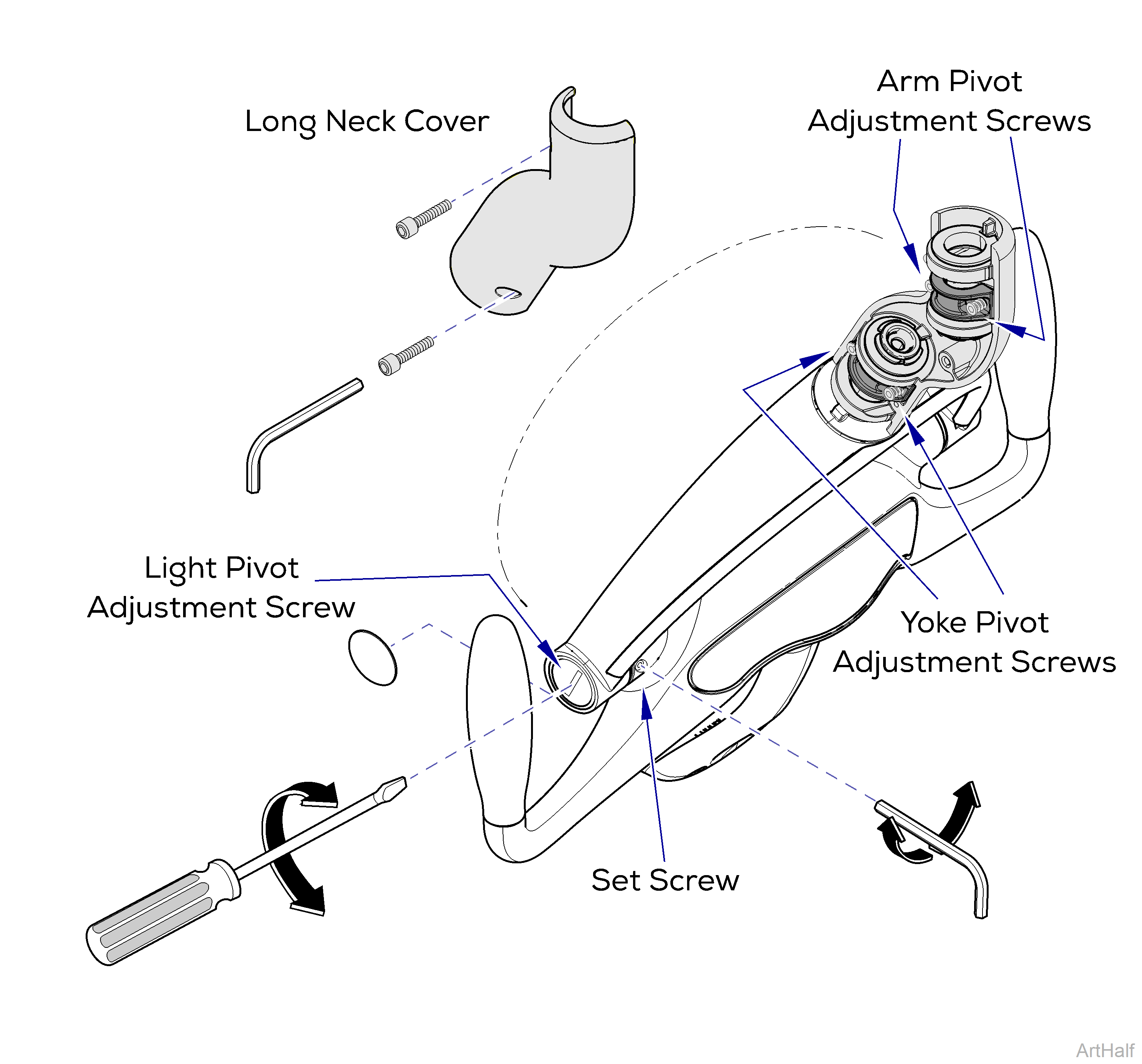

Midmark® Dental Halogen Light Light/Arm/Pivot Joint Tension Adjustments Diagram Midmark® Dental Halogen Light Older Halogen Model Diagram

1.Remove screw cover as shown.

2.Loosen set screw.

3.Loosen or tighten light pivot adjustment screw.

4.Tighten set screw.

1.Remove neck cover as shown (see Note).

2.Loosen or tighten appropriate screws to adjust tension.

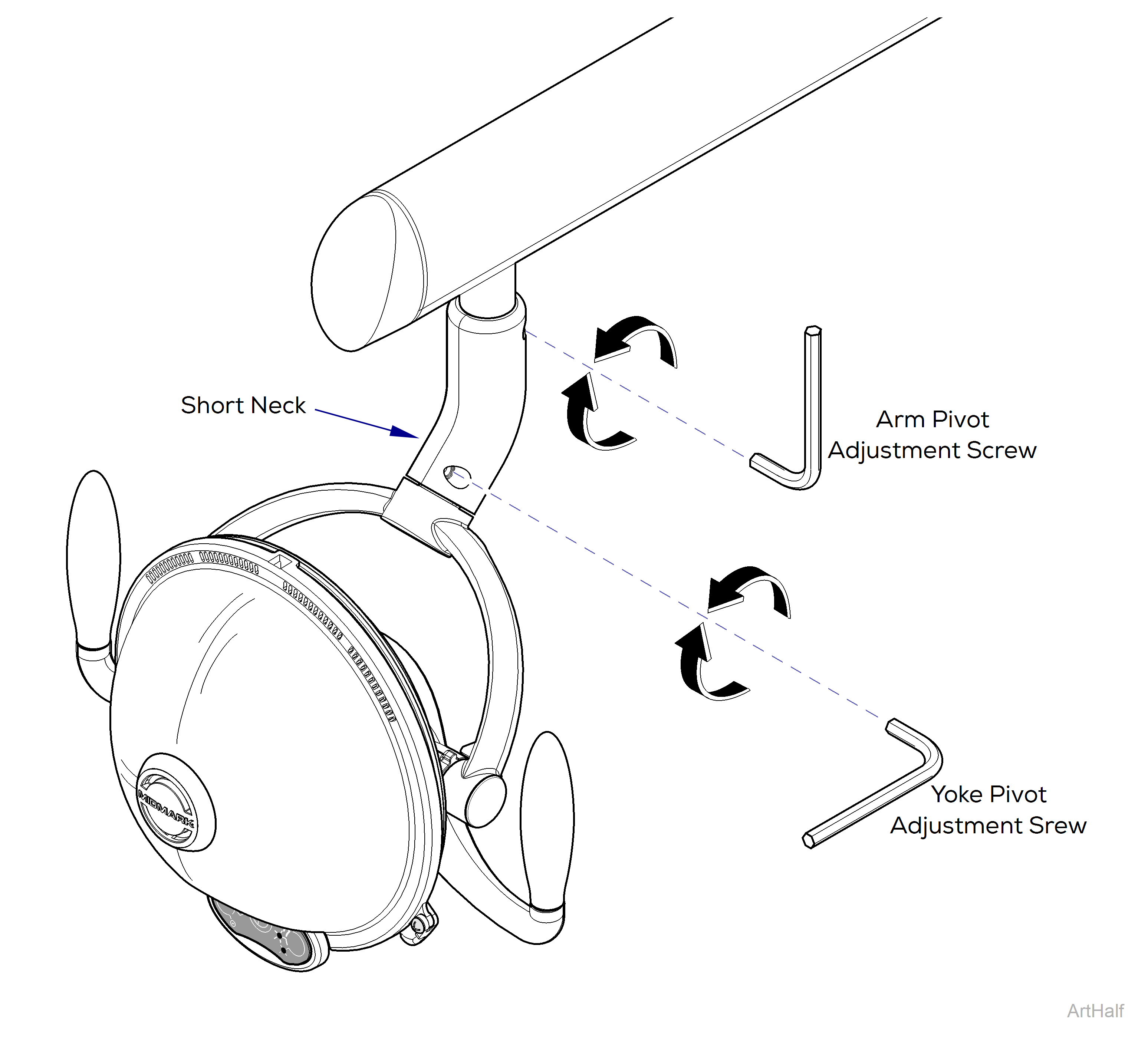

Some halogen models have a short neck on the lighthead. It is not necessary to remove the neck cover on these models.

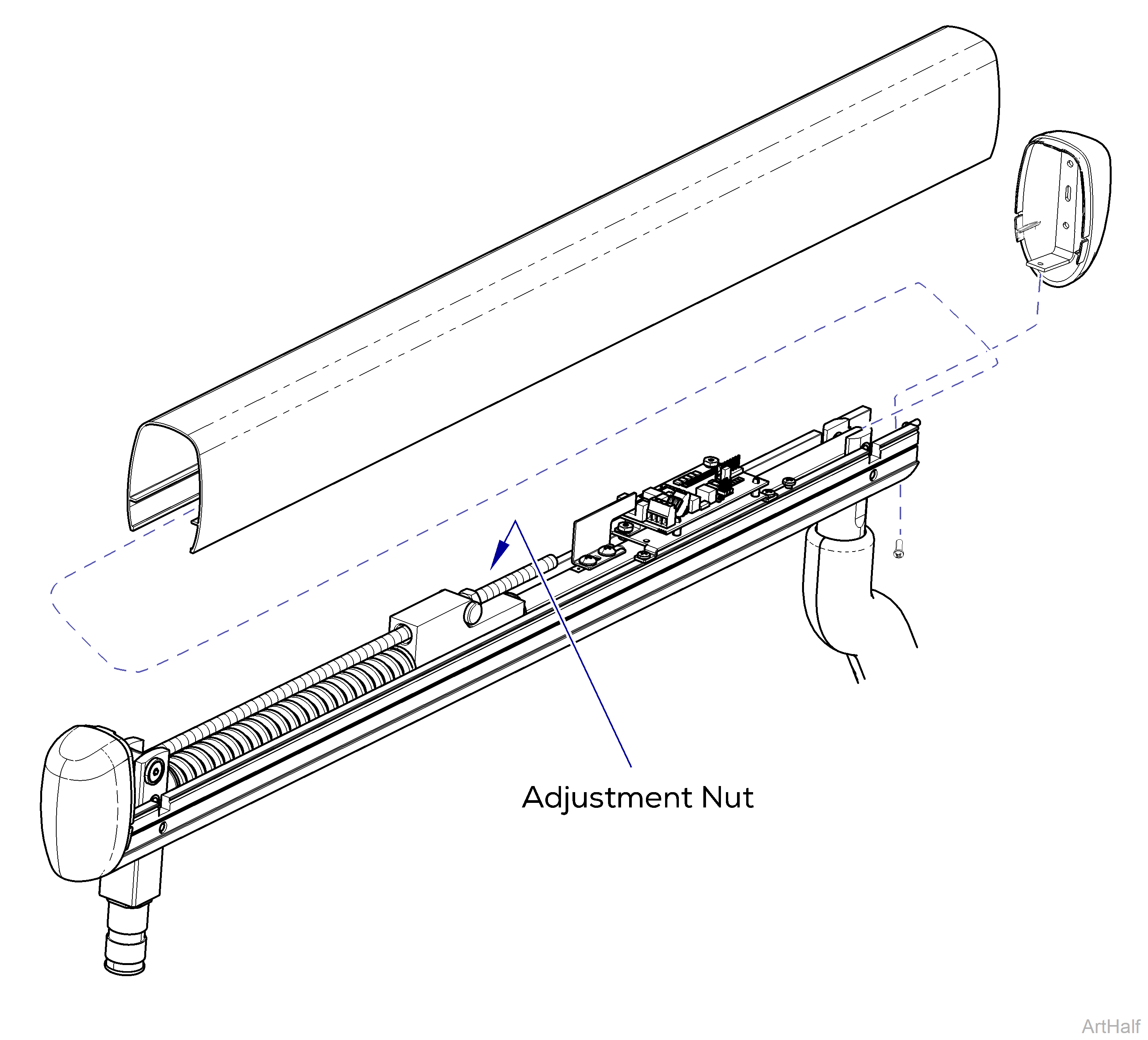

Midmark® Dental Halogen Light Flex Arm Tension Adjustment Diagram

1.Remove end cap and top cover as shown.

2.Loosen or tighten adjustment nut as desired.
