Track Light Monitor Monitor Trolley Assembly Monitor Trolley 029-4733-0x
Serial Number Range: V758885 thru V2845882
|
Model |
029-4856-0x |
| Serial Number |
V758885 thru V2845882 |
|

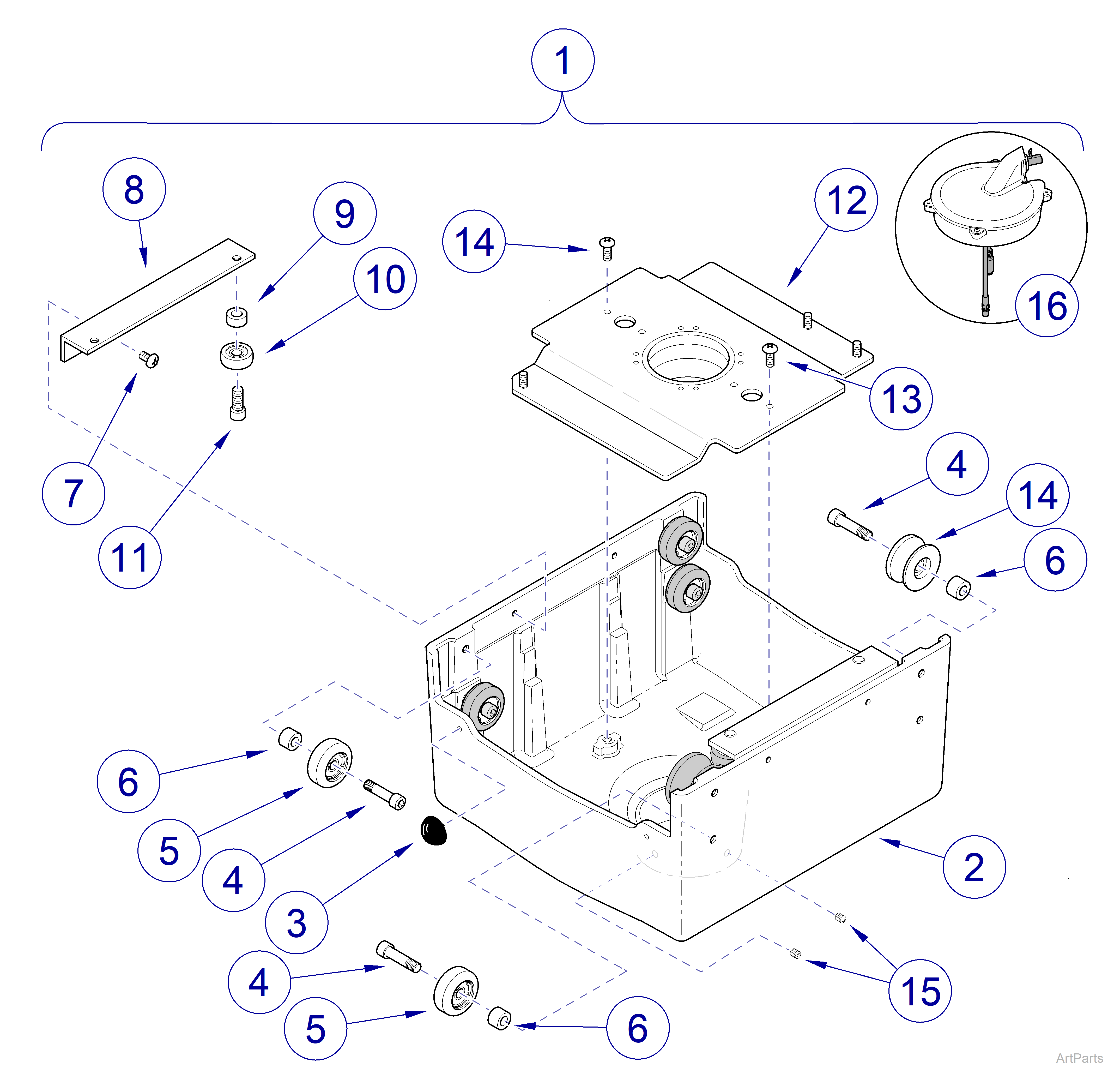

Track Mounted Monitors, Monitor Trolley Assembly Monitor Trolley 029-4733-0x |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-11247-xx | Threaded Monitor Trolley Kit - Includes 2 thru 16 | 1 |
|
2 |
020-0339-01-216 | Trolley Casting | 1 |
|
3 |
120837 | Bumper | 2 |
|
4 |
040-0250-73 | Socket Head Cap Screw 1/4”-20 x 1” | 8 |
|
5 |
002-1708-00 | Monitor Trolley Wheel Assembly | 6 |
|
6 |
057-0660-00 | Wheel Spacer | 8 |
|
7 |
040-0010-109 | Phillips Pan Head Screw #10-24 x 3/8” | 4 |
|
8 |
051-1189-00 | Trolley Wheel Channel | 2 |
|
9 |
057-0980-00 | Wheel Spacer | 4 |
|
10 |
029-4117-00 | Wheel Assembly | 4 |
|
11 |
040-0250-85 | Socket Head Cap Screw 1/4”-20 x 5/8” | 4 |
|
12 |
030-1838-00-216 | Trolley Suspension Plate | 1 |
|
13 |
040-0010-145 | Phillips Pan Head Screw #10-24 x 1/2” | 2 |
|
14 |
002-1840-00 | Track Wheel Assembly | 2 |
|
15 |
040-0010-167 | Set Screw #10-32 x 1/4” | 2 |
|
16 |
Refer to: Coiler Bowl Components | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
| Ceiling Height | Tape Color | Part Number |
|---|---|---|
| 96 in. (244 cm) | Red | 002-11247-00 |
| 100 in. (254 cm) | Orange | 002-11247-01 |
| 104 in. (264 cm) | Yellow | 002-11247-02 |
| 108 in. (274 cm) | Green | 002-11247-03 |
| 112 in. (285 cm) | Blue | 002-11247-04 |
| 116 in. (295 cm) | Violet | 002-11247-05 |
| 120 in. (305 cm) | Grey | 002-11247-06 |
| 124 in. (315 cm) | Brown | 002-11247-07 |
| 128 in. (325 cm) | Black | 002-11247-08 |
Serial Number Range: V2845883 thru Present
|
Model |
029-4856-0x |
| Serial Number |
V2845883 thru Present |
|

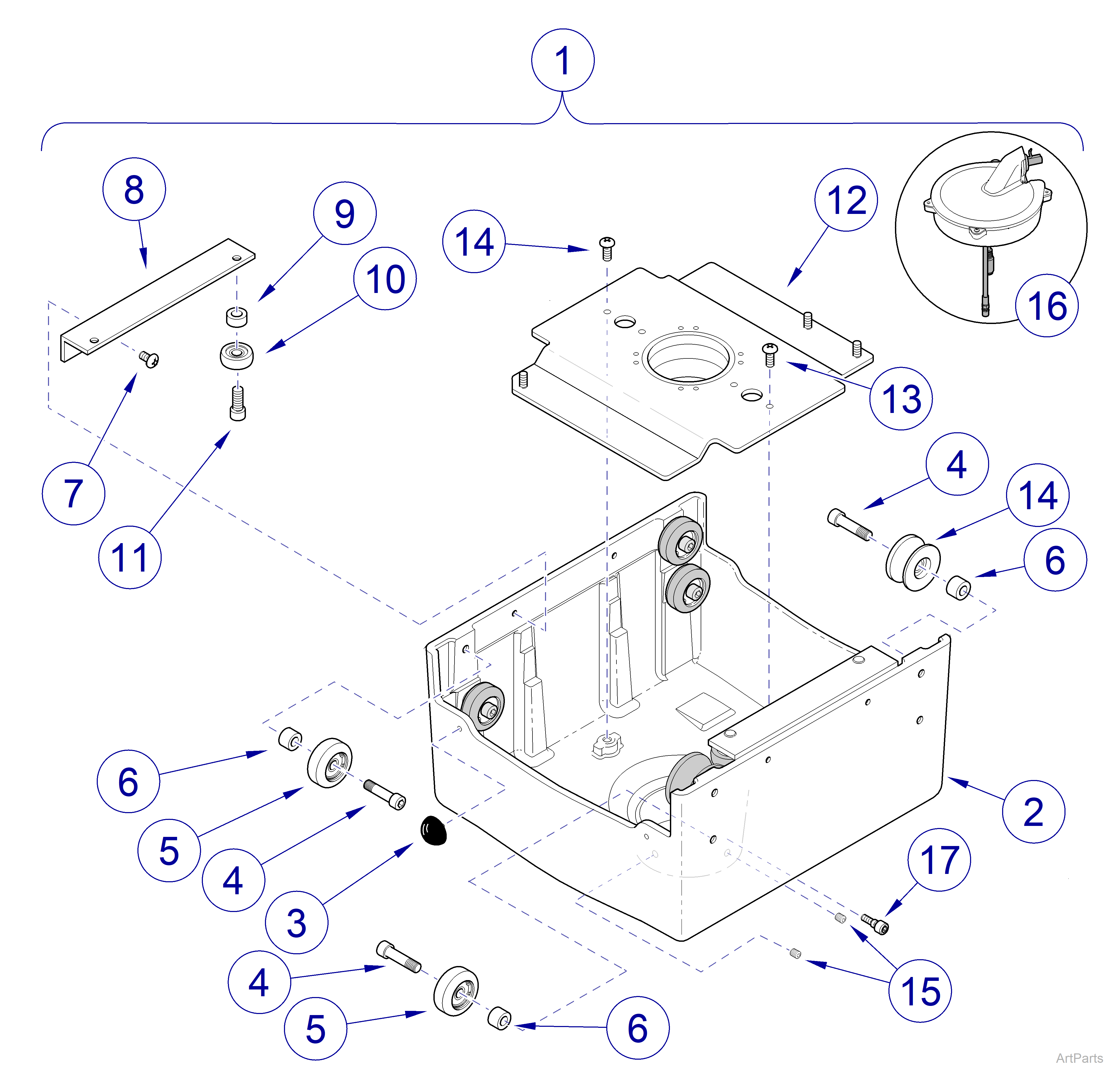

Track Mounted Monitors, Monitor Trolley Assembly Monitor Trolley 029-4733-0x |
|||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-11406-0x | Threaded Monitor Trolley Kit - Includes 2 thru 16 | 1 |
|
2 |
020-0339-03-216 | Trolley Casting | 1 |
|
3 |
120837 | Bumper | 2 |
|
4 |
040-0250-73 | Socket Head Cap Screw 1/4”-20 x 1” | 8 |
|
5 |
002-1708-00 | Monitor Trolley Wheel Assembly | 6 |
|
6 |
057-0660-00 | Wheel Spacer | 8 |
|
7 |
040-0010-109 | Phillips Pan Head Screw #10-24 x 3/8” | 4 |
|
8 |
051-1189-00 | Trolley Wheel Channel | 2 |
|
9 |
057-0980-00 | Wheel Spacer | 4 |
|
10 |
029-4117-00 | Wheel Assembly | 4 |
|
11 |
040-0250-85 | Socket Head Cap Screw 1/4”-20 x 5/8” | 4 |
|
12 |
029-12176-00 | Trolley Suspension Plate | 1 |
|
13 |
040-0010-145 | Phillips Pan Head Screw #10-24 x 1/2” | 2 |
|
14 |
002-1840-00 | Track Wheel Assembly | 2 |
|
15 |
040-0250-222 | Set Screw 1/4"-28 x 1/4" | 4 |
|
16 |
Refer to: Coiler Bowl Components | 1 | |
|
17 |
057-10691-00 | Locking Pin Screw | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
| Ceiling Height | Tape Color | Part Number |
|---|---|---|
| 96 in. (244 cm) | Red | 002-11406-00 |
| 100 in. (254 cm) | Orange | 002-11406-01 |
| 104 in. (264 cm) | Yellow | 002-11406-02 |
| 108 in. (274 cm) | Green | 002-11406-03 |
| 112 in. (285 cm) | Blue | 002-11406-04 |
| 116 in. (295 cm) | Violet | 002-11406-05 |
| 120 in. (305 cm) | Grey | 002-11406-06 |
| 124 in. (315 cm) | Brown | 002-11406-07 |
| 128 in. (325 cm) | Black | 002-11406-08 |
