Track Light Monitor Trolley Assembly Coiler Bowl Components 029-4733-0x
|
Model |
029-4856-0x |
| Serial Number | V758885 thru Present |
Coiler Bowl Assembly Identification Chart
| Ceiling Height | Tape Color | Part Number |
|---|---|---|
| 96 in. (244 cm) | Red | 029-4871-00 |
| 100 in. (254 cm) | Orange | 029-4871-01 |
| 104 in. (264 cm) | Yellow | 029-4871-02 |
| 108 in. (274 cm) | Green | 029-4871-03 |
| 112 in. (285 cm) | Blue | 029-4871-04 |
| 116 in. (295 cm) | Violet | 029-4871-05 |
| 120 in. (305 cm) | Grey | 029-4871-06 |
| 124 in. (315 cm) | Brown | 029-4871-07 |
| 128 in. (325 cm) | Black | 029-4871-08 |

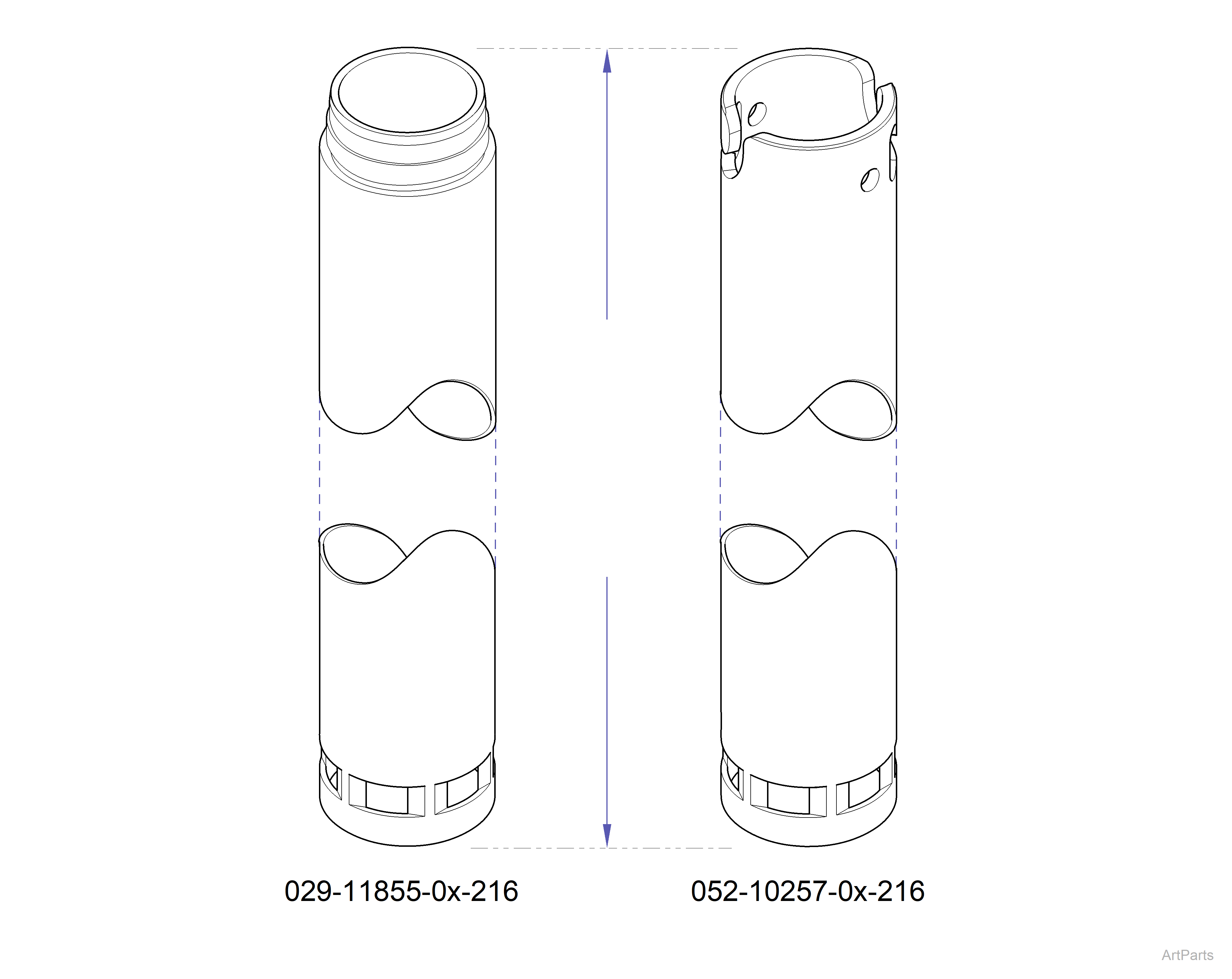

Suspension Tube Identification Chart
| Ceiling Height | Suspension Tube Length: | Part Number |
|---|---|---|
| 244 cm (96 in) | 14.5 cm (5.69 in) | 029-11855-00-216 |
| 254 cm (100 in) | 22.1 cm (8.69 in) | 029-11855-01-216 |
| 264 cm (104 in) | 24.6 cm (9.69 in) | 029-11855-02-216 |
| 274 cm (108 in) | 27.2 cm (10.69 in) | 029-11855-03-216 |
| 285 cm (112 in) | 37.3 cm (14.69 in) | 029-11855-04-216 |
| 295 cm (116 in) | 47.5 cm (18.69 in) | 029-11855-05-216 |
| 305 cm (120 in) | 57.6 cm (22.69 in) | 029-11855-06-216 |
| 315 cm (124 in) | 67.8 cm (26.69 in) | 029-11855-07-216 |
| 325 cm (128 in) | 78.0 cm (30.69 in) | 029-11855-08-216 |
| 244 cm (96 in) | 14.1 cm (5.55 in) | 052-10206-00-216 |
| 254 cm (100 in) | 21.7 cm (8.55 in) | 052-10206-01-216 |
| 264 cm (104 in) | 24.3 cm (9.55 in) | 052-10206-02-216 |
| 274 cm (108 in) | 26.8 cm (10.55 in) | 052-10206-03-216 |
| 285 cm (112 in) | 37.0 cm (14.55 in) | 052-10206-04-216 |
| 295 cm (116 in) | 47.1 cm (18.55 in) | 052-10206-05-216 |
| 305 cm (120 in) | 57.3 cm (22.55 in) | 052-10206-06-216 |
| 315 cm (124 in) | 67.4 cm (26.55 in) | 052-10206-07-216 |
| 325 cm (128 in) | 77.6 cm (30.55 in) | 052-10206-08-216 |
| Track Mounted Monitors, Monitor Trolley Assembly Coiler Bowl Components 029-4733-0x | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
053-2081-00-216 | Coiler Lid | 1 |
|
2 |
050-7835-00-216 | Grommet Plate | 1 |
|
3 |
015-2499-00 | Harness Assembly | 1 |
|
4 |
015-2551-00 | Wire Connector | 1 |
|
5 |
015-2550-00 | Ground Wire | 1 |
|
6 |
041-0010-04 | Nut | 1 |
|
7 |
045-0001-31 | Lockwasher | 1 |
|
8 |
051-0976-02 | Standoff | 2 |
|
9 |
053-2080-00-216 | Coiler Bowl | 1 |
|
10 |
053-2108-00 | Rubber Grommet | 2 |
|
11 |
040-0010-137 | Screw #10-24 x 3/4” | 2 |
|
12 |
040-0010-109 | Screw #10-24 x 3/8” | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
