Track Mounted Lights w/ Monitor, Track Assembly
Serial Number Range: V243646 thru V731663
|
Model |
153768 |
| Serial Number | V243646 thru V731663 |
| Track Mounted Lights w/ Monitor, Track Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
021-0049-03-216 |
Side Cover |
NLA |
|
2 |
050-7071-00 |
Mounting Plate - Monitor | NLA |
|
3 |
040-0010-137 | Screw #10-24 x 7/8” | 7 |
|
4 |
050-7069-00 |
Spacer Plate - Monitor | NLA |
|
5 |
021-0047-00 |
Track | NSS |
|
6 |
053-1792-00 | Stop Bumper | 4 |
|
7 |
053-1233-01 | End Cap | 2 |
|
8 |
040-0010-145 | Screw #10-24 x 1/2” | 4 |
|
9 |
021-0048-50 | Bottom Cover | 2 |
|
10 |
040-0010-109 | Screw #10-24 x 3/8” | 7 |
|
11 |
Wire Clamp Options | ||
|
|
015-0371-00 | 5/16” for Light Cable | 3 |
|
|
121877 | 3/8” for Monitor Cable | 4 |
|
12 |
040-0250-104 | Screw 1/4-20 x 1” | 12 |
|
13 |
040-0010-126 | Set Screw #10-32 x 1/4” | 6 |
|
14 |
050-7072-00 |
Heat Sink | NLA |
|
15 |
029-4128-00 |
Backboard | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: V758885 thru present
|
Model |
029-4856-0x | 029-5562-0x | 002-1530-00 |
| Serial Number | V758885 thru present | V758885 thru present | V758885 thru present |
| Track Assembly includes Trolley and Suspension Tubes | ||
|---|---|---|
| Part No. | Part No. | Description |
|
029-5562-00 |
029-4856-00 |
96” Light / Monitor Trolley / Track Assembly |
|
029-5562-01 |
029-4856-01 |
100” Light / Monitor Trolley / Track Assembly |
|
029-5562-02 |
029-4856-02 |
104” Light / Monitor Trolley / Track Assembly |
|
029-5562-03 |
029-4856-03 |
108” Light / Monitor Trolley / Track Assembly |
|
029-5562-04 |
029-4856-04 |
112” Light / Monitor Trolley / Track Assembly |
|
029-5562-05 |
029-4856-05 |
116” Light / Monitor Trolley / Track Assembly |
|
029-5562-06 |
029-4856-06 |
120” Light / Monitor Trolley / Track Assembly |
|
029-5562-07 |
029-4856-07 |
124” Light / Monitor Trolley / Track Assembly |
|
029-5562-08 |
029-4856-08 |
128” Light / Monitor Trolley / Track Assembly |

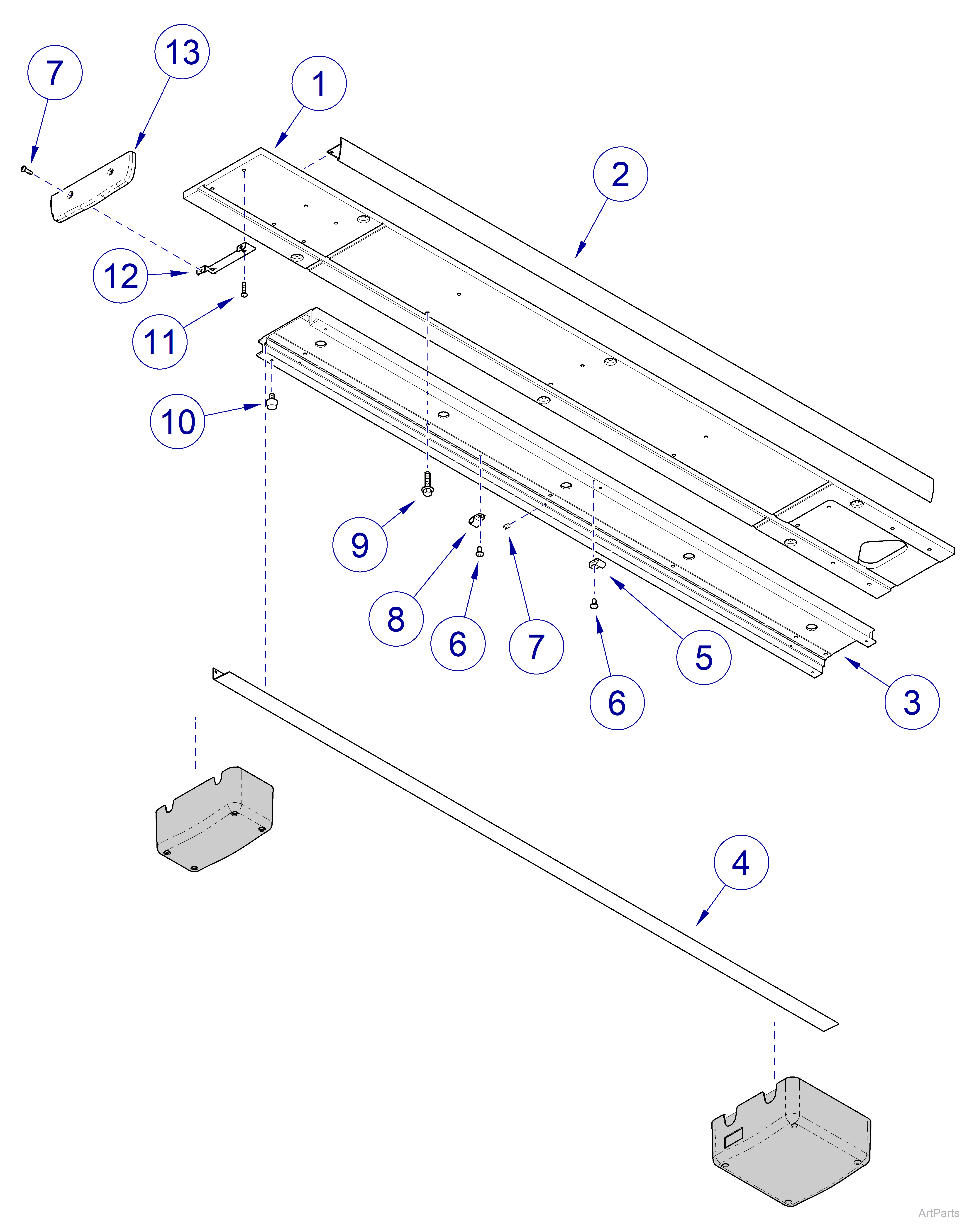

| Track Mounted Lights w/ Monitor, Track Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4814-00 | Backboard Assembly | 1 |
|
2 |
021-0049-06-216 | Side Cover | 2 |
|
3 |
021-0047-02 |
Track | NSS |
|
4 |
021-0083-02-216 | Bottom Cover | 2 |
|
5 |
015-0371-00 | Clamp 5/16” for Light Cable | 4 |
|
6 |
040-0010-145 | Screw #10-24 x 1/2” | 13 |
|
7 |
040-0010-126 | Set Screw #10-32 x 1/4” | 6 |
|
8 |
015-0371-04 | Clamp 3/4” for Monitor Cable | 5 |
|
9 |
040-0250-104 | Screw 1/4”-20 x 1” | 12 |
|
10 |
053-1792-00 | Stop Bumper | 4 |
|
11 |
040-0250-182 | Screw 1/4-20 x 3/4” | 2 |
|
12 |
029-4860-00 | Bracket | 1 |
|
13 |
053-1233-01 | Cap | 2 |
|
14 |
Power Harness, 120 V - Not Shown | NSS | |
|
15 |
Jumper Wire - Not Shown | NSS | |
|
16 |
053-1242-00 | Leveling Shims - Not Shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: All For Model Range 029-7244-0x
|
Model |
029-7244-0x |
| Serial Number | All |
| Track Assembly includes Trolley and Suspension Tubes | |
|---|---|
| Part No. | Description |
|
029-7244-00 |
96” Light / Monitor Trolley / Track Assembly |
|
029-7244-01 |
100” Light / Monitor Trolley / Track Assembly |
|
029-7244-02 |
104” Light / Monitor Trolley / Track Assembly |
|
029-7244-03 |
108” Light / Monitor Trolley / Track Assembly |
|
029-7244-04 |
112” Light / Monitor Trolley / Track Assembly |
|
029-7244-05 |
116” Light / Monitor Trolley / Track Assembly |
|
029-7244-06 |
120” Light / Monitor Trolley / Track Assembly |
|
029-7244-07 |
124” Light / Monitor Trolley / Track Assembly |
|
029-7244-08 |
128” Light / Monitor Trolley / Track Assembly |
| Track Mounted Lights w/ Monitor, Track Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4814-00 | Backboard Assembly | 1 |
|
2 |
021-0049-06-216 | Side Cover | 2 |
|
3 |
021-0047-02 |
Track | NSS |
|
4 |
021-0083-02-216 | Bottom Cover | 2 |
|
5 |
015-0371-06 | Clamp 3/8” for Light Cable | 4 |
|
6 |
040-0010-145 | Screw #10-24 x 1/2” | 13 |
|
7 |
040-0010-126 | Set Screw #10-32 x 1/4” | 6 |
|
8 |
015-0371-04 | Clamp 3/4” for Monitor Cable | 5 |
|
9 |
040-0250-104 | Screw 1/4”-20 x 1” | 12 |
|
10 |
053-1792-00 | Stop Bumper | 4 |
|
11 |
040-0250-182 | Screw 1/4-20 x 3/4” | 2 |
|
12 |
029-4860-00 | Bracket | 1 |
|
13 |
053-1233-01 | Cap | 2 |
|
14 |
053-1242-00 | Leveling Shims - Not shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Serial Number Range: All For Model Range 029-7245-0x
|
Model |
029-7245-0x |
| Serial Number | All |
| Track Assembly includes Trolley and Suspension Tubes | |
|---|---|
| Part No. | Description |
| 029-7245-00 | 96” Light / Monitor Trolley / Track Assembly |
| 029-7245-01 | 100” Light / Monitor Trolley / Track Assembly |
| 029-7245-02 | 104” Light / Monitor Trolley / Track Assembly |
| 029-7245-03 | 108” Light / Monitor Trolley / Track Assembly |
| 029-7245-04 | 112” Light / Monitor Trolley / Track Assembly |
| 029-7245-05 | 116” Light / Monitor Trolley / Track Assembly |
| 029-7245-06 | 120” Light / Monitor Trolley / Track Assembly |
| 029-7245-07 | 124” Light / Monitor Trolley / Track Assembly |
| 029-7245-08 | 128” Light / Monitor Trolley / Track Assembly |
| Track Mounted Lights w/ Monitor, Track Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
029-4814-00 | Backboard Assembly | 1 |
|
2 |
021-0049-06-216 | Side Cover | 2 |
|
3 |
021-0047-02 |
Track | NSS |
|
4 |
021-0083-02-216 | Bottom Cover | 2 |
|
5 |
015-0371-00 | Clamp 5/16” for Light Cable | 4 |
|
6 |
040-0010-145 | Screw #10-24 x 1/2” | 13 |
|
7 |
040-0010-126 | Set Screw #10-32 x 1/4” | 6 |
|
8 |
015-0371-04 | Clamp 3/4” for Monitor Cable | 5 |
|
9 |
040-0250-104 | Screw 1/4”-20 x 1” | 12 |
|
10 |
053-1792-00 | Stop Bumper | 4 |
|
11 |
040-0250-182 | Screw 1/4-20 x 3/4” | 2 |
|
12 |
029-4860-00 | Bracket | 1 |
|
13 |
053-1233-01 | Cap | 2 |
|
14 |
053-1242-00 | Leveling Shims - Not shown | AR |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
