Model |
271 | 273 | 275 | 277 |
| Serial Number | V2200 thru V1498302 and VAB000001 thru Present | V2200 thru V1498302 and VAB000001 thru Present | V2200 thru V1498302 and VAB000001 thru Present | V2200 thru V1498302 and VAB000001 thru Present |
Refer to: Upholstery Color Options for the order number extension of your desired color.

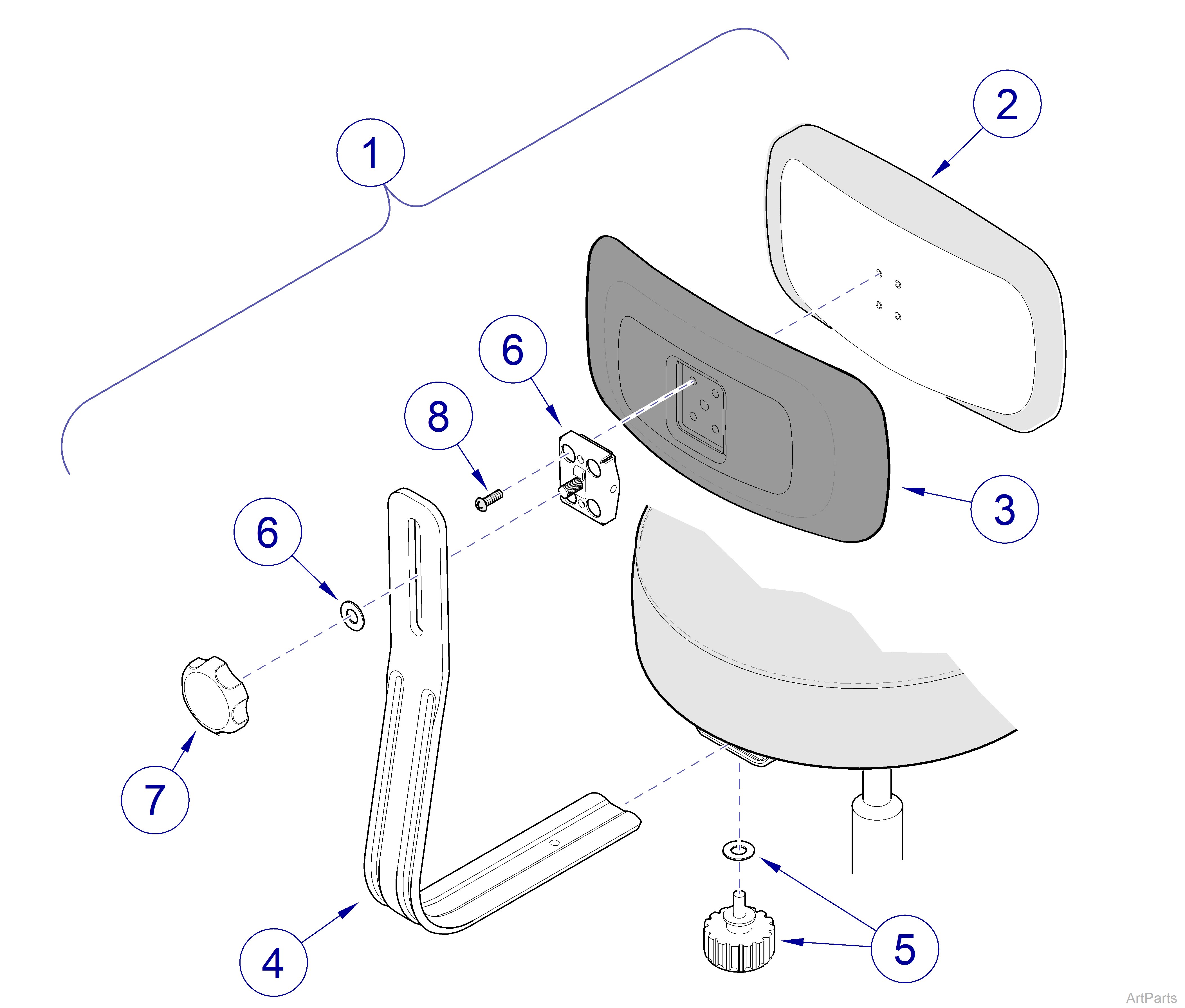

| 270 Series Stools Backrest Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Backrest Assembly - Includes items 2 thru 8 | ||
| 9A366001-xxx | Standard and UltraFree | 1 | |
|
9A366002-xxx |
Standard and UltraFree - Cal 133 |
NLA |
|
|
2 |
Upholstered Backrest Pad | ||
| 002-1037-00-xxx | Standard and UltraFree | 1 | |
|
002-1043-00-xxx |
Standard and UltraFree - Cal 133 |
NLA |
|
|
3 |
053-1698-00-312 | Backrest Cover | 1 |
|
4 |
029-4054-00 | Backrest Bar Assembly- Includes item 5 | 1 |
|
5 |
016-1105-00 | Lower Knob - Includes washer | 1 |
|
6 |
029-4053-00 | Mounting Bracket - Includes washer and item 7 | 1 |
|
7 |
016-1106-00 | Upper Knob | 1 |
|
8 |
040-0250-03 | Screw 1/4-20 x 7/8" | 4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
