425 Stool Assembly

Model

 425-001
Serial Number BZ1000 thru BZ5042

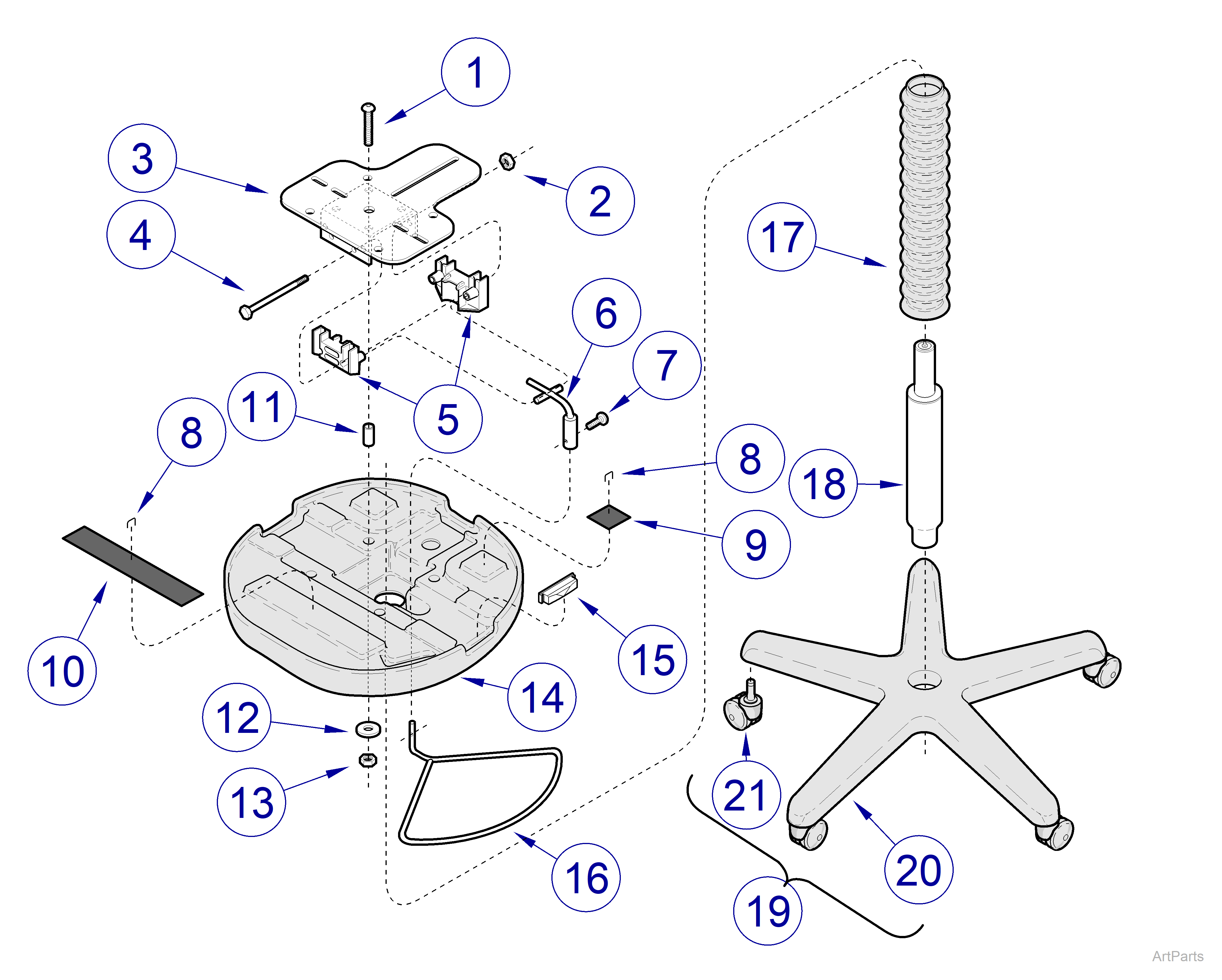

425-001 Stool Assembly - BZ1000 thru BZ5042

Stool Assembly w/ Hand Release Part #: 425-001 includes items 1 thru 20.

425 Stool Assembly 425-001
Item Part Number Description Qty

1

 040-0250-82 Screw 4

2

 041-0312-01 Nut 2

3

 050-4689-10 Mounting Base Weldment 1

4

 040-0312-09 Screw 2

5

 051-1123-00 Die Cast Jaw 2

6

 030-0640-00 Handle Extension Weldment 1

7

 040-0006-06 Screw 2

8

 042-0040-00 Staple 18

9

 053-0131-00 Velcro Hook 2

10

 053-0131-08 Velcro Hook 1

11

052-0156-00

 Spacer NLA

12

 045-0001-60 Washer 4

13

 041-0250-01 Nut 4

14

 053-0342-00 Upper Shell 1

15

 029-1220-00 Plug - Qty. 3 in bag 1

16

 051-0592-00 Release Handle Weldment 1

17

 053-0344-00 Cylinder Bellows 1

18

 016-0295-01 Column Gas Cylinder 1

19

   Roller Base Assembly - Includes Items 19 and 20 NLA

20

 016-0493-00 Roller Base - Less Casters 1

21

 Twin Wheel Caster Options
    Pearl Grey NLA
  016-0683-00 Black 5

22

 002-1004-00 Twin Wheel Caster Set - Includes 5 Black Casters Not Shown 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 425-001
Serial Number BZ5043 thru BZ018422 and V2200 thru V289596

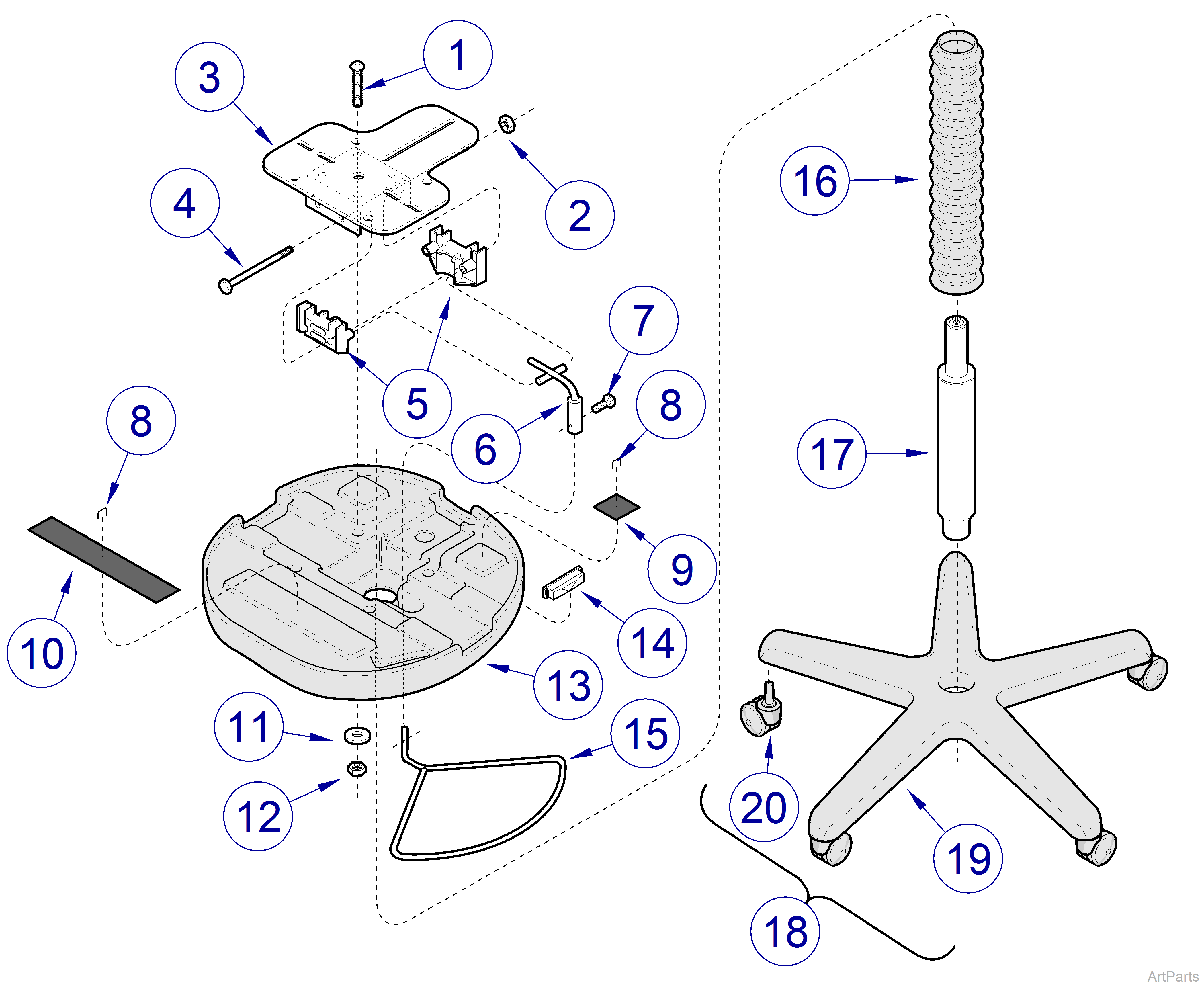

425-001 Stool Assembly - BZ5043 thru BZ018422 and V2200 thru V289596

Stool Assembly w/ Hand Release Part #: 425-001 includes items 1 thru 19.

425 Stool Assembly 425-001
Item Part Number Description Qty

1

 040-0250-82 Screw 4

2

 041-0312-01 Nut 2

3

 050-4689-10 Mounting Base Weldment 1

4

 040-0312-09 Screw 2

5

 051-1123-00 Die Cast Jaw 2

6

 030-0640-00 Handle Extension Weldment 1

7

 040-0006-06 Screw 2

8

 042-0040-00 Staple 18

9

 053-0131-00 Velcro Hook 2

10

 053-0131-08 Velcro Hook 1

11

 045-0001-60 Washer 4

12

 041-0250-01 Nut 4

13

 053-0342-00 Upper Shell 1

14

 029-1220-00 Plug - Qty. 3 in bag 1

15

 051-0592-00 Release Handle Weldment 1

16

 053-0344-00 Cylinder Bellows 1

17

 016-0295-01 Column Gas Cylinder 1

18

   Roller Base Assembly - Includes Items 19 and 20 NLA

19

 016-0493-00 Roller Base - Less Casters 1

20

 Twin Wheel Caster Options
    Pearl Grey NLA
  016-0683-00 Black 5

21

 002-1004-00 Twin Wheel Caster Set - Includes 5 Black Casters Not Shown 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

 425-001
Serial Number V289597 thru V1471186 and VAF000001 thru Present

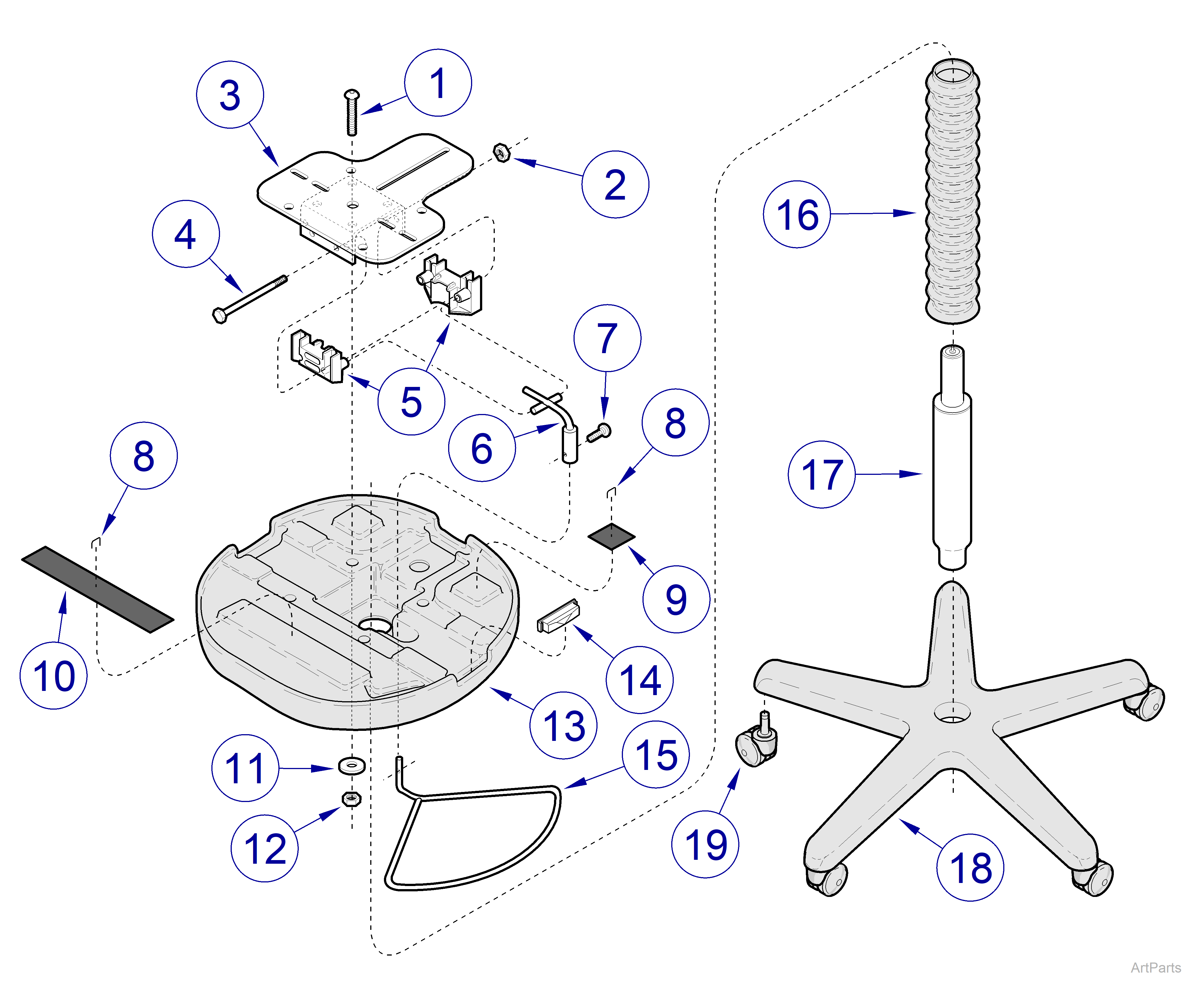

425-001 Stool Assembly - V289597 thru V1471186 and VAF000001 thru Present

Stool Assembly w/ Hand Release Part #: 425-001 includes items 1 thru 18.

425 Stool Assembly 425-001
Item Part Number Description Qty

1

 040-0250-82 Screw 4

2

 041-0312-01 Nut 2

3

 050-4689-10 Mounting Base Weldment 1

4

 040-0312-09 Screw 2

5

 051-1123-00 Die Cast Jaw 2

6

 030-0640-00 Handle Extension Weldment 1

7

 040-0006-06 Screw 2

8

 042-0040-00 Staple 18

9

 053-0131-00 Velcro Hook 2

10

 053-0131-08 Velcro Hook 1

11

 045-0001-60 Washer 4

12

 041-0250-01 Nut 4

13

 053-0342-00 Upper Shell 1

14

 029-1220-00 Plug - Qty. 3 in bag 1

15

 051-0592-00 Release Handle Weldment 1

16

 053-0344-00 Cylinder Bellows 1

17

 016-0295-01 Column Gas Cylinder 1

18

 016-0493-00 Roller Base - Less Casters 1

19

 016-0683-00 Twin Wheel Caster - Black 5

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
