425 Stool Accessories
Refer to: Upholstery Color Options for the order number extension of your desired color.

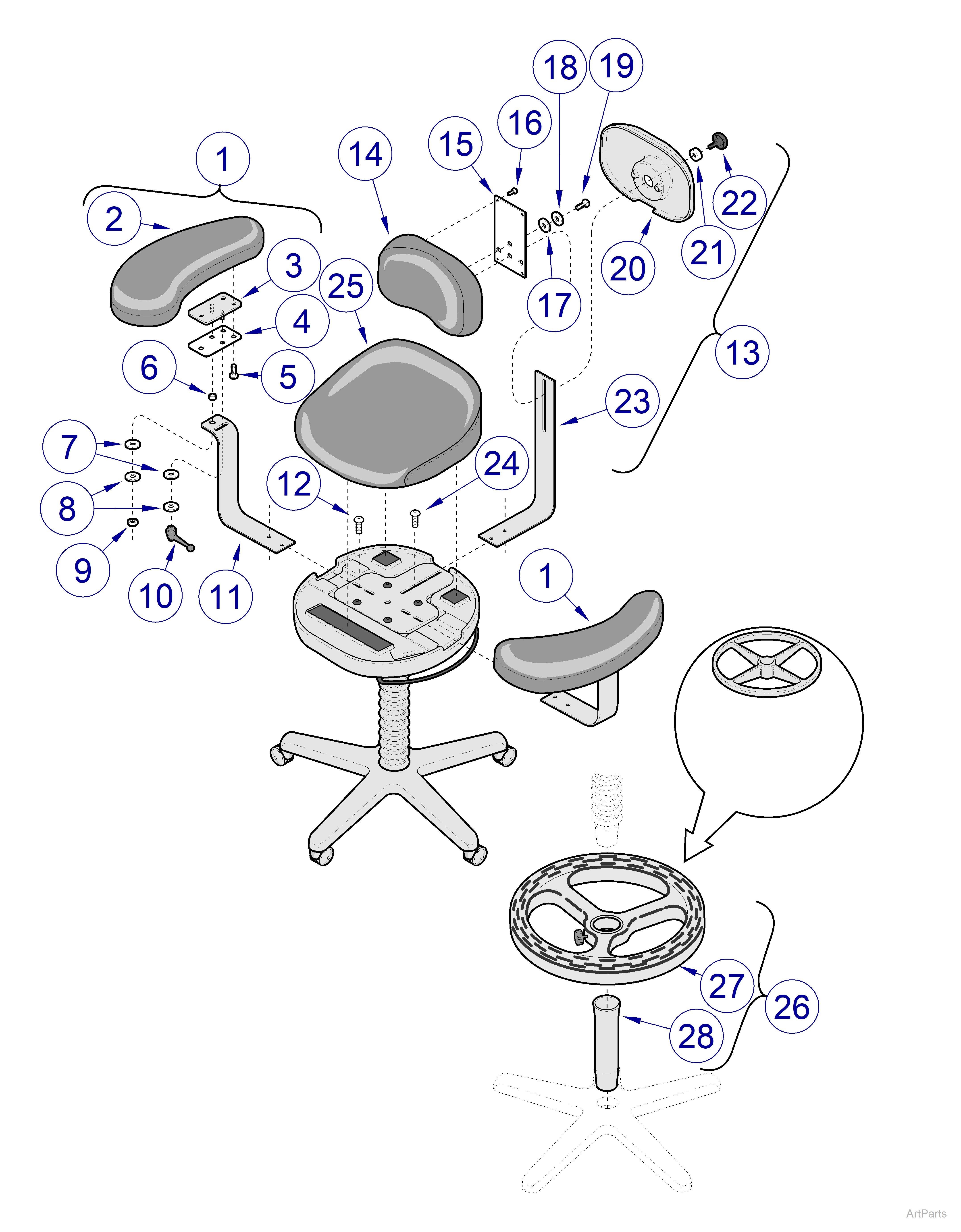

Serial Number Range: BZ1000 thru BZ018422 and V2200 thru V289596
|
Model |
425-001 |
| Serial Number | BZ1000 thru BZ018422 and V2200 thru V289596 |
| 425 Stool Accessories | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
002-0275-XX | Stool Arm Kit - Includes Items 1 thru 12 | 1 |
|
2 |
Upholstered Armrest* | ||
| 028-0224-XX | Right Armrest | 1 | |
| 028-0225-XX | Left Armrest | 1 | |
|
3 |
030-0649-10 | Arm Pivot Weldment | 2 |
|
4 |
053-0348-00 | Arm Pivot | 2 |
|
5 |
040-0250-86 | Screw | 6 |
|
6 |
053-0081-00 | Stop | 2 |
|
7 |
045-0007-01 | Nylon Washer | 4 |
|
8 |
045-0001-02 | Washer | 4 |
|
9 |
041-0250-01 | Nut | 2 |
|
10 |
016-0374-00 | Torque Lever | 2 |
|
11 |
051-0593-10 | Arm Support Bar | 2 |
|
12 |
040-0250-08 | Screw | 4 |
|
13 |
002-0274-XX | Stool Backrest Kit - Includes Items 14 thru 24 | 1 |
|
14 |
028-0223-XX | Upholstered Backrest | 1 |
|
15 |
053-0427-00 | Back Plate | 1 |
|
16 |
040-0010-48 | Screw | 4 |
|
17 |
045-0007-01 | Nylon Washer | 1 |
|
18 |
045-0001-02 | Washer | 1 |
|
19 |
040-0250-86 | Screw | 1 |
|
20 |
053-0343-00 | Backrest Cover | 1 |
|
21 |
053-0356-00 | Torque Knob Spacer | 1 |
|
22 |
016-0343-01 | Torque Knob | 1 |
|
23 |
051-0594-10 | Back Support Bar | 1 |
|
24 |
040-0250-08 | Screw | 2 |
|
25 |
002-0273-XX | Upholstered Seat | 1 |
|
26 |
002-1546-00 | Footring Kit - Includes Items 27 and 28 | 1 |
|
27 |
Footrest | NSS | |
|
28 |
Extension Tube | NSS | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

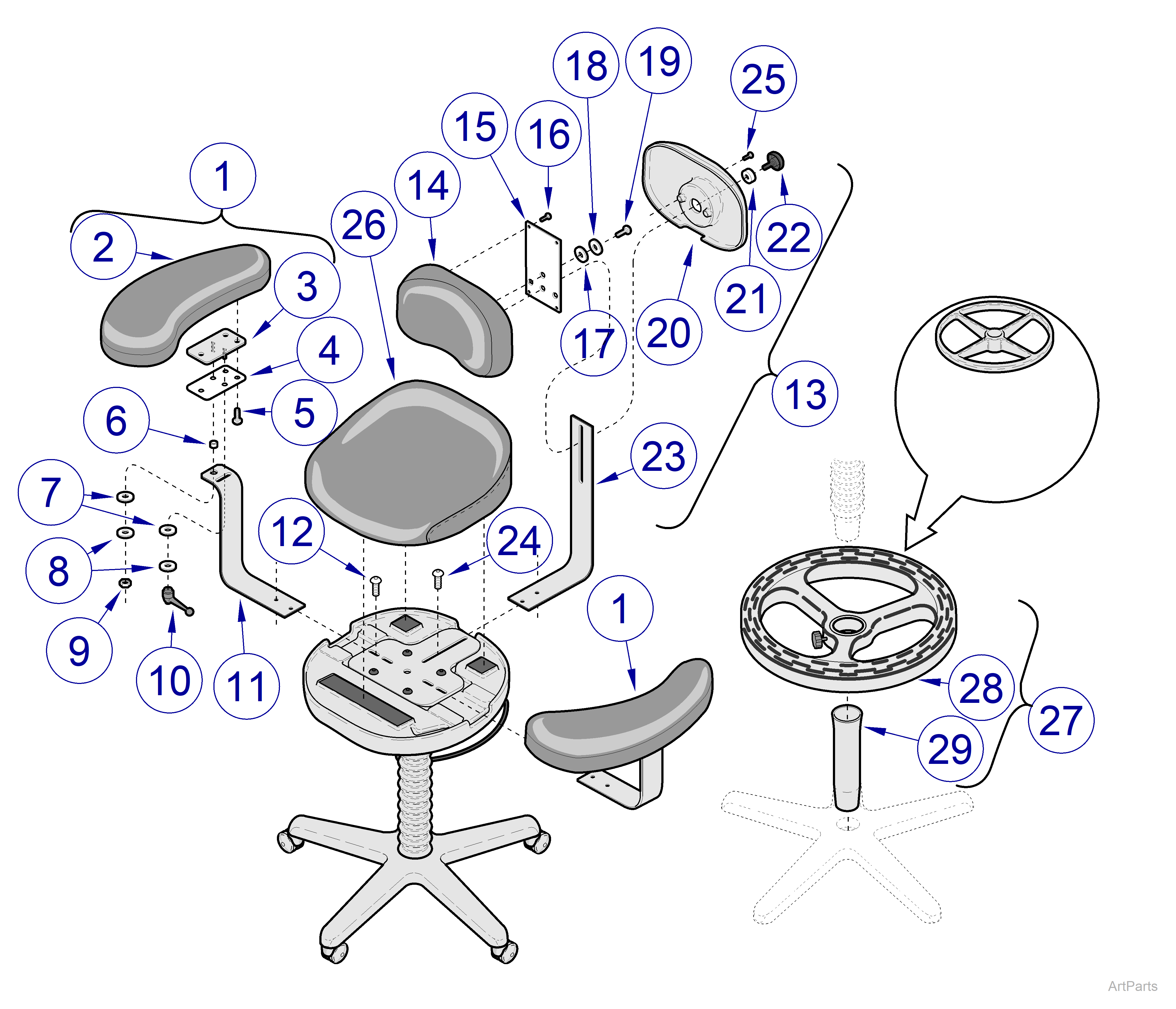

Serial Number Range: V289597 thru V1471186 and VAF000001 thru Present
|
Model |
425-001 |
| Serial Number | V289597 thru V1471186 and VAF000001 thru Present |
| 425 Stool Accessories | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Stool Arm Kit Options | ||
| 002-0275-xxx | Standard and UltraFree Upholstery - Includes Items 1 thru 12 | 1 | |
|
002-0946-xxx |
CAL 133 Upholstery - Includes Items 1 thru 12 | NLA | |
|
2 |
Upholstered Armrest Options | ||
| 028-0224-00-xxx | Right Standard and UltraFree Armrest | 1 | |
|
028-0224-01-xxx |
Right CAL 133 Armrest | NLA | |
| 028-0225-00-xxx | Left Standard and UltraFree Armrest | 1 | |
|
028-0225-01-xxx |
Left CAL 133 Armrest | NLA | |
|
3 |
030-0649-10 | Arm Pivot Weldment | 2 |
|
4 |
053-0348-00 | Arm Pivot | 2 |
|
5 |
040-0250-86 | Screw | 6 |
|
6 |
053-0081-00 | Stop | 2 |
|
7 |
045-0007-01 | Nylon Washer | 4 |
|
8 |
045-0001-02 | Washer | 4 |
|
9 |
041-0250-01 | Nut | 2 |
|
10 |
016-0374-00 | Torque Lever | 2 |
|
11 |
051-0593-10 | Arm Support Bar | 2 |
|
12 |
040-0250-08 | Screw | 4 |
|
13 |
Stool Backrest Kit Options | ||
| 002-0274-xxx | Standard and UltraFree Upholstery - Includes Items 14 thru 25 | 1 | |
|
002-0945-xxx |
CAL 133 Upholstery - Includes Items 14 thru 25 | NLA | |
|
14 |
Backrest Options | ||
| 028-0223-00-xxx | Standard and UltraFree | 1 | |
|
028-0223-01-xxx |
CAL 133 | NLA | |
|
15 |
053-0427-00 | Back Plate | 1 |
|
16 |
040-0010-48 | Screw | 4 |
|
17 |
045-0007-01 | Nylon Washer | 1 |
|
18 |
045-0001-02 | Washer | 1 |
|
19 |
040-0250-86 | Screw | 1 |
|
20 |
053-0343-00 | Backrest Cover | 1 |
|
21 |
053-0356-00 | Torque Knob Spacer | 1 |
|
22 |
016-0343-01 | Torque Knob | 1 |
|
23 |
051-0594-10 | Back Support Bar | 1 |
|
24 |
040-0250-08 | Screw | 2 |
|
25 |
040-0250-87 | Screw | 2 |
|
26 |
Upholstered Seat Options | ||
| 002-0273-xxx | Standard and UltraFree | 1 | |
|
002-0944-xxx |
CAL 133 | NLA | |
|
27 |
002-1546-00 | Footring Kit - Includes Items 28 and 29 | 1 |
|
28 |
Footring | NSS | |
|
29 |
Extension Tube | NSS | |
|
30 |
046-0003-00 | 1/8" Allen Wrench - Not Shown | 1 |
|
31 |
046-0005-00 | 5/32" Allen Wrench - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
