427 Stool Assembly

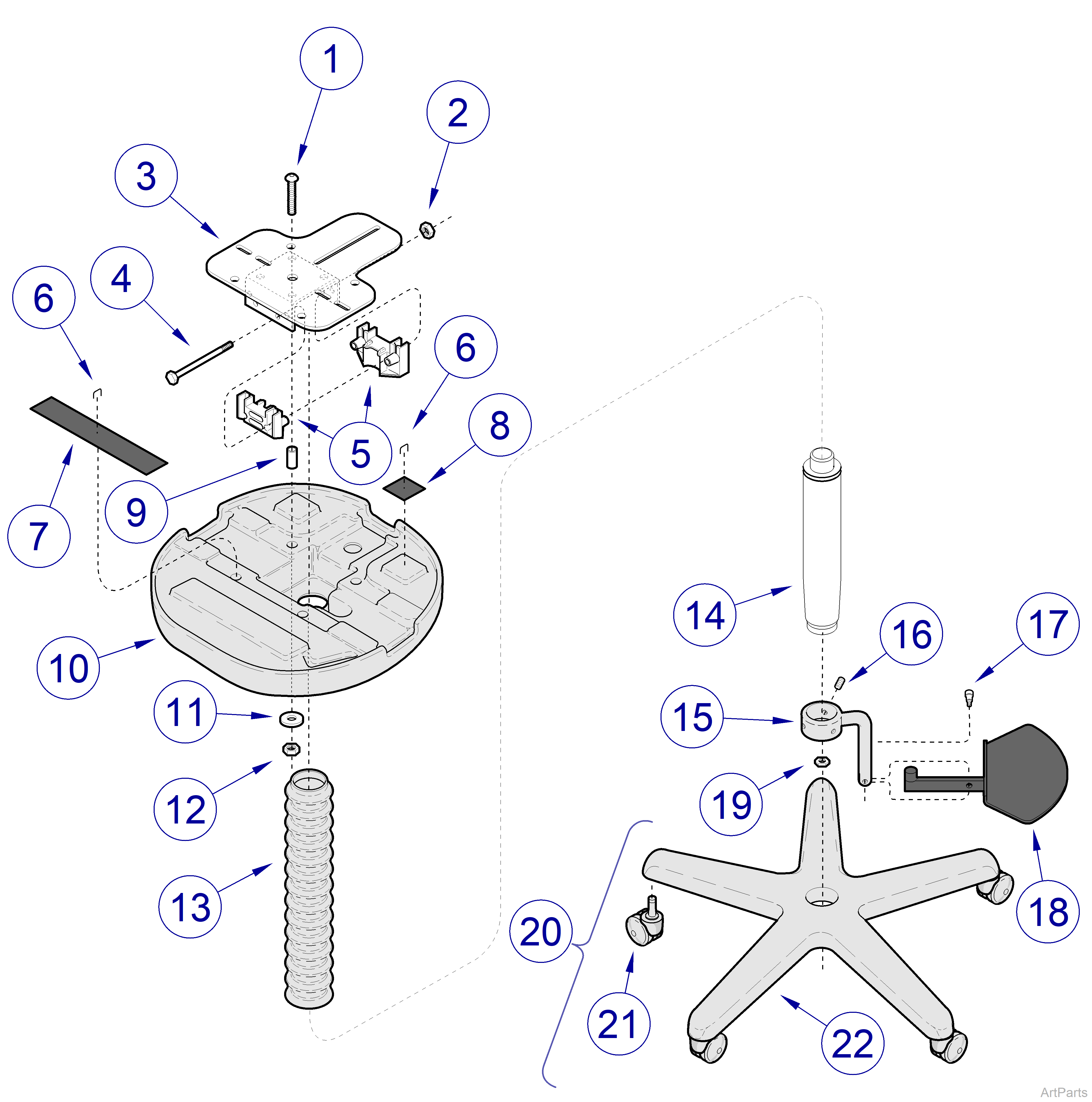

Serial Number Range: BZ1000 thru BZ1834
|
Model |
427-001 |
| Serial Number | BZ1000 thru BZ1834 |
| 427 Stool Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 427-001 | Stool Assembly w/ Foot Release - Includes items 1 thru 22 | 1 | |
|
1 |
040-0250-82 | Screw | 4 |
|
2 |
041-0312-01 | Nut | 2 |
|
3 |
050-4689-10 | Mounting Base Weldment | 1 |
|
4 |
040-0312-09 | Screw | 2 |
|
5 |
016-0090-02 | Die Cast Jaw | 2 |
|
6 |
042-0040-00 | Staple | 76 |
|
7 |
053-0131-08 | Velcro Hook | 1 |
|
8 |
053-0131-00 | Velcro Hook | 2 |
|
9 |
Spacer - No longer required | NLA | |
|
10 |
053-0342-00 | Upper Shell | 1 |
|
11 |
045-0001-60 | Washer | 4 |
|
12 |
041-0250-01 | Nut | 4 |
|
13 |
053-0344-00 | Cylinder Bellows | 1 |
|
14 |
002-1525-00 | Gas Cylinder Kit | 1 |
|
15 |
002-1269-00 | Collar Retro Kit - Includes appropriate mounting hardware | 1 |
|
16 |
040-0250-05 |
Set Screw - Apply thread locking adhesive #042-0025-02 |
3 |
|
17 |
042-0014-22 |
Shoulder Screw - Apply thread locking adhesive #042-0024-03 |
1 |
|
18 |
030-0644-00 | Foot Release Pedal Weldment | 1 |
|
19 |
016-0182-00 |
Hex Nut | NLA |
|
20 |
Roller Base Assembly - Includes Items 21 and 22 | NLA | |
|
21 |
016-0493-00 | Roller Base - Less Casters | 1 |
|
22 |
Twin Wheel Caster Color Options | ||
| Pearl Grey | NLA | ||
| 016-0683-00 | Black | 5 | |
|
23 |
002-1004-00 | Twin Wheel Caster Set - Includes 5 Black Casters - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

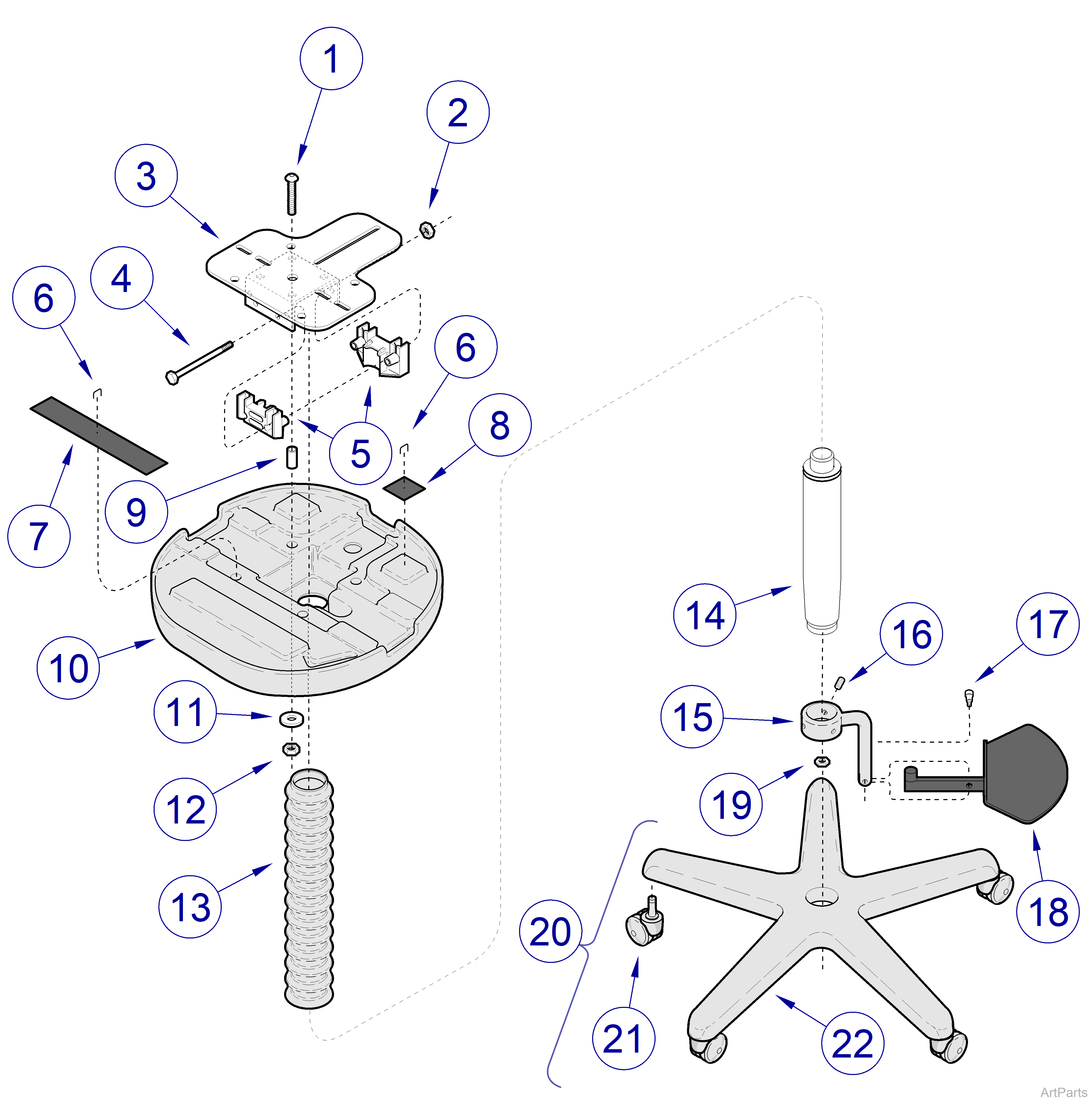

Serial Number Range: BZ1835 thru BZ6818 and V2200 thru V289596
|
Model |
427-001 |
| Serial Number | BZ1835 thru BZ6818 and V2200 thru V289596 |
| 427 Stool Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 427-001 | Stool Assembly w/ Foot Release - Includes items 1 thru 22 | 1 | |
|
1 |
040-0250-82 | Screw | 4 |
|
2 |
041-0312-01 | Nut | 2 |
|
3 |
050-4689-10 | Mounting Base Weldment | 1 |
|
4 |
040-0312-09 | Screw | 2 |
|
5 |
016-0090-02 | Die Cast Jaw | 2 |
|
6 |
042-0040-00 | Staple | 76 |
|
7 |
053-0131-08 | Velcro Hook | 1 |
|
8 |
053-0131-00 | Velcro Hook | 2 |
|
9 |
Spacer - No longer required | NLA | |
|
10 |
053-0342-00 | Upper Shell | 1 |
|
11 |
045-0001-60 | Washer | 4 |
|
12 |
041-0250-01 | Nut | 4 |
|
13 |
053-0344-00 | Cylinder Bellows | 1 |
|
14 |
002-1525-00 | Gas Cylinder Kit | 1 |
|
15 |
002-1269-00 | Collar Retro Kit - Includes appropriate mounting hardware | 1 |
|
16 |
040-0250-05 |
Set Screw - Apply thread locking adhesive #042-0025-02 |
3 |
|
17 |
042-0014-22 |
Shoulder Screw - Apply thread locking adhesive #042-0024-03 |
1 |
|
18 |
030-0644-00 | Foot Release Pedal Weldment | 1 |
|
19 |
016-0182-00 |
Hex Nut | NLA |
|
20 |
Roller Base Assembly - Includes Items 21 and 22 | NLA | |
|
21 |
016-0493-00 | Roller Base - Less Casters | 1 |
|
22 |
Twin Wheel Caster Color Options | ||
| Pearl Grey | NLA | ||
| 016-0683-00 | Black | 5 | |
|
23 |
002-1004-00 | Twin Wheel Caster Set - Includes 5 Black Casters - Not Shown | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

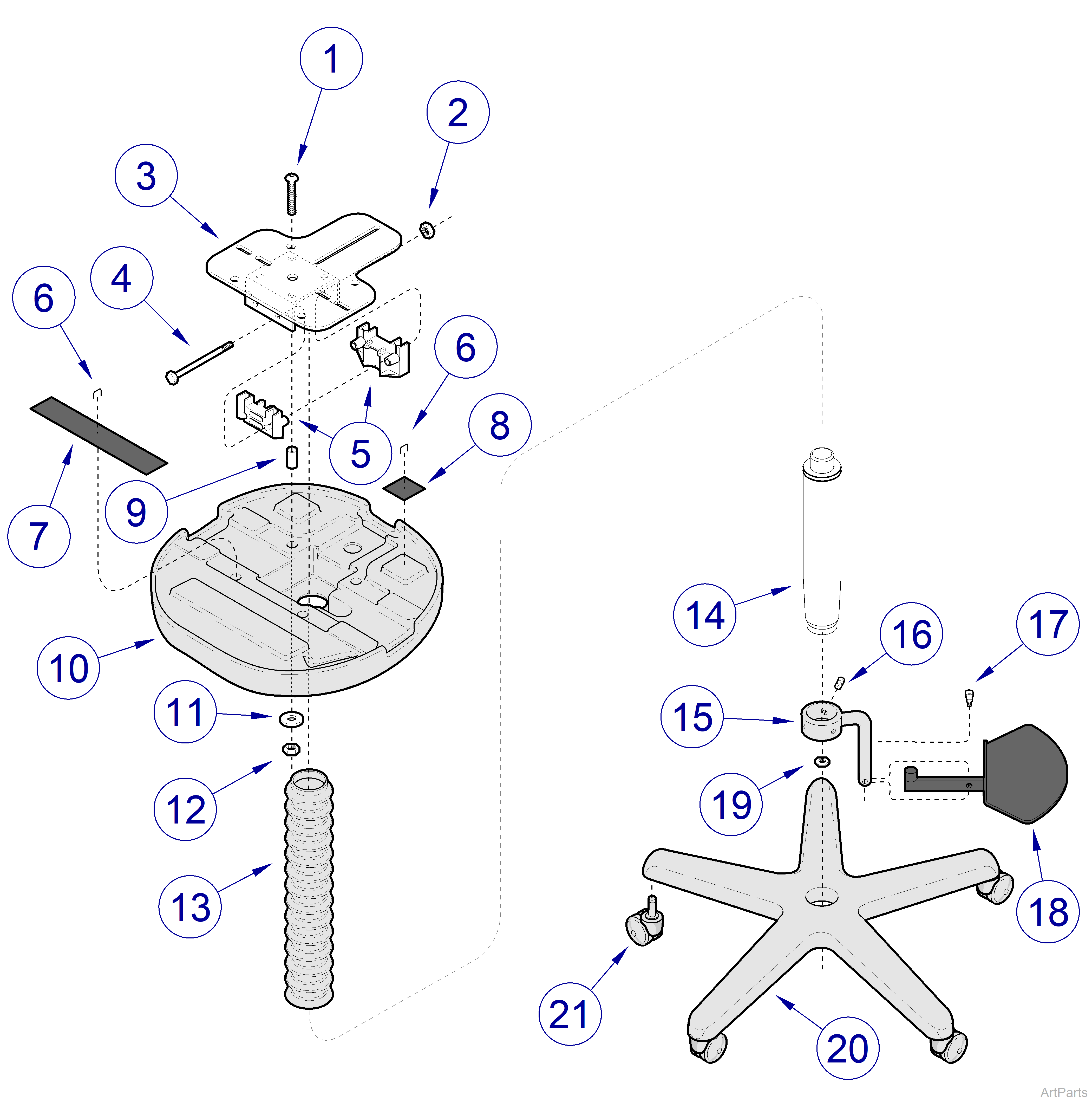

Serial Number Range: V289597 thru V949286
|
Model |
427-001 |
| Serial Number | V289597 thru V949286 |
| 427 Stool Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 427-001 | Stool Assembly w/ Foot Release - Includes Items 1 thru 21 | 1 | |
|
1 |
040-0250-82 | Screw | 4 |
|
2 |
041-0312-01 | Nut | 2 |
|
3 |
050-4689-10 | Mounting Base Weldment | 1 |
|
4 |
040-0312-09 | Screw | 2 |
|
5 |
016-0090-02 | Die Cast Jaw | 2 |
|
6 |
042-0040-00 | Staple | 76 |
|
7 |
053-0131-08 | Velcro Hook | 1 |
|
8 |
053-0131-00 | Velcro Hook | 2 |
|
9 |
Spacer - No longer required | NLA | |
|
10 |
053-0342-00 | Upper Shell | 1 |
|
11 |
045-0001-60 | Washer | 4 |
|
12 |
041-0250-01 | Nut | 4 |
|
13 |
053-0344-00 | Cylinder Bellows | 1 |
|
14 |
002-1525-00 | Column Gas Cylinder Kit | 1 |
|
15 |
002-1269-00 | Collar Retro Kit - Includes items 16 and 17 | 1 |
|
16 |
040-0250-05 |
Set Screw - Apply thread locking adhesive #042-0025-02 |
3 |
|
17 |
042-0014-22 |
Shoulder Screw - Apply thread locking adhesive #042-0024-03 |
1 |
|
18 |
030-0644-00 | Foot Release Pedal Weldment | 1 |
|
19 |
016-0182-00 |
Hex Nut | NLA |
|
20 |
016-0493-00 | Roller Base - Less Casters | 1 |
|
21 |
016-0683-00 | Twin Wheel Caster | 5 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

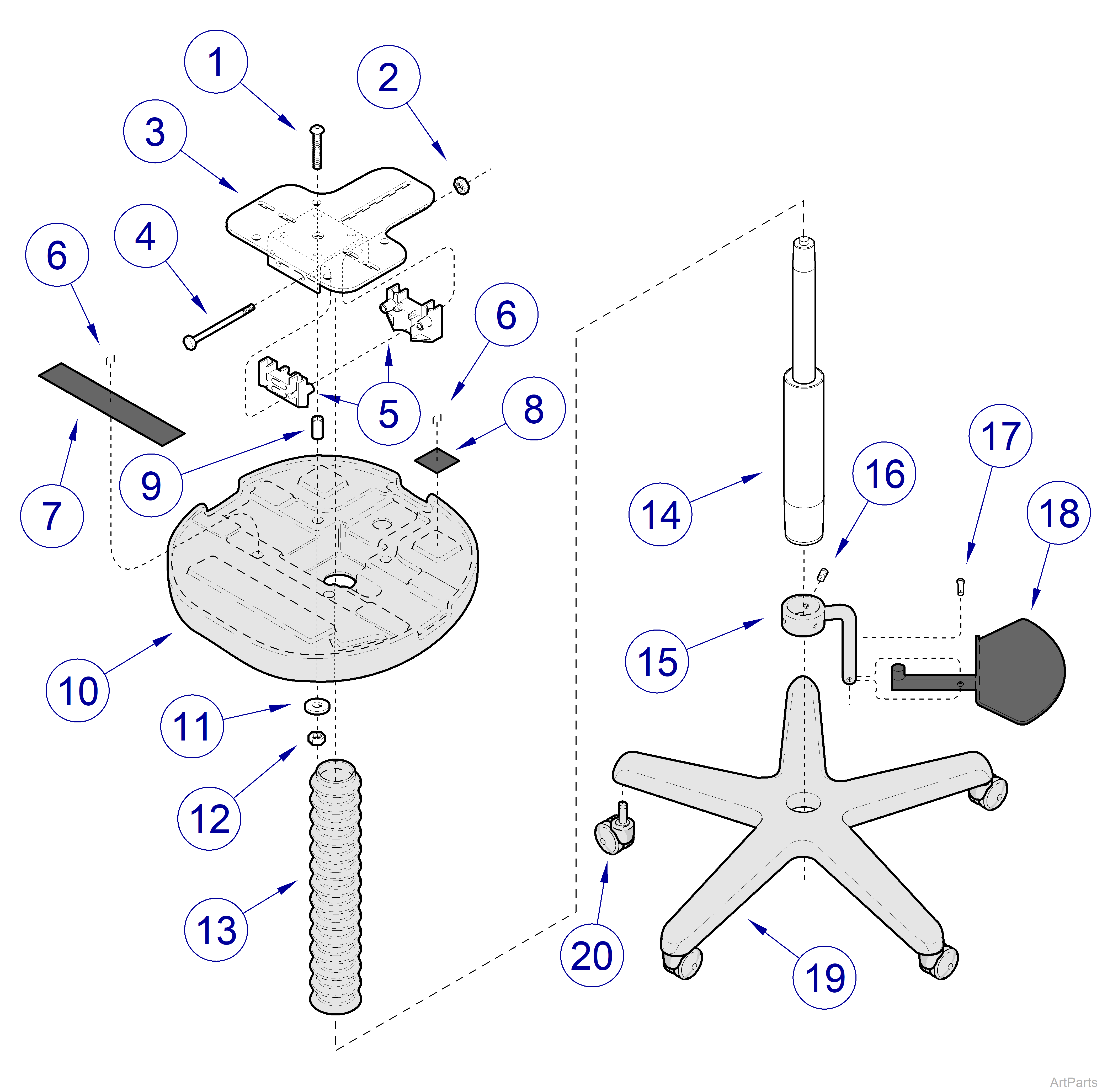

Serial Number Range: V949287 thru V1134336
|
Model |
427-001 |
| Serial Number | V949287 thru V1134336 |
| 427 Stool Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 427-001 | Stool Assembly w/ Foot Release - Includes Items 1 thru 21 | 1 | |
|
1 |
040-0250-82 | Screw | 4 |
|
2 |
041-0312-01 | Nut | 2 |
|
3 |
050-4689-10 | Mounting Base Weldment | 1 |
|
4 |
040-0312-09 | Screw | 2 |
|
5 |
016-0090-02 | Die Cast Jaw | 2 |
|
6 |
042-0040-00 | Staple | 76 |
|
7 |
053-0131-08 | Velcro Hook | 1 |
|
8 |
053-0131-00 | Velcro Hook | 2 |
|
9 |
Spacer - No longer required | NLA | |
|
10 |
053-0342-00 | Upper Shell | 1 |
|
11 |
045-0001-60 | Washer | 4 |
|
12 |
041-0250-01 | Nut | 4 |
|
13 |
053-0344-00 | Cylinder Bellows | 1 |
|
14 |
002-1525-00 | Column Gas Cylinder Kit | 1 |
|
15 |
002-1269-00 | Collar Retro Kit - Includes items 16 and 17 | 1 |
|
16 |
040-0250-05 |
Set Screw - Apply thread locking adhesive #042-0025-02 |
2 |
|
17 |
016-1018-00 | Pivot Pin | 1 |
|
18 |
030-0644-00 | Foot Release Pedal Weldment | 1 |
|
19 |
016-0182-00 |
Hex Nut | NLA |
|
20 |
016-0493-00 | Roller Base - Less Casters | 1 |
|
21 |
016-0683-00 | Twin Wheel Caster | 5 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

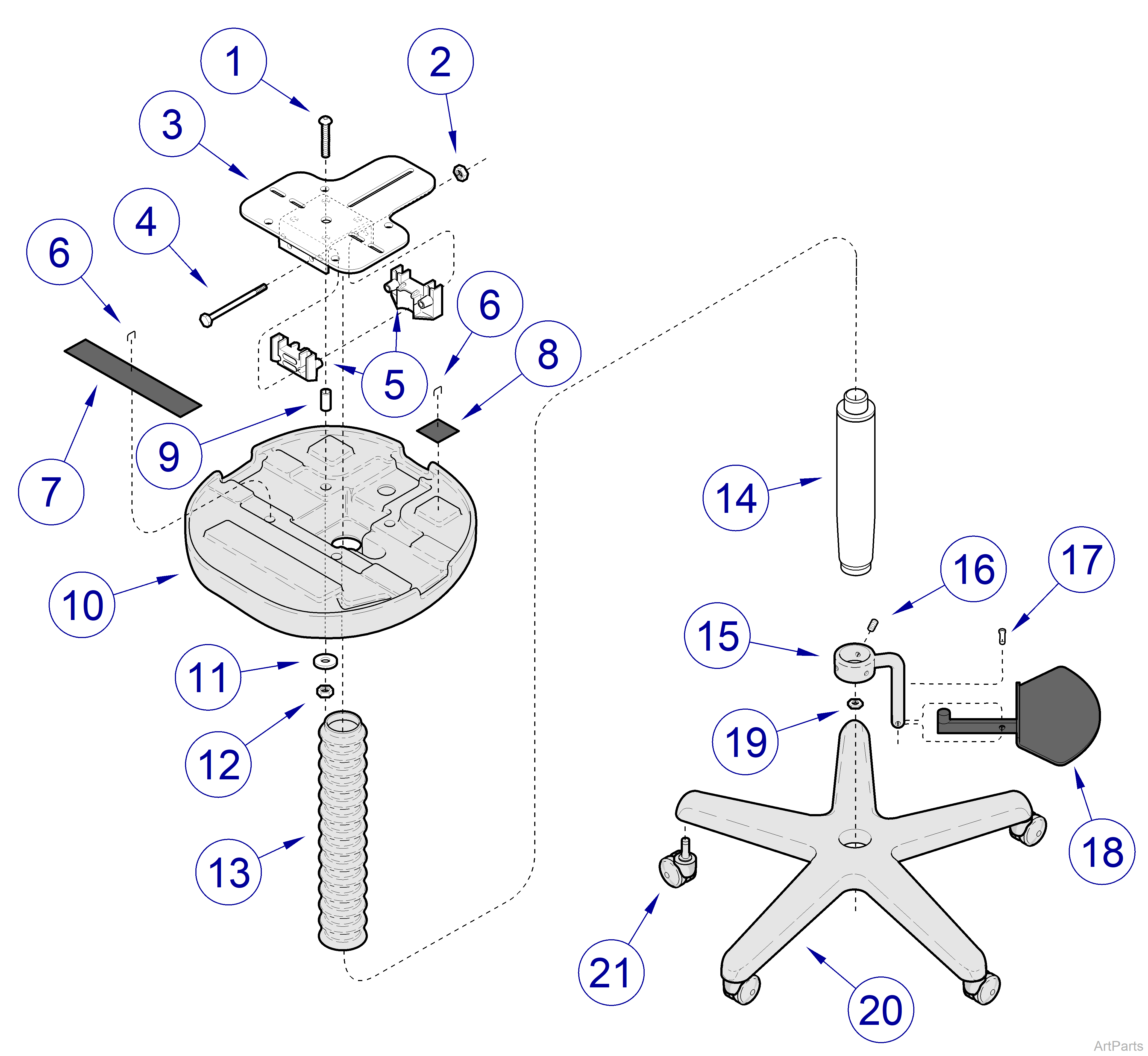

Serial Number Range: V1134337 thru V1466250 and VAF000001 thru Present
|
Model |
427-001 |
| Serial Number | V1134337 thru V1466250 and VAF000001 thru Present |
| 427 Stool Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
| 427-001 | Stool Assembly w/ Foot Release - Includes Items 1 thru 20 | 1 | |
|
1 |
040-0250-82 | Screw | 4 |
|
2 |
041-0312-01 | Nut | 2 |
|
3 |
050-4689-10 | Mounting Base Weldment | 1 |
|
4 |
040-0312-09 | Screw | 2 |
|
5 |
016-0090-02 | Die Cast Jaw | 2 |
|
6 |
042-0040-00 | Staple | 76 |
|
7 |
053-0131-08 | Velcro Hook | 1 |
|
8 |
053-0131-00 | Velcro Hook | 2 |
|
9 |
Spacer - No longer required | NLA | |
|
10 |
053-0342-00 | Upper Shell | 1 |
|
11 |
045-0001-60 | Washer | 4 |
|
12 |
041-0250-01 | Nut | 4 |
|
13 |
053-0344-00 | Cylinder Bellows | 1 |
|
14 |
002-1525-00 | Air Cylinder Assembly | 1 |
|
15 |
002-1269-00 | Collar Retro Kit - Includes item 16 and 17 | 1 |
|
16 |
040-0250-05 |
Set Screw - Apply thread locking adhesive #042-0025-02 |
2 |
|
17 |
016-1018-00 | Pivot Pin | 1 |
|
18 |
030-0644-00 | Foot Release Pedal Weldment | 1 |
|
19 |
016-0493-00 | Roller Base - Less Casters | 1 |
|
20 |
016-0683-00 | Twin Wheel Caster | 5 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
