680 Side Chair

Model

 680
Serial Number V2200 thru V1401937 and VAA000001 thru Present

Click box and insert variable of your part/product name

Refer to: Upholstery Color Options for the order number extension of your desired color.

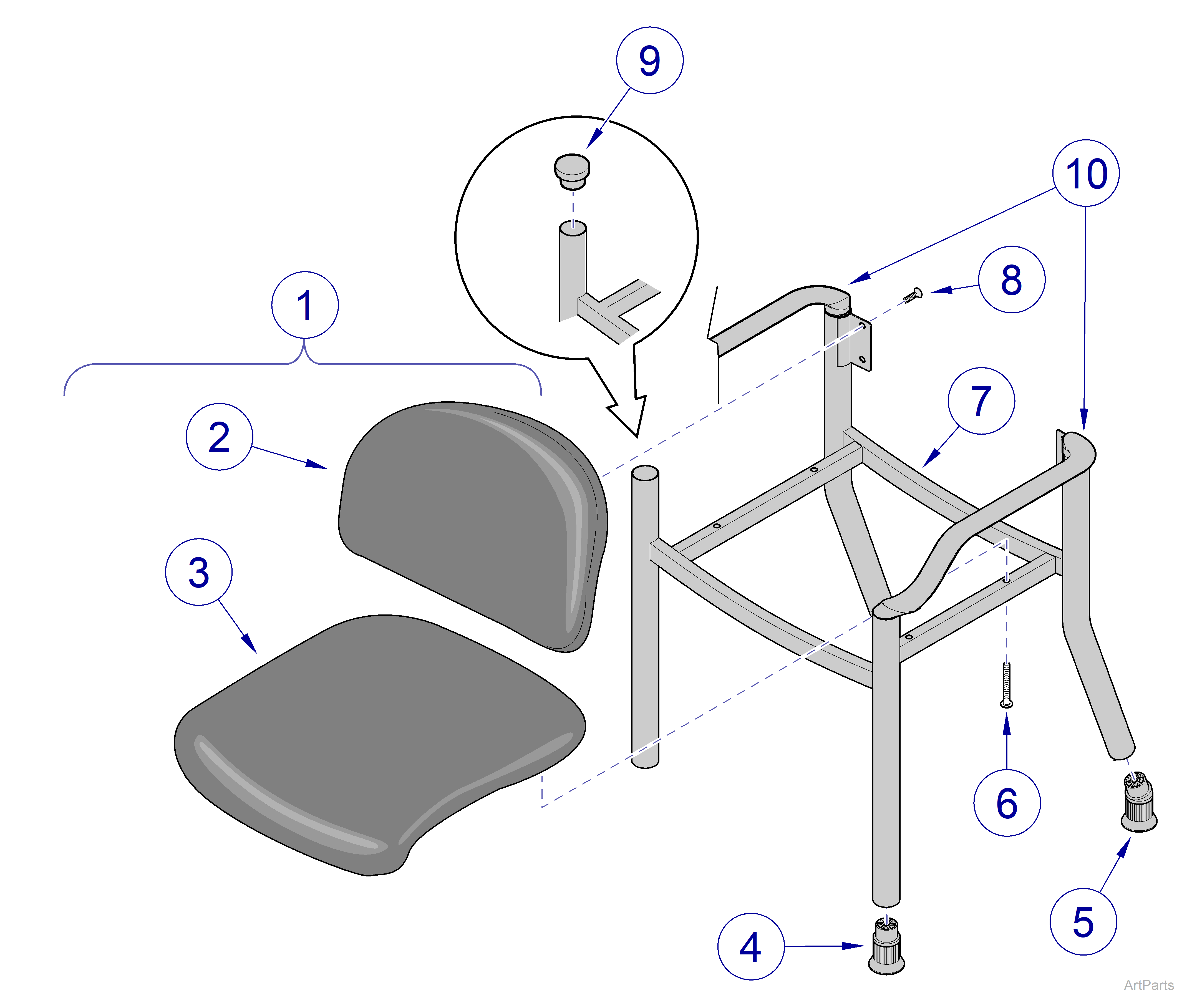

680 Side Chair Side Chair
Item Part Number Description Qty

1

 Upholstery Set Options - includes item 2 and 3
  002-0910-00-xxx Standard 1


002-0977-00-xxx

 CAL 133

NLA

2

 Back Upholstery Options
  002-0910-02-xxx Standard 1


002-0977-02-xxx

 CAL 133

NLA

3

 Seat Upholstery Options
  002-0910-01-xxx Standard 1


002-0977-01-xxx

 CAL 133

NLA

4

 016-1074-00-312 Front Leveling Foot 2

5

 016-1074-01-312 Back Leveling Foot 2

6

   Screw 5 mm x 32 mm NSS

7

   Chair Weldment - N/A NSS

8

   Screw 6 mm x 45 mm NSS

9

 053-1506-00 Plug, models w/o arms only 4

10

002-10354-00

Arm Set Kit - includes both arms

1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
