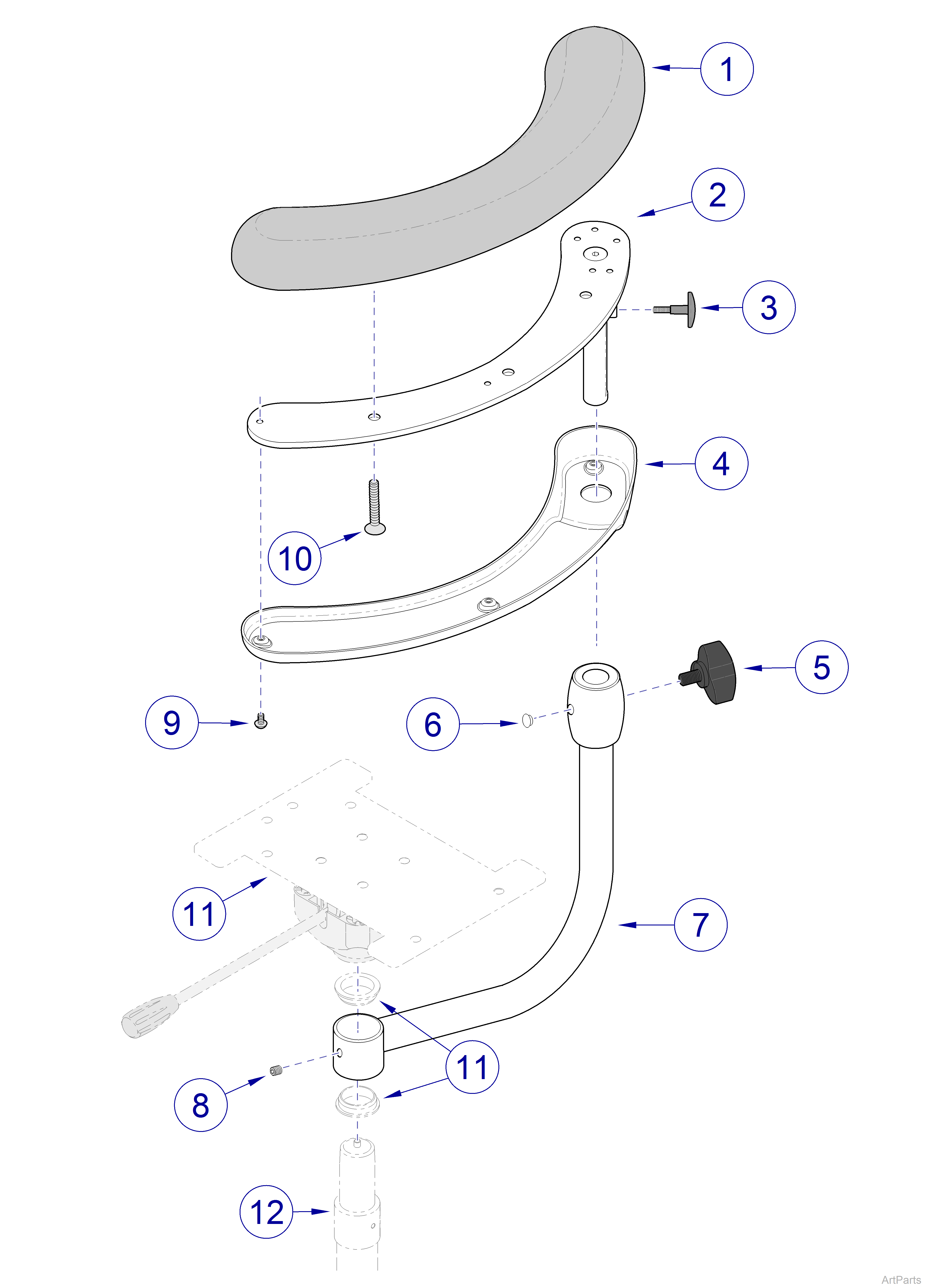

153812 Assistant Stool Body Support
Serial Number Range: V2200 thru V835992
|
Model |
153812 |
| Serial Number |
V2200 thru V835992 |
Refer to: the Upholstery Color Options for the order number extension of your desired color.
| 153812 Assistant Stool Body Support | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
|
Upholstered AB Support Pad Upholstered AB Support Pad “No Longer Available”, use appropriate kit below. |
NLA |
| 002-1265-00-xxx | Upholstered Replacement Kit: Ultra-Leather | 1 | |
| 002-1265-01-xxx | Upholstered Replacement Kit: Heat / Stretch / Pull | 1 | |
|
002-1265-02-xxx |
Upholstered Replacement Kit: Vacuum Formed | NLA | |
|
2 |
Refer to: |
Assistant Stool: Ratchet Assembly |
- |
|
3 |
Ratchet Release Lever Kit |
1 |
|
|
4 |
Cover Options | ||
|
|
Cover: Left Hand |
1 |
|
| 053-1887-00-216 | Cover: Right Hand | 1 | |
|
5 |
029-4510-00 |
Height Adjustment Knob |
1 |
|
6 |
Hole Plug |
1 |
|
|
7 |
Tube Weldment |
1 |
|
|
8 |
Set Screw 1/4-20 x 1/4” |
1 |
|
|
9 |
Screw #10-24 x 3/8” |
3 |
|
|
10 |
Screw 3/8-16 x 1” |
3 |
|
|
11 |
Refer to: |
- |
|
|
12 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

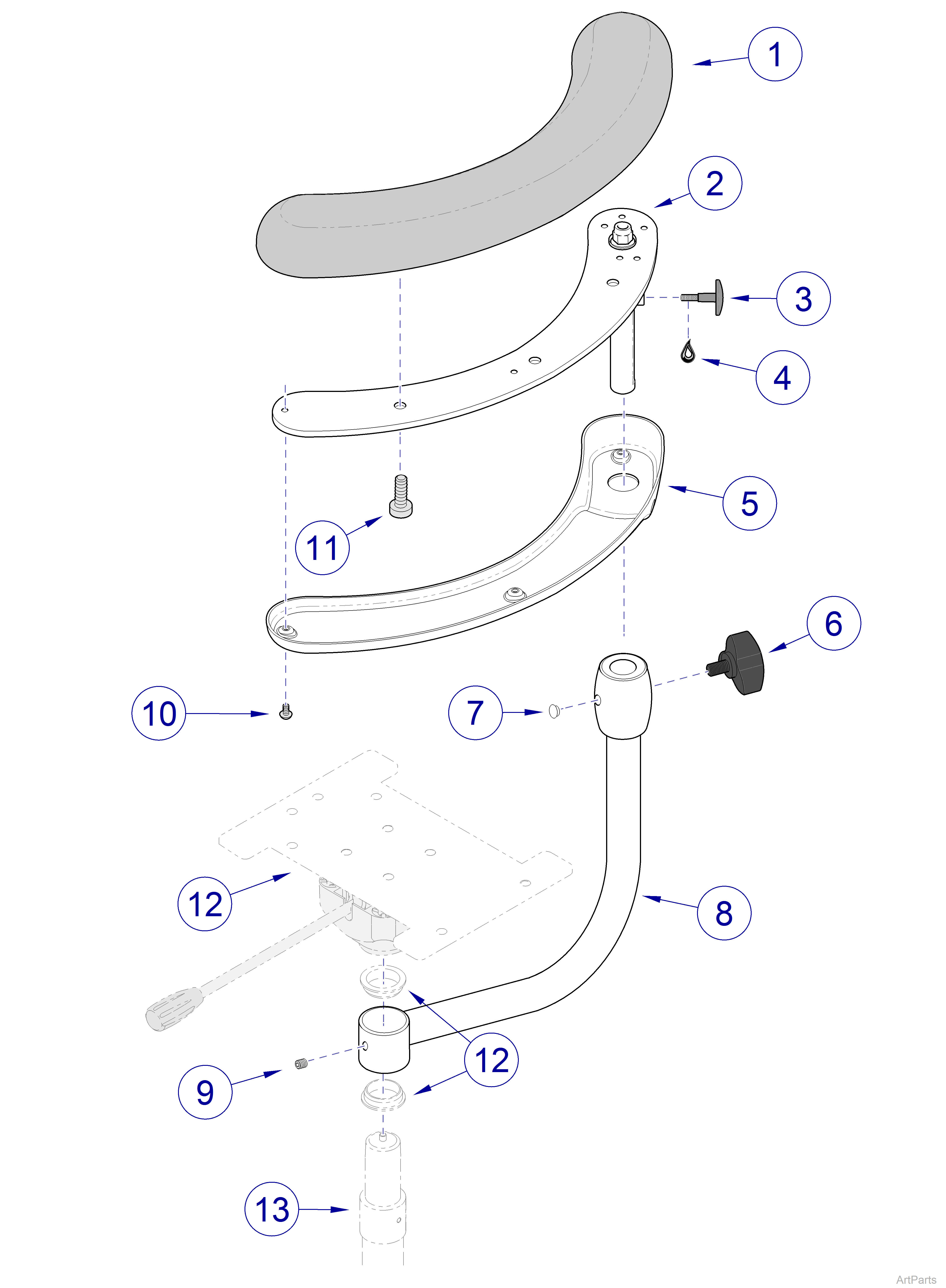

Serial Number Range: V2200 thru V1498212 and VAG00001 thru Present
|
Model |
153812 |
| Serial Number |
V2200 thru V1498212 and VAG00001 thru Present |
Refer to: the Upholstery Color Options for the order number extension of your desired color.
| 153812 Assistant Stool Body Support | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Upholstered Body Support Kit Options |
||
|
Upholstered Body Support Kit: Ultra-Leather |
1 |
||
|
|
002-1778-xx |
Upholstered Body Support Kit: Ultra-Leather CAL133 |
NLA |
| 002-1779-xxx | Upholstered Body Support Kit: Heat / Stretch / Pull | 1 | |
|
002-1780-xxx |
Upholstered Body Support Kit: Vacuum Formed | NLA | |
| 2 | Refer to: | Assistant Stool: Ratchet Assembly | - |
| 3 | 002-1776-00 | Ratchet Release Lever Kit | 1 |
| 4 | 042-0024-02 | Thread Adhesive | AR |
| 5 | Cover Options | ||
| 053-1851-00-216 | Cover: Left Hand | 1 | |
| 053-1887-00-216 | Cover: Right Hand | 1 | |
| 6 | 029-4510-00 | Height Adjustment Knob | 1 |
| 7 | 053-1333-50 | Hole Plug | 1 |
| 8 | 030-1728-00-216 | Tube Weldment | 1 |
| 9 | 040-0250-155 | Set Screw 1/4-20 x 1/4” | 1 |
| 10 | 040-0010-109 | Screw #10-24 x 3/8” | 3 |
| 11 | 040-0250-171 | Screw 1/4-20 x 7/8 Pan Hd Phil. w/ Scotch Grip | 1 |
| 12 | Refer to: | Assistant Stool: Seat Components | - |
|
13 |
Refer to: |
- |
|
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
