153812 Assistant Stool and 153812-001 Assistant Stool – Backrest
Verify the full model number to ensure you get the correct color and compatible parts.
Incorrect or incomplete numbers may result in mismatched colors.
Model 153812
|
Model |
153812 |
| Serial Number |
V2200 thru V1498212 and VAG00001 thru Present |
Refer to: the Upholstery Color Options for the order number extension of your desired color.

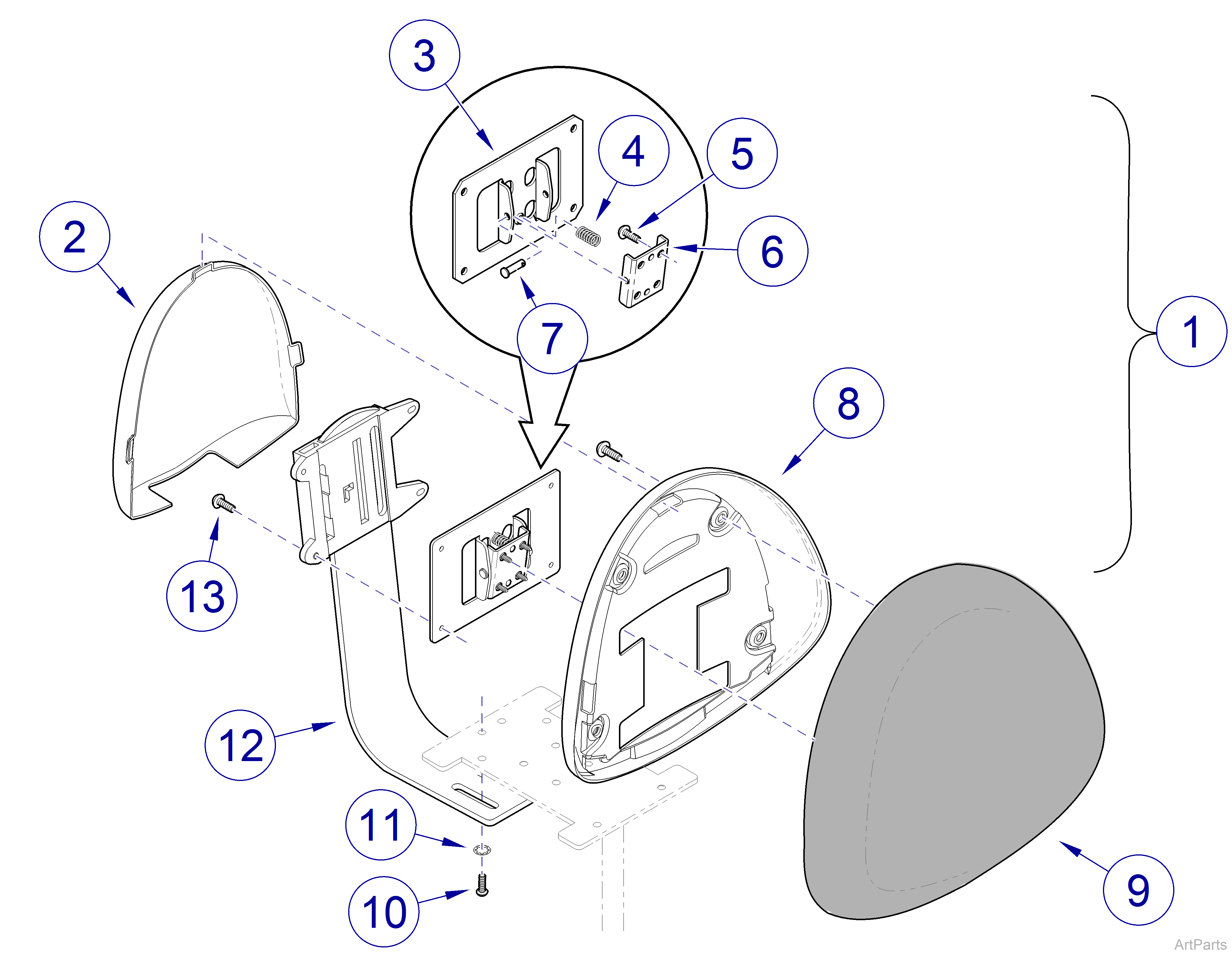

| 153812 Assistant Stool Backrest | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Backrest Assembly Options - includes Items 2 thru 13: |
||
|
Backrest Assembly w/ Ultra Upholstery |
1 |
||
| 002-1114-01-xxx | Backrest Assembly w/ HSP Upholster | 1 | |
|
002-1114-02-xxx |
Backrest Assembly w/ Vac Form Upholster | NLA | |
|
2 |
Back Cover |
1 |
|
|
3 |
Hinge Plate |
1 |
|
|
4 |
Compression Spring |
1 |
|
|
5 |
Screw 1/4-20 x 1/2" |
8 |
|
|
6 |
Hinge Bracket |
1 |
|
|
7 |
Pivot Pin |
1 |
|
|
8 |
Back Cover - large |
1 |
|
|
9 |
Upholstered Backrest Pad Options: |
||
|
Ultra-Leather |
1 |
||
| 002-1785-xxx | HSP - Heat/Stretch/Pull | 1 | |
|
002-1786-xxx |
Vacuum Formed | NLA | |
|
10 |
Screw 5/16-18 x 5/8" |
3 |
|
|
11 |
Star Washer 5/16" |
3 | |
|
12 |
Backrest Bar Assembly |
1 | |
|
13 |
040-0250-179 |
Screw 1/4-20 x 5/8" |
4 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
Model 153812-001
|
Model |
153812-001 |
| Serial Number |
All |
Refer to: the Upholstery Color Options for the order number extension of your desired color.

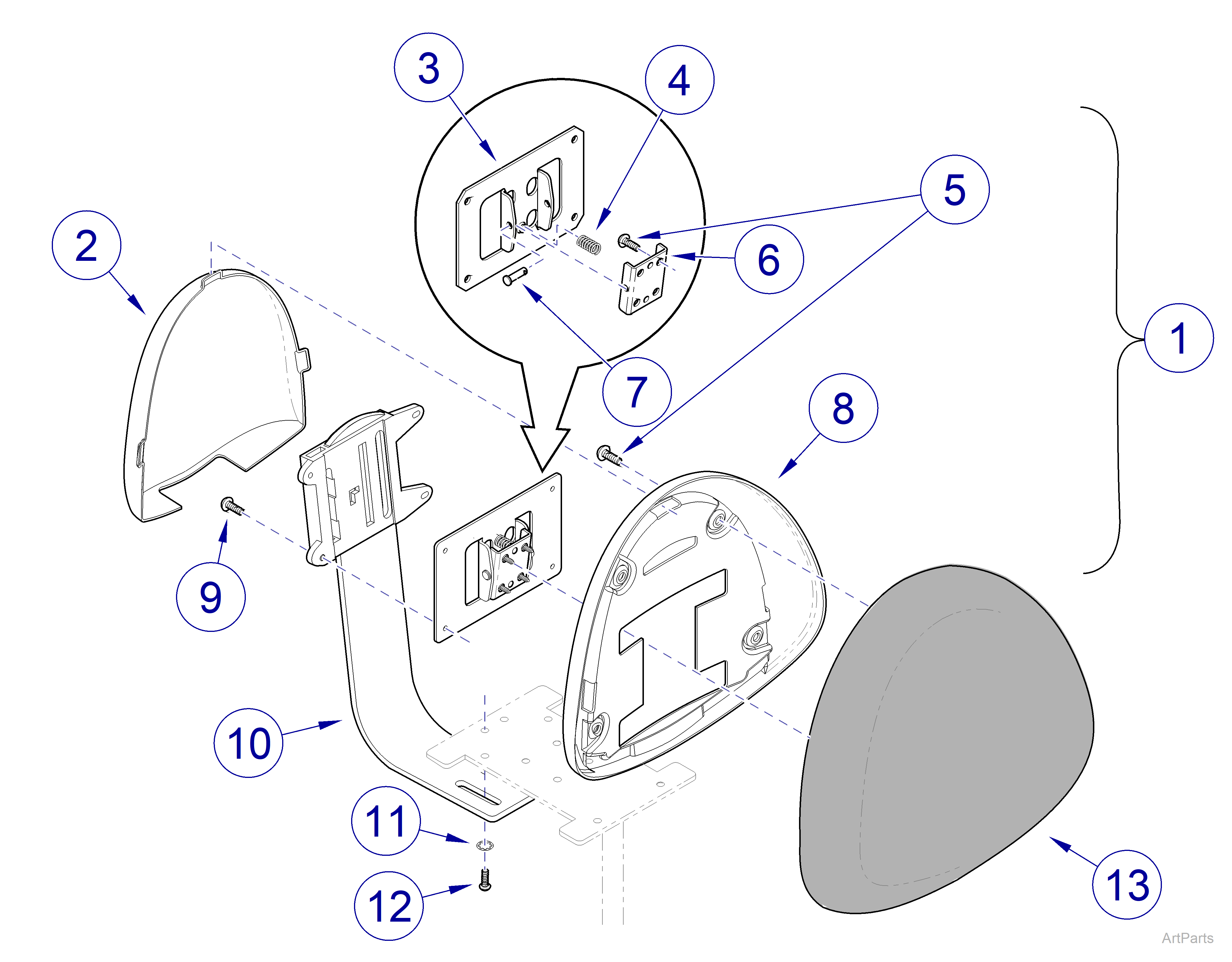

| 153812-001 Assistant Stool Backrest | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Backrest Assembly - includes Items 2 thru 10 |
1 |
|
|
2 |
Back Cover |
1 |
|
|
3 |
Hinge Plate |
1 |
|
|
4 |
Compression Spring |
1 |
|
|
5 |
Screw 1/4-20 x 1/2" |
8 |
|
|
6 |
Hinge Bracket |
1 |
|
|
7 |
Pivot Pin |
1 |
|
|
8 |
Back Cover - large |
1 |
|
|
9 |
040-0250-179 |
Screw 1/4-20 x 5/8" |
4 |
|
10 |
Backrest Bar Assembly |
1 | |
|
11 |
Star Washer 5/16" |
3 | |
|
12 |
Screw 5/16-18 x 5/8" |
3 |
|
|
13 |
Upholstered Backrest Pad Options: |
||
|
Ultra-Leather |
1 |
||
| 002-1785-xxx | HSP - Heat/Stretch/Pull | 1 | |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
