153811 Doctor Stool and 153811-001 Operator Stool – Standard Seat Assembly

Verify the full model number to ensure you get the correct color and compatible parts.

Incorrect or incomplete numbers may result in mismatched colors.

Model

153811
Serial Number

V2200 thru V1498252 and VAG00001 thru Present

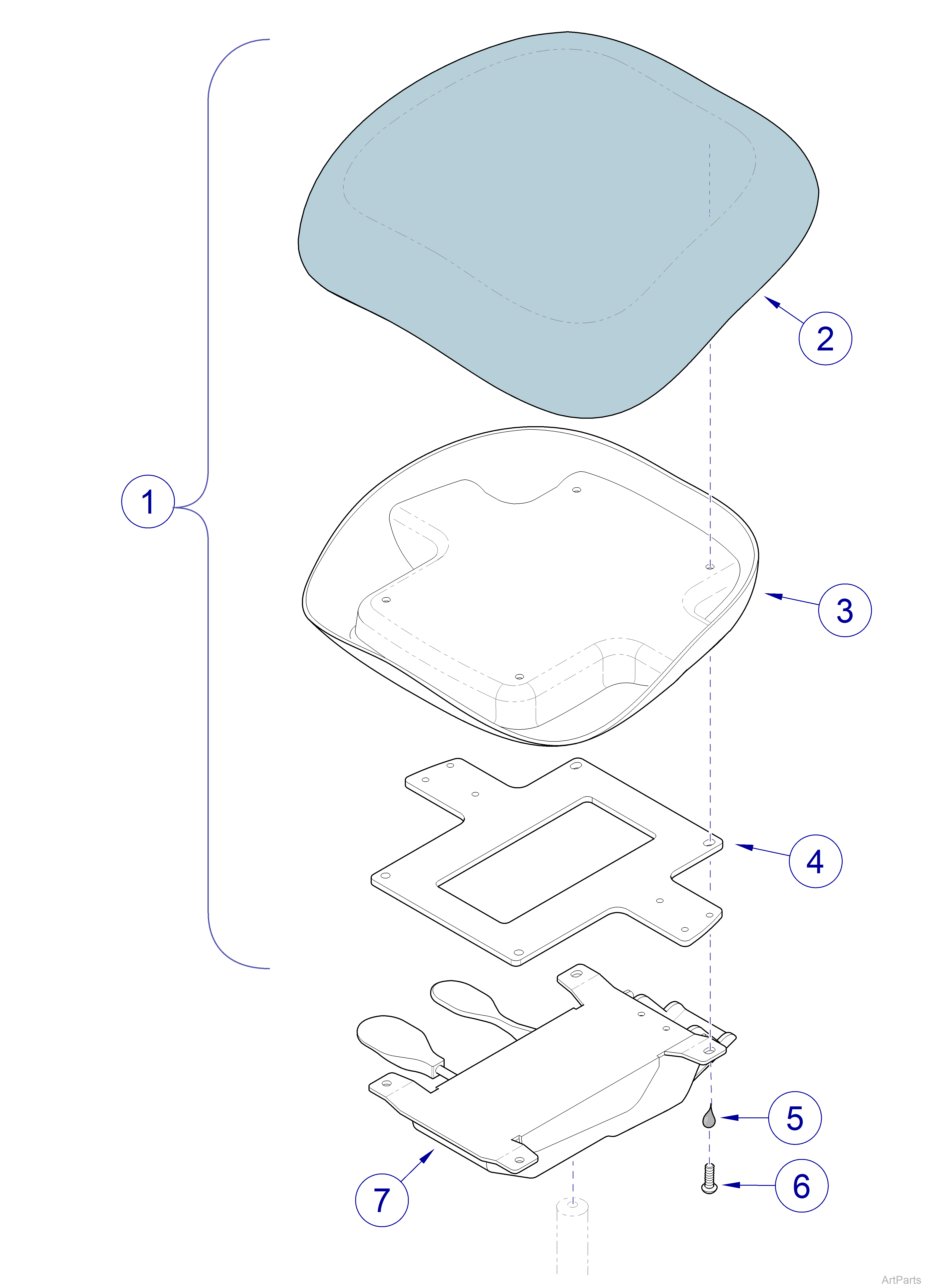

Doctor's Stool Seat Assembly - Standard

Refer to: the Upholstery Color Options for the order number extension of your desired color.

153811 Doctor Stool Standard Seat Assembly
Item Part Number Description Qty

1

Doctor’s Seat Kit - Standard - includes Items 2 thru 6



002-1112-00-xxx

Ultra-Leather

1



002-1788-xxx

Ultra-Leather CAL133 - not available as a kit

NLA



002-1112-01-xxx

Heat/Stretch/Pull

1



002-1112-02-xxx

Vacuum Formed

1

2

Upholstered Seat Pad Options:



002-1787-xxx

Ultra-Leather

1



002-1788-xxx

Ultra-Leather CAL133

NLA



002-1789-xxx

Heat/Stretch/Pull

1



002-1790-xxx

Vacuum Formed

NLA

3

053-1885-00-216

Bottom Cover

1

4

050-7178-00-216

Mounting Plate

1

5

042-0024-02

Medium Strength Thread Adhesive

1

6

040-0250-178

Screw 1/4-20 x 7/8"

4

7

016-1147-00-216

Release Mechanism

1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

153811-001
Serial Number

All

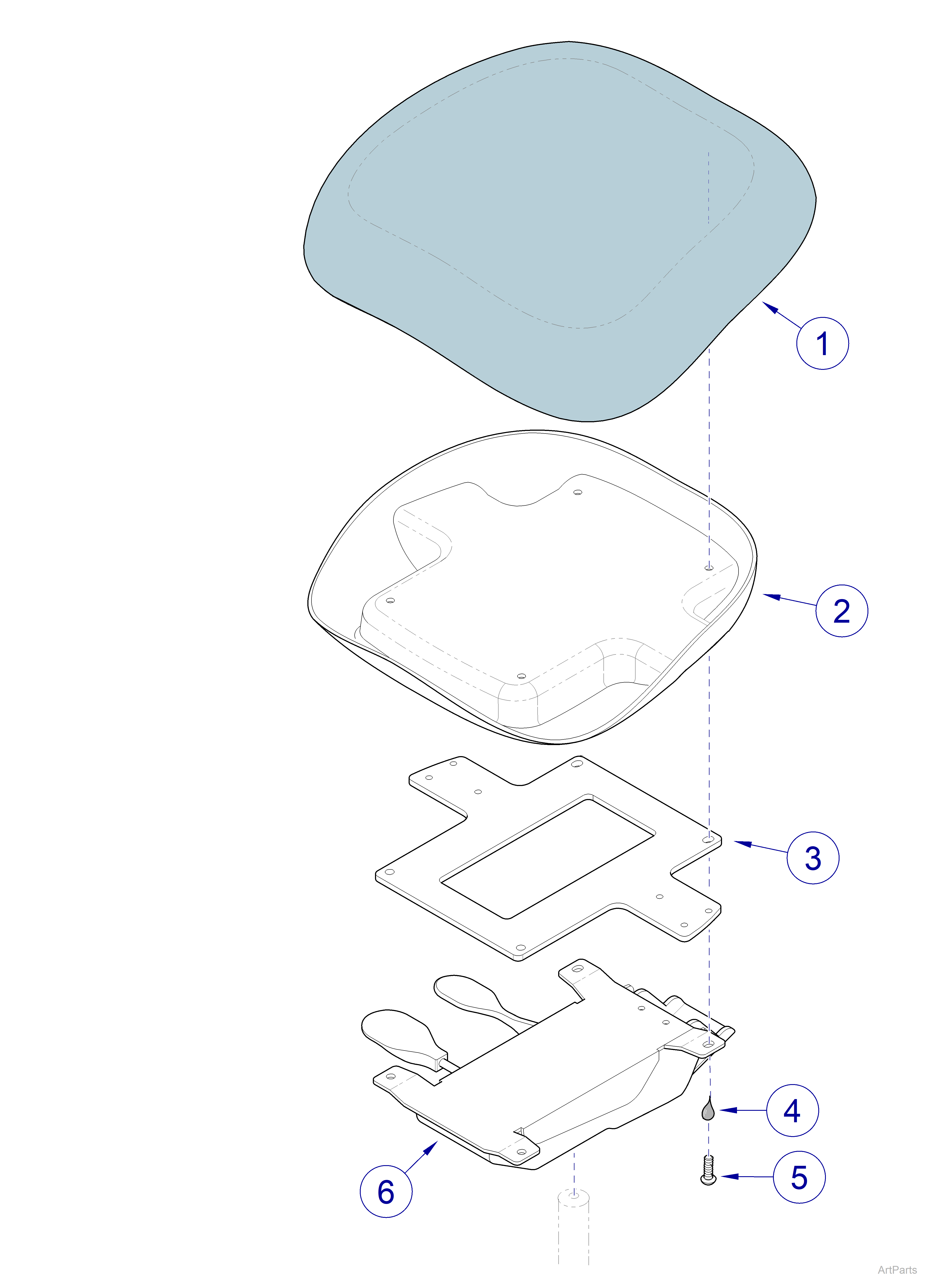

Doctor's Stool Seat Assembly - Standard

Refer to: the Upholstery Color Options for the order number extension of your desired color.

153811-001 Operator Stool Standard Seat Assembly
Item Part Number Description Qty

1

Upholstered Seat Pad Options


002-1787-xxx

Ultra-Leather

1


002-1789-xxx

Heat/Stretch/Pull

 1

2

053-1855-00-813

Bottom Cover

1

3

050-7178-00-813

Mounting Plate

1

4

042-0024-02

Medium Strength Thread Adhesive

1

5

040-0250-178

Screw 1/4-20 x 7/8"

4

6

016-1147-00-813

Release Mechanism

1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
