153811 Doctor Stool and 153811-001 Operator Stool – Armrests

Verify the full model number to ensure you get the correct color and compatible parts.

Incorrect or incomplete numbers may result in mismatched colors.

Model

153811
Serial Number

V2200 thru V1498252 and VAG00001 thru Present

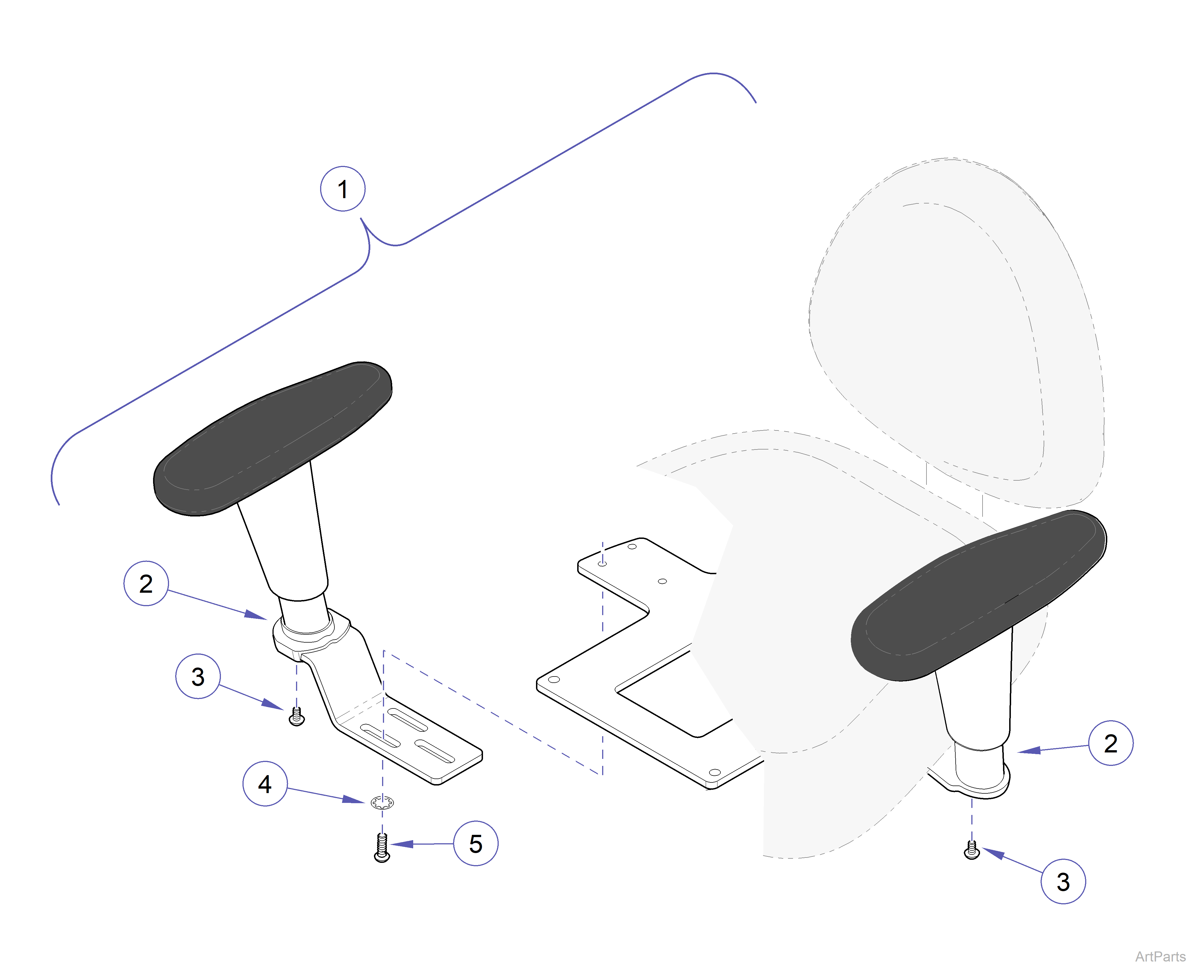

Doctor's Stool Armrests

153811 Doctor Stool Armrests
Item Part Number Description Qty

1

002-1111-00

Doctor’s Armrest Kit - includes Items 2 thru 5

1

2

Chair Arm Assembly Options - includes Item 3


016-1161-01

Left Hand

1

  016-1161-00 Right Hand 1

3

040-0250-190

Screw 1/4-20 x 1/2" Truss Head

2

4

C4507

Star Washer 5/16"

4

5

040-0312-87

Screw 5/16-18 x 5/8"

4

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

Model

153811-001
Serial Number

All

Doctor's Stool Armrests

153811-001 Operator Stool – Armrests
Item Part Number Description Qty

1

002-1111-00

Doctor’s Armrest Kit - includes Items 2 thru 5

1

2

Chair Arm Assembly Options - includes Item 3


016-1161-01

Left Hand

1

  016-1161-00 Right Hand 1

3

040-0250-190

Screw 1/4-20 x 1/2" Truss Head

4

4

C4507

Star Washer 5/16"

6

5

040-0312-87

Screw 5/16-18 x 5/8"

6

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
