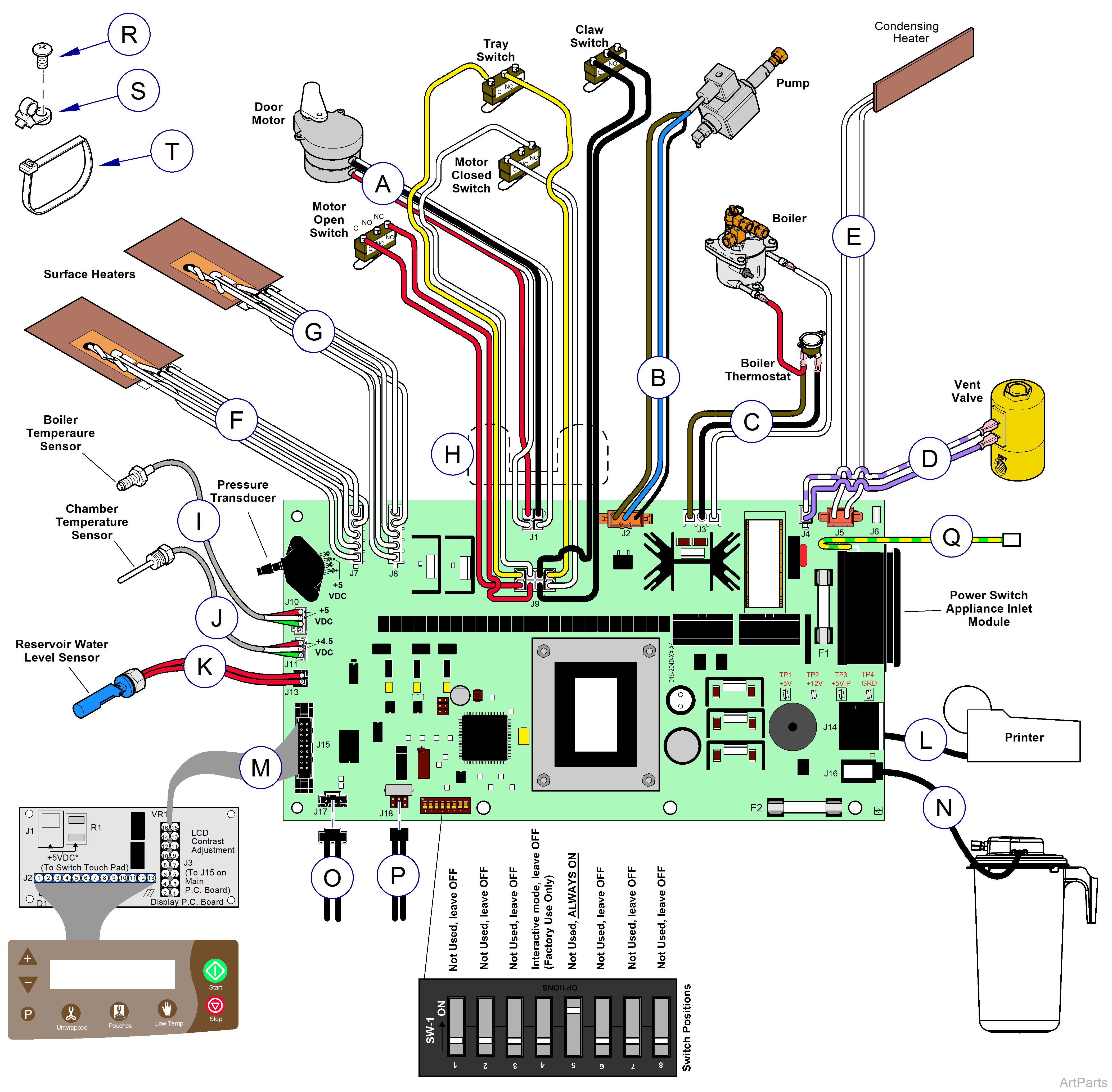

M3 Sterilizer Wiring Diagram
Serial Number Range: V792976 thru V1408969
|
Model |
M3 -001 thru-004 |
| Serial Number | V792976 thru V1408969 |
Always disconnect plug connector when checking voltage.
| Models | Fuse | Specifications |
|---|---|---|
| 115 VAC models | F1 | 15 amp, 250 V, Fast Acting, 1/4" x 1 1/4" |
| F2 | 0.25 amp, 250 V, Slo Blo, 1/4" x 1 1/4" | |
| 230 VAC models | F1 | 8 amp, 250 V, Fast Acting, 5mm x 20mm |
| F2 | 0.125 amp, 250 V, Slo Blo, 5mm x 20mm |
| Item | Part Number | Description |
|---|---|---|
|
A |
Main PCB (J1) to Door Motor, Part of the Door Motor Assembly | |
|
B |
002-1085-00 | Main PCB (J2) to Pump |
|
C |
015-2056-00 | Main PCB (J3) to Boiler Thermostat |
|
D |
015-2057-00 | Main PCB (J4) to Vent Valve |
|
E |
Main PCB (J5) to Condensing Heater, Part of Condensing Heater | |
|
F |
NSS | Main PCB (J7) to Chamber Surface Heater |
|
G |
NSS | Main PCB (J8) to Chamber Surface Heater |
|
H |
002-1088-00 | Main PCB (J9) to Switch Harness Assembly |
|
I |
Main PCB (J10) to Boiler Temperature Sensor, Part of Boiler Temperature Sensors | |
|
J |
Main PCB (J11) to Chamber Temperature Sensor, Part of Chamber Temperature Sensor | |
|
K |
Main PCB (J13) to Reservoir Water Level Sensor, Part of Reservoir Water Level Sensor | |
|
L |
015-2102-00 | Main PCB (J14) to Printer Port |
|
M |
Main PCB (J15) to Display Port, Part of Display PCB | |
|
N |
015-2089-00 | Main PCB (J16) to External Condensing Tank |
|
O |
NSS | Main PCB (J17) to Serial Communication |
|
P |
NSS | Main PCB (J18) to Programing Port |
|
Q |
015-2103-00 | Appliance Inlet to Base Assembly |
|
R |
040-0010-74 | Screw |
|
S |
015-0017-00 | Cable Clamp |
|
T |
015-0013-05 | Cable Tie |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

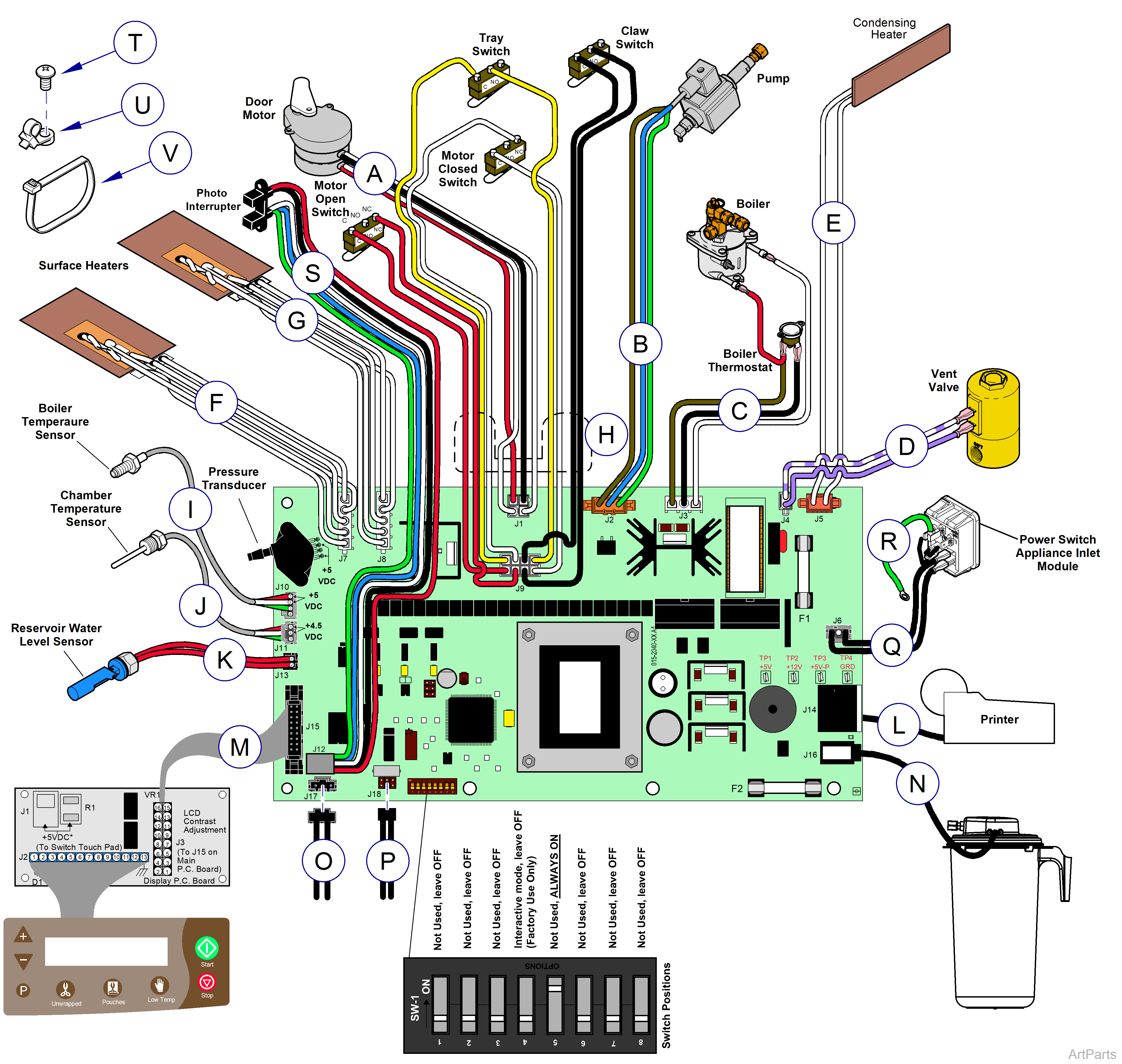

Serial Number Range: V1408970 thru V1524267
|
Model |
M3 -001 thru-004 |
| Serial Number | V1408970 thru V1524267 |
Always disconnect plug connector when checking voltage.
| Models | Fuse | Specifications |
|---|---|---|
| 115 VAC models | F1 | 15 amp, 250 V, Fast Acting, 1/4" x 1 1/4" |
| F2 | 0.25 amp, 250 V, Slo Blo, 1/4" x 1 1/4" | |
| 230 VAC models | F1 | 8 amp, 250 V, Fast Acting, 5mm x 20mm |
| F2 | 0.125 amp, 250 V, Slo Blo, 5mm x 20mm |
| Item | Part Number | Description |
|---|---|---|
|
A |
Main PCB (J1) to Door Motor, Part of Door Motor Assembly. | |
|
B |
002-1085-00 | Main PCB (J2) to Pump |
|
C |
015-2056-00 | Main PCB (J3) to Boiler Thermostat |
|
D |
015-2057-00 | Main PCB (J4) to Vent Valve |
|
E |
Main PCB (J5) to Condensing Heater, Part of Condensing Heater | |
|
F |
NSS | Main PCB (J7) to Chamber Surface Heater |
|
G |
NSS | Main PCB (J8) to Chamber Surface Heater |
|
H |
002-1088-00 | Main PCB (J9) to Switch Harness Assembly |
|
I |
Main PCB (J10) to Boiler Temperature Sensor, Part of Boiler Temperature Sensors | |
|
J |
Main PCB (J11) to Chamber Temperature Sensor, Part of Chamber Temperature Sensor | |
|
K |
Main PCB (J13) to Reservoir Water Level Sensor, Part of Reservoir Water Level Sensor | |
|
L |
015-2102-00 | Main PCB (J14) to Printer Port |
|
M |
Main PCB (J15) to Display Port, Part of Display PCB | |
|
N |
015-2089-00 | Main PCB (J16) to External Condensing Tank |
|
O |
NSS | Main PCB (J17) to Serial Communication |
|
P |
NSS | Main PCB (J18) to Programing Port |
|
Q |
015-3271-01 | Main PCB (J6) to Appliance Inlet |
|
R |
015-2054-00 | Sterilizer to Power Switch |
|
S |
040-0010-74 | Screw |
|
T |
015-0017-00 | Cable Clamp |
|
U |
015-0013-05 | Cable Tie |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

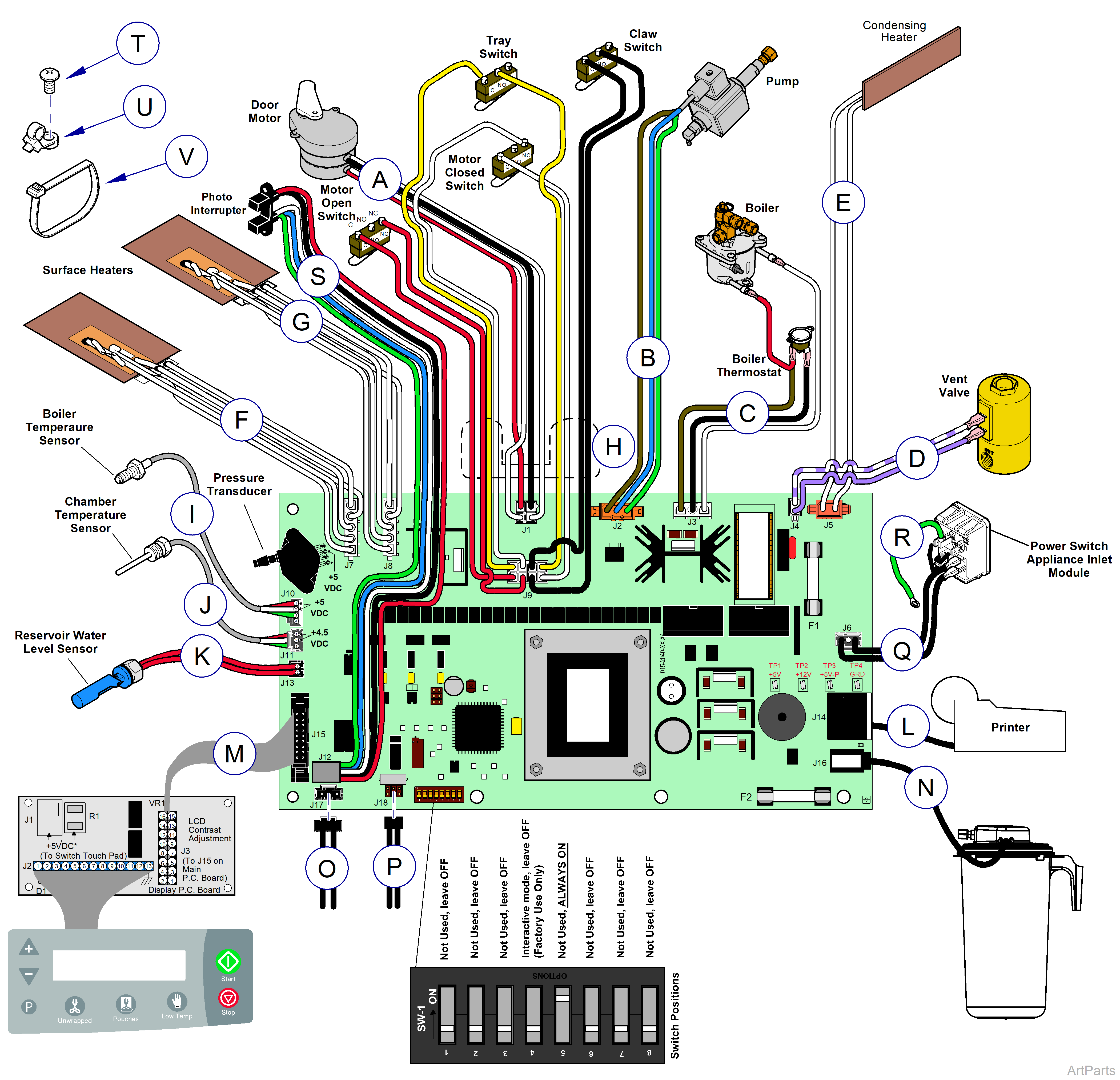

Serial Number Range: V1524268 thru V2192300
|
Model |
M3 -001 thru-004 |
| Serial Number | V1524268 thru V2192300 |
Always disconnect plug connector when checking voltage.
| Models | Fuse | Specifications |
|---|---|---|
| 115 VAC models | F1 | 15 amp, 250 V, Fast Acting, 1/4" x 1 1/4" |
| F2 | 0.25 amp, 250 V, Slo Blo, 1/4" x 1 1/4" | |
| 230 VAC models | F1 | 8 amp, 250 V, Fast Acting, 5mm x 20mm |
| F2 | 0.125 amp, 250 V, Slo Blo, 5mm x 20mm |
| Item | Part Number | Description |
|---|---|---|
|
A |
Main PCB (J1) to Door Motor, Part of Door Motor Assembly | |
|
B |
002-1085-00 | Main PCB (J2) to Pump |
|
C |
015-2056-00 | Main PCB (J3) to Boiler Thermostat |
|
D |
015-2057-00 | Main PCB (J4) to Vent Valve |
|
E |
Main PCB (J5) to Condensing Heater, Part of Condensing Heater | |
|
F |
NSS | Main PCB (J7) to Chamber Surface Heater |
|
G |
NSS | Main PCB (J8) to Chamber Surface Heater |
|
H |
002-1088-00 | Main PCB (J9) to Switch Harness Assembly |
|
I |
Main PCB (J10) to Boiler Temperature Sensor, Part of Boiler Temperature Sensors | |
|
J |
Main PCB (J11) to Chamber Temperature Sensor, Part of Chamber Temperature Sensor | |
|
K |
Main PCB (J13) to Reservoir Water Level Sensor, Part of Reservoir Water Level Sensor | |
|
L |
015-2102-00 | Main PCB (J14) to Printer Port |
|
M |
Main PCB (J15) to Display Port, Part of Display PCB | |
|
N |
015-2089-00 | Main PCB (J16) to External Condensing Tank |
|
O |
NSS | Main PCB (J17) to Serial Communication |
|
P |
NSS | Main PCB (J18) to Programing Port |
|
Q |
015-3271-01 | Main PCB (J6) to Appliance Inlet |
|
R |
015-2054-00 | Sterilizer to Power Switch |
|
S |
002-1758-00 |
Main PCB (J12) to Photo Interrupter |
|
T |
040-0010-74 | Screw |
|
U |
015-0017-00 | Cable Clamp |
|
V |
015-0013-05 | Cable Tie |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||

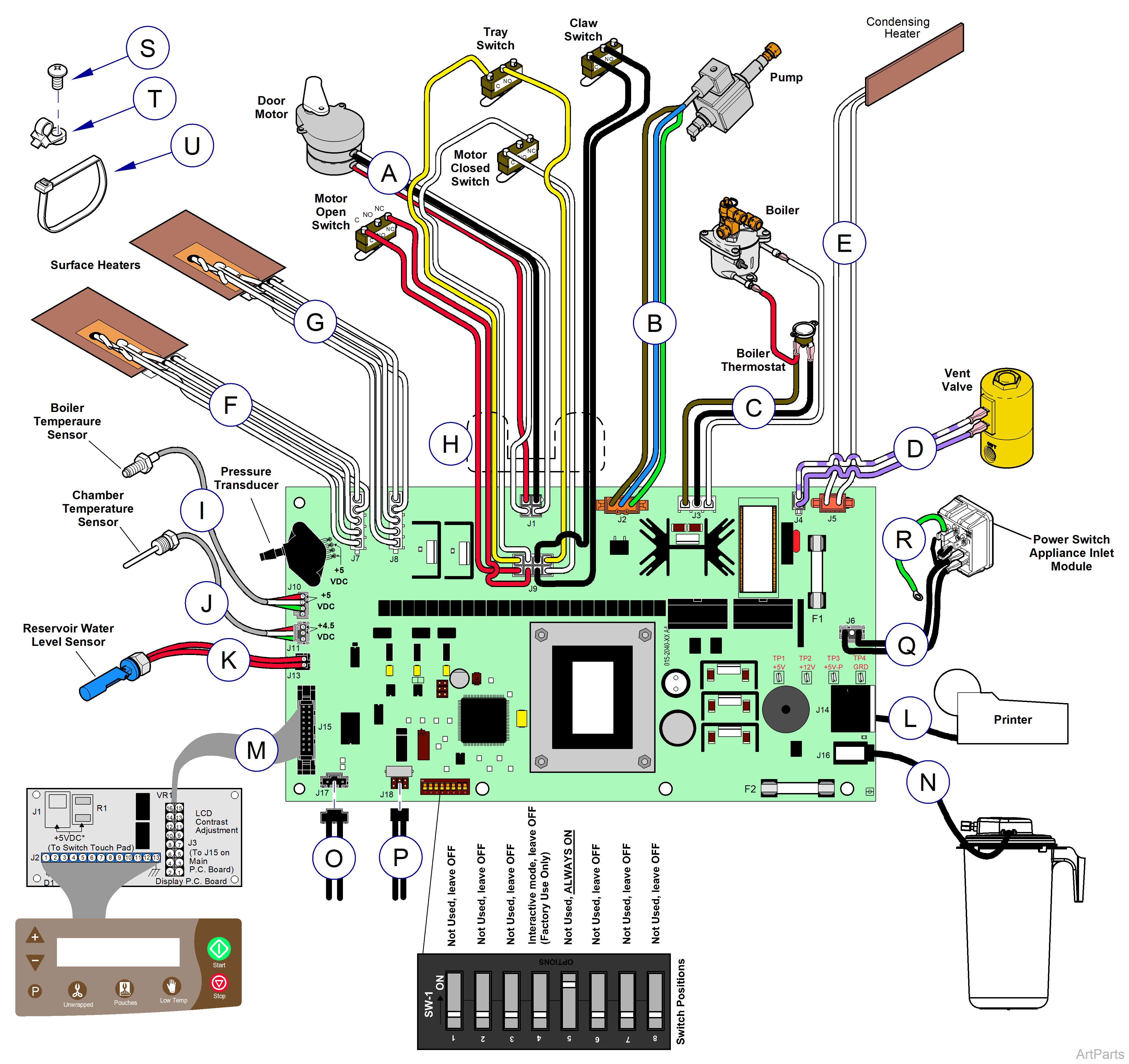

Serial Number Range: V2251798 thru Present
|
Model |
M3 -040 thru-042 |
| Serial Number | V2251798 thru Present |
Always disconnect plug connector when checking voltage.
| Models | Fuse | Specifications |
|---|---|---|
| 115 VAC models | F1 | 15 amp, 250 V, Fast Acting, 1/4" x 1 1/4" |
| F2 | 0.25 amp, 250 V, Slo Blo, 1/4" x 1 1/4" | |
| 230 VAC models | F1 | 8 amp, 250 V, Fast Acting, 5mm x 20mm |
| F2 | 0.125 amp, 250 V, Slo Blo, 5mm x 20mm |
| Item | Part Number | Description |
|---|---|---|
|
A |
Main PCB (J1) to Door Motor, Part of Door Motor Assembly | |
|
B |
002-1085-00 | Main PCB (J2) to Pump |
|
C |
015-2056-00 | Main PCB (J3) to Boiler Thermostat |
|
D |
015-2057-00 | Main PCB (J4) to Vent Valve |
|
E |
Main PCB (J5) to Condensing Heater, Part of Condensing Heater | |
|
F |
NSS | Main PCB (J7) to Chamber Surface Heater |
|
G |
NSS | Main PCB (J8) to Chamber Surface Heater |
|
H |
002-1088-00 | Main PCB (J9) to Switch Harness Assembly |
|
I |
Main PCB (J10) to Boiler Temperature Sensor, Part of Boiler Temperature Sensors | |
|
J |
Main PCB (J11) to Chamber Temperature Sensor, Part of Chamber Temperature Sensor | |
|
K |
Main PCB (J13) to Reservoir Water Level Sensor, Part of Reservoir Water Level Sensor | |
|
L |
015-2102-00 | Main PCB (J14) to Printer Port |
|
M |
Main PCB (J15) to Display Port, Part of Display PCB | |
|
N |
015-2089-00 | Main PCB (J16) to External Condensing Tank |
|
O |
NSS | Main PCB (J17) to Serial Communication |
|
P |
NSS | Main PCB (J18) to Programing Port |
|
Q |
015-3271-01 | Main PCB (J6) to Appliance Inlet |
|
R |
015-2054-00 | Sterilizer to Power Switch |
|
S |
002-1758-00 |
Main PCB (J12) to Photo Interrupter |
|
T |
040-0010-74 | Screw |
|
U |
015-0017-00 | Cable Clamp |
|
V |
015-0013-05 | Cable Tie |
| Color Abbreviation Chart | ||
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
||
