M3 Sterilizer Test Selection Screen Test and Repair

M3 Sterilizer Service Diagnostics

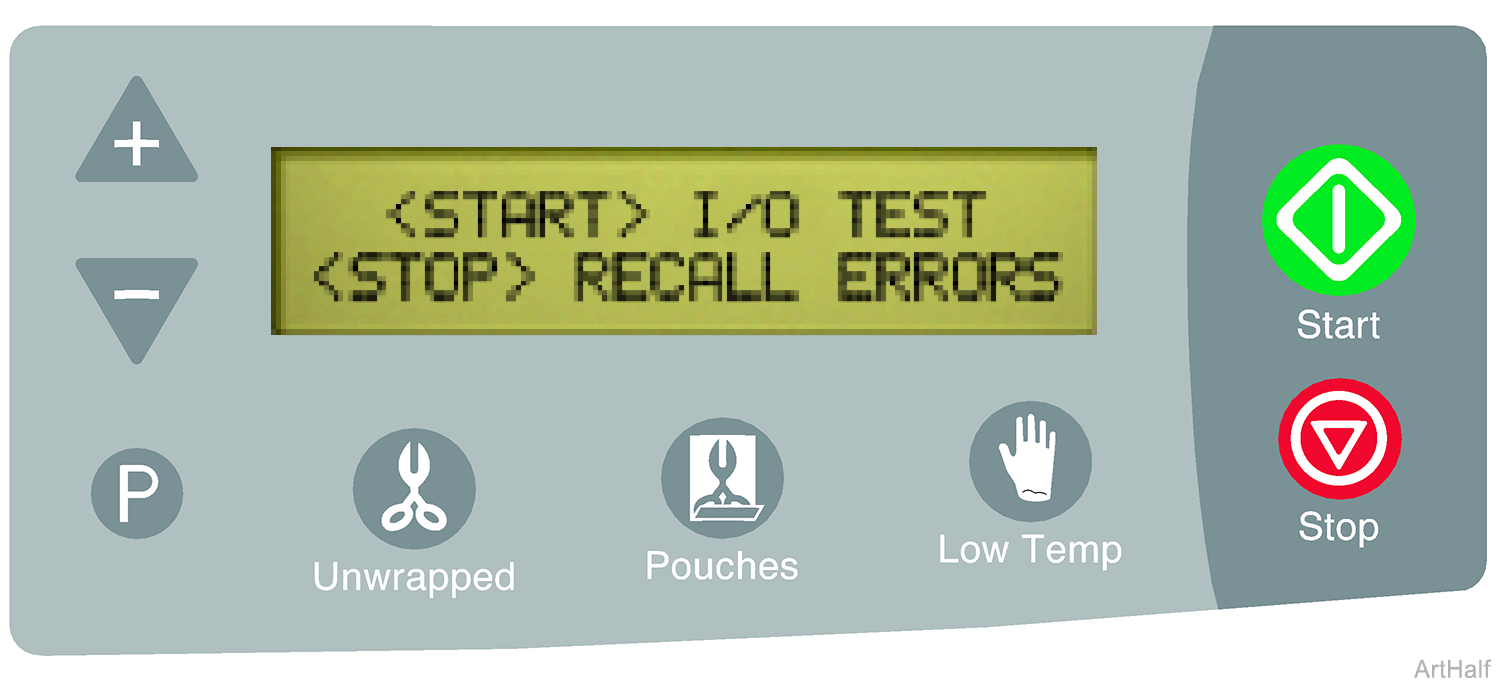

I/O Test

Press the <START> button to initiate the I/O Test. This test allows you to energize the vent valve / door motor / pump / boiler / dry heaters / condensation heater independently without running a cycle.

This test also displays the status of the following components: tray switch / door claw switch / door open switch / door closed switch / water level sensor / ext. condensing tank sensors. In addition it shows the chamber pressure, and the temperatures for the chamber, boiler and each dry heater separately.

recall Errors

Press the <STOP> button to display previous error codes. This feature allows you to view the last five error codes that have been stored in the unit.

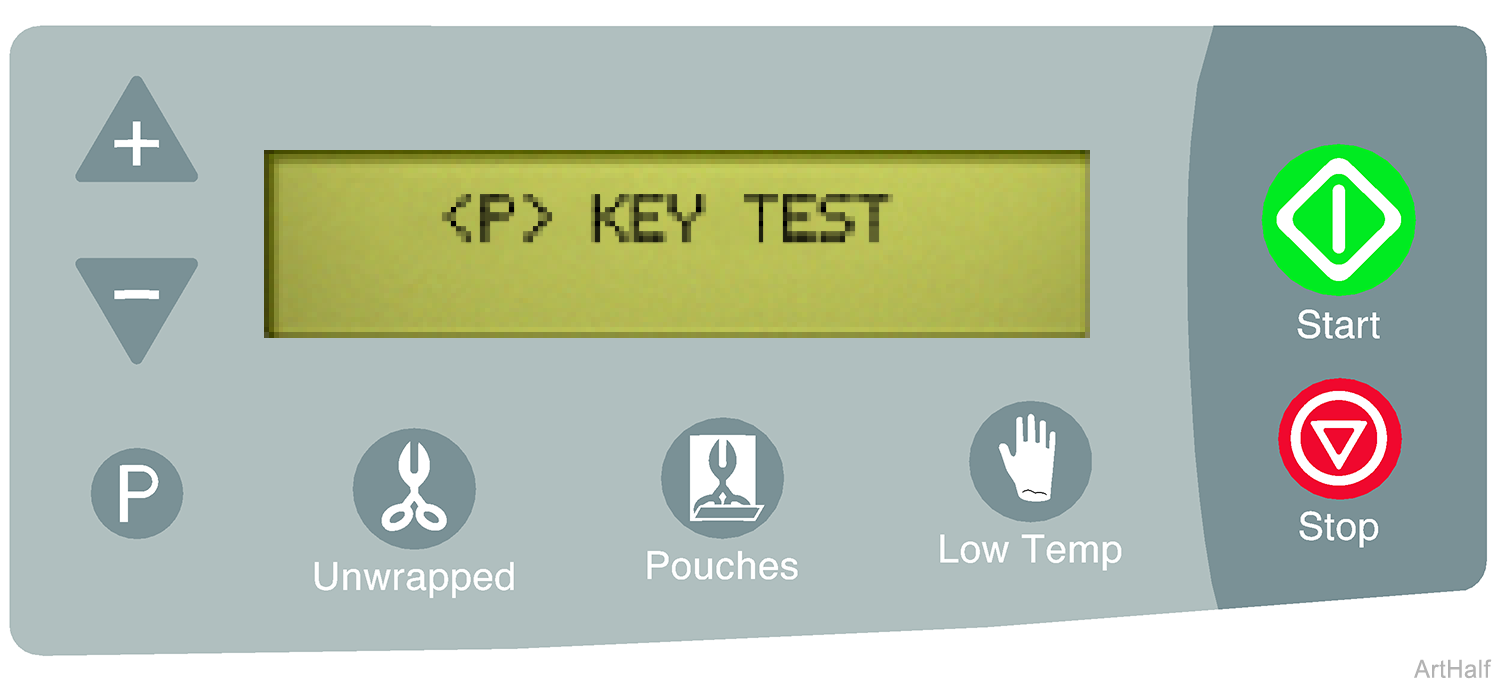

Keytest

M3 Sterilizer Service Diagnostics

Press the <P> button to test the touch pad. This test allows you to test the functionality of the buttons on the touch pad.
