M9/M11 Sterilizer Touch Pad / Display Panel Location / Function Test and Repair

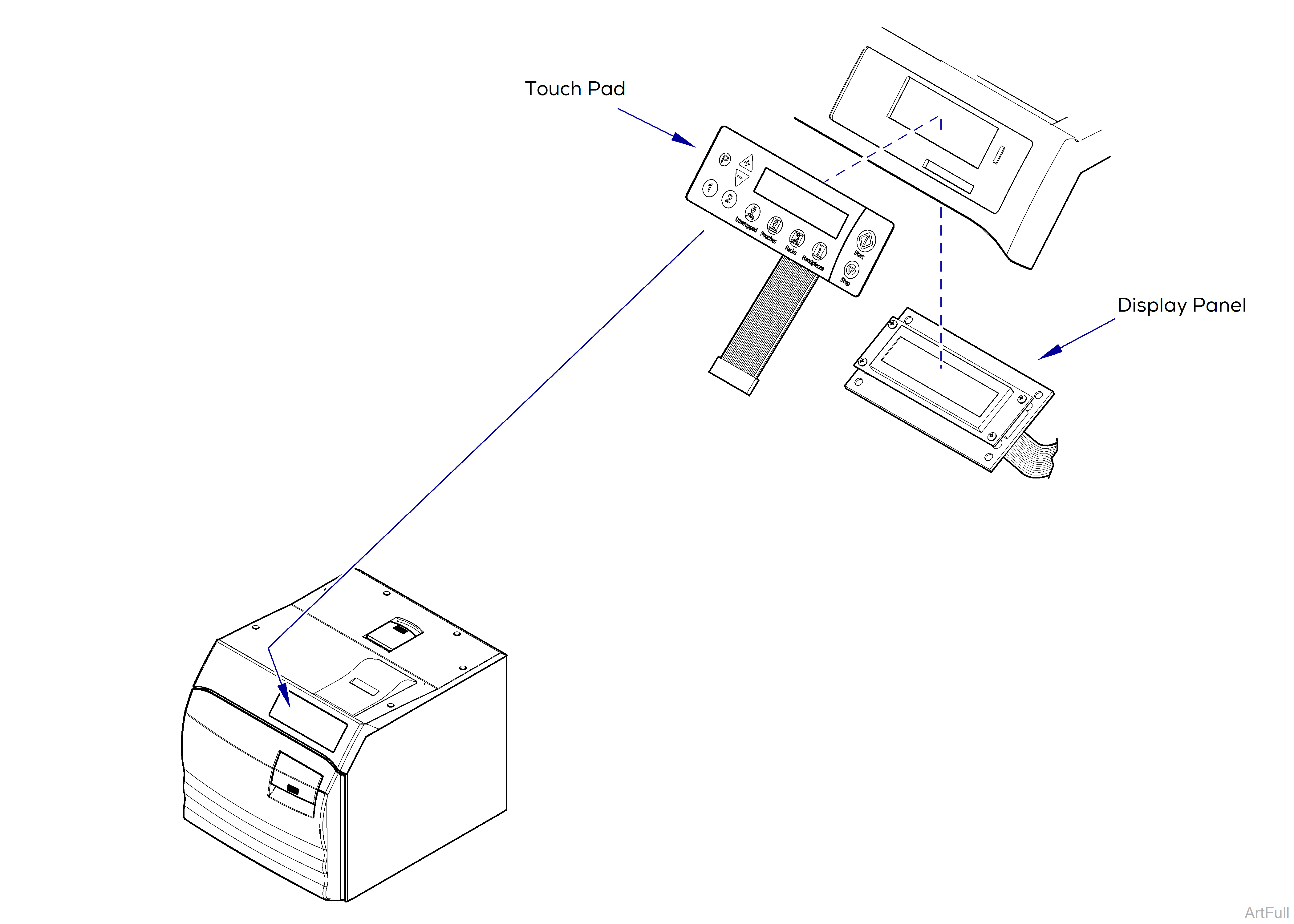

Model Range -020 thru -022, -033, -034
|
Model |
M9M11 -020 thru -022, -033, -034 |
| Serial Number | All |
During all modes
When the buttons on the touch pad are depressed, the selection is transformed to the main PC board thru the display panel.
As the main PC board initiates the selected function, informational messages (time / temp, error codes, etc) appear on the display panel.

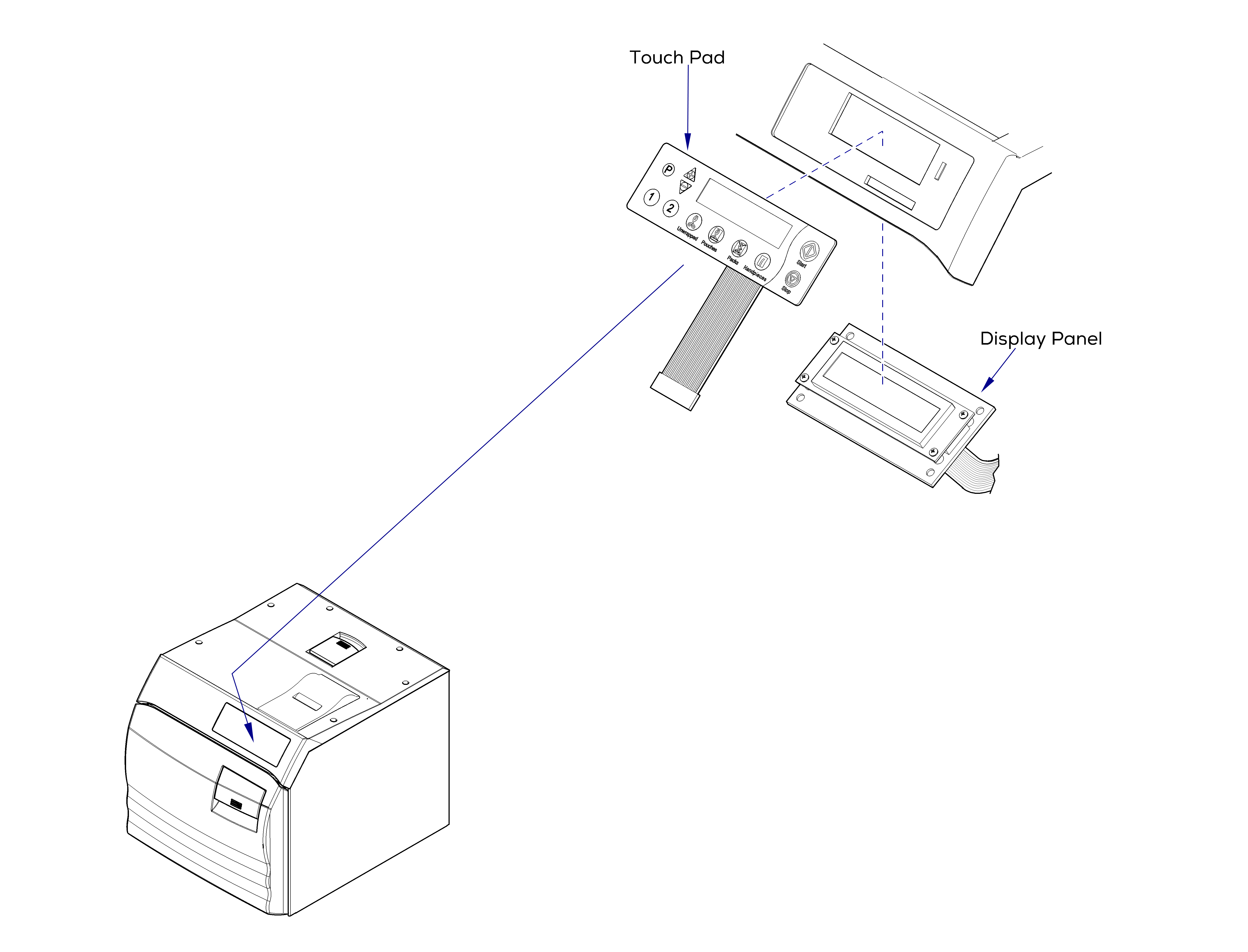

Model Range -040 thru -043
|
Model |
M9M11 -040 thru -043 |
| Serial Number | All |
During all modes
When the buttons on the touch pad are depressed, the selection is transformed to the main PC board thru the display panel.
As the main PC board initiates the selected function, informational messages (time / temp, error codes, etc) appear on the display panel.
