M9/M11 Sterilizer Heating Element Replacement Test and Repair
WARNING
To prevent risk of shock always disconnect power before removing covers or performing any service procedure.

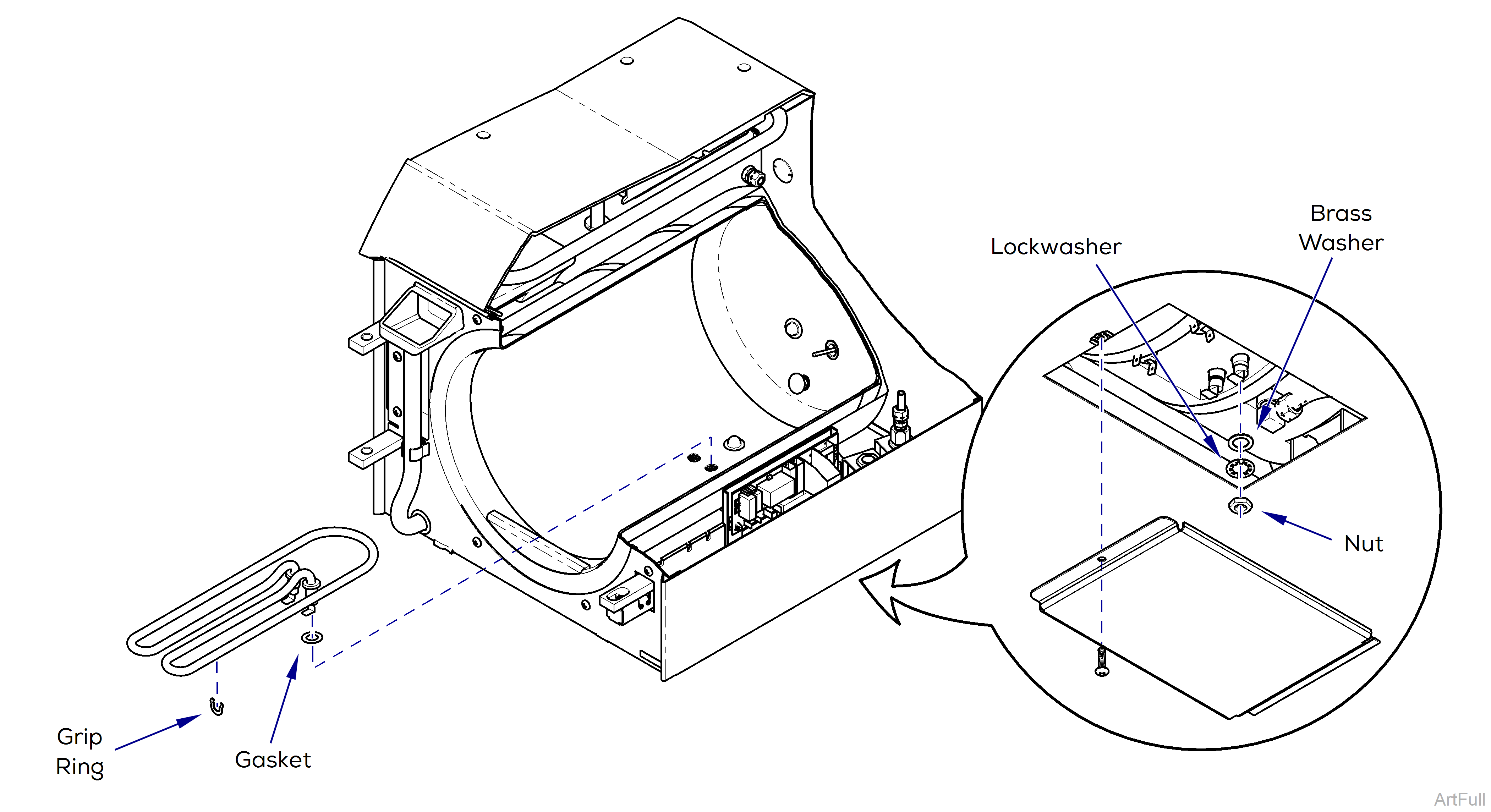

Remove heating element
1.Drain water from reservoir.
2.Remove bottom cover.
3.Disconnect wires from heating element terminals.
4.Remove nuts, lockwashers, and brass washers.
5.Remove heating element and gaskets.
Install heating element
Equipment Alert
Do not overtighten nuts! Torque must not exceed 25 ft/lbs (34 N•m)
1.Install four grip rings onto heating element.
2.Install gaskets onto heating element.
3.Install heating element.
4.Install brass washers, lockwashers, and nuts.
5.Connect wires to heating element terminals
