Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Chamber Filters, Insulation and Door Switch
Serial Number Range: All
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |

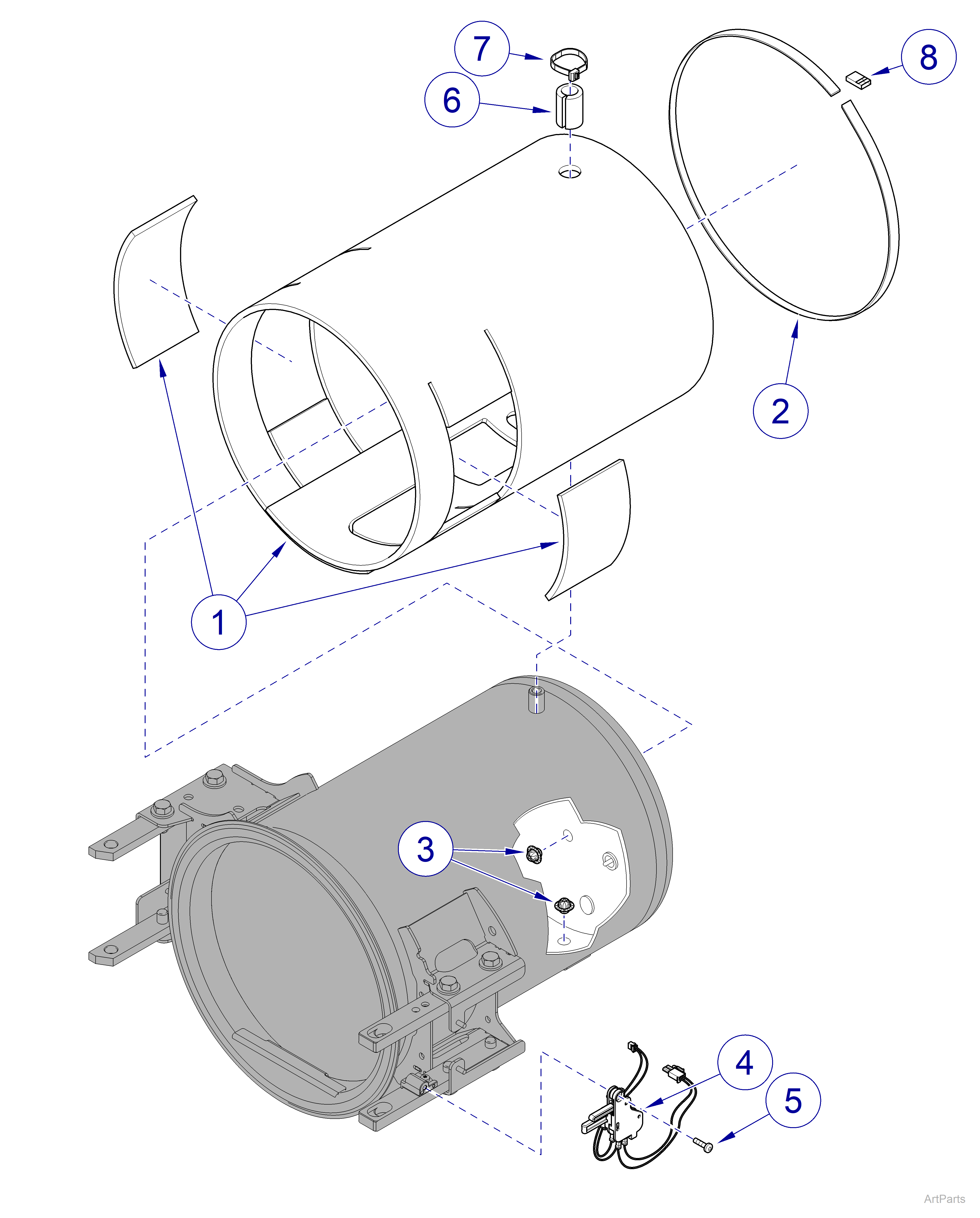

| Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Chamber Filters, Insulation and Door Switch | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Insulation Kit Options - Includes item 2 and 8 | ||
| 002-10869-00 | M9 Chamber Insulation Kit | 1 | |
| 002-10870-00 | M11 Chamber Insulation Kit | 1 | |
|
2 |
Insulation Strap |
2 | |
|
3 |
002-0360-00 | Chamber Filter Kit – Includes two filters | 1 |
|
4 |
002-10899-00 | Door Switch Assembly | 1 |
|
5 |
040-0010-193 | Screw - Torx SS Pan Head #10-14 x 3/4 inch | 1 |
|
6 |
053-10802-00 | Coupling Insulation | 1 |
|
7 |
015-0013-05 | Cable Tie | 1 |
|
8 |
H99387 | Seal | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
