Model	M9 -050, -053	M11 -050, -051, -053
Serial Number	All	All

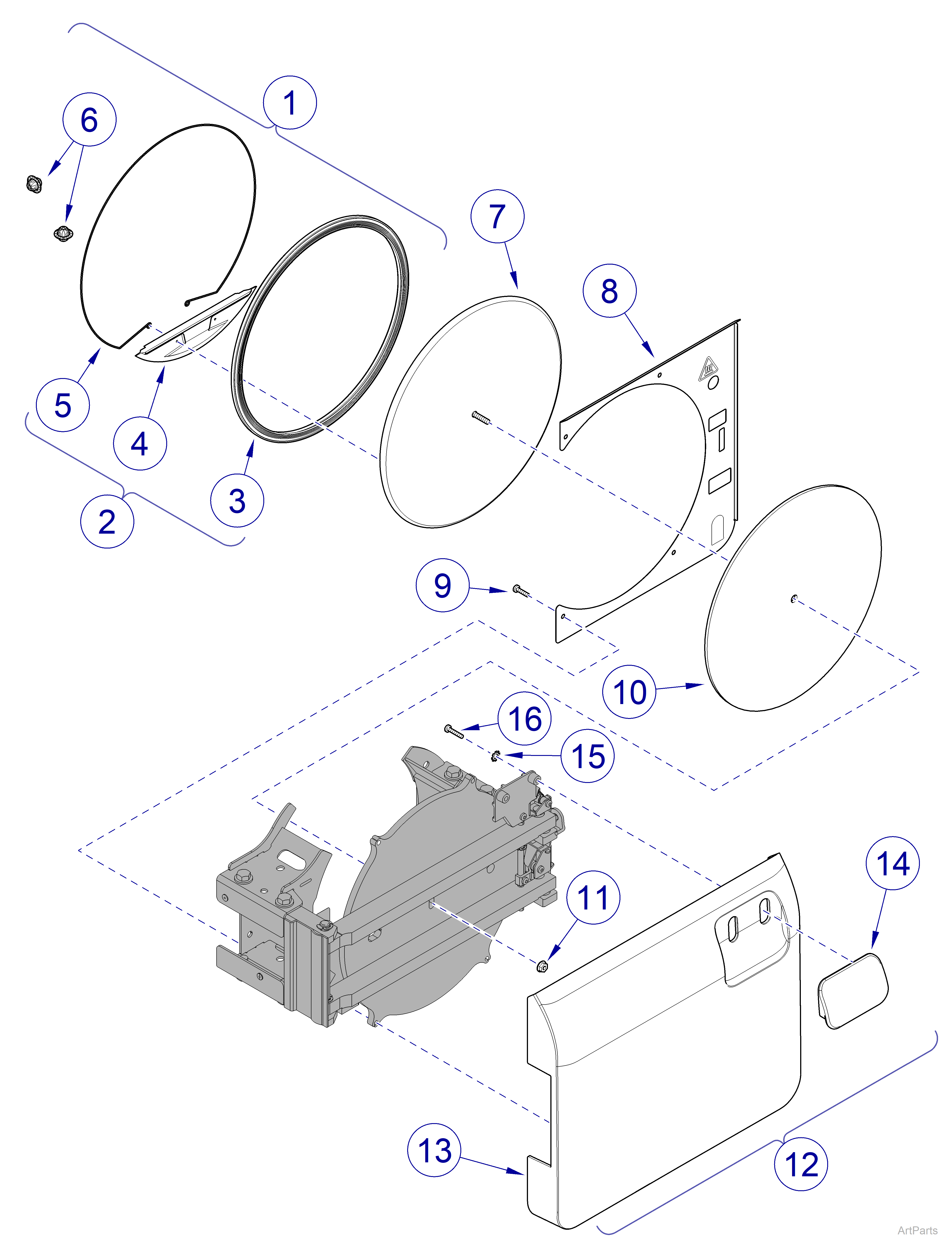

Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Door Gasket Components
Item	Part Number	Description	Qty
1	Maintenance Kit Options - Includes items 3 thru 6
	002-10877-00	M9/D Maintenance Kit	1
	002-10878-00	M11 Maintenance Kit	1
2	Gasket Kit Options - Includes items 3 and 4
	002-10879-00	M9/D Gasket Kit	1
	002-10880-00	M11 Gasket Kit	1
3	Door Gasket Options
	002-10879-01	M9/D Door Gasket	1
	002-10880-01	M11 Door Gasket	1
4	Dam Gasket Options
	002-10879-02	M9/D Dam Gasket	1
	002-10880-02	M11 Dam Gasket	1
5	Gasket Ring Options
	057-10536-00	M9/D Gasket Ring	1
	057-10535-00	M11 Gasket Ring	1
6	002-0360-00	Chamber Filter Kit - includes 2 filters	1
7	Door Gasket Housing Options
	002-10449-00	M9/D Door Gasket Housing	1
	002-10449-01	M11 Door Gasket Housing	1
8	Inside Door Cover Options
	050-12109-00	M9/D Inside Door Cover	1
	050-12045-00	M11 Inside Door Cover	1
9	040-0010-193	Screw - Torx SS Pan Head #10-14 x 3/4 inch	4
10	Insulation Pad Options
	002-10450-00	M9/D Insulation Pad	1
	002-10450-01	M11 Insulation Pad	1
11	041-0250-13	Flange Hex Nut - 1/4-20	1
12	Door Cover and Handle Kit Options - Includes items 13 thru 16
	002-10873-00	M9/D Door Cover and Handle	1
	002-10874-00	M11 Door Cover and Handle	1
13	Door Cover Options
		M9/D Door Cover and Handle	NSS
		M11 Door Cover and Handle	NSS
14		Door Handle	NSS
15	045-0001-31	#10 Lock Washer	2
16	040-0010-191	Screw - Torx SS Pan Head #10-24 x 1 inch	2
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number
