Serial Number Range: All
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |

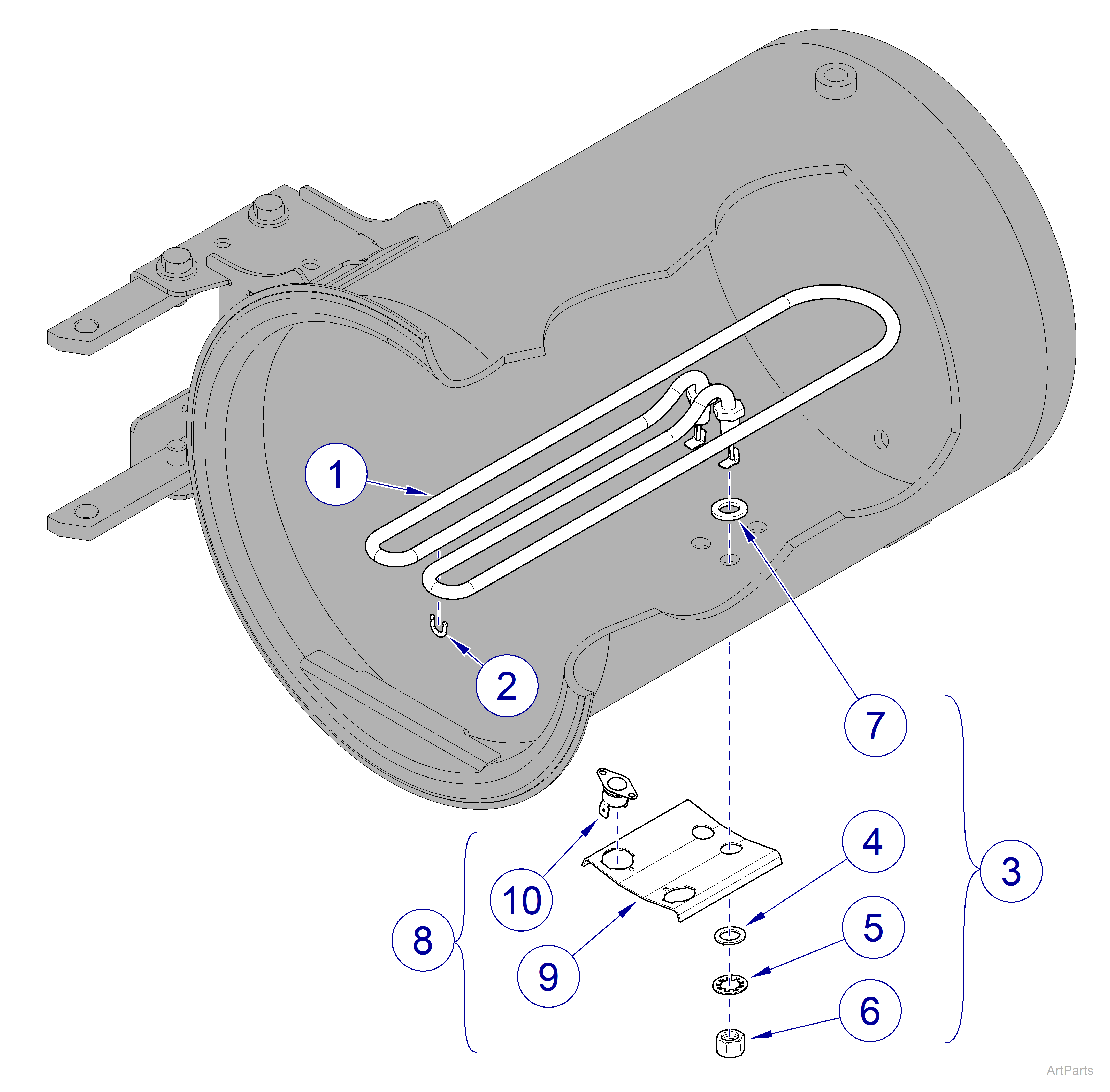

| Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Heating Element / Hi-Limit Thermostats | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Heating Element Options – Includes items 2 thru 3 | ||
| 002-10868-00 | M9 120V Heating Element | 1 | |
| 002-10867-00 | M11 120V Heating Element | 1 | |
| 002-10867-01 | M11 240V Heating Element | 1 | |
|
2 |
042-0613-00 | Radial Grip Ring | 5 |
|
3 |
002-10900-00 | Heater Gasket Kit - Includes items 4 thru 7 | 1 |
|
4 |
H97971 | Washer | 2 |
|
5 |
045-0001-56 | Lockwasher 7/16", internal tooth | 2 |
|
6 |
H97949 | Nut | 2 |
|
7 |
H98137 | Heater Gasket | 2 |
|
8 |
002-1245-00 | Thermostat Kit - Includes items 6,7, 9 and 10 | 1 |
|
9 |
050-5206-00 | Thermostat Bracket | 1 |
|
10 |
015-1637-00 | Hi-Limit Thermostat | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
