Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Reservoir / Drain Tube
Serial Number Range: All
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |

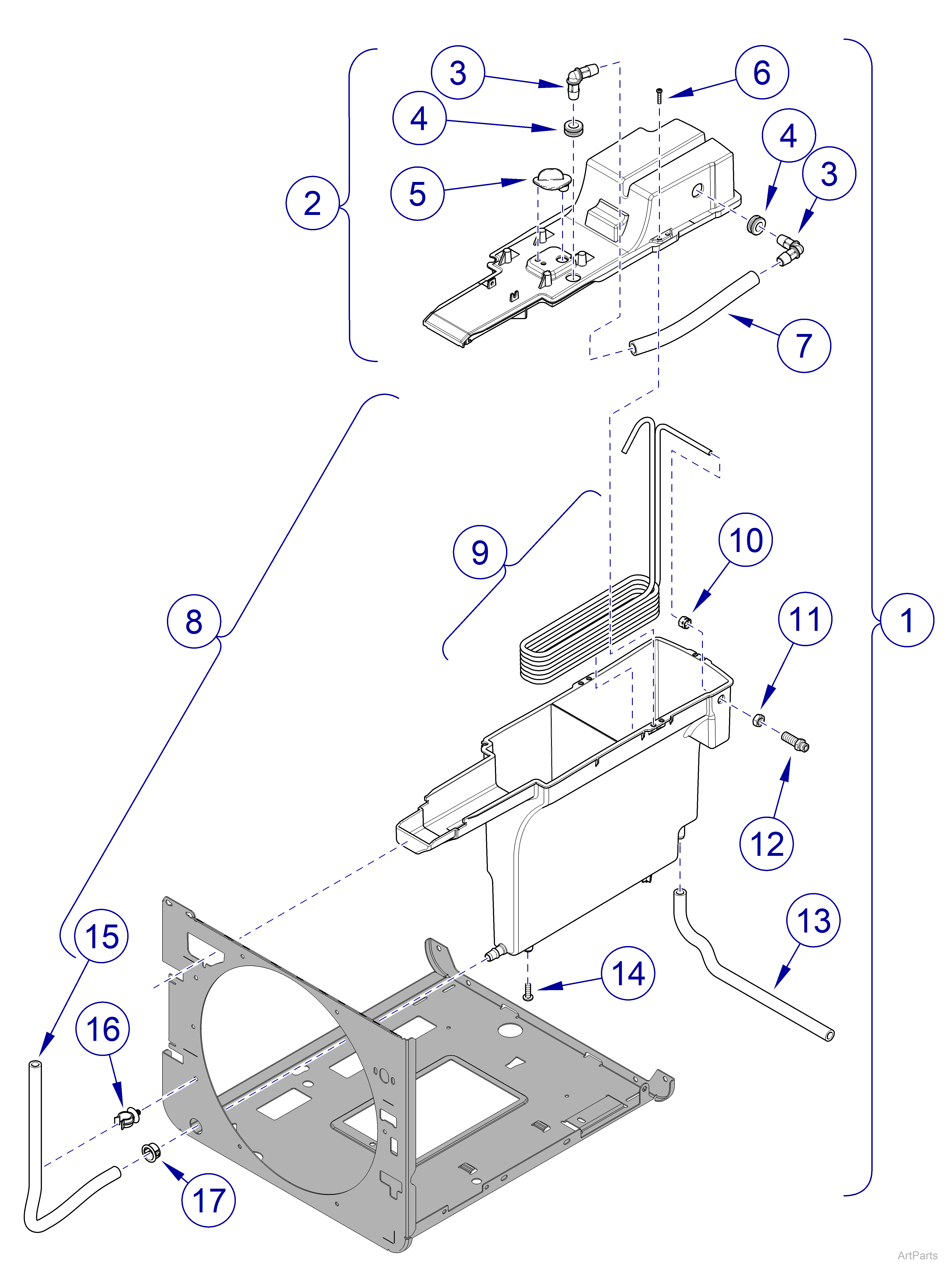

| Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Reservoir / Drain Tube | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Reservoir Assembly Options – Includes items 2 thru 17 | ||
| 002-10885-00 | M9 Reservoir Assembly | 1 | |
| 002-10888-00 | M11 Reservoir Assembly | 1 | |
|
2 |
Reservoir Lid Options - Includes items 3 thru 7 | ||
| 002-10887-00 | M9 Reservoir Lid Assembly | 1 | |
| 002-10890-00 | M11 Reservoir Lid Assembly | 1 | |
|
3 |
014-10260-00 | Elbow Fitting | 2 |
|
4 |
053-0394-03 | Grommet | 2 |
|
5 |
053-10755-00 | Upper Reservoir Plug | 1 |
|
6 |
040-0006-135 | Screw - Phillips Head #6-19 x 3/4 inch | 4 |
|
7 |
053-10653-01 | Tubing | 1 |
|
8 |
Reservoir Tank Options - Includes items 9 thru 17 | ||
| 002-10886-00 | M9 Reservoir Tank Assembly |
1 |
|
| 002-10890-00 | M11 Reservoir Lid Assembly | 1 | |
|
9 |
Condensing Coil Kit Options – Includes item 4 | ||
| 002-10871-00 | M9 Condensing Coil Kit |
1 |
|
| 002-10872-00 | M11 Condensing Coil Kit |
1 |
|
|
10 |
014-0392-00 | Compression Fitting | 1 |
|
11 |
016-10315-00 | Plug | 1 |
|
12 |
Tubing Options | ||
|
|
014-10110-01 | M9 Water Level Sensor Tubing | 1 |
|
|
014-10110-02 | M11 Water Level Sensor Tubing | 1 |
|
13 |
014-0216-02 | Nut | 1 |
|
14 |
014-0216-01 | Bulkhead Union Body | 1 |
|
15 |
Tubing Options | ||
| 053-1033-07 | M9 Chamber Fill Tubing |
1 |
|
| 053-1033-06 | M11 Chamber Fill Tubing |
1 |
|
|
16 |
040-0250-206 | Screw - Phillips Head 1/4-10 x 3/4 inch | 1 |
|
17 |
Tubing Options | ||
| 014-10244-01 | M9 Drain Tubing |
1 |
|
| 014-10244-02 | M11 Drain Tubing |
1 |
|
|
18 |
002-1695-00 | Hose Clip Kit – Includes 2 Clips | 1 |
|
19 |
053-0068-11 | Bushing | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
