Serial Number Range: All
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |

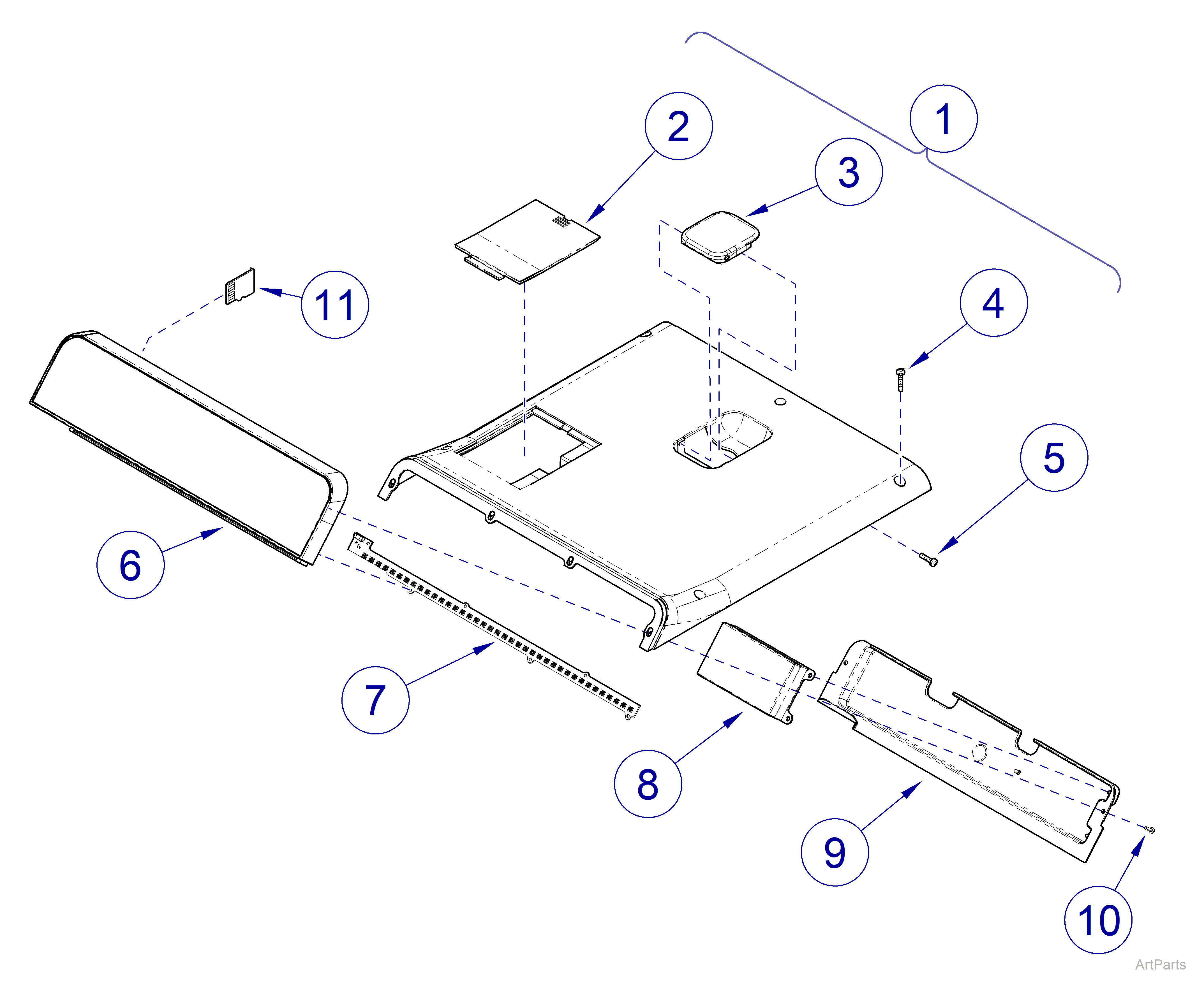

| Midmark M9® -05x / M11® -05x Sterilizer -050, -051, -053 Top Cover Assembly | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Top Cover Assembly Options – Includes items 2 thru 5 | ||
| 002-10859-00 | M9 Top Cover Assembly | 1 | |
|
|
002-10858-00 | M11 Top Cover Assembly | 1 |
|
2 |
053-10290-00-813 | Access Panel | 1 |
|
3 |
053-10285-00-813 | Pressure Relief Handle | 1 |
|
4 |
040-0010-191 | Screw - Torx SS Pan Head #10-24 x 1 inch | 5 |
|
5 |
040-0010-193 | Screw -Torx SS Pan Head #10-14 x 3/4 inch | 1 |
|
6 |
Display Options | ||
| 002-10883-00 | M9 Display Assembly | 1 | |
| 002-10884-00 | M11 Display Assembly | 1 | |
|
7 |
Light Bar Options | ||
|
|
002-10778-00 | M9 Light Bar Kit | 1 |
|
|
002-10779-00 | M11 Light Bar Kit | 1 |
|
8 |
002-10909-00 | Connectivity Module | 1 |
|
9 |
Display Cover | NSS | |
|
10 |
040-0006-27 | Screw - Pan Head #6-32 x 1/2 inch | 4 |
|
11 |
015-11878-00 | SD Card | 1 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
