Midmark M9® -05x / M11® -05x Sterilizer Air Valve Test and Repair

WARNING

To prevent risk of shock always disconnect power before removing covers or performing any service procedure.

WARNING

Some procedures require power to be connected with covers removed. Line voltage is present. Use extreme caution to prevent electric shock.

Model

 M9 -050, -053 M11 -050, -051, -053
Serial Number All All

M9/M11 Steam Sterilizer Air Valve Testing

For proper test point readings, meter leads need to penetrate PC board conformal coating.
For proper voltage readings, the circuit must be connected (loaded) to the component—such as a solenoid valve you are checking.

1.Set meter to VDC.

2.On PC board, place meter probes on TP108 and TP127 (as shown in the figure above) and check reading.

3.Energize the air valve and check reading.
LED D11 should light up.

Meter Reading

Required Action

Energized

Line voltage 115 V model = approximately 108 VDC

Line voltage 230 V model = approximately 216 VDC

PC board is OK. Perform Continuity Test.

Any other reading

Replace PC board.

Not Energized

Approximately 0 VDC

PC board is OK.

Any other reading

Replace PC board.

M9/M11 Steam Sterilizer Air Valve Testing

1.Set meter to Ohms (Ω).

2.Disconnect wires from valve.

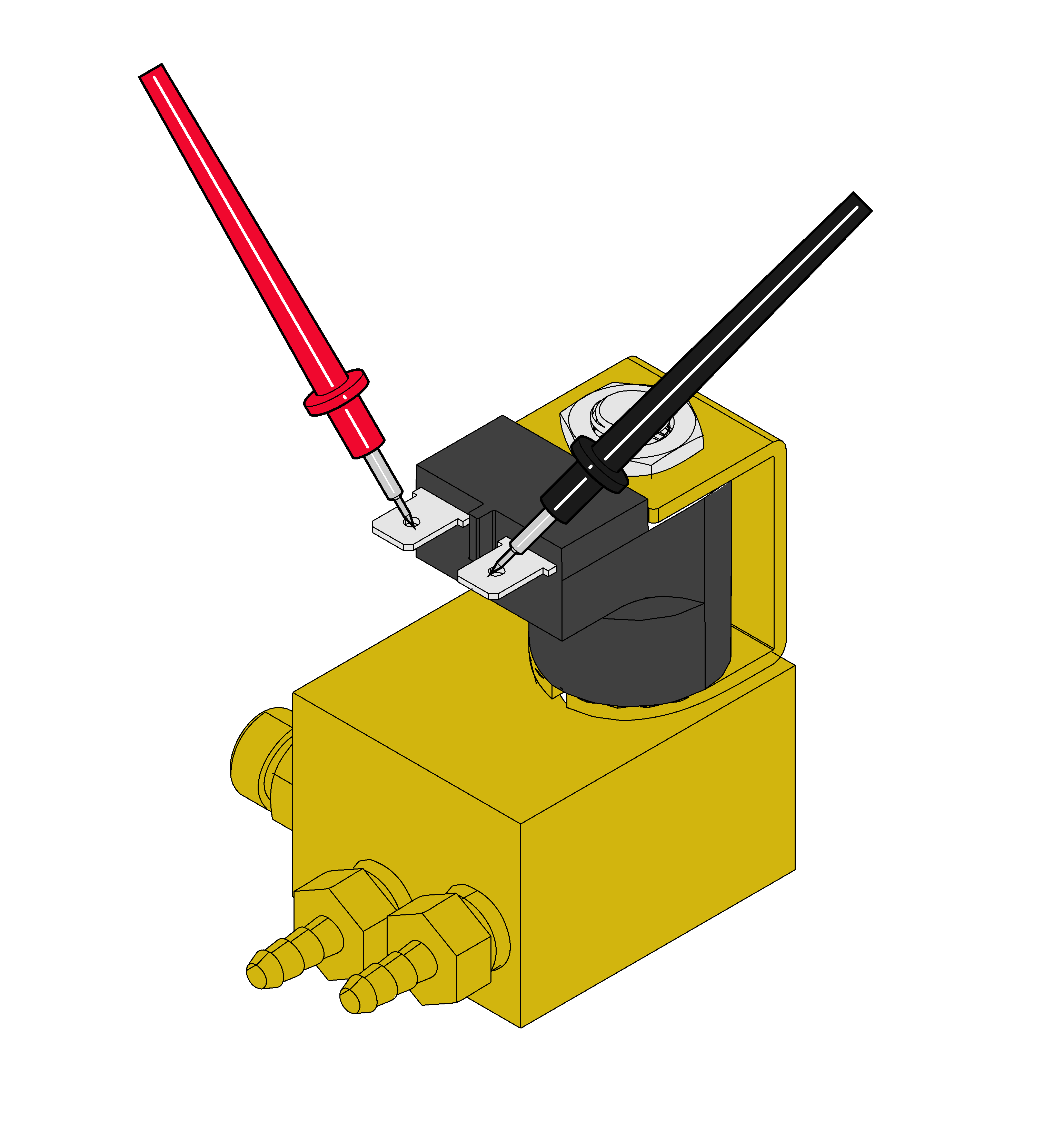

3.Place meter probes on valve terminals.

Meter Reading Required Action

Reading in the k Ωs (Ohms)

Air valve is OK.

OL

Replace air valve.
Approximately 0 Ωs (Ohms) Replace air valve.
