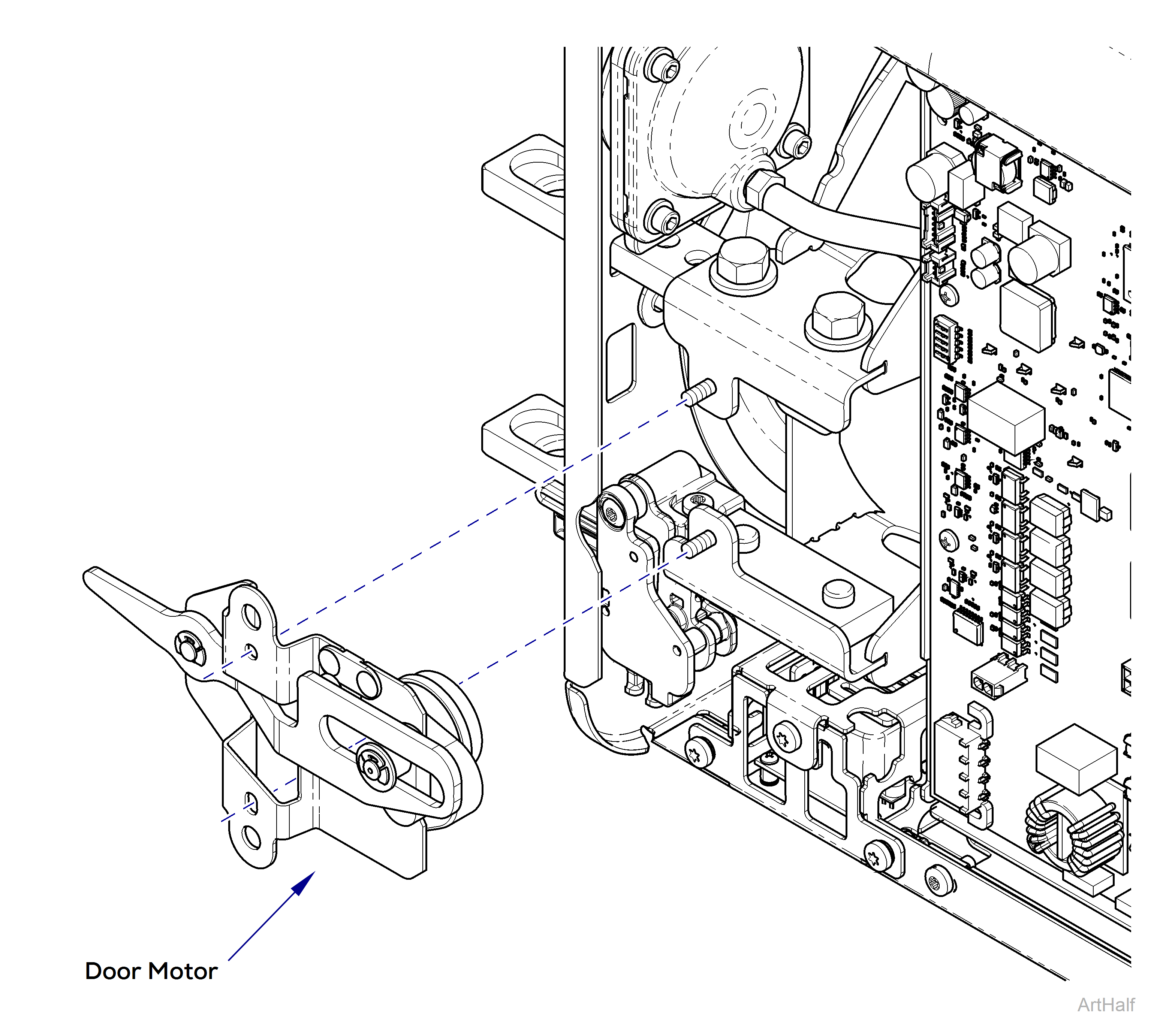

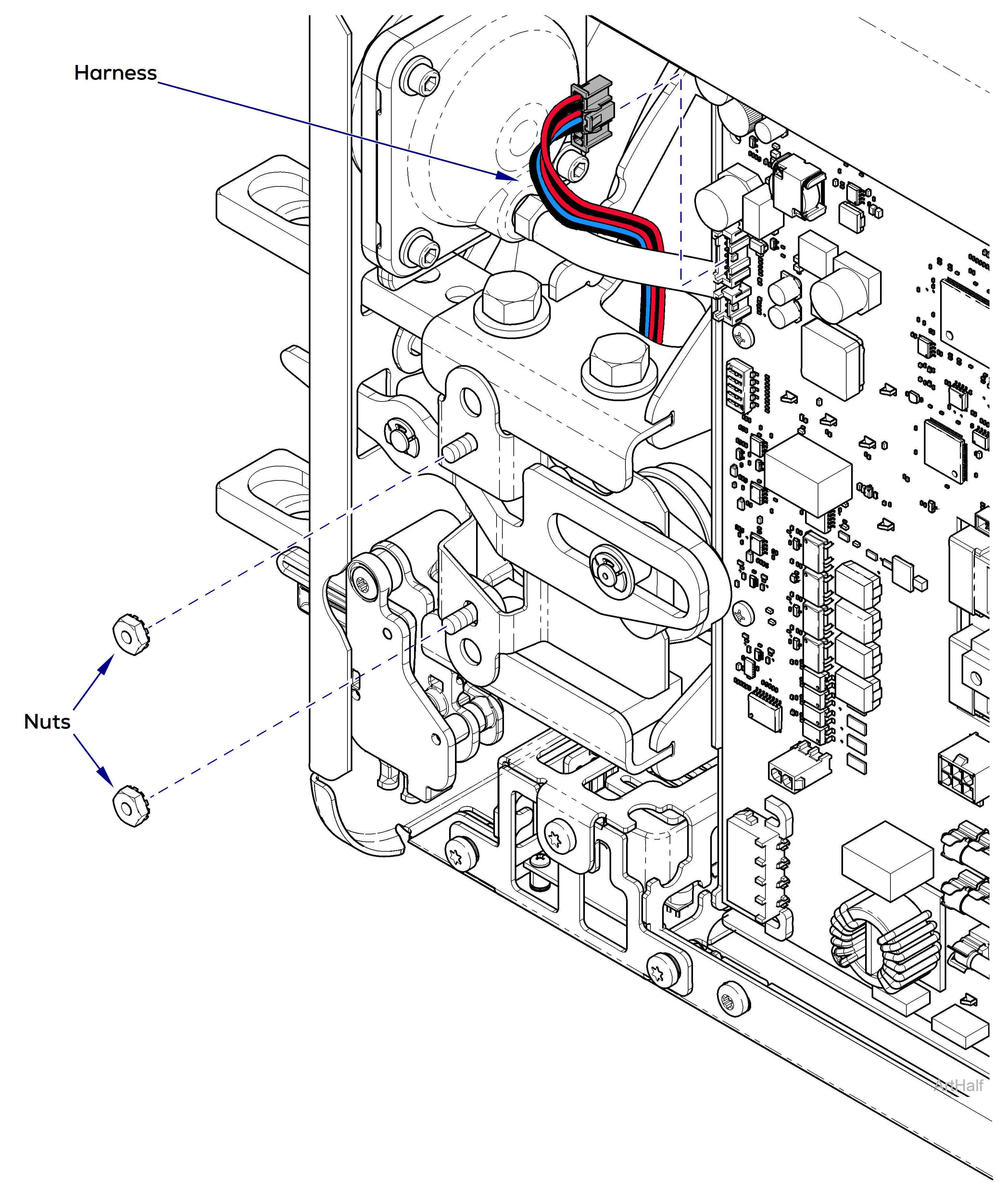

Midmark M9® -05x / M11® -05x Sterilizer Door Motor System Replacement Test and Repair

WARNING

To prevent risk of shock always disconnect power before removing covers or performing any service procedure.

WARNING

Some procedures require power to be connected with covers removed. Line voltage is present. Use extreme caution to prevent electric shock.



Model

 M9 -050, -053 M11 -050, -051, -053
Serial Number All All

M9/M11 Steam Sterilizer Door Motor System Remove

Refer to the Repair kit instructions for detailed replacement instructions.

1.Disconnect power from sterilizer.

2.Remove right side cover.

3.Disconnect harness from PC board.

4.Remove two mounting nuts.

5.Remove door motor.

M9/M11 Steam Sterilizer Door Motor System Install

1.Install door motor.

2.Secure with two mounting nuts.

3.Route harness and connect to PC board.

4.Install cover.

5.Connect power to sterilizer.
