Midmark M9® -05x / M11® -05x Sterilizer Door Switch Assembly Location Test and Repair
To prevent risk of shock always disconnect power before removing covers or performing any service procedure.
Some procedures require power to be connected with covers removed. Line voltage is present. Use extreme caution to prevent electric shock.
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |

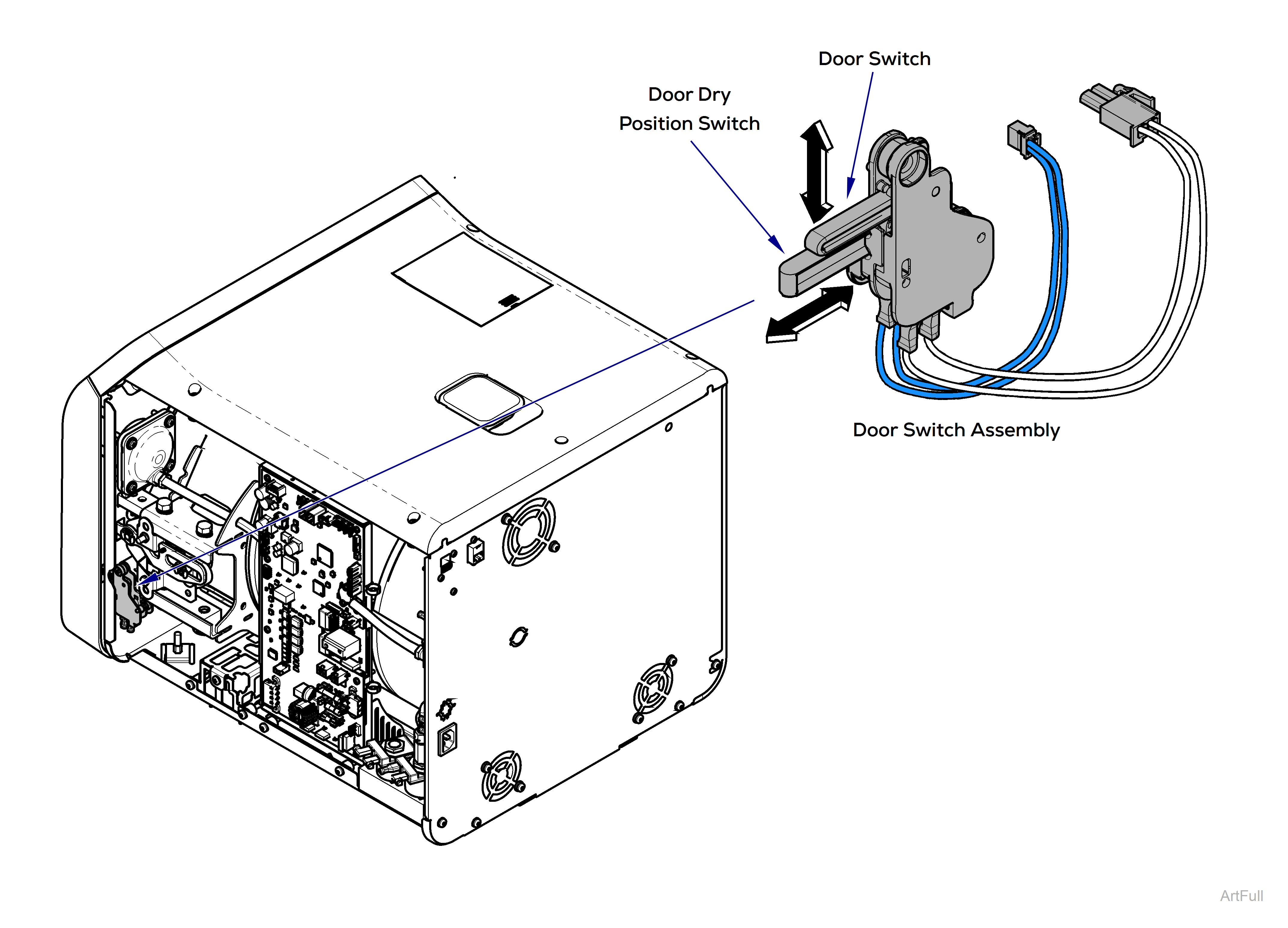

Door Switch Assembly
The door switch assembly monitors the door status and position.
Door Switch
The status of the (normally open) door switch reflects the position of the door (e.g., Door open = switch open).
Door Dry Position Switch
The dry position switch monitors when the door is in the dry position. The switch is open when the door is closed. The switch is closed when the door is in the dry position. The switch opens back up when the door is opened past the dry position.
