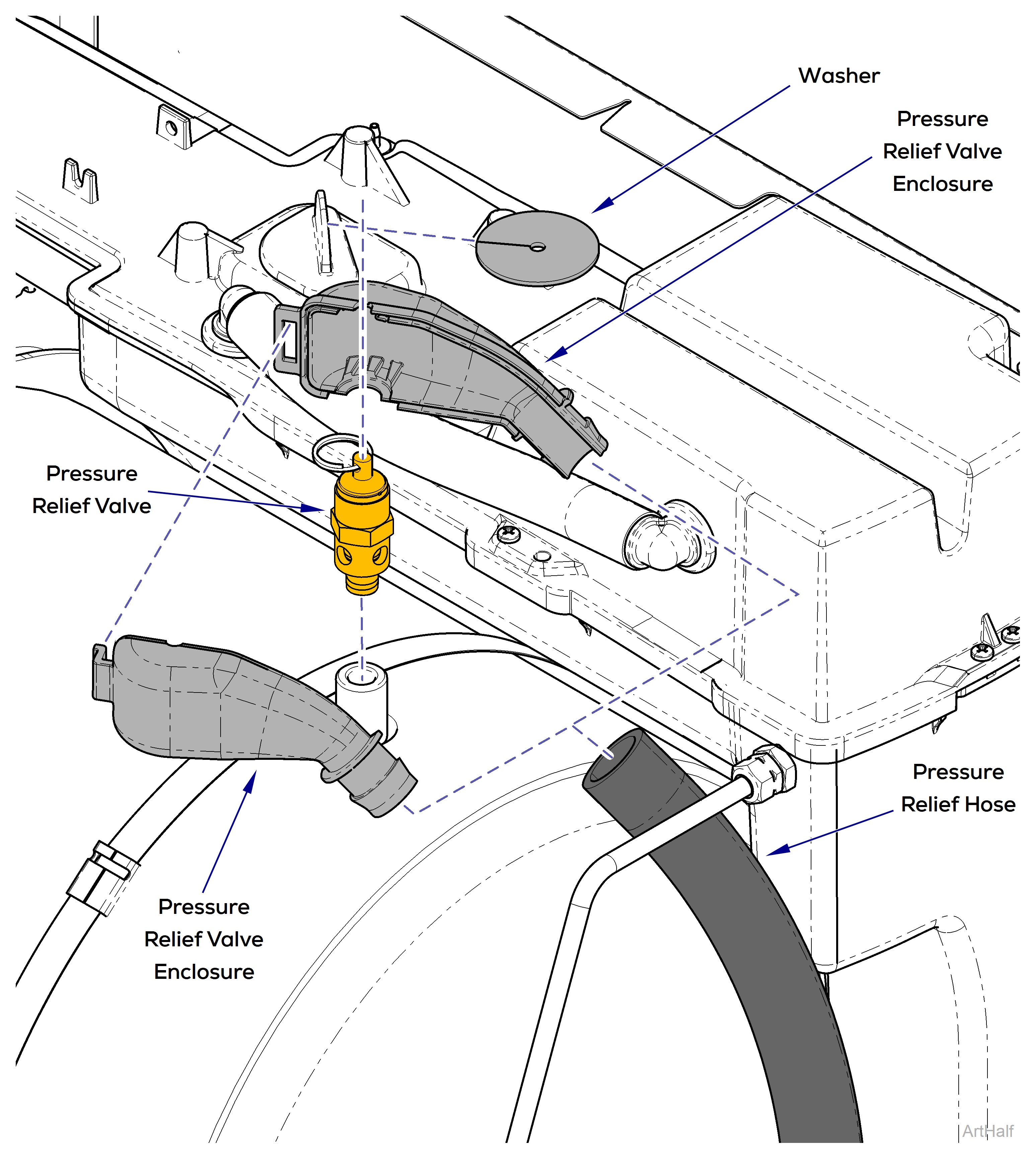

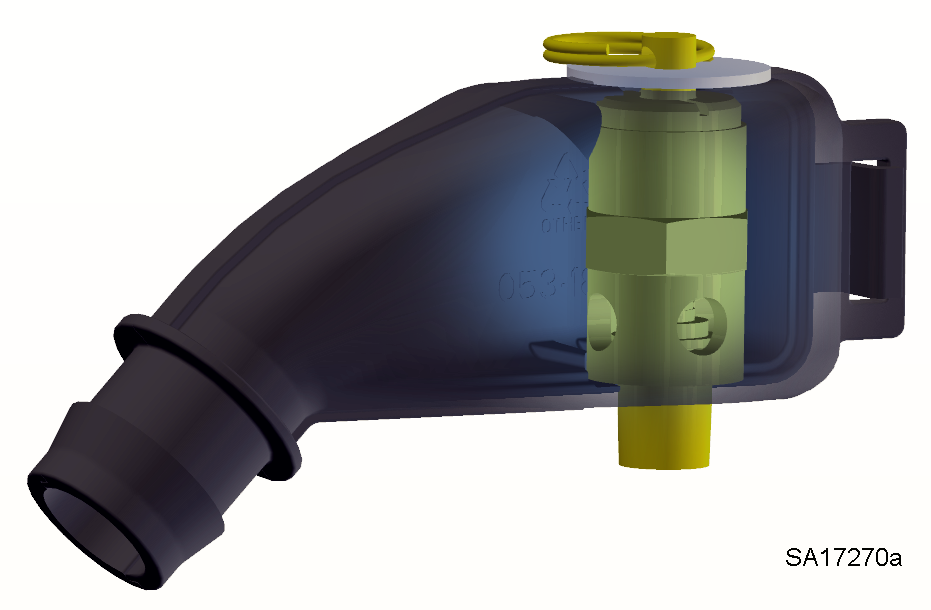

Midmark M9® -05x / M11® -05x Sterilizer Pressure Relief Valve Replacement Test and Repair

WARNING

To prevent risk of shock always disconnect power before removing covers or performing any service procedure.

WARNING

Sterilizer or components may be hot or become hot. Wait until the sterilizer or components are cool to the touch before continuing service.



Model

 M9 -050, -053 M11 -050, -051, -053
Serial Number All All

M9/M11 Steam Sterilizer Pressure Relief Valve Replacement

Refer to the Repair kit instructions for detailed replacement instructions.



1.Pull pressure relief handle to purge any pressure from chamber.

2.Disconnect relief valve tubing and then separate valve enclosure.

3.Remove pressure relief valve.

Assure the washer is located between the top of the enclosure and the ring of the pressure relief valve.

M9/M11 Steam Sterilizer Pressure Relief Valve Replacement

The pressure relief valve has a seal on the threads to prevent leakage.

1.Assemble pressure relief valve enclosures.

2.Connect pressure relief hose.

3.Install washer between top of enclosure and ring of the pressure relief valve.

Trim tubing if necessary to prevent contact with support surface.
