Midmark M9® -05x / M11® -05x Sterilizer Heater Relay Board Replacement Test and Repair

Model	M9 -050, -053	M11 -050, -051, -053
Serial Number	All	All

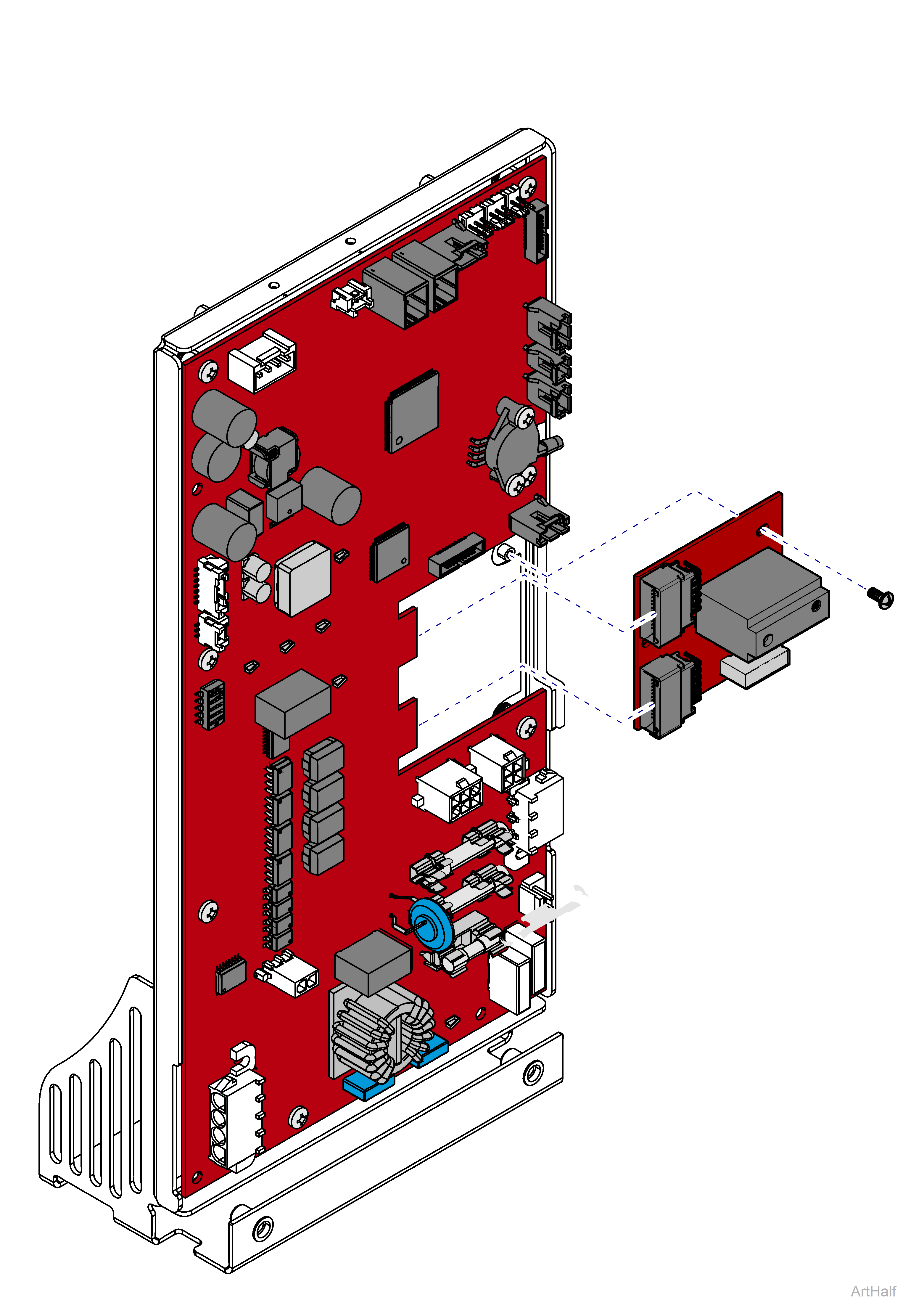

To remove heater relay board:

1.Disconnect power from sterilizer.

2.Remove one mounting screw.

3.Slide Heater Relay PC Board out from Main PC Board.



To install heater relay board:

1.Slide Heater Relay PC Board onto Main PC Board.

2.Secure Heater Relay PC Board with mounting screw.

3.Connect power to sterilizer.
