Midmark M9® -05x / M11® -05x Sterilizer Water Level Sensor Location Test and Repair

Model	M9 -050, -053	M11 -050, -051, -053
Serial Number	All	All

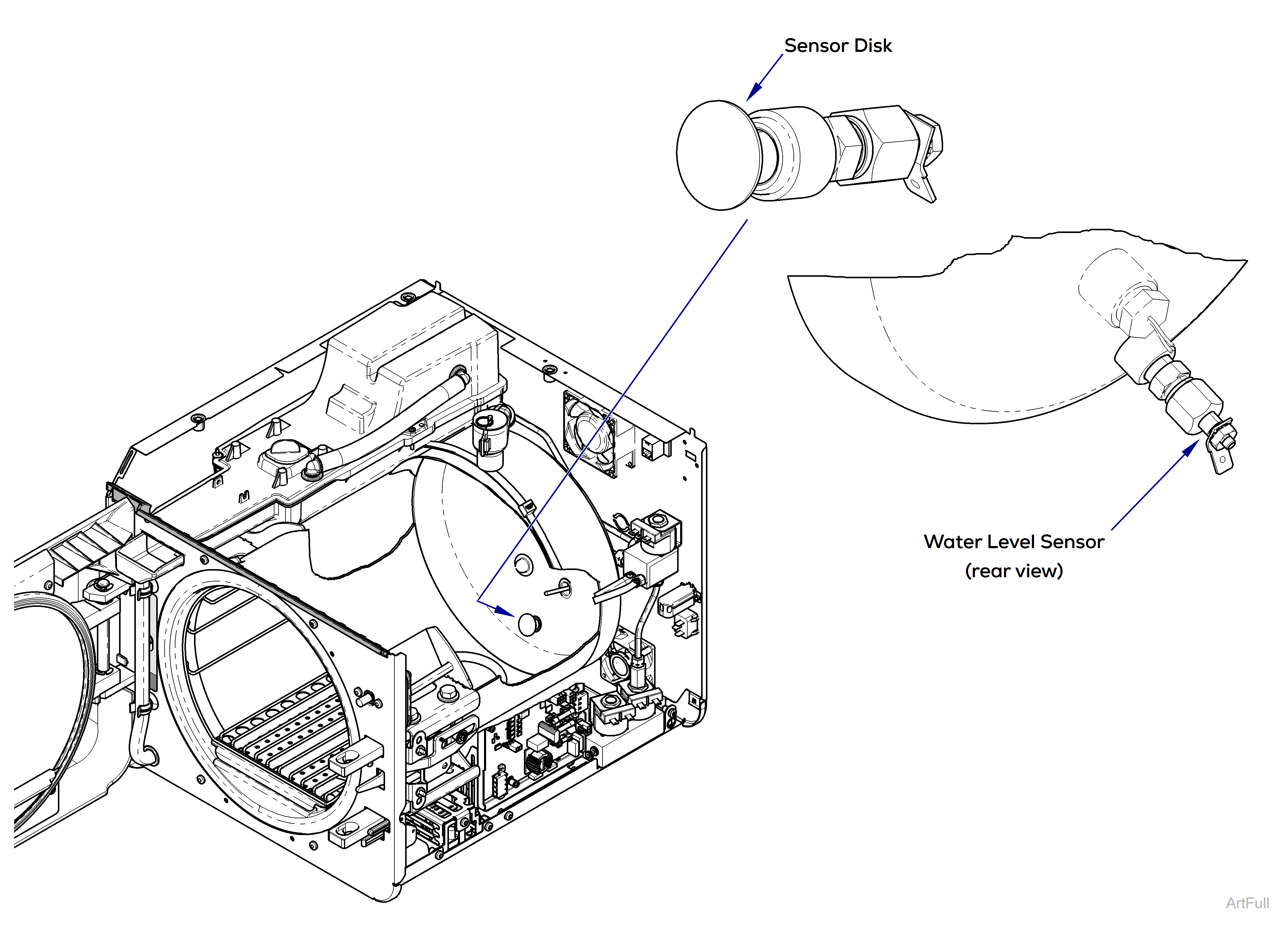

M9/M11 Steam Sterilizer Water Level Sensor Location

Equipment Alert

Residue buildup on the sensor disk can cause malfunctions during the Filling mode. Clean the sensor disk with Speed-Clean and an abrasive pad; then dry disk thoroughly.

Filling Mode

When the water level in the chamber reaches the sensor disk, a circuit is completed to the PC board.

When the water level sensor is detected, the PC board stops the current flow to the fill valve.

Heating / Sterilizing / Venting / Drying Mode

The water level sensor is not monitored.
