Midmark M9® -05x / M11® -05x Sterilizer Temperature Sensor Replacement Test and Repair
Sterilizer or components may be hot or become hot. Wait until the sterilizer or components are cool to the touch before continuing service.
To prevent risk of shock always disconnect power before removing covers or performing any service procedure.
|
Model |
M9 -050, -053 | M11 -050, -051, -053 |
| Serial Number | All | All |
Residue buildup can cause inaccurate temperature/pressure readings. Clean the sensor probe with Speed-Clean and distilled water.

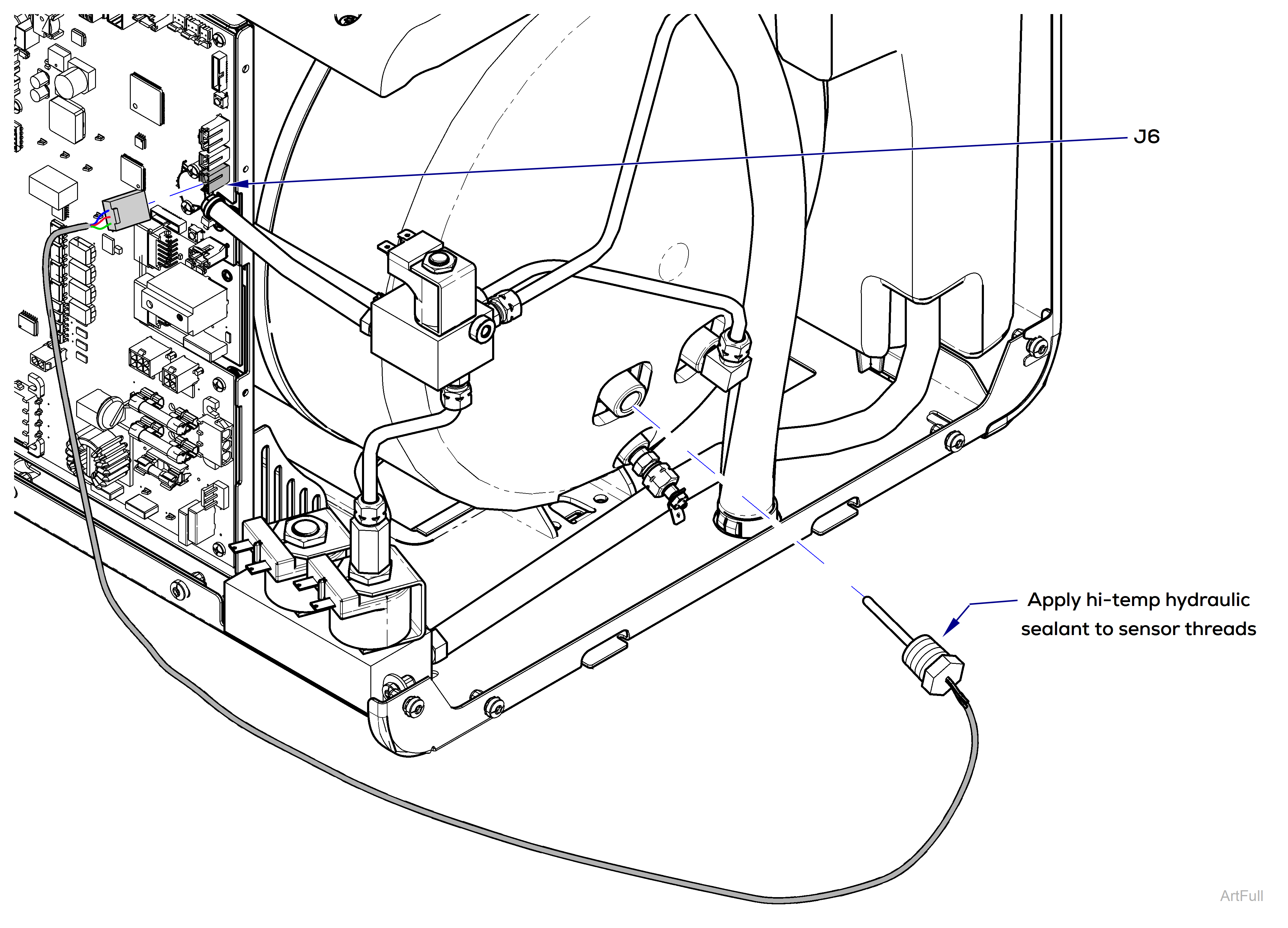

To replace temperature sensor:
1.Disconnect sensor harness from J6 on PC board.
2.Remove temperature sensor.
3.Apply hi-temp hydraulic sealant (Loctite 565) to temperature sensor threads. Do not use Teflon tape!
4.Install temperature sensor.
5.Connect sensor harness to J6 on PC board.
