203 Exam Table Reversing Drawer Sides Test and Repair

Model |
203 -002, -004, -006, -008 |
Serial Number | V2200 thru V1113734 |
Reversing Drawer Sides
1.Carefully lay table upside down.

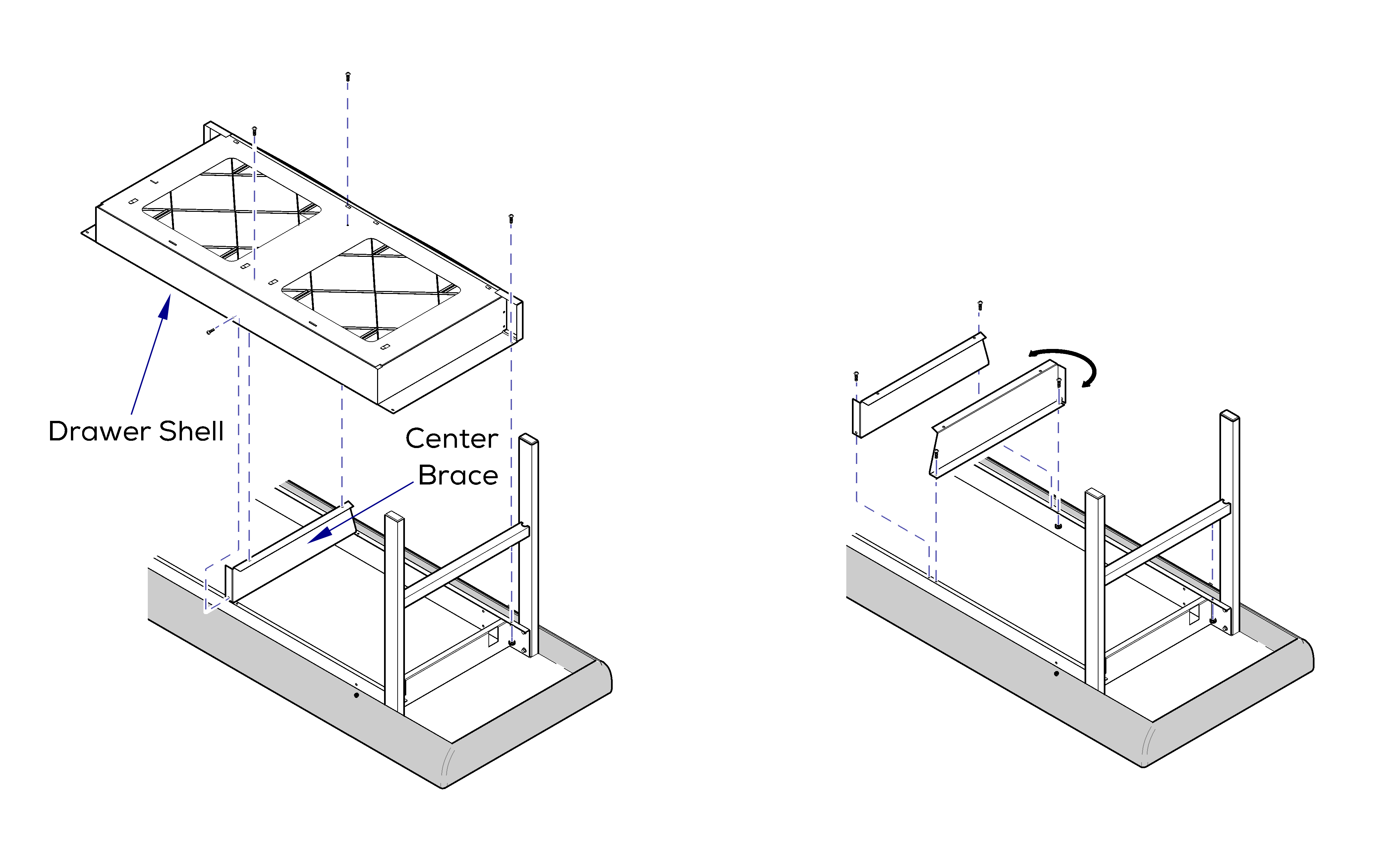

2.Remove three screws securing drawer shell to center brace. Two screws in bottom, one in back.
3.Remove screws / nuts securing drawer shell. Set drawer shell aside.
4.Remove center brace.
5.Rotate brace 180°. Reinstall using alternate set of mounting holes.

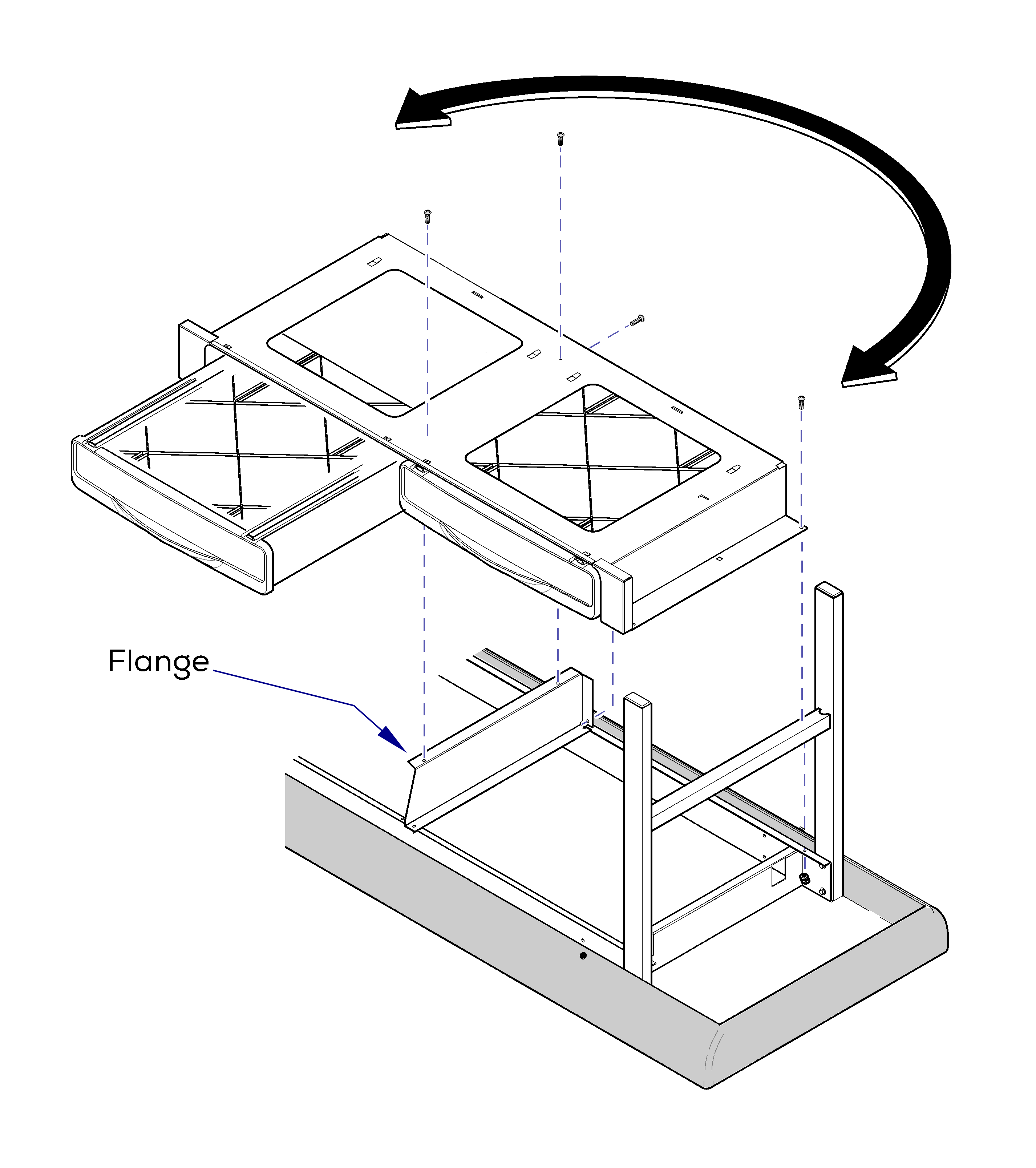

The drawer on the flange side of the center brace must be pulled out in order to clear the flange.
6.Rotate drawer shell 180°. Position drawer shell on table.
7.Secure drawer shell to center brace with three screws.
8.Secure drawer shell to table with four screws / nuts.

Model |
203 -002 , -004, -006, -008, -012, -014, -016, -018 |
Serial Number | V1113735 thru Vxxx |
Reversing Drawer Sides
1.Carefully lay table upside down.

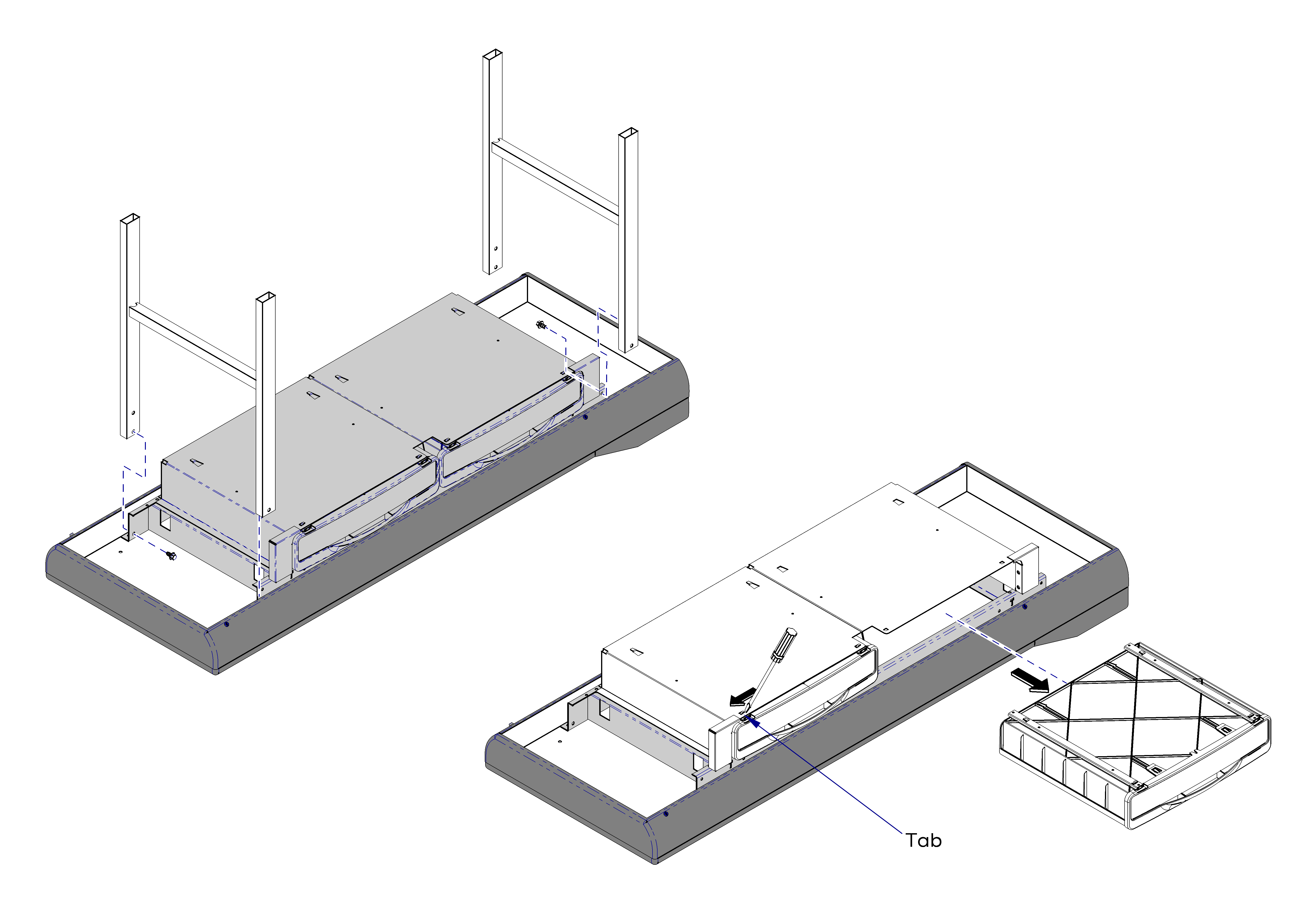

2.Remove table legs.
3.Remove drawers by placing screwdriver on tab to release and pull drawers out.

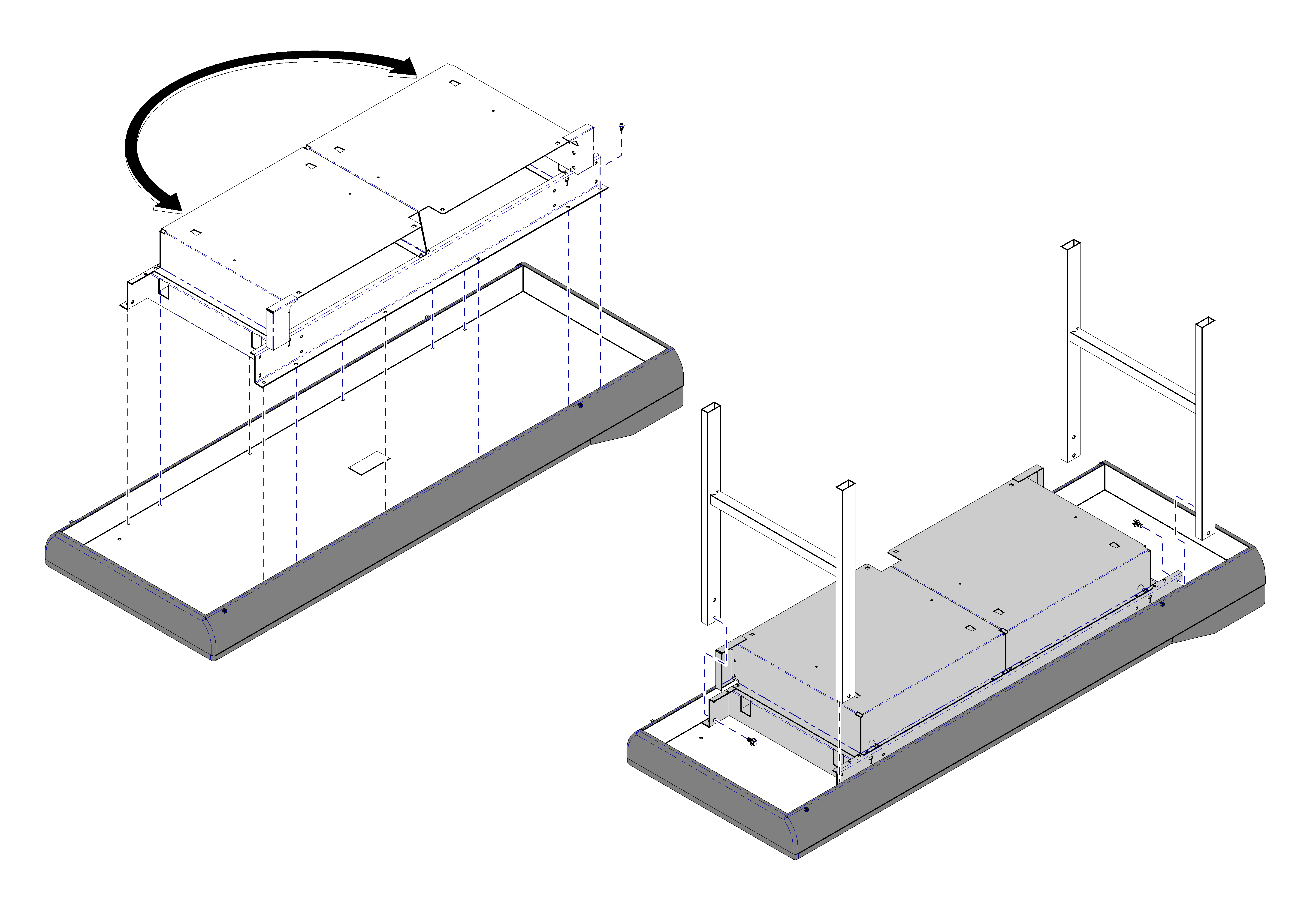

4.Remove screws from table top to remove frame. Rotate frame and reattach with screws.
5.Install table legs.
6.Carefully set table up on legs to install drawers.

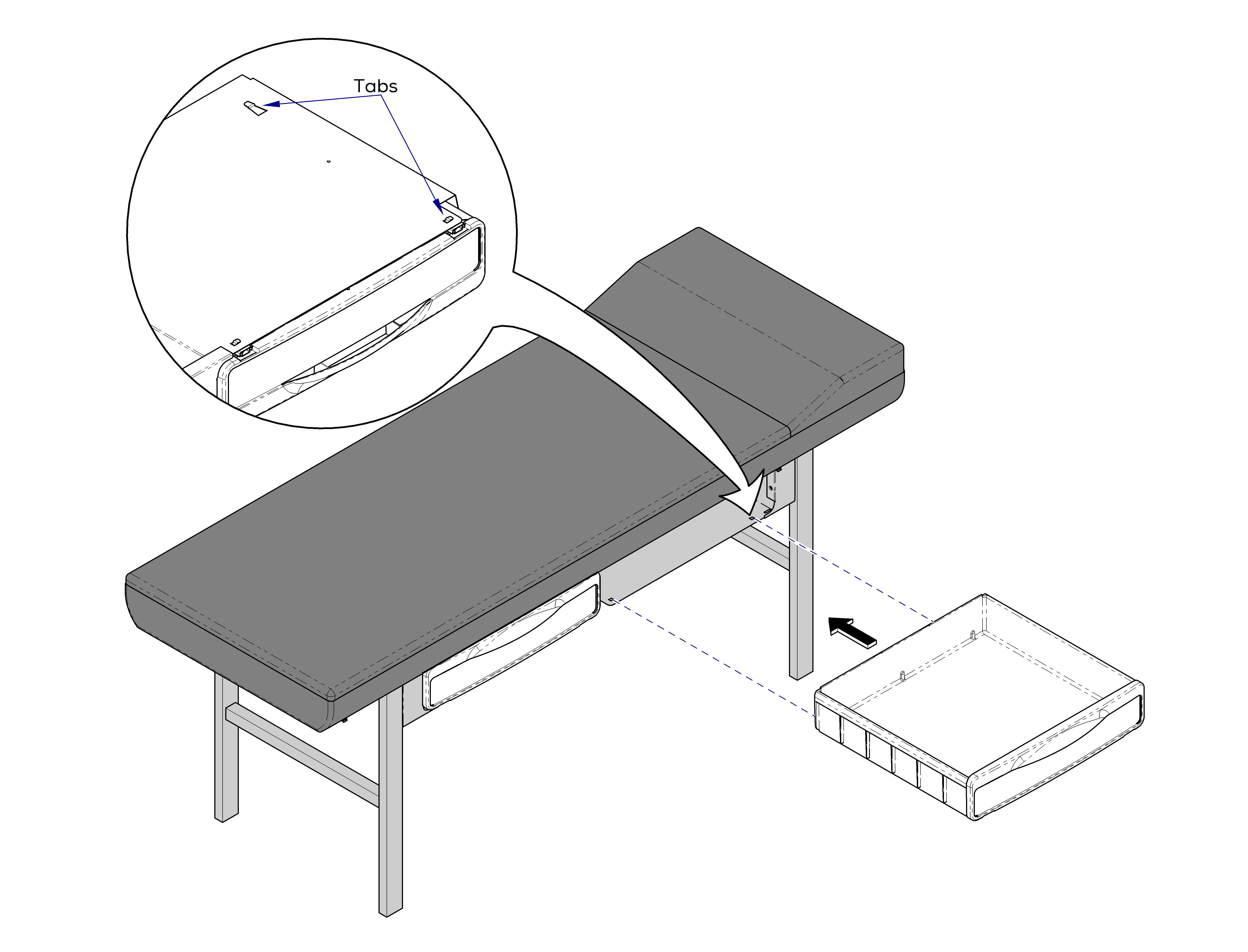

7.Install drawer into drawer shell making sure tabs lock into place.

Model |
203 -002 , -004, -006, -008, -012, -014, -016, -018 |
Serial Number | Vxxx thru Present |
Reversing Drawer Sides
1.Carefully lay table upside down.

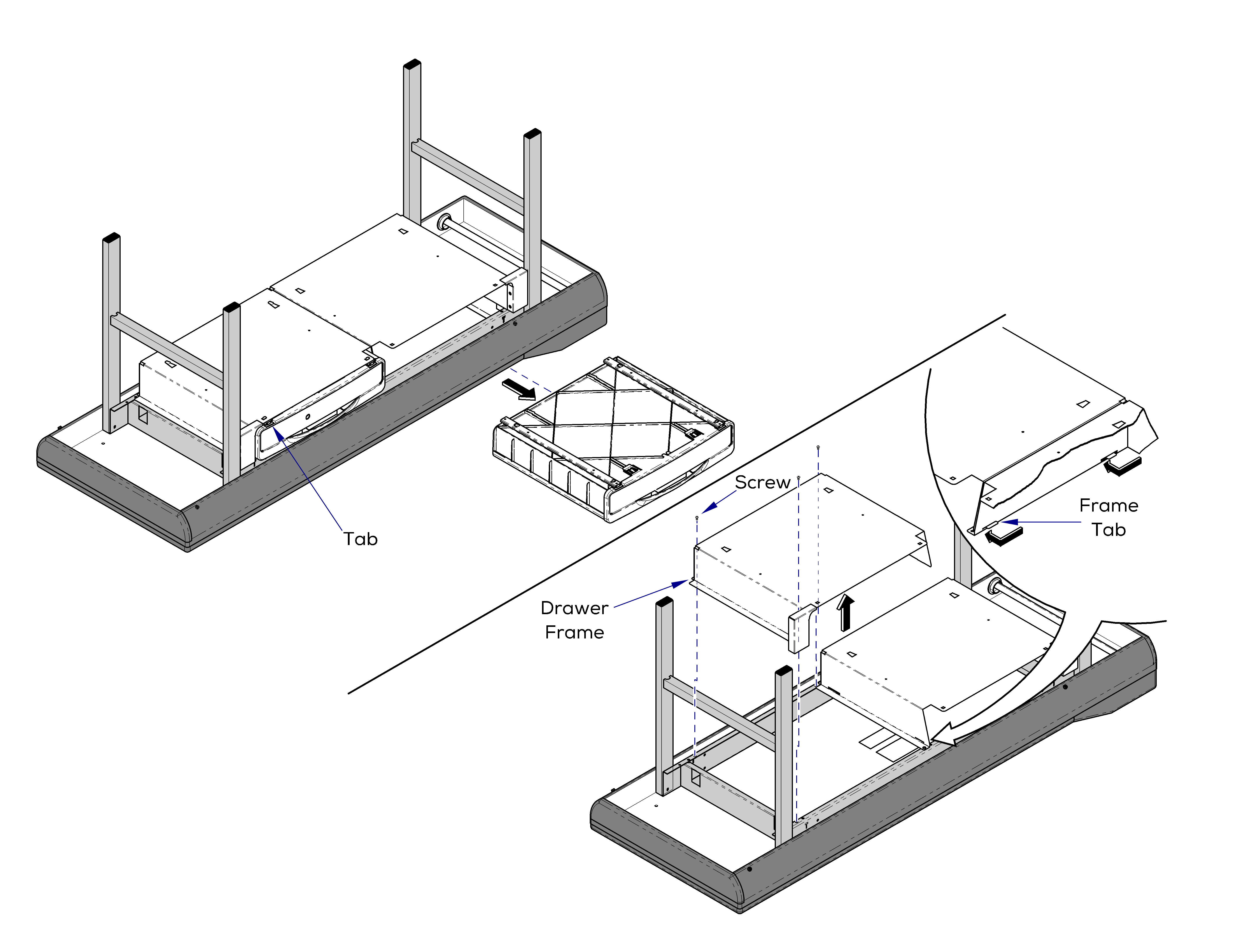

2.Remove drawers by placing screwdriver on drawer tab to release and pull drawers out.
3.Remove screws (3) from drawer frame and slide drawer frame forward and out to release frame tab from opposite frame.

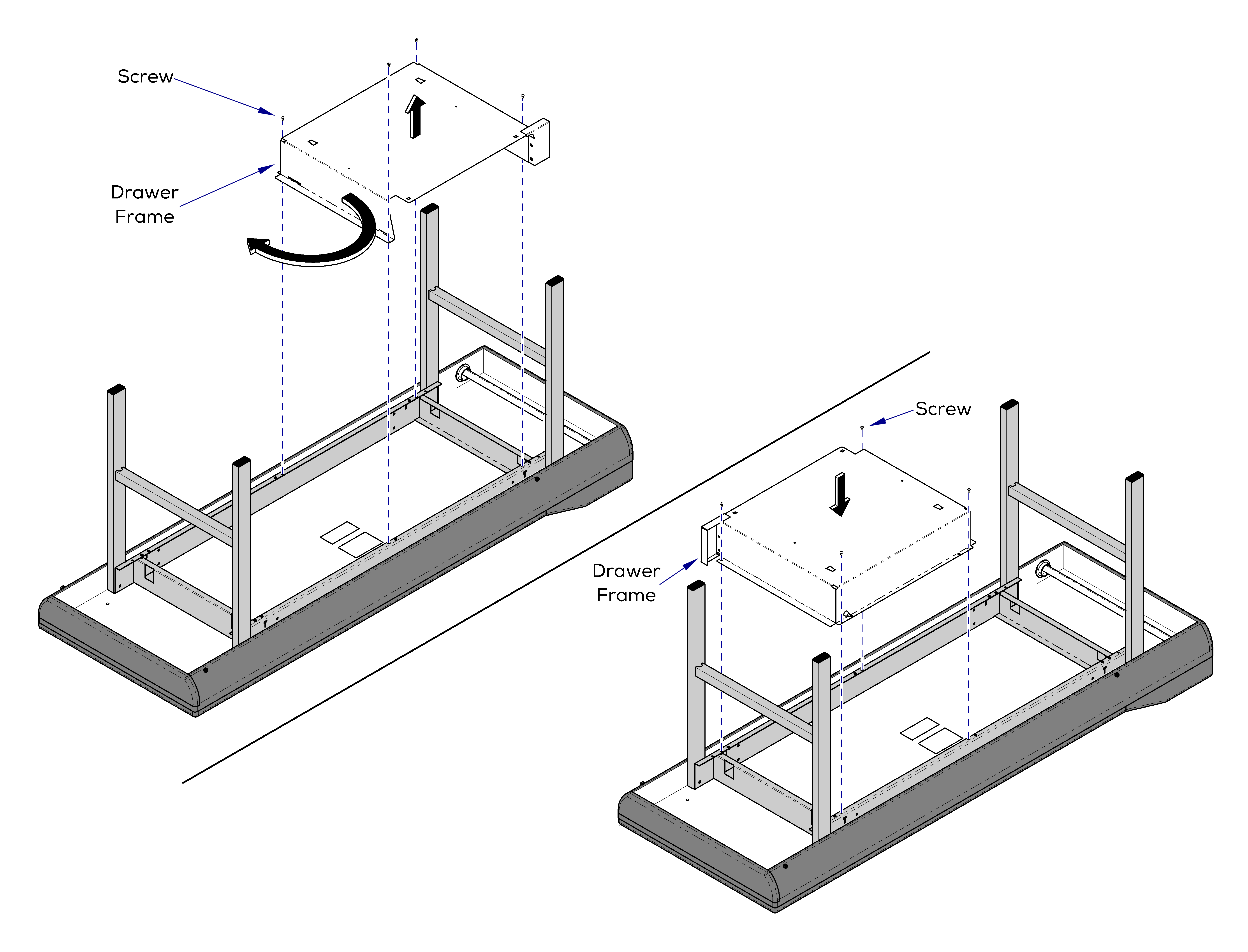

4.Remove screws (4) from drawer frame and rotate frame 180°.
5.Slide frame into new location and install drawer frame with same screws (4).

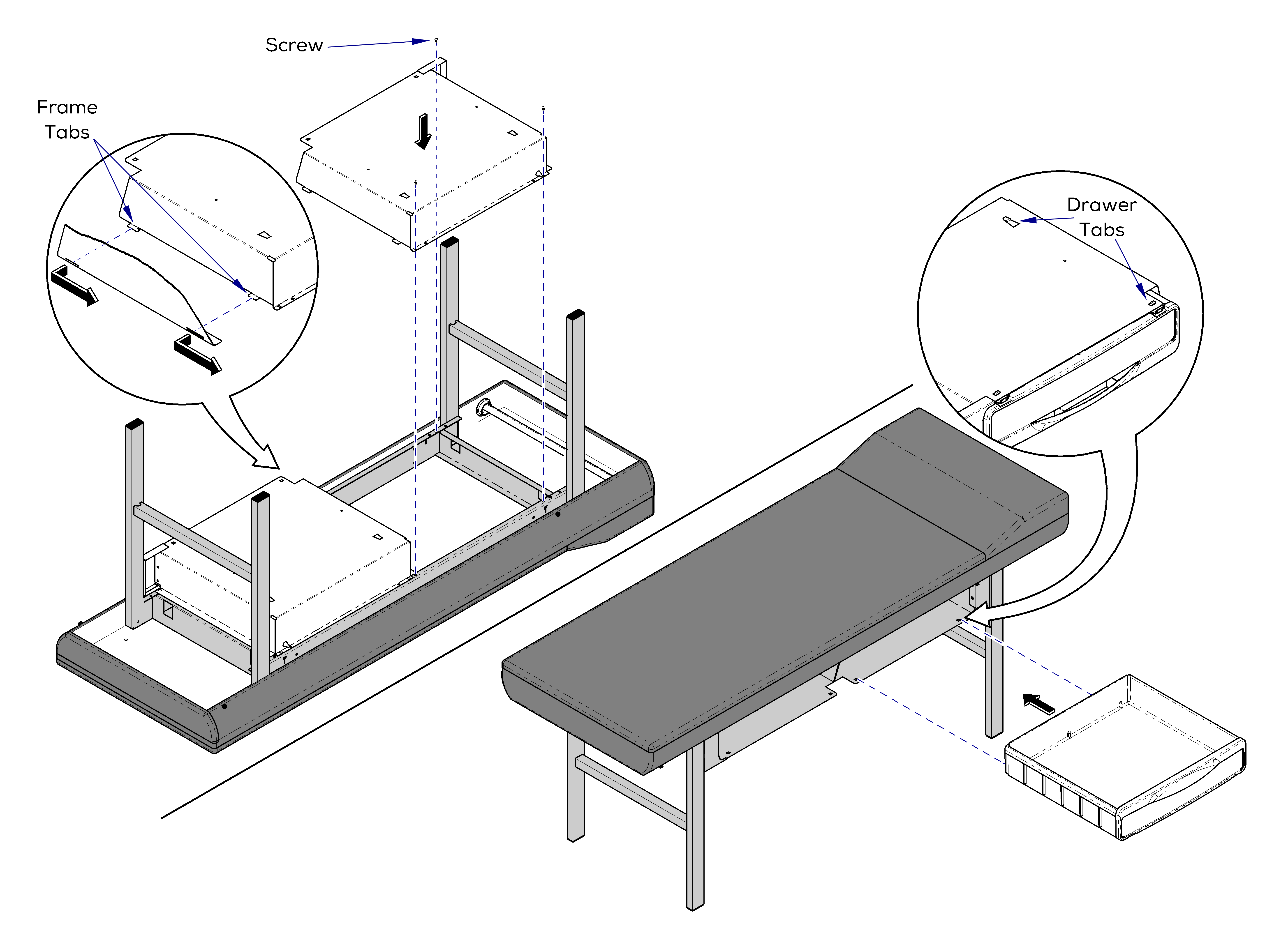

6.Install drawer frame by sliding drawer frame tabs into holes of other drawer frame and push back secure with screws (3).
7.Carefully set table up on legs to install drawers.
8.Install drawer into drawer shell making sure tabs lock into place.
