204 and 604 Table Stirrups Replacement

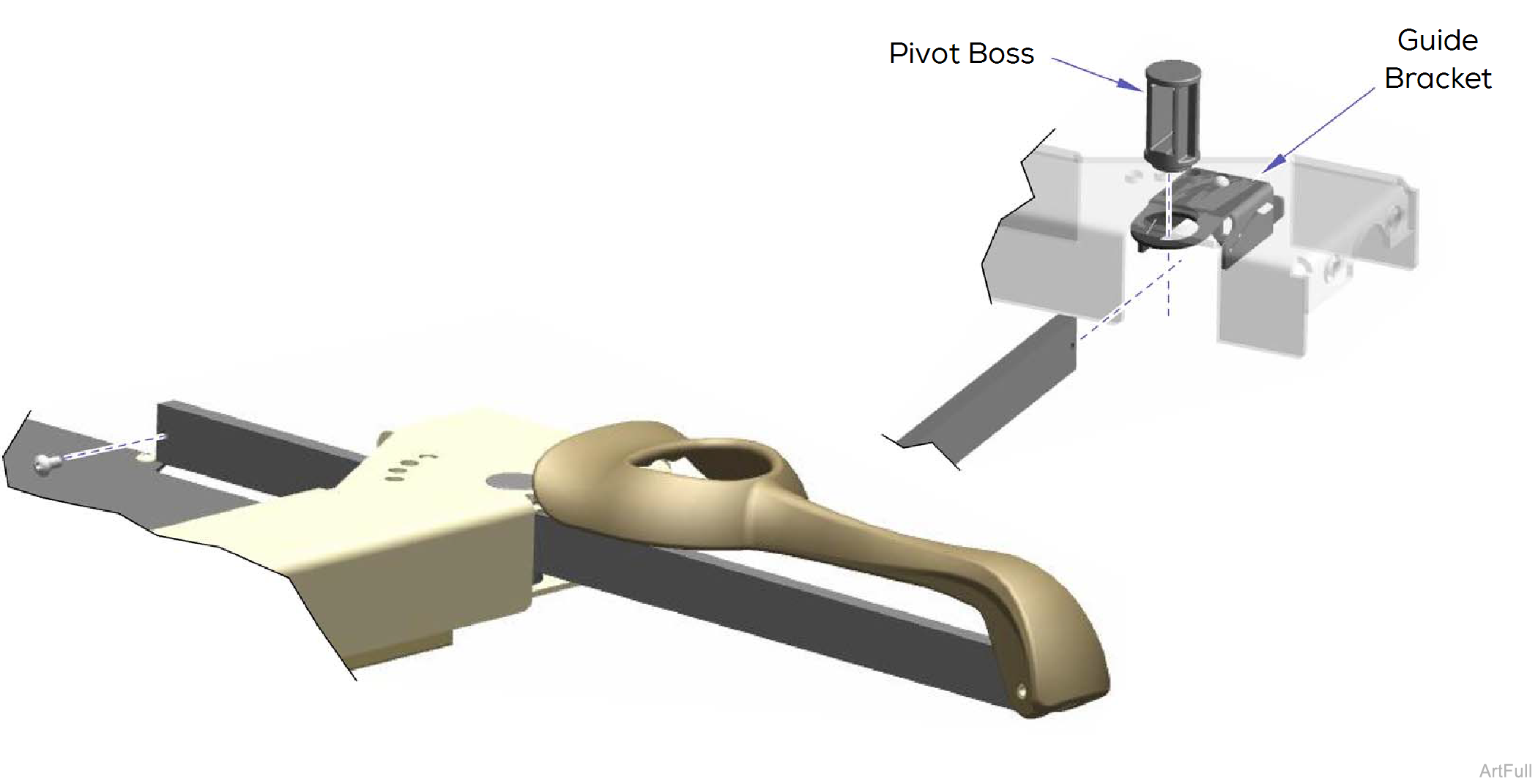

Installation

1.Lift seat section.

2.Slide stirrup bar thru pivot boss and guide bracket.

3.Install screw in stirrup bar.

Removal

1.Lift seat section.

2.Remove screw from stirrup bar.

3.Pull stirrup out.
