244 Table Weights, Dimensions, Electrical Specifications

Dimensions

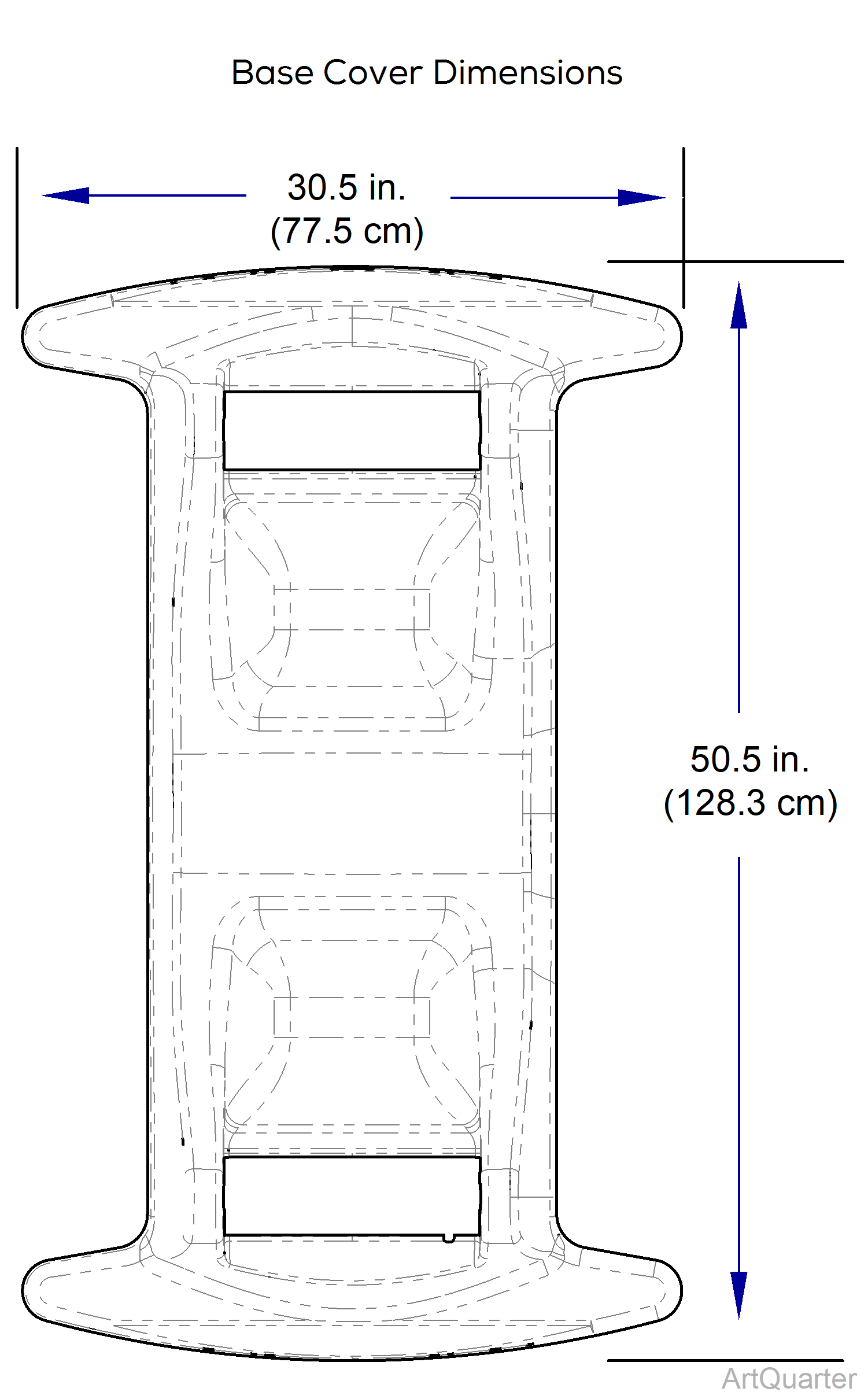

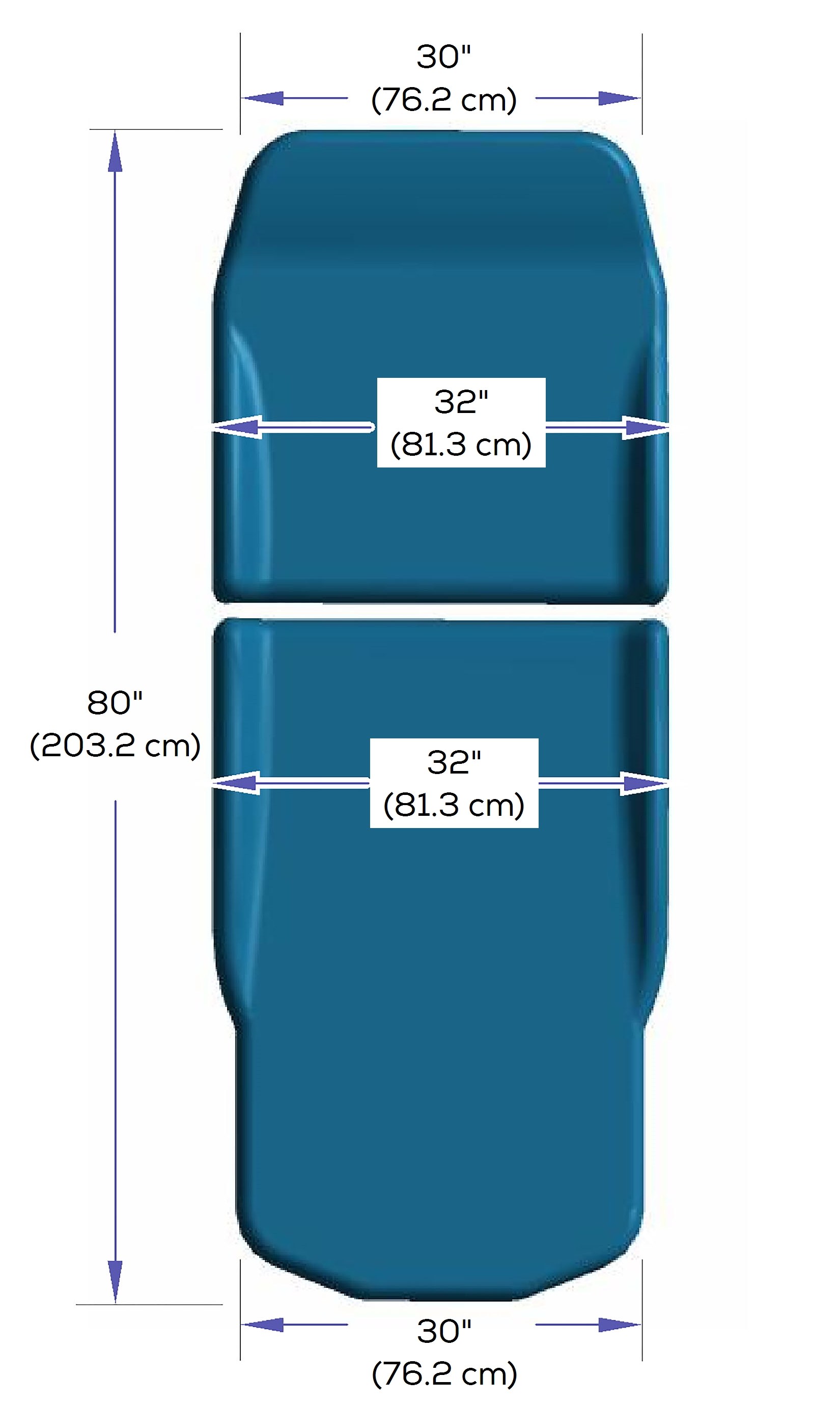

244 Table Dimensions

Equipment not suitable for use in the presence of a flammable anesthetic mixture with air, or with oxygen, or nitrous oxide.

Weights, Dimensions, Electrical Specifications
Maximum Patient Weight	850 lbs (385 kg)
Maximum Patient Weight w/Caster Base Accessory	650 lbs (295 kg)
Paper Roll - maximum size	24 in. long x 6 in. diameter (61cm x 15.2 cm)
Range of Motion and Dimensions	See illustration
Weight of Table	340 lbs (154 kg)
Weight of Table w/packaging and skid	400 lbs (181 kg)
Power Cord	8 ft. (243.8 cm) long
Electrical Requirements	See Compliance Charts
Hand Control Voltage	5 VDC, SELV (Safety Extra Low Voltage)
Fuses: Located at power cord inlet	6.3A, 250V, Slo-Blo, 5 x 20 mm
Duty Cycle - motor run time	Intermittent Operation - 1 minute ON / 9 minutes off
Classifications	Class 1, Type B Applied Part
Protection against ingress of fluids	Ordinary Equipment
Regulatory Compliance	See Compliance Charts
