244 Table Upholstery Access Procedures

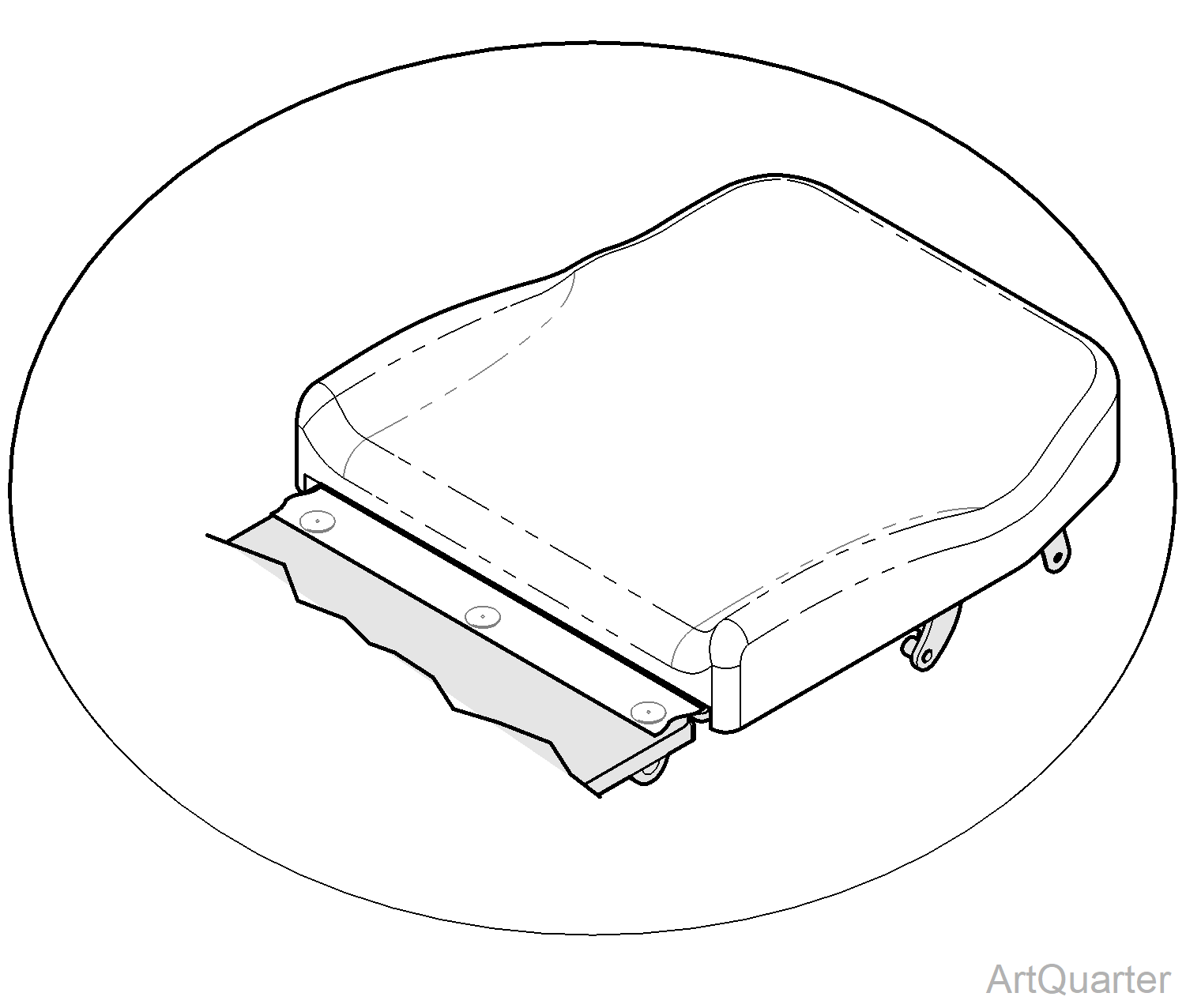

Hinge cover lays flat over first row of velcro discs. Seat section upholstery is installed on top of hinge cover.

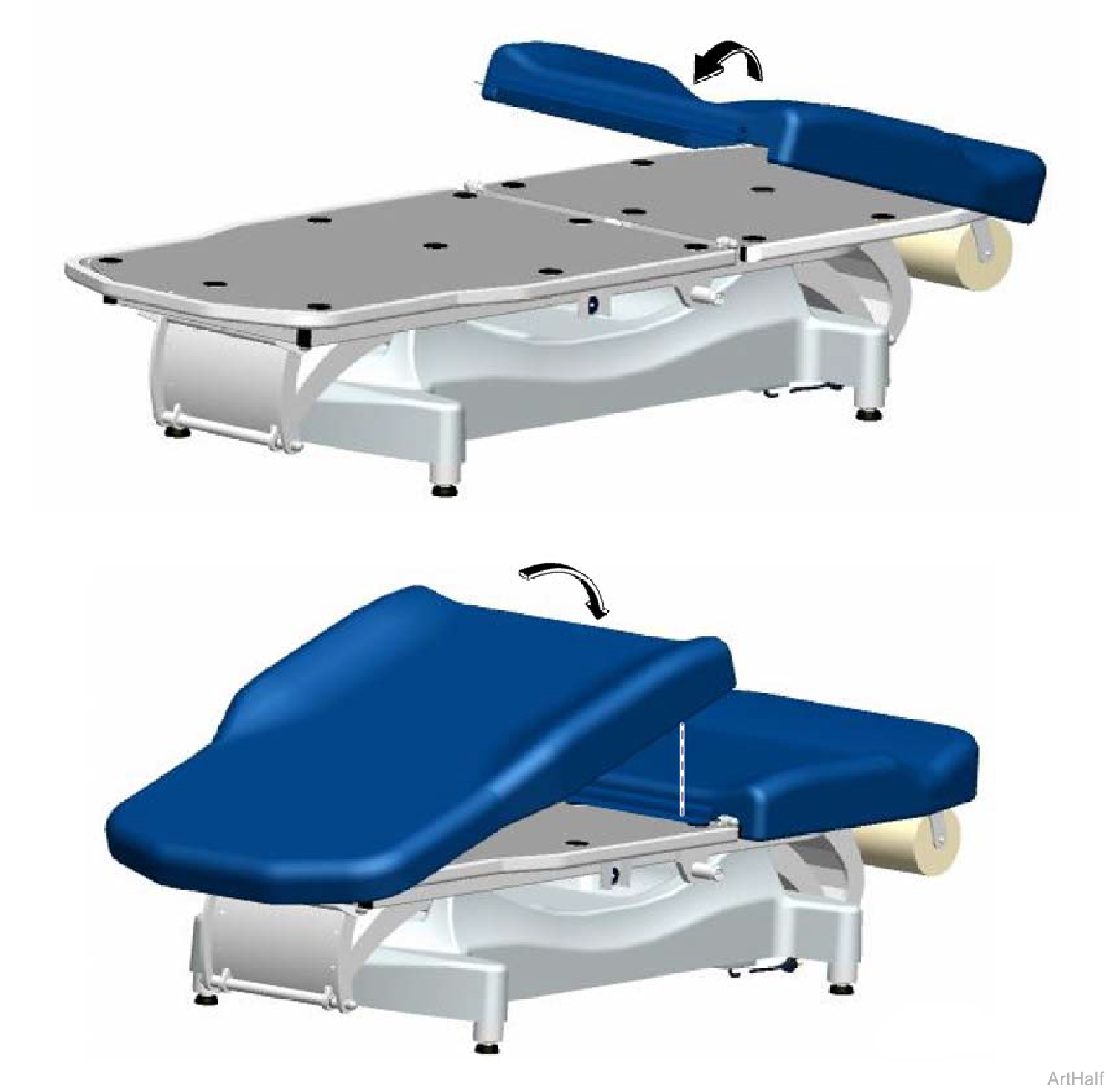

Back Section Upholstery
Removal
1.Pull back section up to release velcro.
Installation
1.Position head-end of back section against mounting board.
2.Lay upholstery flat, then press down firmly to engage velcro.
Seat Section Upholstery
Removal
1.Pull seat section up to release velcro.
Installation
1.Position foot-end of seat section against mounting board.
2.Lay upholstery flat, then press down firmly to engage velcro.
