244 Table Upper Frame

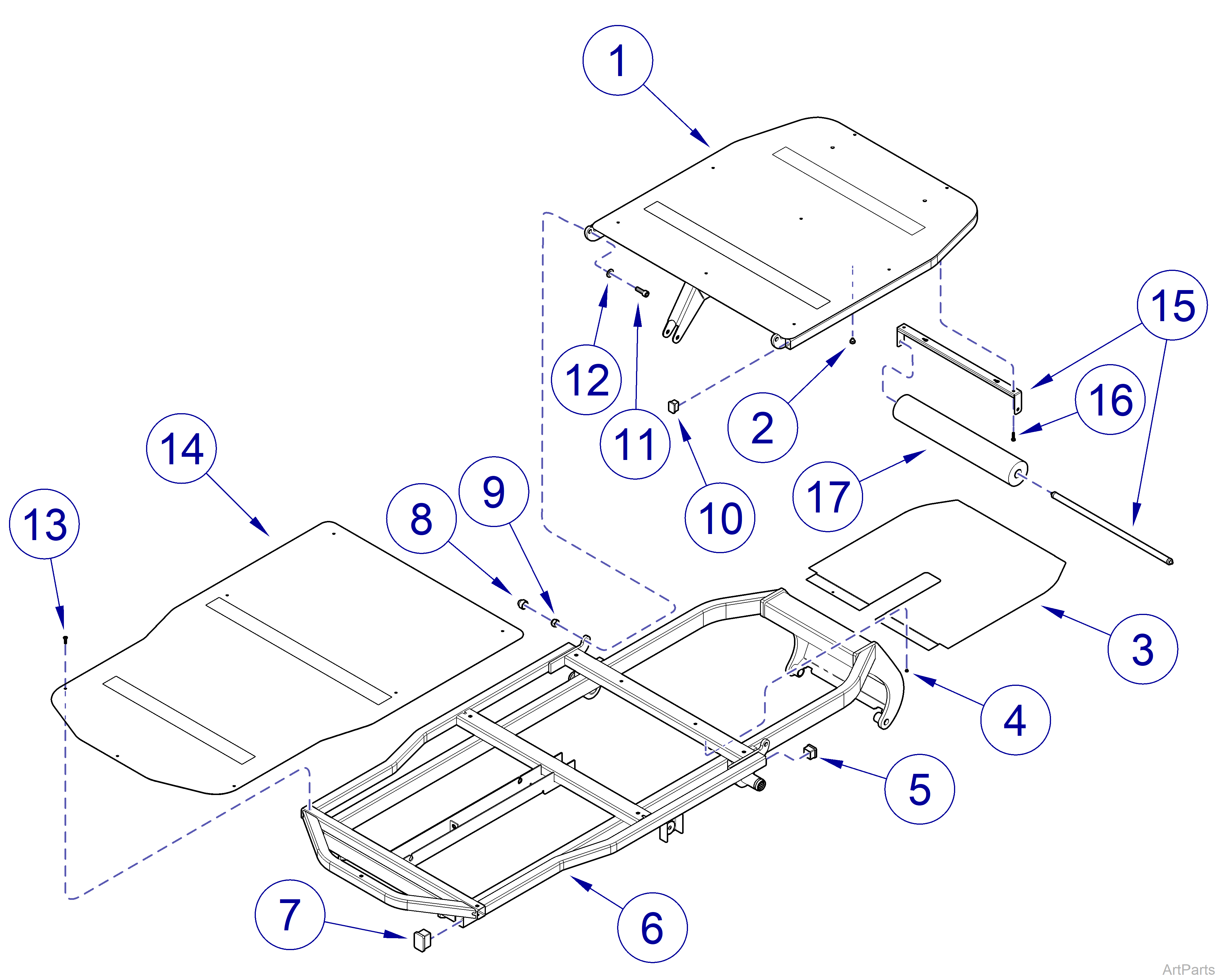

Model

 244
Serial Number 045102845 thru 045102866

244 Table Upper Frame

244 Table Upper Frame
Item Part Number Description Qty

1

PFD116904

 Back Frame Assembly NLA

2

   Bumper NSS

3

 PFD116901-16 Back Cover 1

4

   Screw NSS

5

   Tube Plug 30mm x 30mm NSS

6

PFD116901

 Upper Frame Assembly NSS

7

   Tube Plug 50mm x 30mm NSS

8

   Cap NSS

9

   Nut M10 NSS

10

   Tube Plug 30mm x 20mm NSS

11

   Screw M10 x 30mm NSS

12

   Washer D10 - stainless steel NSS

13

PFVXM1043

 Screw NLA

14

PFD602401-03

 Seat Section Cover NLA

15

 PFJ106800 Paper Roll Holder Assembly - includes item 16 1

16

 040-0010-157 Screw M6 x 25mm 2

17

PFLG533

 Paper Roll NLA

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number

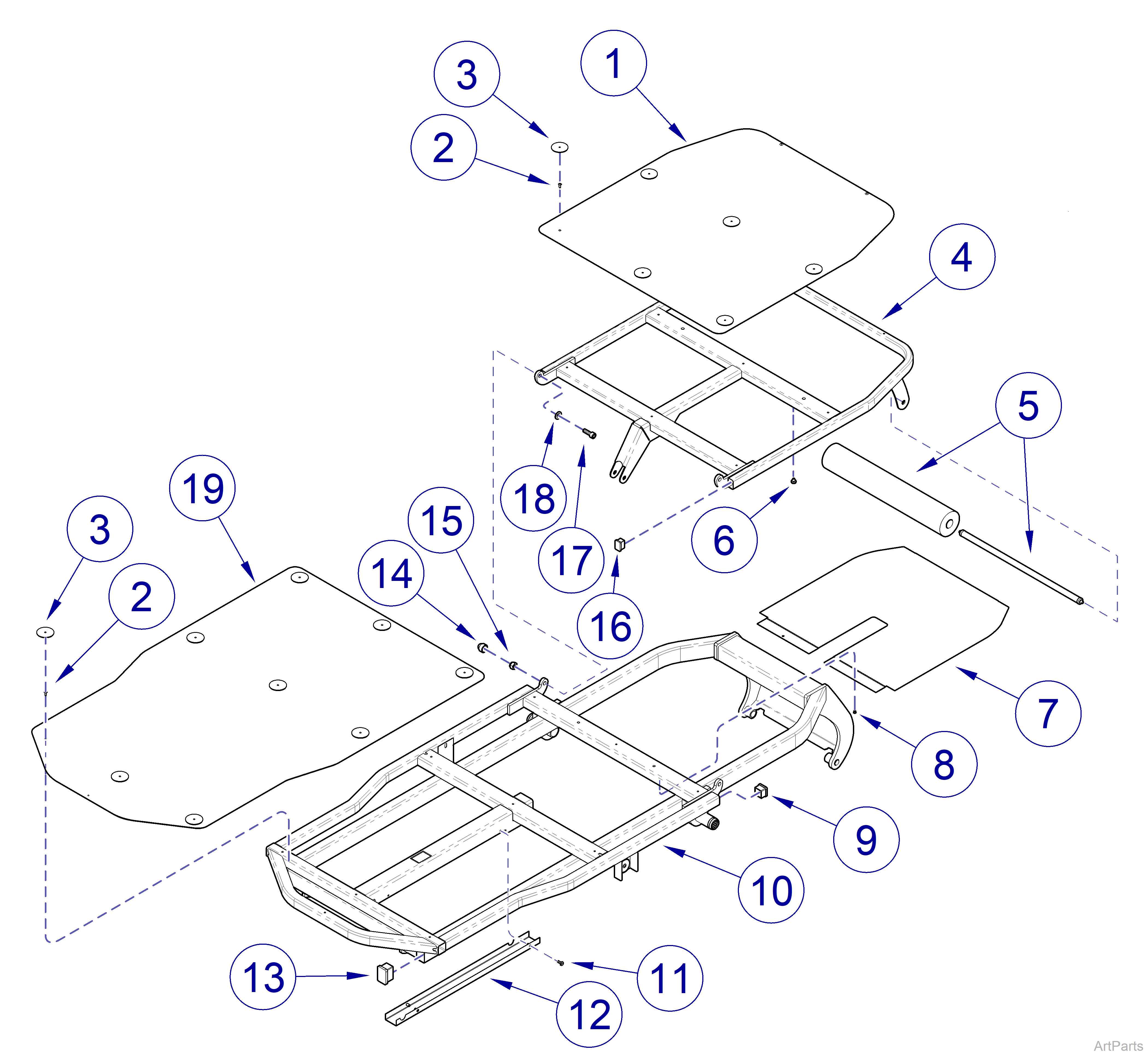

Model

 244
Serial Number 045102867 thru present

244 Table Upper Frame

244 Table Upper Frame
Item Part Number Description Qty

1

 PFD602402-03 Back Frame Top Cover 1

2

 PFRIV1411 Pop Rivet 17

3

 PFDIS4502 Hook and Loop Fastener 15

4

PFD116902

Back Frame 1

5

 PFJ107000 Paper Roll Rod - with one paper roll 1

6

   Bumper NSS

7

 PFD116901-16 Back Cover 1

8

   Screw NSS

9

 PFEMP5030 Tube Plug 30mm x 30mm 2

10

PFD116901

 Upper Frame Assembly NLA

11

 PFVXM4041 Screw M4 x 10mm 2

12

PFD116903-01

 Channel Cover NLA

13

 PFEMP7530 Tube Plug 50mm x 30mm 2

14

 PFRDN0010 Cap 2

15

 PFECX4010 Nut M10 2

16

 PFEMP8320 Tube Plug 30mm x 20mm 2

17

 PFVXM5104 Screw M10 x 30mm 2

18

 PFRDX2110 Washer D10 2

19

 PFD602401-03 Seat Frame Top Cover 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
