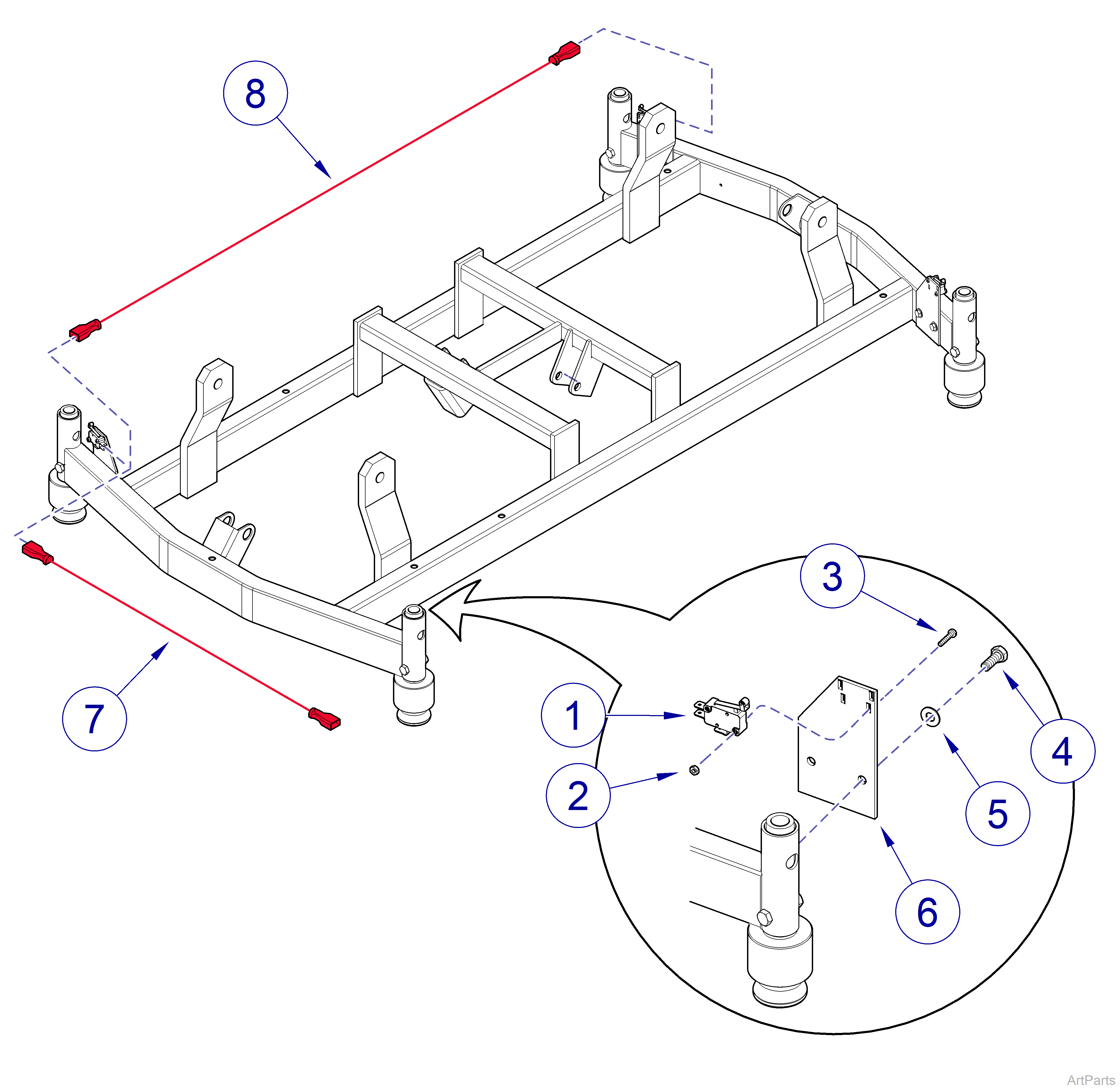

244 Table Base Cover Limit Switches
|
Model |
244 |
| Serial Number | All |
| 244 Table Base Cover Limit Switches | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PFINT3320 | Limit Switch Kit - includes one switch and items 2 and 3 | 4 |
|
2 |
PFECX2003 | Nut M3 - stainless steel | 2 |
|
3 |
PFVXM4031 | Screw M3 x 15mm | 2 |
|
4 |
PFVXM7061 | Screw M6 x 16mm | 8 |
|
5 |
Washer D6 - stainless steel | NSS | |
|
6 |
PFG114605-01 |
Mounting Plate | NLA |
|
7 |
015-3595-00 | Limit Switch Wire - short | 1 |
|
8 |
015-3596-00 | Limit Switch Wire - long | 2 |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
