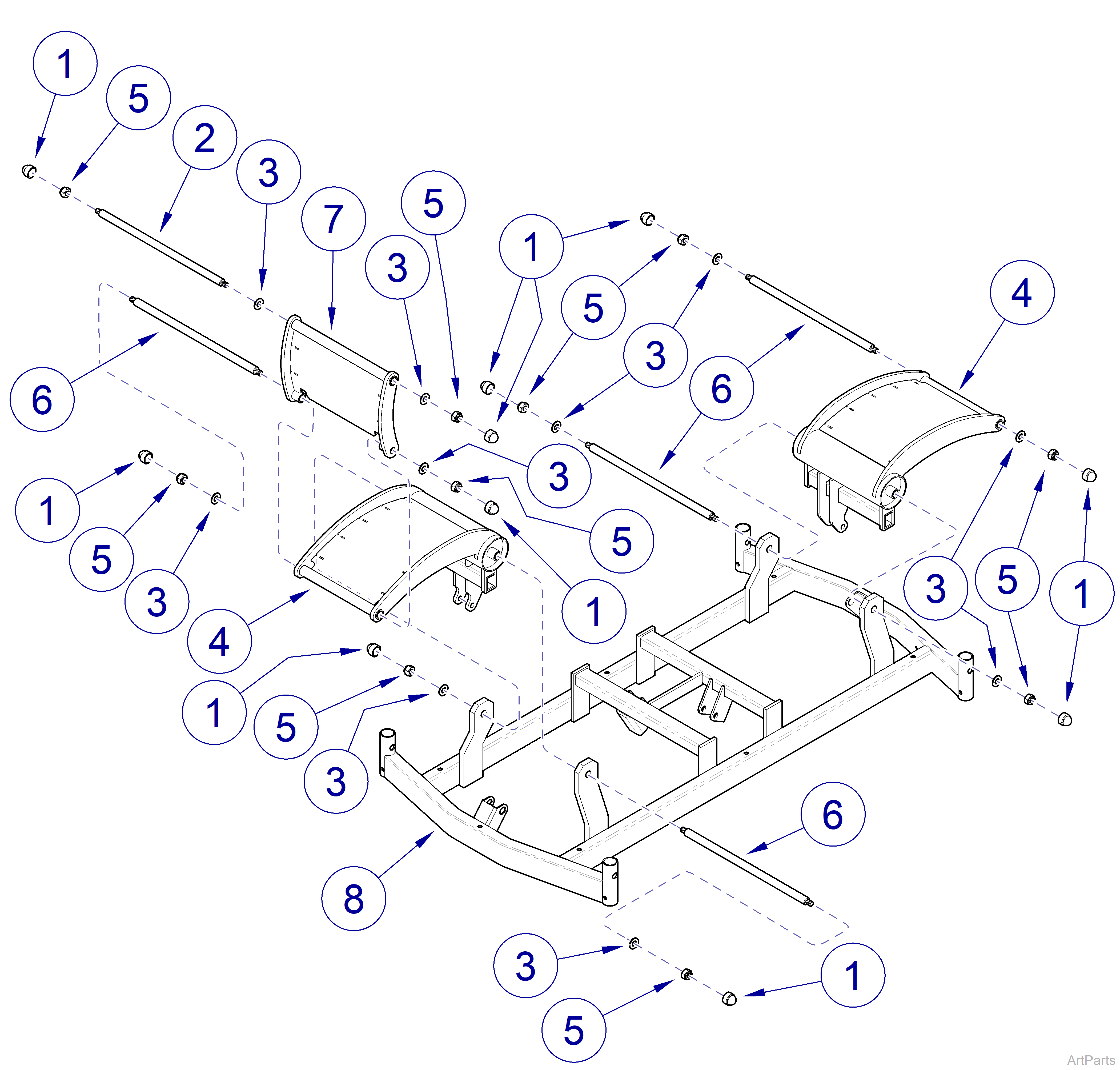

244 Table Base Frame
|
Model |
244 |
| Serial Number | All |
| 244 Table Base Frame | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
PFRDN0010 | Cap | 8 |
|
2 |
PFAF16366 |
Pivot Bar - long | NLA |
|
3 |
PFRDX2110 | Washer D10 - stainless steel | 6 |
|
4 |
PFG114602 |
Lift Weldment | NLA |
|
5 |
PFECX2010 | Nut M10 - stainless steel | 3 |
|
6 |
PFAF16342 |
Pivot Bar - short | NLA |
|
7 |
PFG114603 |
Pivot Weldment | NLA |
|
8 |
PFD117001 |
Base Frame Weldment | NLA |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
