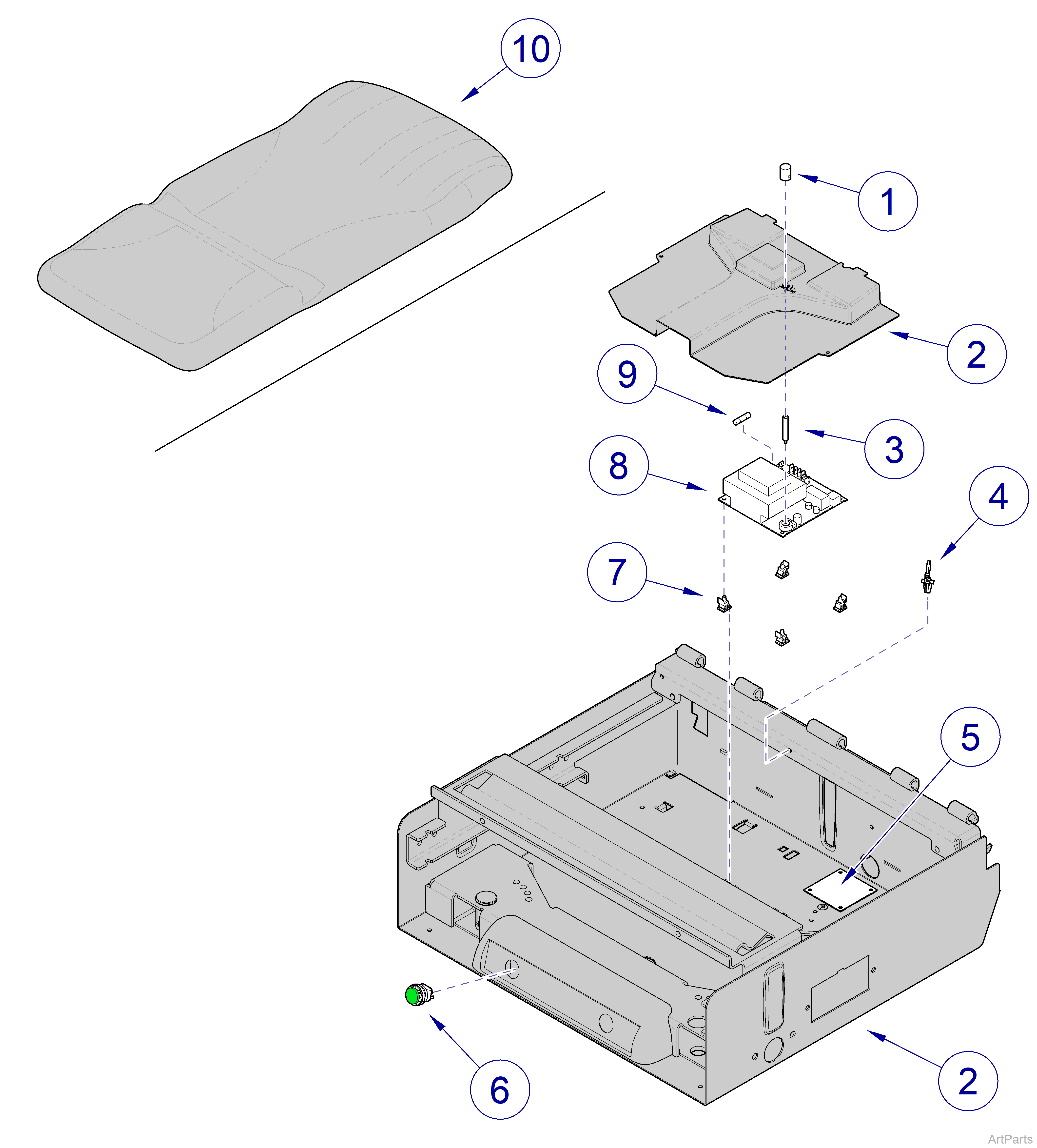

604 Table Upholstery Heater System
Serial Number Range: V2200 thru V857486
|
Model |
604-003 |
| Serial Number | V2200 thru V857486 |
| 604-003 Midmark Table Upholstery Heater System | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
016-0970-00 |
Adjustment Knob | NLA |
|
2 |
Refer to: | Midmark Upperwrap and Footrest Shelf | - |
|
3 |
053-1441-00 |
Adjustment Shaft | NLA |
|
4 |
015-1633-00 | Cable Tie | 3 |
|
5 |
Refer to: | Drawer Heater System | - |
|
6 |
015-1758-00 | Upholstery Heater Switch, green | 1 |
|
7 |
053-1664-00-000 | Standoff | 4 |
|
8 |
002-1261-00 | Uph. Heater PC Board Kit - includes items 2 and 9 | 1 |
|
9 |
015-0346-05 | Fuse, 250V, 0.5A, Slo-Blo, 1/4" x 1-1/4" | 2 |
|
10 |
Refer to: | Midmark Upholstery | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||

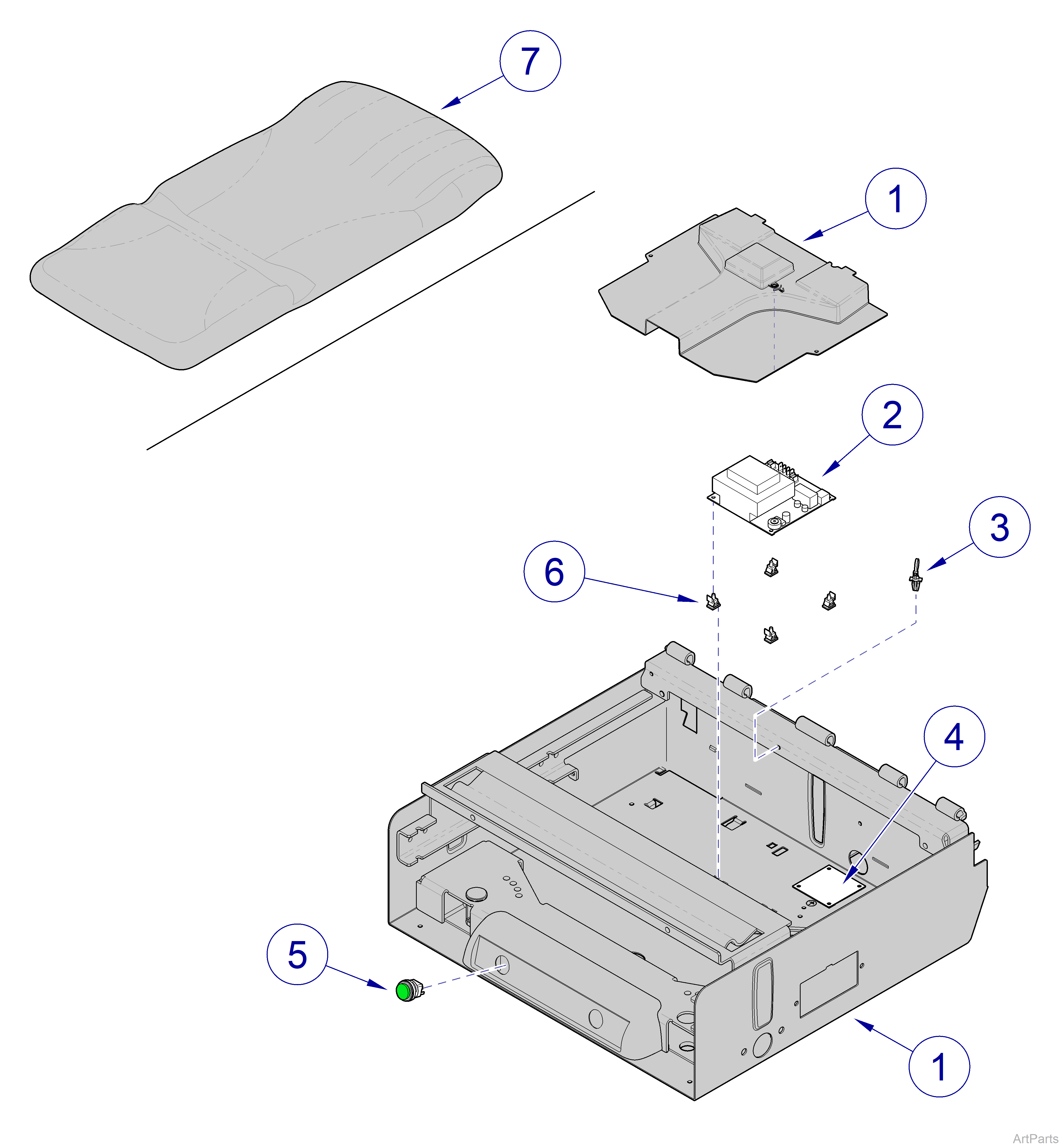

Serial Number Range: V857487 thru present
|
Model |
604-003 |
| Serial Number | V857487 thru present |
| 604-003 Midmark Table Upholstery Heater System | |||
|---|---|---|---|
| Item | Part Number | Description | Qty |
|
1 |
Refer to: | Midmark Upperwrap and Footrest Shelf | - |
|
2 |
015-1893-00 | Upholstery Heater PC Board | 1 |
|
3 |
015-1633-00 | Wrap-n-Tap Wire Tie | 3 |
|
4 |
Refer to: | Drawer Heater System | - |
|
5 |
015-1758-00 | Upholstery Heater Switch, green | 1 |
|
6 |
053-1664-00-000 | Standoff | 4 |
|
7 |
Refer to: | Midmark Upholstery | - |
|
NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number Always Specify Model and Serial Number |
|||
