604 Table Exam Assistant™ Drawer Assembly

Model

 604
Serial Number All

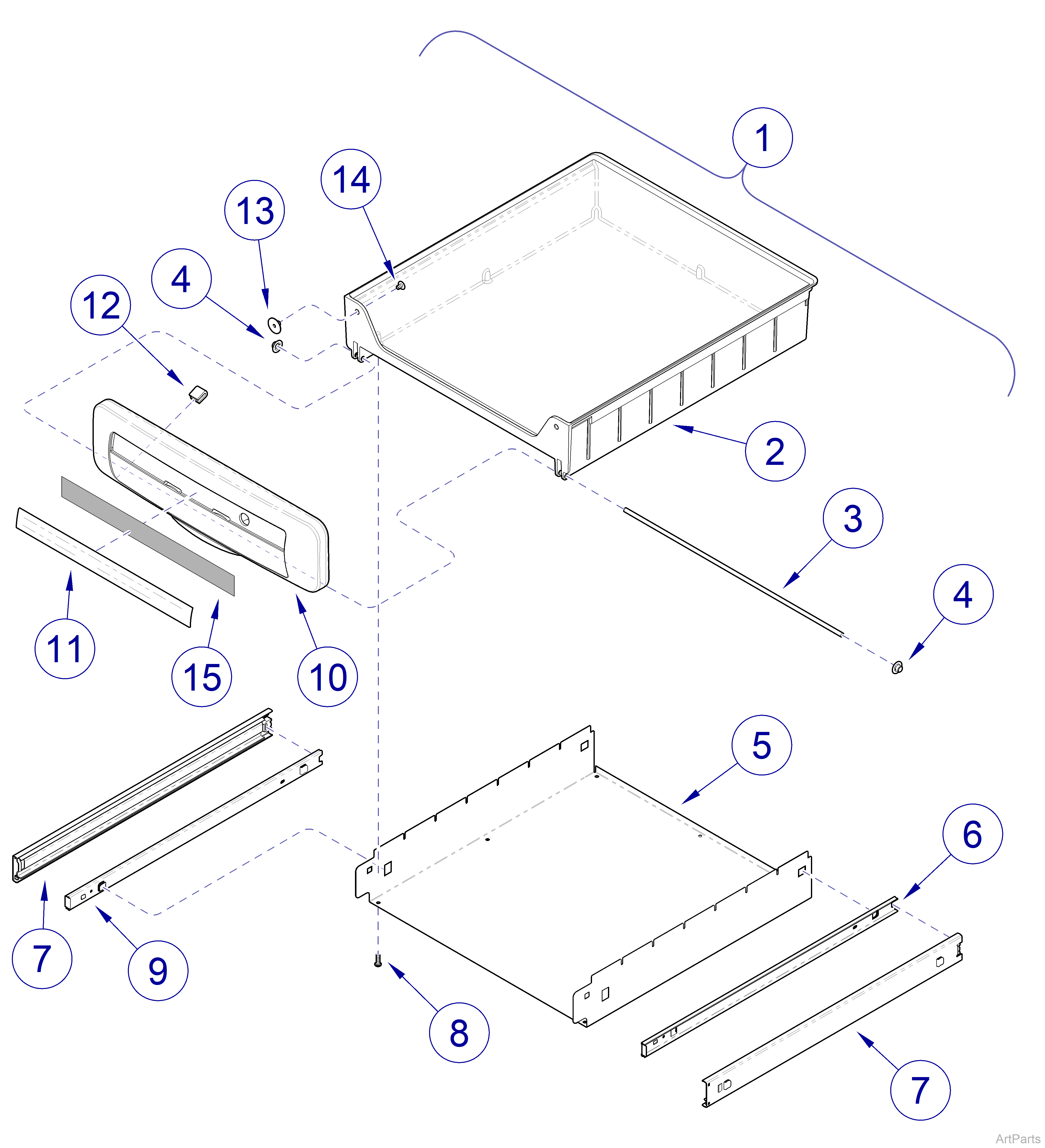

604 Midmark Table Exam Assistant Drawer Assembly

604 Table Midmark Table Exam Assistant™ Drawer Assembly
Item Part Number Description Qty

1

 029-3513-00-216 Exam Assistant™ Drawer Assembly - includes items 2 thru 14 1

2

 053-1536-00-216 Fold-Down Drawer 1

3

 051-1008-01 Pivot Rod 1

4

 041-0009-03 Push Nut 2

5

 050-6339-00-216 Drawer Mount 1

6

 016-1013-01 Inner Drawer Slide, right 1

7

 016-1013-00 Outer Drawer Slide 2

8

 042-0184-01 Screw M4 x 12mm 4

9

 016-1013-02 Inner Drawer Slide, left 1

10

 029-3514-00-216 Fold-Down Drawer Front 1

11

 053-1533-00 Insert Cover, clear 1

12

 016-0945-02 Edge Trim 2

13

 044-0013-50 Weld Nuts 2

14

 040-0008-106 Screw #8-32 x 1/4 2

15

 Refer to: Color Insert Upholstery - Midmark 1

NSS = Not Sold Separately | AR = As Required | NLA = No Longer Available | CFN = Call for Number

Always Specify Model and Serial Number
