625 Table Hand Control PC Board LED Test and Repair

Model

 625 -004
Serial Number All

625 Table Hand Control PC Board LED Test

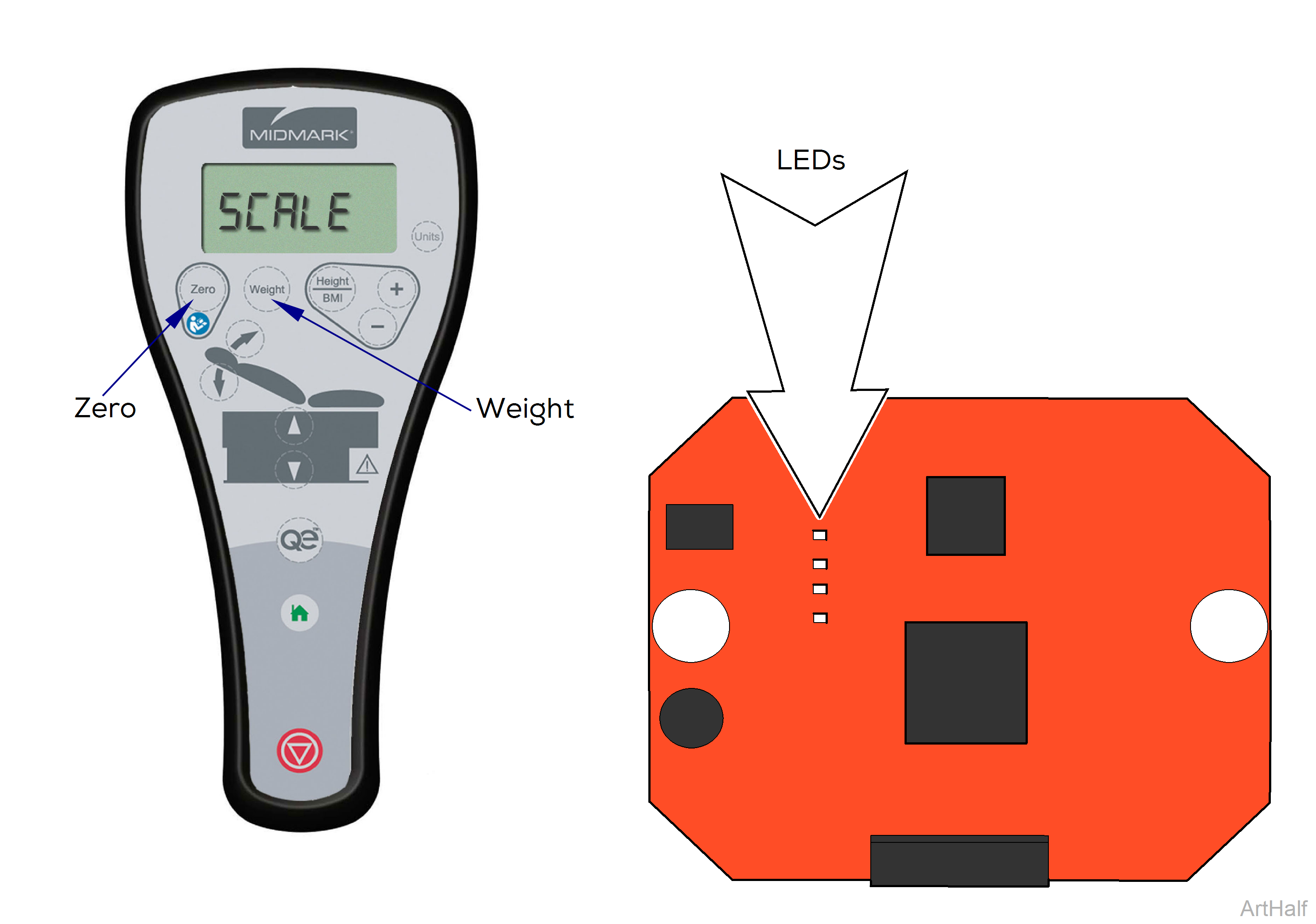

When Zero or Weight is pressed, the Hand Control transmits the request through the antenna to the Base Station. Hand Control D10 flashes green.

LEDs

Normal Status

Green Rectangle LED

D9 ON, green, during Hand Control power up

Green Rectangle LED

D10 ON, green, flashes when button on Hand Control is pressed

Green Rectangle LED

D11 ON, green, during Hand Control power up

ON, green, flashes when information is received from Base Station

White Rectangle LED

D12 Not Used
