625 Table LIN to Scale PC Board LED Test and Repair

Model

 625 -004
Serial Number All

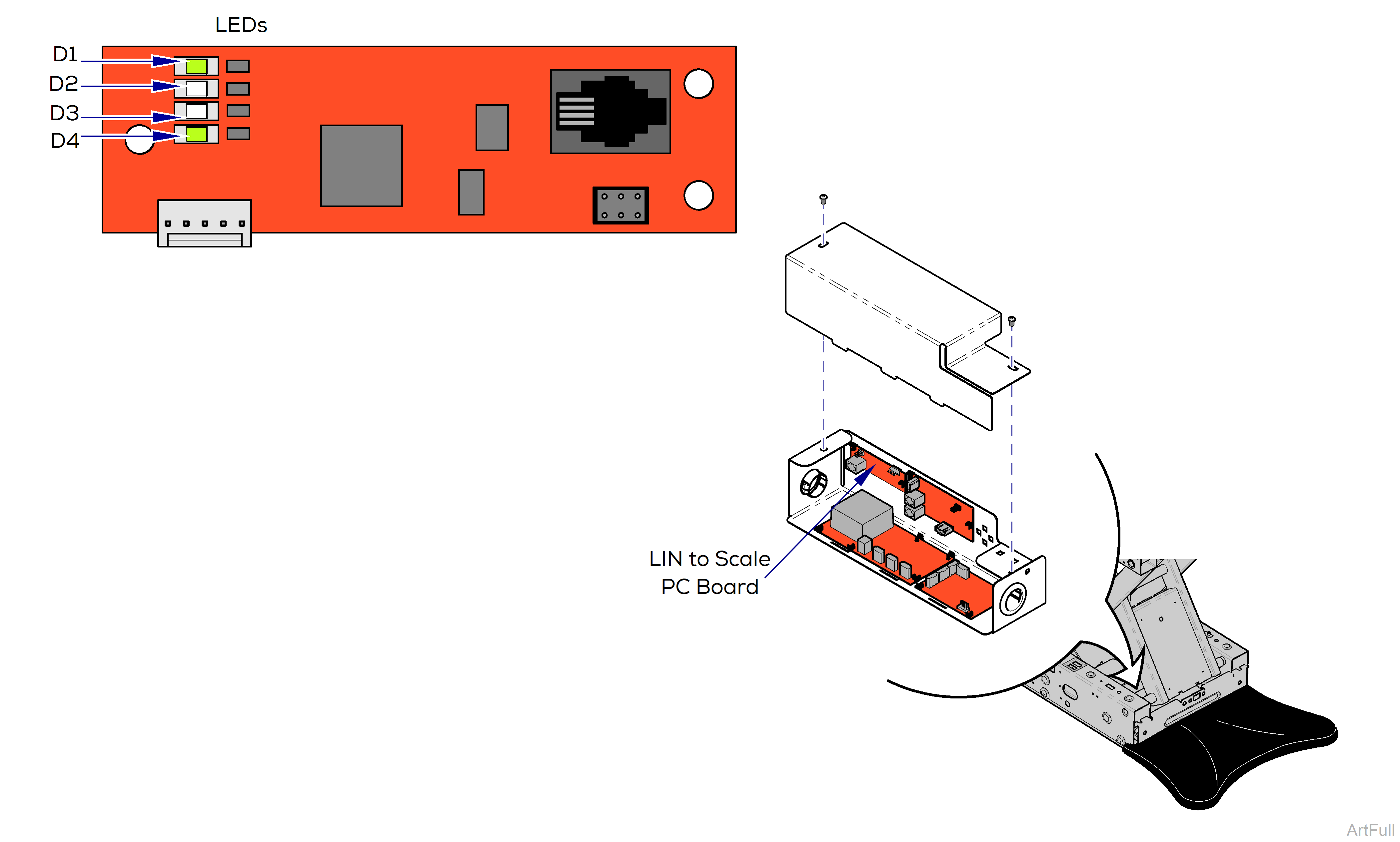

625 Table LIN to Scale PC Board LED Test

The LIN to Scale PC board request weight data from the Scale PC board.

The LIN to Scale PC board sends weight data to the Main PC board through the 625 to USB PC board.

LEDs

Normal Status

Green Rectangle LED

D1 ON, green, flashes when board has power

White Rectangle LED

D2 Not Used

White Rectangle LED

D3 Not Used

Green Rectangle LED

D4 ON, green, communicating, always on
