625 Table Main PC Board LED Test and Repair

Model

 625 -004
Serial Number All

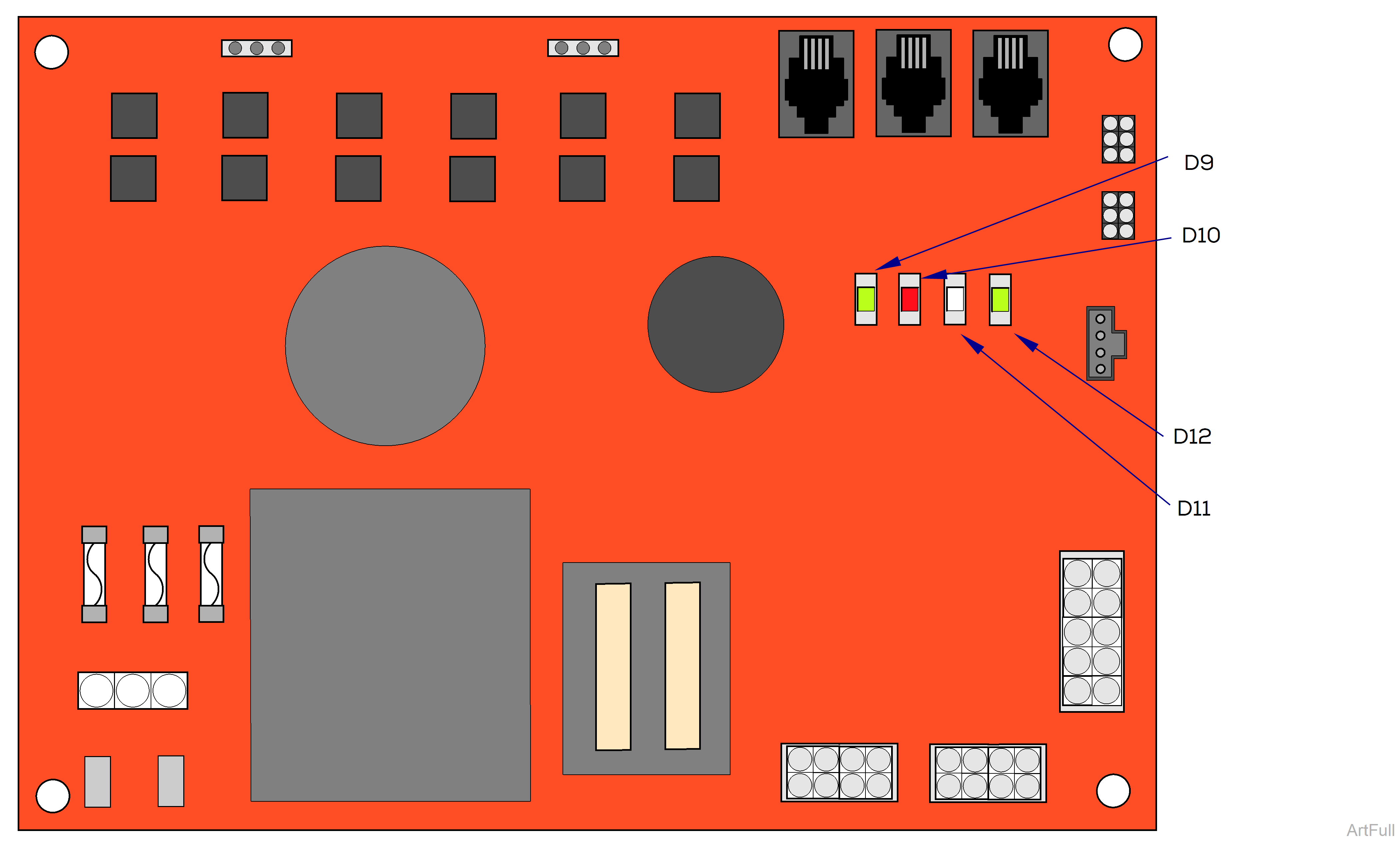

625 Table Main PC Board LED Test

The Main PC board forwards request to the LIN to Scale PC board through the 625 to USB PC board.

The Main PC board sends weight data to the Wireless Base Station PC board through the LIN to VMS PC board.

LEDs

Normal Status

Green Rectangle LED

D9 ON, green, flashes while any button is pressed. With Wireless Control only.

Red Rectangle LED

D10 ON, red, when “Zero” is pressed. Remains ON until another button is pressed.

White Rectangle LED

D11 Not Used

Green Rectangle LED

D12 ON, green, when board has power.
