625 Table Power to the 230V Table Troubleshooting

Model

 625 -005 and -006
Serial Number All

625 Table Power to the 230 VAC

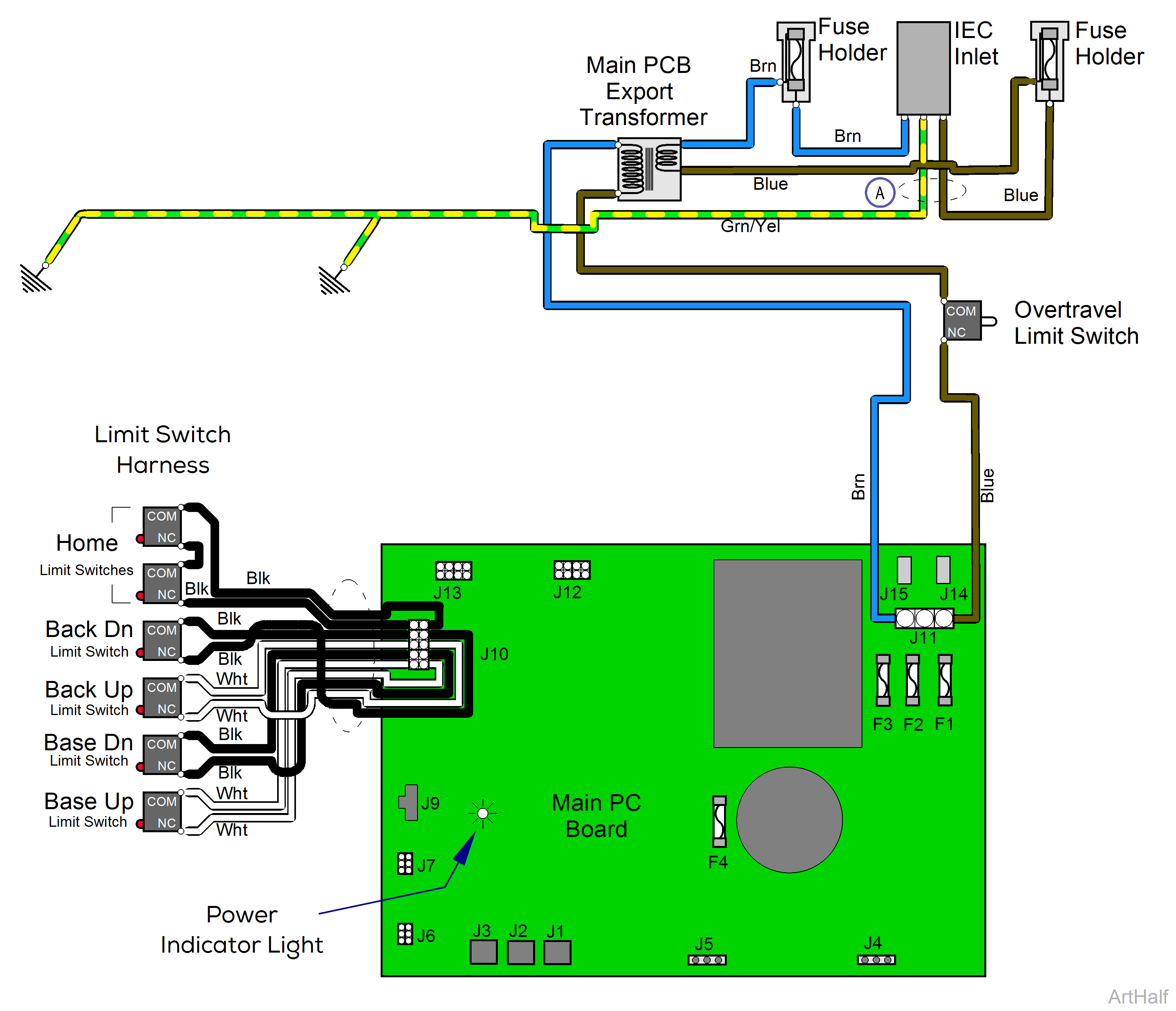

This illustration shows only the components that affect all table functions. A detailed description of current flow also appears below.

Limit Switch Harness

•Base / Back functions will not operate if harness connection is loose.

Power Indicator Light

•If light is OFF, there is no power to PC board.

•If light is ON, proper voltage is present at PC board.

Facility Supply Voltage

With the table’s power cord properly connected, facility supply voltage (230 VAC) is supplied thru the two power cord inlet fuses to the export transformer.

Export Transformer

The export transformer reduces the line voltage and supplies 120V to the main PC board.

Overtravel Limit Switch - Later models only

Disrupts power to main PC board if table is over extended.

Main PC Board

When proper voltage is supplied to the PC board, the power indicator light on PC board is illuminated. Circuitry on the PC board provides the required voltage to power all of the table’s components: actuators, hand / foot controls, limit switches, etc.

Fuses

The fuses on the PC board provide the following protection:

F1: Protects PC board (supply voltage).

F2: Protects PC board (supply voltage).

F3: Protects PC board transformer.

F4: Protects Base and Back motors.
